Renault Master 360 Camera Installation Review

Fixing Distorted Surround View Camera on Renault Master Campervans

Many Renault Master campervan owners have encountered a frustrating issue: a distorted or warped surround view camera display, especially when integrated with an Android all-in-one unit. This often stems from an incomplete or improperly performed 'empty load calibration' (also known as empty load correction or recalibration) by the initial installer. This critical step ensures the 360-degree bird's-eye view accurately reflects the vehicle's surroundings. Without it, judging distances becomes difficult, posing a significant safety risk during parking and maneuvering, particularly for larger vehicles like campervans with wide turning radii.

The Importance of Accurate Surround View Camera Calibration

A surround view camera system, utilizing four cameras to create a seamless bird's-eye view, is invaluable for parking and navigating tight spaces. However, its effectiveness hinges entirely on precise calibration. This process aligns the camera feeds to accurately represent the vehicle's dimensions and the surrounding environment. When calibration is flawed, the displayed image can appear wavy, or objects may seem closer or farther than they actually are. The original context highlights a case where a Renault Master owner experienced these issues due to inadequate calibration, leading to considerable inconvenience and potential danger. For campervan owners, where spatial awareness is paramount, a correctly calibrated around view monitor is not just a convenience but a necessity for safe operation.

Recalibrating Your Renault Master's 360 Camera System

Addressing a distorted surround view camera on a Renault Master, especially a campervan conversion, requires a specialized recalibration process. This is not a standard DIY task and typically involves professional expertise. The process, as detailed in the original Korean context, focuses on correcting the 'empty load calibration' that was likely missed or done incorrectly initially. This involves setting up specific calibration panels around the vehicle to act as reference points for the cameras. Using specialized equipment connected to the Android all-in-one unit, technicians meticulously adjust each camera's angle and the stitching of the four images. The goal is to achieve a perfectly seamless and accurate representation of the vehicle's 360-degree view. After the adjustments, a thorough test is conducted to ensure all cameras display correctly and that distance perception is accurate, especially when engaging reverse gear.

Installation Process:

1. Initial Diagnosis: A thorough inspection of the existing surround view camera system is performed to identify the extent of screen distortion and camera angle inaccuracies.
2. Calibration Setup: Special calibration panels are precisely positioned around the vehicle to create an environment that mimics real-world driving conditions for accurate camera readings.
3. System Recalibration: Using professional tools connected to the Android all-in-one unit, the software is used to execute the empty load calibration, fine-tuning each camera's input and image stitching.

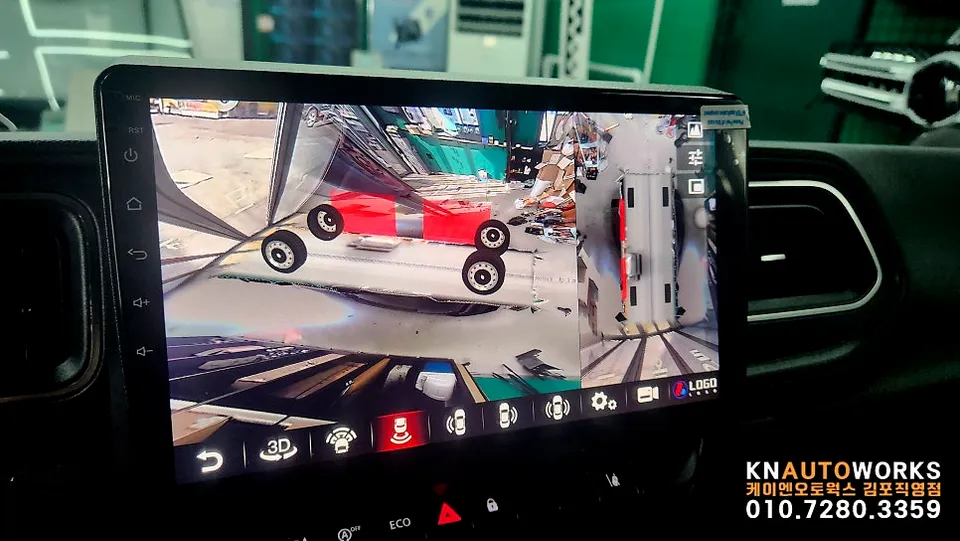

4. Final Verification: The system is tested to confirm seamless camera integration, accurate object distance representation, and correct display of the bird's-eye view during parking maneuvers.

The cost for this specialized recalibration service in Korea typically starts around 500,000 KRW (approximately $370 USD, though exchange rates vary). The process usually takes about 3-4 hours and can often be completed within a single day. While this specific case involved a Renault Master campervan in Korea, the principles of surround view camera calibration apply universally. For those in the US or UK, expect aftermarket parking camera retrofit costs to range from $400 to $800 or more, depending on the complexity and the specific system installed. Durability of these systems is generally good, but regular cleaning of the camera lenses is recommended for optimal performance. Maintenance primarily involves ensuring the cameras remain unobstructed and free from dirt or damage.
