Jeep Wrangler Rubicon Enhanced with 3D Surround View Camera System
Blind spots are a significant safety concern for any driver, especially in tight urban environments or cramped parking garages. For the rugged Jeep Wrangler Rubicon, overcoming these visibility challenges is crucial. This review details the installation of a 3D Plus View Surround View Camera system, integrated with a FineDrive IQ7S navigation unit, to provide a comprehensive 360-degree view and advanced obstacle detection.
Camera Placement and Calibration for Optimal Coverage
Achieving a seamless 360-degree view requires precise placement and calibration of four cameras: front, rear, left, and right. Incorrect positioning can lead to persistent blind spots. The front camera, in particular, needs to be mounted as high as possible to maximize its wide-angle field of view. For the Wrangler Rubicon, this involved custom fabrication of the front grille to securely house the camera. The rear camera was installed on the rear bumper, while the side cameras were integrated into the vehicle's side mirror covers after precise drilling. The accuracy of each camera's angle and height is paramount, as it directly impacts the quality of the 'top-down' or bird's-eye view synthesis.
Front Camera Installation: Grille Customization

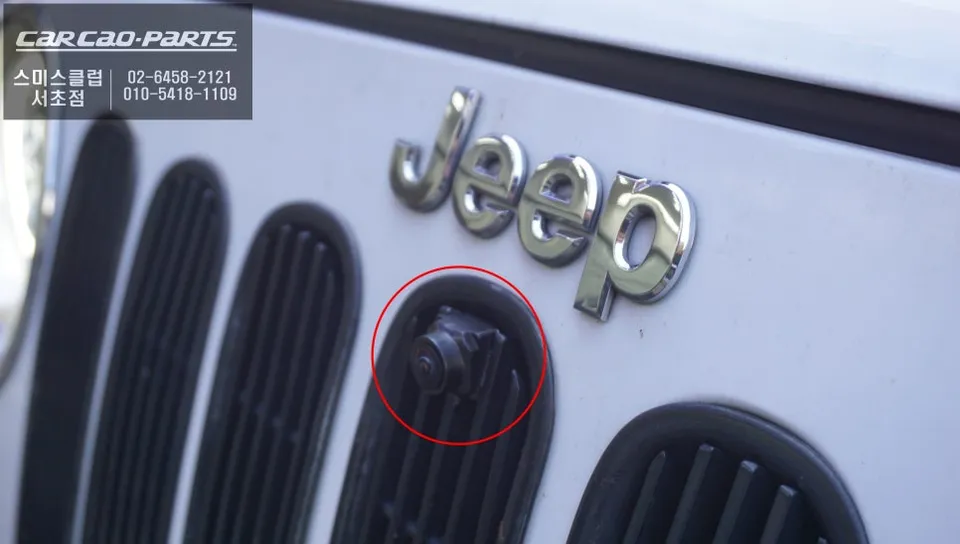

The front camera installation is a critical step. Insufficient height can cause the system to miss obstacles directly in front of the vehicle. To address this, the original front grille of the Wrangler Rubicon was meticulously modified. This process ensured the camera was positioned optimally without compromising the grille's structural integrity. The front camera requires a field of view of at least 170 degrees to effectively monitor not only what's directly ahead but also the areas up to 45 degrees to the left and right. After fabrication, thorough waterproofing was applied to the camera housing, essential for protecting the electronics from moisture and the elements.
Rear and Side Camera Integration for Full Surround View

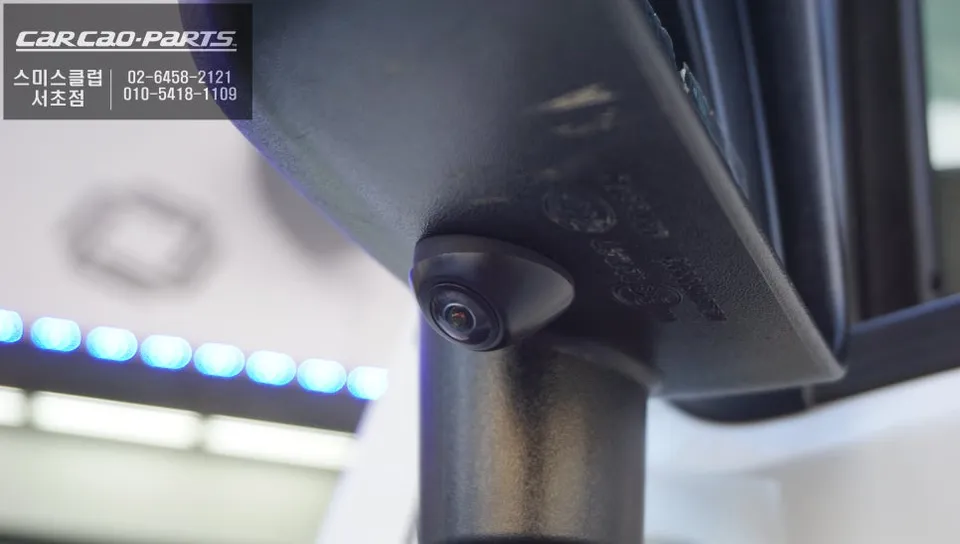

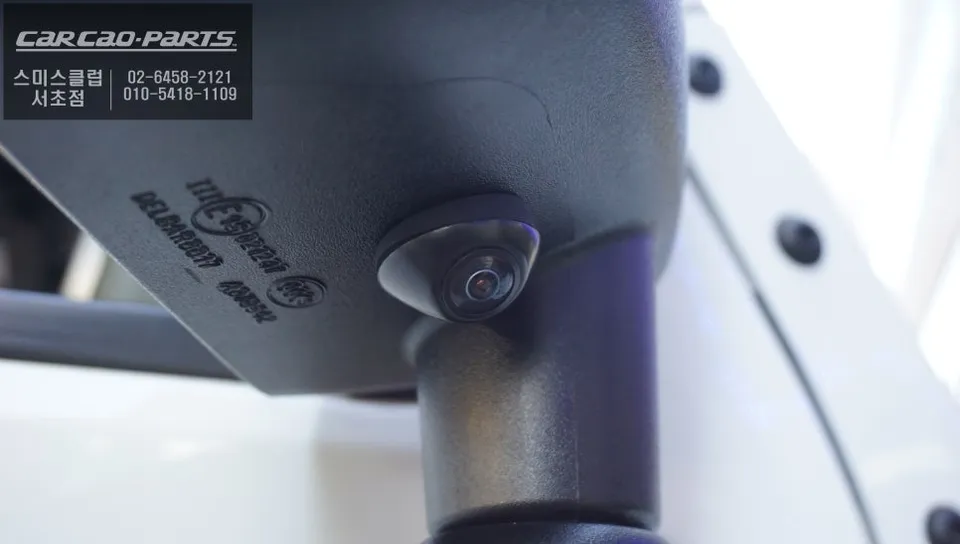

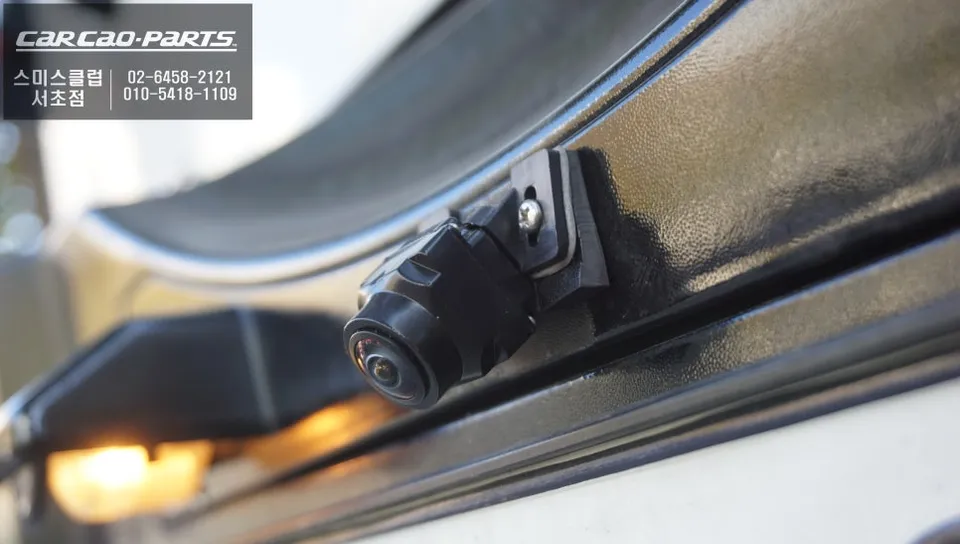

The rear camera is mounted beneath the rear bumper, providing crucial visibility for reversing. Side cameras are positioned at the outer edges of the rear bumper, covering the vehicle's left and right flanks. A key feature is the integration with the turn signals: activating the right turn signal automatically displays the right-side camera feed, and the left turn signal shows the left-side camera feed. Secure mounting of the side cameras involves precisely drilling the original mirror covers and fastening the cameras with screws to prevent movement due to vibrations. The synchronized signal output from all four cameras enables the 3D Plus View system's signature top-down view synthesis.
3D Plus View System Features: Multi-Output and Performance
The 3D Plus View is an advanced surround view system supporting multiple video outputs, including CVBS (analog), AHD (digital high-definition), and HDMI (high refresh rate). For this Wrangler Rubicon installation, the system was configured to output via CVBS to ensure seamless compatibility with the FineDrive IQ7S navigation unit, allowing the surround view to display directly on the navigation screen. The system boasts impressive video processing capabilities, correcting distortion and synthesizing the top-down view in under 100 milliseconds (0.1 seconds), providing a near real-time, fluid visual experience. Additionally, the 4-channel recording function allows the system to double as a dashcam.
FineDrive IQ7S Navigation Integration

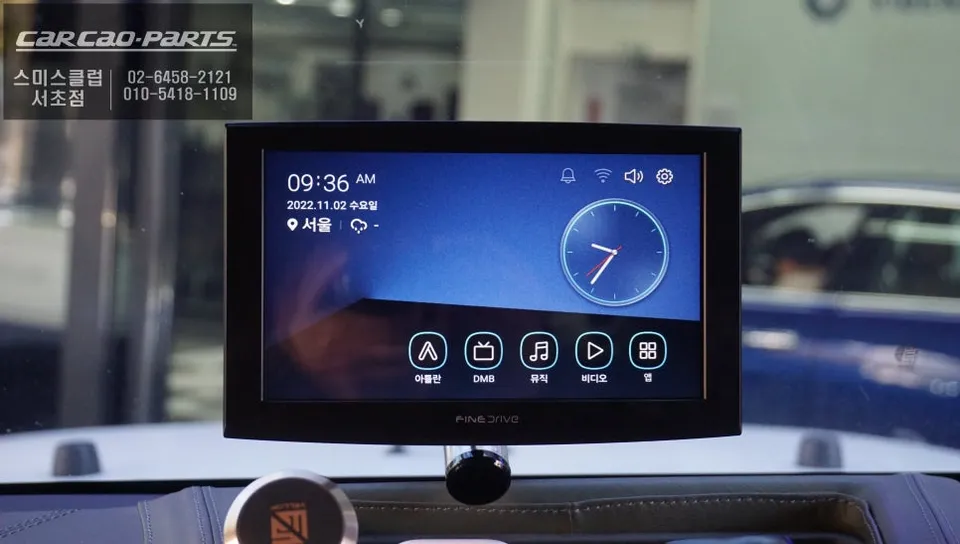

The FineDrive IQ7S navigation unit features a 7-inch high-definition display, providing a clear and vibrant interface for the surround view system. When the vehicle is in reverse or a turn signal is activated, the navigation screen automatically switches to display the relevant camera feeds, enhancing driver awareness without requiring manual input. This integration makes the surround view system an intuitive and essential driving aid for the Jeep Wrangler Rubicon.
