Mercedes-Benz C200 Surround View Camera Upgrade Review

Upgrading Your Mercedes-Benz C200's Parking System

This review details the process of upgrading an older parking camera system on a Mercedes-Benz C200 to a modern, high-definition 3D Surround View Camera. The primary goal was to integrate the latest technology while maintaining the vehicle's original aesthetic. The new system boasts 4-channel recording, 720P high-definition output, and crucial Parking Assist System (PAS) integration, which synchronizes parking lines with the steering wheel's angle.

Seamless Installation for a Factory Look

The installation began with the careful removal of the existing omni-view camera system, which included front, rear, and side cameras. Each component was meticulously detached, and the existing wiring and mounting points were assessed to ensure compatibility with the new system. Documenting the original wiring configuration was essential, especially since a Mercedes-specific interface is required for proper integration.

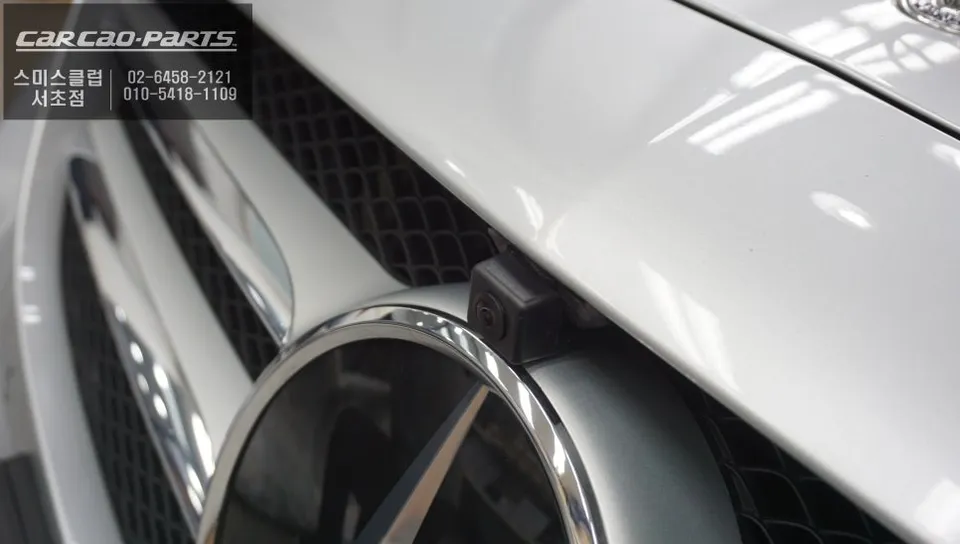

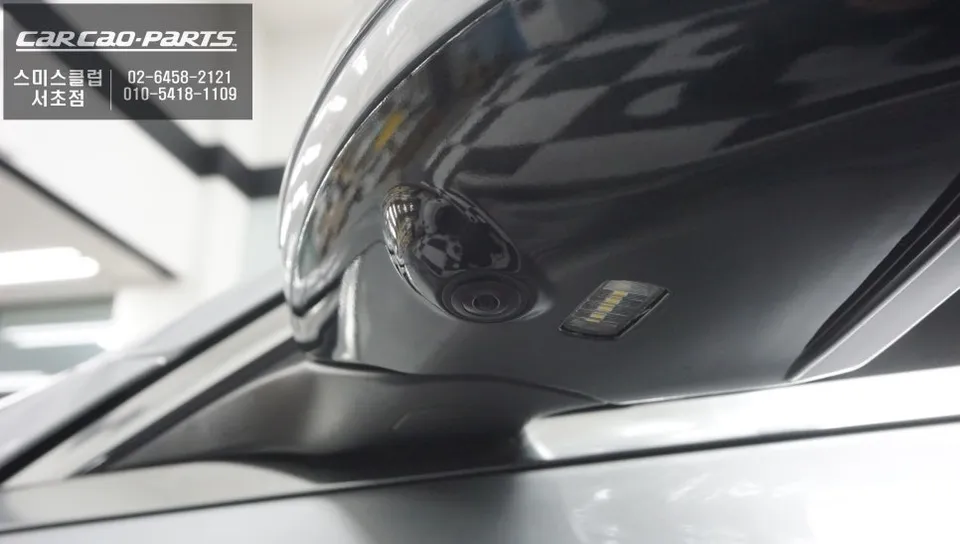

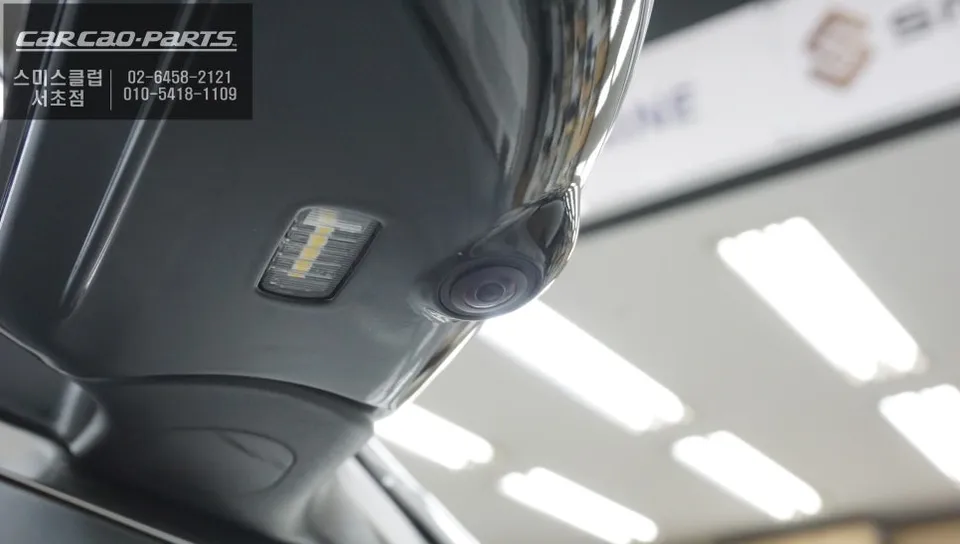

A critical aspect of this upgrade is the installation of the camera mounts without any drilling or permanent modification to the vehicle's exterior. Using custom-designed mounts ensures that the cameras are positioned at the precise angles needed for an accurate 360-degree view, particularly for the side cameras where even slight misalignment can distort the overall image. The front, rear, and side cameras were mounted and adjusted to millimeter accuracy, ensuring a clean, integrated look, as seen with the discreet front grille camera.

High-Definition Clarity and Smart Integration

The new 3D Surround View system significantly enhances visibility with its 720P resolution. Unlike older, lower-resolution systems where distant objects could appear blurry, this upgrade provides sharp, clear images, improving depth perception and object recognition. The system integrates flawlessly with the Mercedes-Benz C200's original infotainment screen via a dedicated interface. Utilizing UART communication, it receives real-time vehicle data, including steering angle and gear selection, enabling true system synchronization where the display dynamically responds to the car's movements.

Intelligent Parking Assist (PAS) Functionality

The standout feature is the PAS integration. As the driver turns the steering wheel, the dynamic parking lines on the monitor adjust accordingly, projecting the vehicle's intended path. This is invaluable for navigating tight spaces, alleyways, or parking lots, especially in a sedan like the C200 where judging side clearance can be challenging. The final stage of the installation involves meticulous calibration. This includes compensating for any slight variations (runout) in the camera positions and ensuring the display lines from all four cameras meet perfectly at the edges for a seamless 360-degree view.

The system also features automatic switching based on the gear selection (Reverse and Drive) and is controlled via a wireless jog dial, offering convenient operation.
