Mercedes-Benz E-Class Surround View Camera Installation Review

Why Your Mercedes-Benz E-Class W213 Needs a Surround View Camera

Navigating tight city streets or crowded parking lots can be a challenge, especially in a vehicle like the Mercedes-Benz E-Class W213, known for its longer wheelbase and wider stance. The front grille and rear bumper areas can present significant blind spots, increasing the risk of minor collisions. This review details a genuine Mercedes-Benz OEM Surround View Camera system installation performed by Today's Car Seoul, offering a solution to these common parking anxieties.

Upgrading to a genuine 360-degree Surround View system provides an unparalleled bird's-eye perspective of your vehicle's surroundings. This significantly enhances safety during low-speed maneuvers. Crucially, OEM systems integrate seamlessly with the car's existing infotainment display, ensuring smooth screen transitions and superior image quality compared to aftermarket alternatives, delivering a truly premium user experience.

Genuine Mercedes-Benz Parts Make the Difference

The integrity of an OEM Surround View system begins with its components. Each part in the genuine Mercedes-Benz kit is clearly marked with part numbers and barcodes, verifying its authenticity and compatibility with the specific E-Class W213 model and year. This ensures a perfect fit and function.

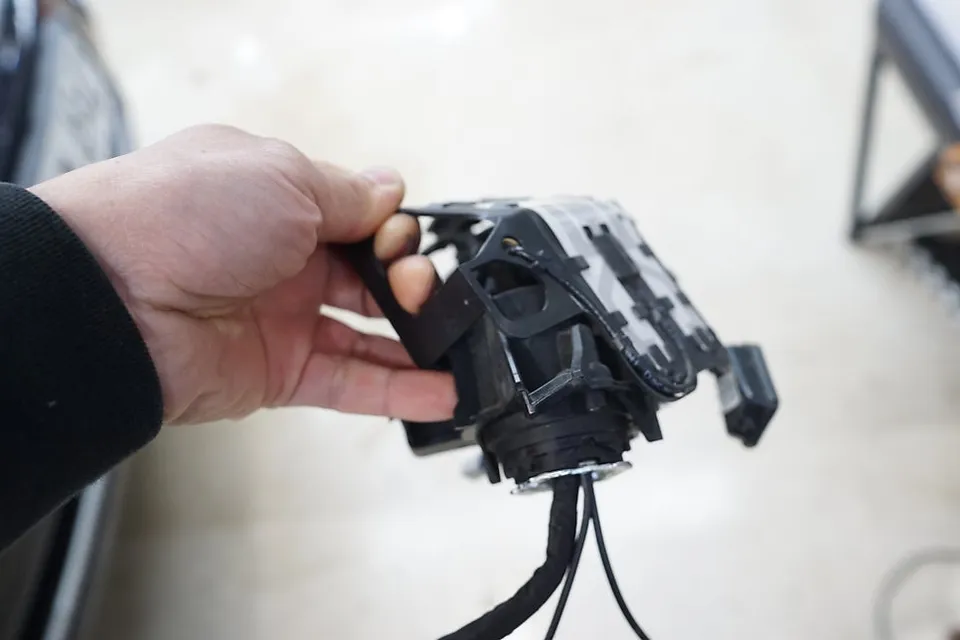

The cameras integrated into the side mirror housings feature ultra-wide-angle lenses (over 180 degrees) to effectively eliminate left and right blind spots. These cameras are designed with waterproof and dustproof capabilities, guaranteeing clear visibility even in adverse weather conditions.

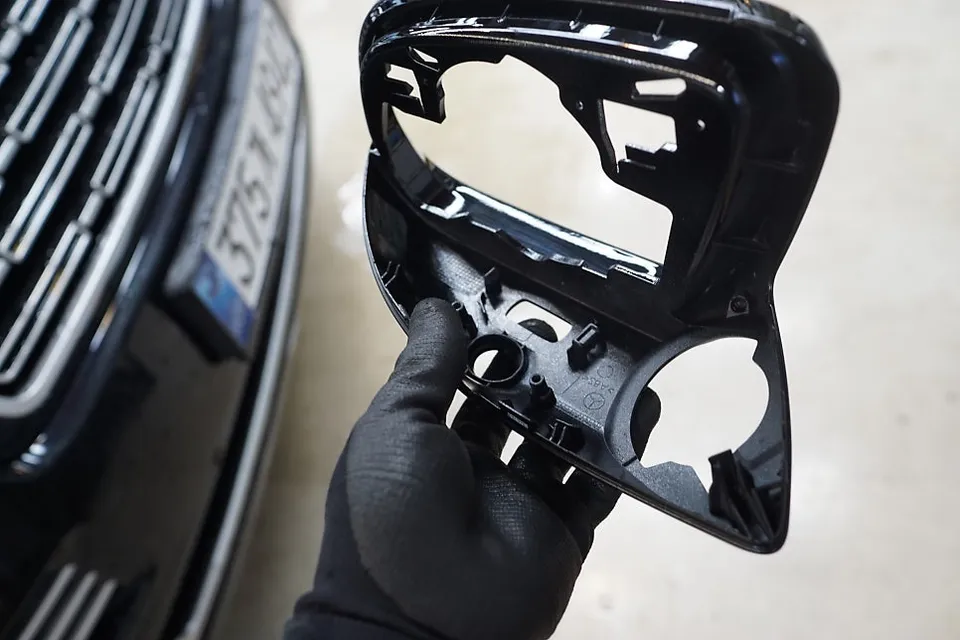

Even the side mirror covers are painted to match the vehicle's body color precisely. They are engineered with dedicated cutouts for the camera lenses, maintaining the car's original aesthetic without compromising the camera's field of view. This attention to detail is a hallmark of genuine parts.

At the heart of the system is the control module, responsible for processing and stitching together the video feeds from all four cameras into a cohesive 360-degree image displayed on the car's monitor. Its authenticity is confirmed by its part number and QR code label.

Specialized wiring harnesses connect the cameras to the control module. Unlike standard wiring, these harnesses are constructed with materials that minimize electromagnetic interference, contributing to the long-term stability and reliability of the system.

The Surround View Camera Installation Process

Installation begins with carefully disassembling interior panels to access the location for the new control module, typically in the trunk area. Simultaneously, the driver and passenger door trims are removed to allow for the routing of the camera wiring harnesses.

The existing control module is replaced with the new Surround View unit. Cameras are then meticulously installed in the front grille, and within the side mirror assemblies. Existing rear cameras may be retained depending on the specific vehicle configuration. All wiring is routed discreetly for a clean, factory-like finish.

A critical step involves connecting the camera signal wires to the control module. Precise color-coding and port matching are essential to prevent system malfunctions and ensure proper operation.

Wiring harnesses are routed through the vehicle's existing pathways, such as the corrugated conduits within the doors. This professional method prevents wire damage and ensures long-term durability, unlike installations that might involve drilling new holes.

Following the hardware installation, the system requires coding using Mercedes-Benz diagnostic equipment. This process integrates the new Surround View module with the vehicle's Electronic Control Unit (ECU), enabling seamless communication and full functionality. Proper coding is vital for the system to operate correctly.

Once coding is complete, the system is tested. The 360-degree view activates automatically when the vehicle is put into reverse or when parking assist is engaged, displaying a clear, comprehensive image on the central infotainment screen. This upgrade significantly boosts driver confidence and parking precision.
