Audi Q3 360 Camera Install Review — Blind Spot Safety
360 camera system on Audi Q3: ~₩2.5M-3.2M installed. Real-time 4-view monitoring prevents collision incidents during parking.
Audi Q3 3D Around View Monitor: Enhancing Parking Safety
Ever felt a pang of anxiety when parking your car, worried about the blind spots around your vehicle? Today, we're sharing a real-world review of a 3D Around View system installed in an Audi Q3, seamlessly integrated with the original factory monitor. This advanced system provides drivers with a real-time, 360-degree view of obstacles that are normally hidden from sight, significantly reducing the risk of collisions. This installation was performed by a certified technician from Today's Car, a trusted provider of quality automotive services. Let's dive into the details of this upgrade.
Pre-Installation Assessment and Preparation
The Audi Q3 in question was initially equipped only with a standard rear-view camera. While many modern imported cars come with a suite of safety features, integrated 360-degree around view systems, including front and side cameras, are often reserved for higher trim levels. Before commencing the installation, the expert team at Today's Car's Seocho branch conducted a thorough inspection of the vehicle. This crucial preliminary step involves verifying the specifications of the existing monitor, assessing the condition of the vehicle's electrical wiring, and identifying optimal camera mounting locations. This detailed assessment dictates the complexity of the installation and helps in formulating the best strategy for a seamless integration.
A key advantage of the Audi Q3 is its factory mounting structure, which typically allows for installation without significant modifications to the bonnet or bumper. This is often referred to as a "no-drill" or "non-invasive" installation method. This approach is highly valued as it maximizes compatibility with original parts and preserves the vehicle's aesthetic integrity. Technicians meticulously mark the mounting points and confirm the planned routing of wiring harnesses before proceeding with the actual installation.
Camera Installation: Preserving Factory Aesthetics

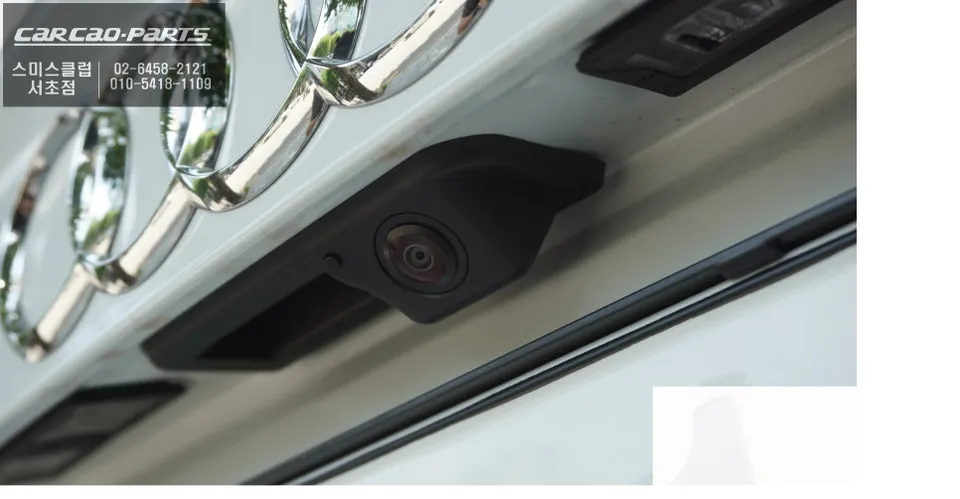

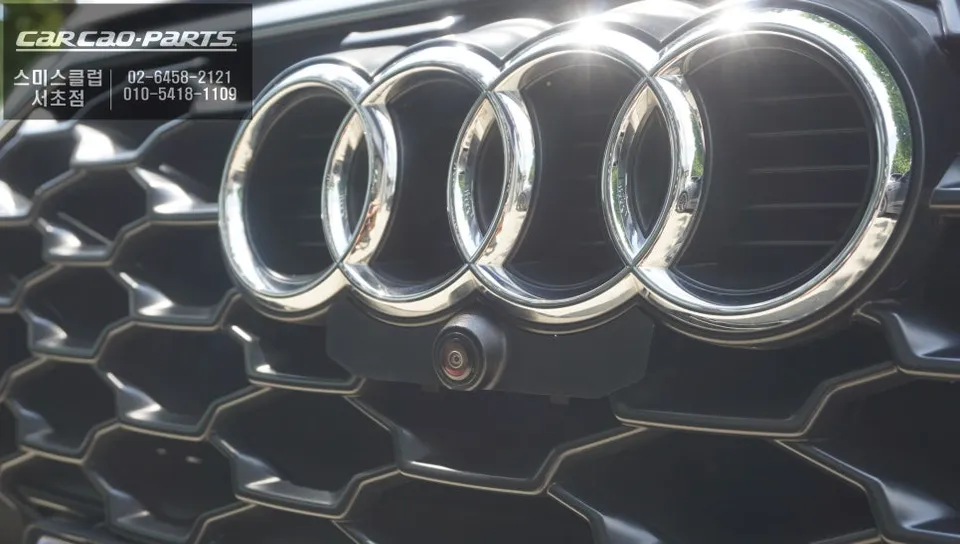

The 3D Around View system comprises four high-definition 1080P cameras: one front, one rear, and two side cameras. Each camera utilizes a sensor with a resolution of 2 megapixels or higher, ensuring clear video feed even in low-light conditions. For the Audi Q3, the existing rear camera was replaced with a higher-specification model. The installation process emphasizes a "1:1 factory replacement" approach, utilizing existing mounting holes and securing cameras with bolts and screws, eliminating the need for drilling or specialized tools. The front camera is typically discreetly mounted below the bumper. For the Q3, an adapter bracket compatible with the existing sensor mount was used, ensuring a factory-like appearance and simplifying future servicing. This adherence to original mounting points is a critical differentiator between professional installations and aftermarket modifications.

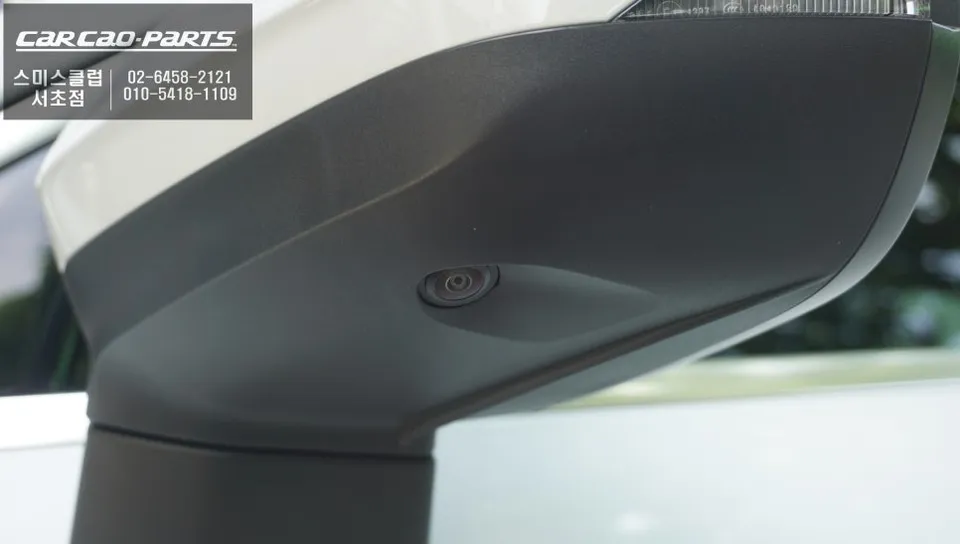

Side cameras are usually installed near the side mirrors or door handles. On the Audi Q3, the plastic covers in these areas are designed for easy removal, allowing technicians to mount the cameras and then reassemble the covers. Each camera is configured with a wide Field of View (FOV) of at least 140 degrees to minimize blind spots. Careful planning of cable routes is essential to ensure they are hidden from view after installation, maintaining a clean and integrated look.
Wiring and Integration: Seamless Operation
The core of integrating the Around View system with the Audi Q3's factory monitor lies in "UART communication." This serial communication protocol allows data to be exchanged with the vehicle's existing electronic systems without interference. It's not just about connecting power and signal wires; the system synchronizes with the car's CAN-BUS (Controller Area Network) data network. This synchronization ensures that the Around View system activates and deactivates precisely as a factory-installed feature would, providing a truly integrated user experience.
Wiring is performed using a "plug-and-play" method, connecting directly to existing harnesses to protect the vehicle's original wiring. Power is supplied via a dedicated fuse holder connected to the vehicle's battery. The signal wires are routed discreetly behind the dashboard, ensuring a clean and professional finish. This meticulous approach guarantees that the Around View system functions flawlessly and enhances the driving experience without compromising the vehicle's original systems.
Installation Process:
- Vehicle inspection and confirmation of monitor/wiring compatibility.
- Non-invasive mounting of front, rear, and side cameras using factory-compatible brackets.
- Careful routing and connection of all camera harnesses using plug-and-play methods.
- Integration with the vehicle's CAN-BUS via UART communication for seamless operation.
- System calibration and final testing to ensure optimal 360-degree view.

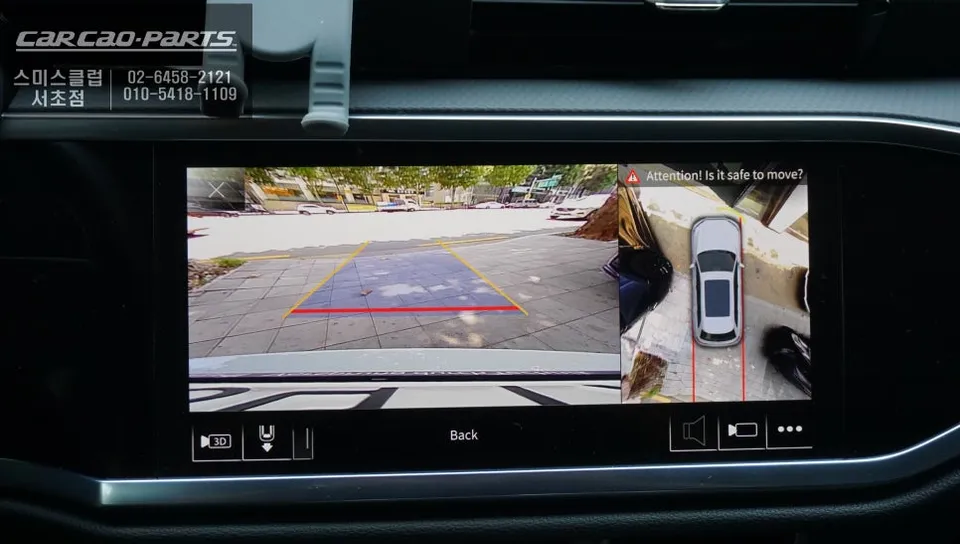

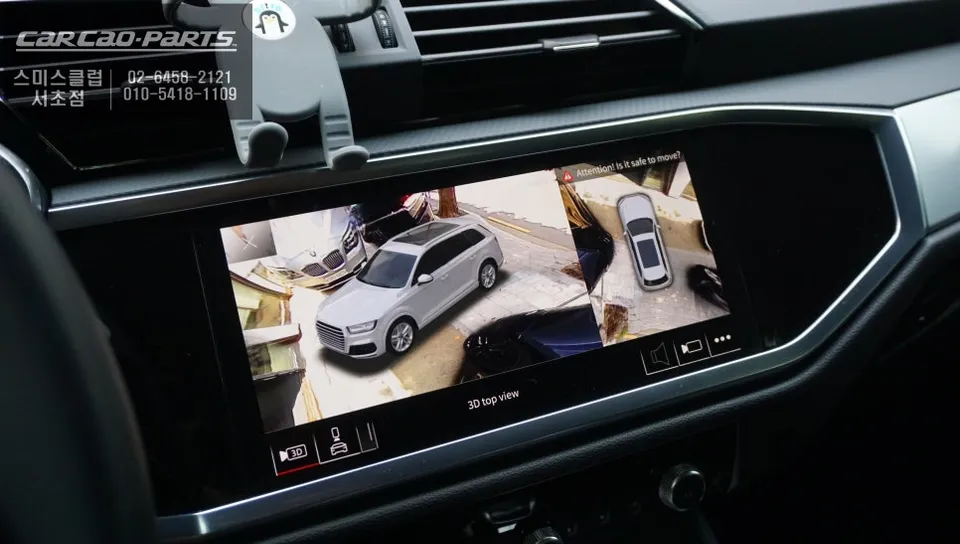

The result is a fully functional 3D Around View system that significantly enhances parking visibility and safety for the Audi Q3, appearing as if it were a factory-installed option.
Frequently Asked Questions
Q. How much does a 360 camera system cost for an Audi Q3?
This Audi Q3 installation ran approximately ₩2.5M-3.2M including 4 HD cameras, control module, and OEM monitor integration. In the US market, comparable around view systems typically range $1,500-$2,800 depending on camera quality and installer expertise.
Q. How long does an around view monitor system last on an Audi Q3?
Camera systems typically last 7-10 years with proper maintenance, as they're sealed against moisture and UV exposure. Regularly clean camera lenses monthly and inspect wiring harnesses during service intervals to prevent corrosion and electrical failures.
Q. Is a 360 camera system worth installing on an Audi Q3?
Yes, especially for Q3 owners lacking factory surround view—the four-camera setup eliminates dangerous blind spots that cause 25% of low-speed parking collisions. Most owners report eliminated parallel parking stress and measurably safer maneuvering in tight spaces within days of installation.
