Upgrade Your BMW E93 with Dynamic Parking Lines and Integrated PDC
Parking can be a challenge, especially in tight spaces. While modern cars often come with rearview cameras, the static parking lines displayed can be misleading. They don't account for your actual steering angle, making it difficult to accurately predict your vehicle's path. This is particularly true for premium vehicles like the BMW E93, where the factory-installed Parking Distance Control (PDC) sensors and Power Steering (PAS) system are finely tuned. Installing an incompatible camera can render these essential systems useless or cause malfunctions.
This installation focuses on integrating a rearview camera with dynamic parking lines that move with your steering wheel and seamlessly sync with the original PDC sensors on the BMW E93 convertible. This isn't a simple screen addition; it involves complex programming of an interface box to communicate with the car's CAN network, ensuring full compatibility with the vehicle's electronic systems. The result is a significantly enhanced parking experience, providing real-time guidance and safety.
Vehicle: BMW E93 Convertible
Service: Interface Box + Rearview Camera + PAS/PDC Integration

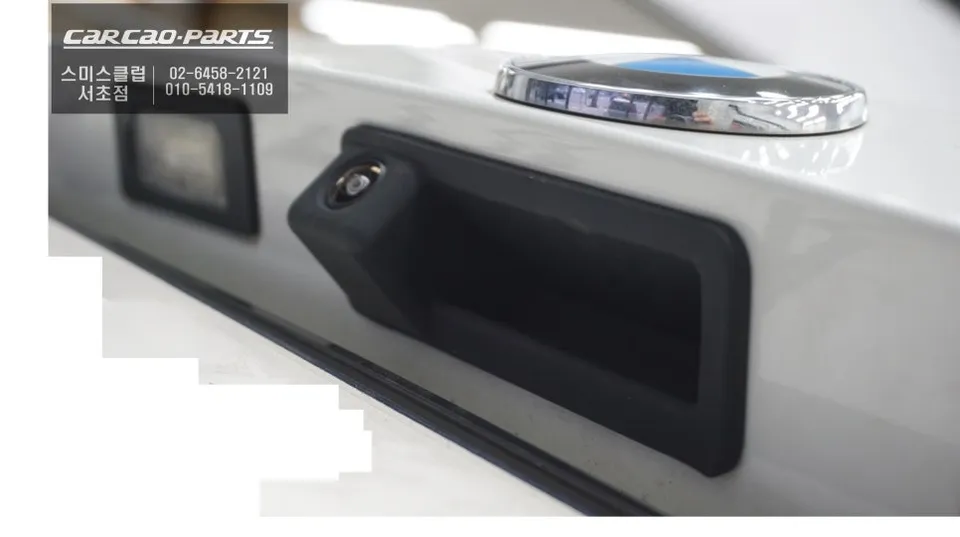

Camera Type: Trunk-integrated, no drilling required (OEM style)
Display: Original iDrive 8.8-inch monitor
Location: Today's Car Gangnam Branch
Why You Shouldn't Ignore Your BMW's Original Systems
The BMW E93, produced between 2006 and 2010, is equipped with sophisticated original systems, including PAS and ultrasonic PDC sensors. These systems are interconnected via the car's CAN bus network. When a non-integrated camera is installed, common issues arise. The most frequent problem is the parking lines remaining static, regardless of steering input. This can lead to misjudgment and potential collisions. Furthermore, you might experience simultaneous PDC beeps and camera display warnings, or even persistent dashboard error lights, indicating a system conflict.
The core of this upgrade lies in the precise programming of the interface box. It deciphers the vehicle's CAN signals, transmitting real-time steering angle data to the camera system. This enables the dynamic parking lines to accurately reflect the vehicle's intended trajectory.
Understanding Dynamic Parking Lines

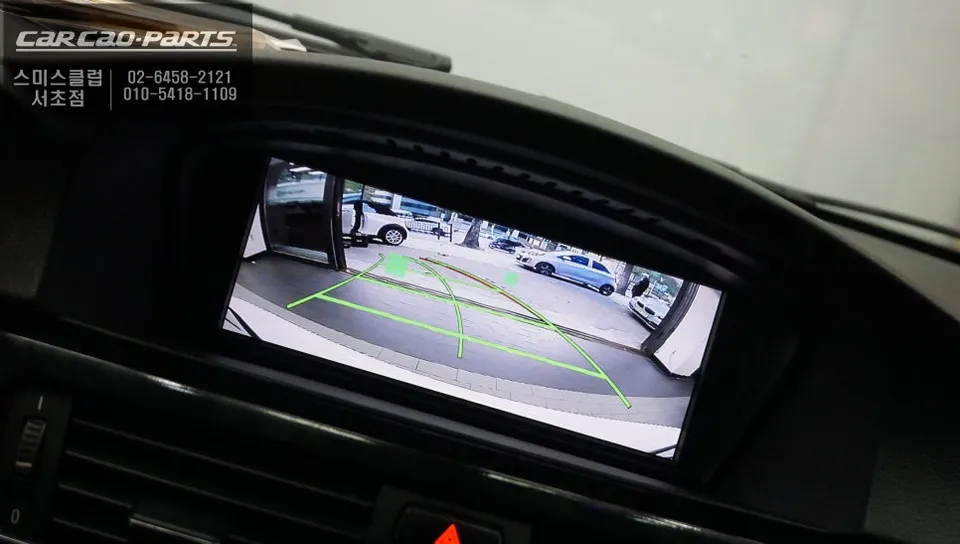

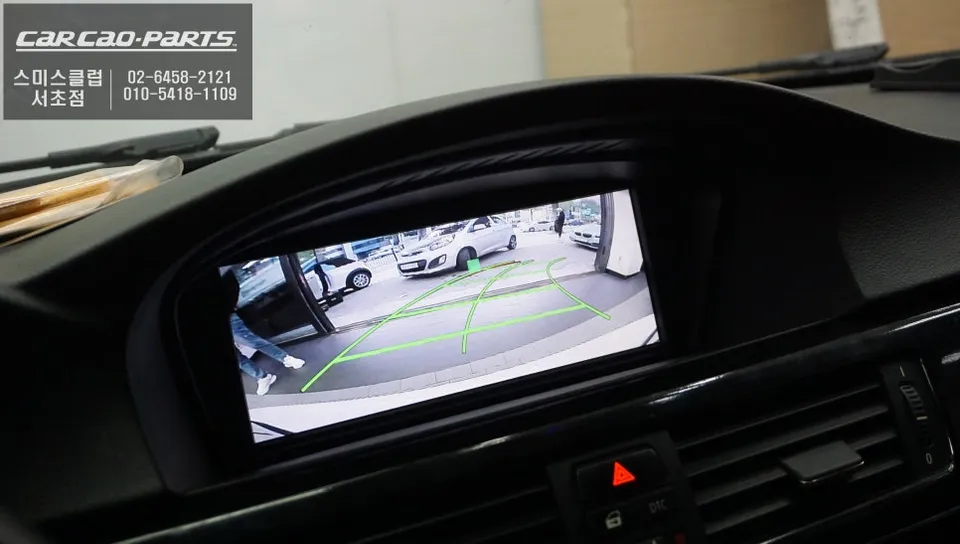

Dynamic parking lines provide a real-time visual guide of your vehicle's predicted path. The center line indicates the vehicle's midpoint, while the curved lines illustrate the trajectory of the wheels based on the current steering angle. Unlike static lines, dynamic lines offer a much clearer indication of where your car will go. For instance, when reversing and turning, dynamic lines will show the actual path the wheels will follow, allowing you to precisely gauge how far you can reverse without hitting obstacles. The accuracy of this information directly correlates with the effectiveness of collision prevention.
Seamless Integration with Original PDC
The BMW E93 features multiple ultrasonic PDC sensors embedded in the rear bumper. These sensors detect the distance to nearby objects and transmit this information to the car's ECU, which typically alerts the driver via audible warnings and dashboard indicators. This upgrade ensures that the distance information from these original PDC sensors is also displayed simultaneously on the rearview camera screen. This dual display provides comprehensive situational awareness, combining visual trajectory guidance with precise proximity alerts for a safer and more confident parking experience.
Installation Process:
- Connect the interface box to the vehicle's CAN bus and video input.
- Install the trunk-integrated rearview camera, ensuring a clean, factory-like finish.
- Program the interface box to interpret steering angle (PAS) and PDC signals.
- Test the dynamic lines and PDC integration on the iDrive monitor.
Frequently Asked Questions
Q. How much does a dynamic parking line and PDC integration upgrade cost for a BMW E93?
The cost for this specific dynamic parking line and PDC integration upgrade on a BMW E93 was not specified in the original Korean content. Typical installations of similar systems in the US can range from $400 to $1000, depending on the vehicle and specific components used.
Q. How long does a dynamic parking line and PDC integration installation take for a BMW E93?
This type of integrated system installation typically takes between 2 to 4 hours to complete. Proper calibration and testing are crucial for optimal performance, ensuring the dynamic lines and PDC sensors function accurately.
Q. Are dynamic parking lines and PDC integration worth adding to a BMW E93?
Yes, dynamic parking lines and PDC integration are highly recommended for BMW E93 owners, especially those who frequently park in tight spaces or want to maximize their vehicle's safety features. The enhanced visual guidance and seamless integration with existing sensors significantly reduce the risk of parking-related accidents and damage.
Q. How are dynamic parking lines and PDC integration installed on a BMW E93?
Installation involves connecting a specialized interface box to the vehicle's CAN bus and video system. A trunk-integrated camera is then installed, followed by programming the interface box to interpret steering angle and PDC sensor data. Finally, the system is tested on the original iDrive monitor to ensure accurate display of dynamic lines and sensor alerts.
Q. What is the difference between dynamic parking lines and static parking lines on a BMW E93?
Dynamic parking lines move with the steering wheel to show the vehicle's predicted path, while static lines remain fixed regardless of steering input. For a BMW E93, the dynamic system offers superior accuracy and safety by providing real-time guidance that reflects the actual trajectory of the car, making it the recommended option for enhanced parking assistance.
