BMW 5GT Air Suspension Upgrade Review

Diagnosing and Resolving BMW 5GT Rear Sag

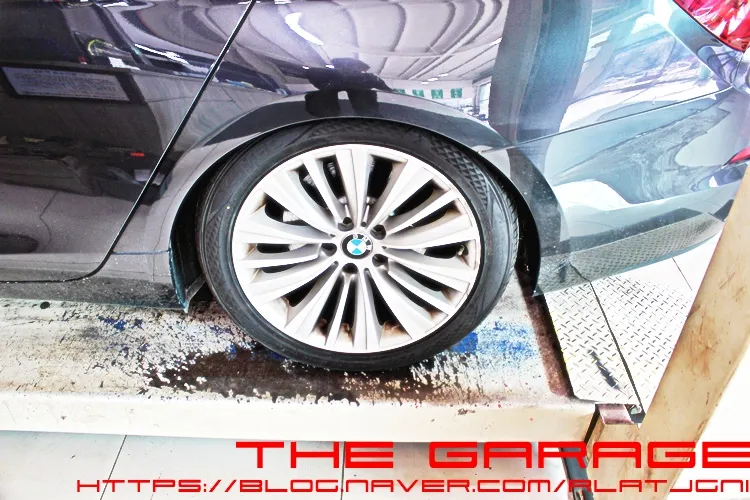

Owners of the BMW 5 Series GT experiencing rear-end sag, particularly on one side, often face a complex issue rooted in the air suspension system. This common problem, as seen in a recent BMW 5GT, typically stems from air leaks within the air springs. When a slow leak occurs, the vehicle's compressor works overtime to compensate, leading to premature wear and potential failure. If you notice your car sitting lower than usual, especially in the morning, it's a critical sign that the air suspension needs immediate attention. While the compressor might refill the air, masking the issue during a short drive, prolonged operation can lead to significant damage.

In this case, a thorough diagnostic revealed significant air leaks in the air springs. This constant demand had overloaded and ultimately failed the air compressor. To address this comprehensively, the decision was made to replace not only the faulty air springs but also the compromised compressor and the valve block responsible for air distribution. As a preventative measure, fuses and relays related to the air suspension system were also inspected and replaced to ensure system integrity.

Performance Enhancement with Bilstein Shocks

During the disassembly process, the condition of the original shock absorbers was assessed. It was evident that the shocks had lost their damping capabilities, failing to rebound when compressed. This indicated that the stress from the failing air suspension system had also taken a toll on the shocks themselves. To restore optimal performance and durability, the original shocks were removed and replaced with Bilstein shocks, renowned for their robust construction and consistent damping performance.

The replacement compressor was a rebuilt unit, offering a cost-effective solution without sacrificing performance. With the new air springs, rebuilt compressor, valve block, and Bilstein shocks installed, the BMW 5GT's air suspension system was effectively revitalized. The installation process involved several key steps:

1. Removal of the old air springs, compressor, valve block, and shock absorbers.
2. Installation of the new air springs and Bilstein shock absorbers.
3. Replacement of the air compressor and valve block.
4. Connection of all air lines and electrical components.
5. System calibration and leak testing.

Post-Installation Calibration and Testing

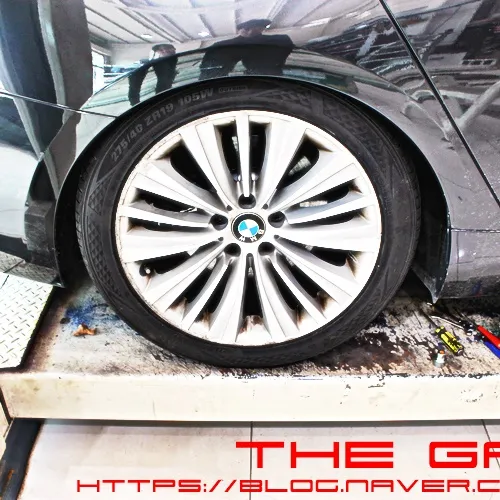

Following the component replacements, a crucial step is the ride height calibration. This process ensures that all four wheels are at the correct height, which is essential for the proper functioning of the air suspension system. After calibration, the vehicle was left stationary for several hours to meticulously check for any signs of air leaks or system malfunctions. This extended testing period confirmed that the ride height remained stable and consistent, indicating a successful repair and upgrade. The BMW 5GT was returned to its owner with a fully restored and enhanced air suspension system.
