BMW 5 Series Wheel Restoration: Beyond Curb Rash to Deep Damage Repair

Drivers of the BMW 5 Series often encounter wheel damage from parking incidents. This particular case involved damage so severe that it required aluminum welding, going beyond simple surface scratches. We followed the actual repair process to see how deeply gouged wheels are restored to their original condition.

Vehicle Make & Model: BMW 5 Series
Service Performed: Wheel curb rash and damage repair
Repair Method: Laser welding + Diamond cutting + Powder coating
Affected Area: All 4 wheels
Service Location: Today's Car Gangnam Branch
Time Required: Approximately 6 hours (Same-day completion possible)

This article covers:
1. Criteria for assessing wheel damage severity.
2. The restoration process using laser welding.
3. Structural characteristics of BMW wheels and repair complexity.
4. Cost, time, and maintenance tips.

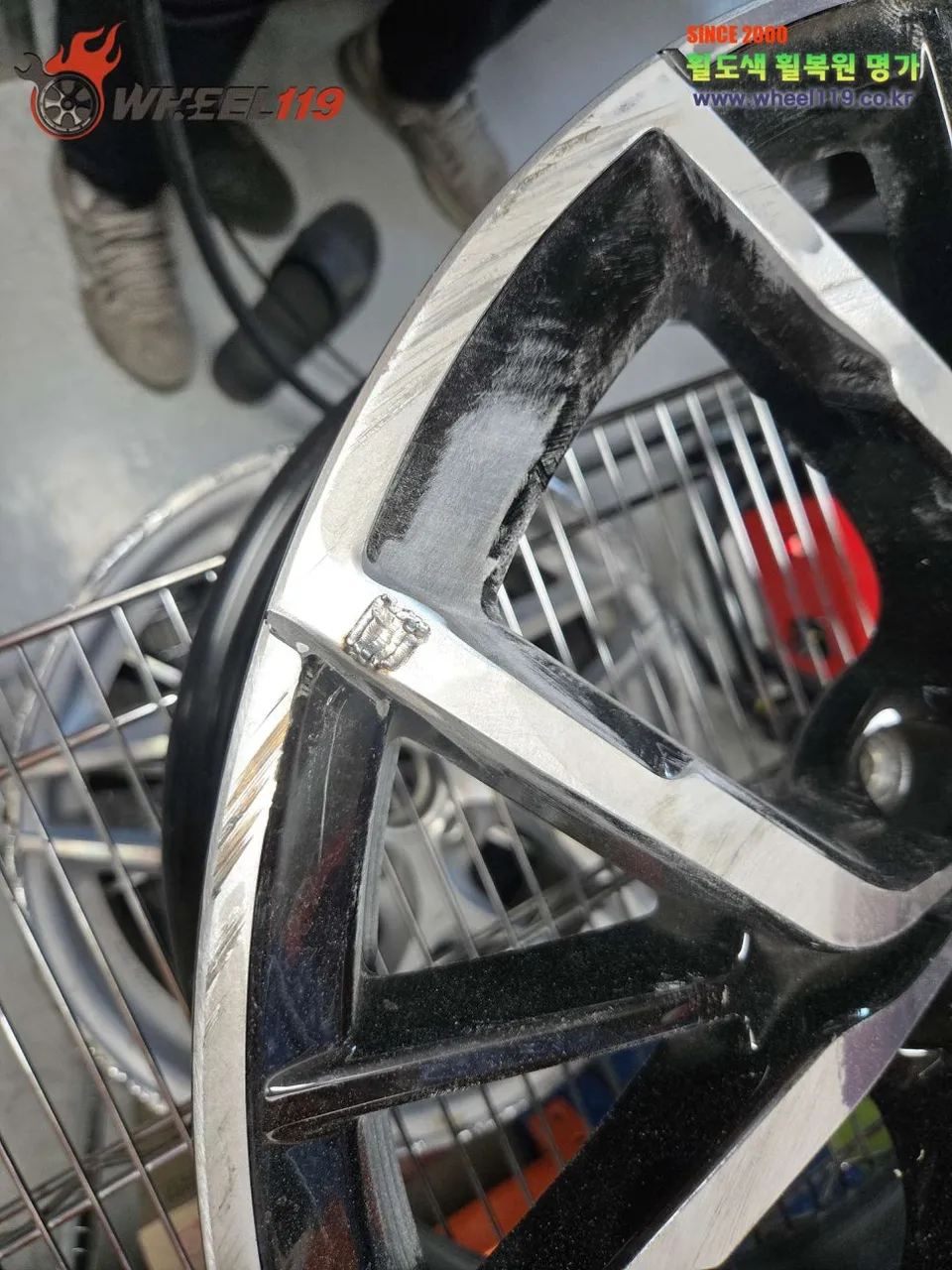

Assessing Wheel Damage: What Can Be Restored?

The initial inspection is crucial. Upon close examination, deep gouges were evident on the wheel surface. While minor curb rash can often be fixed with diamond cutting alone (a process that finely shaves the wheel's surface), this situation was different. The internal structure of the aluminum wheel was compromised. Simply painting over such damage would lead to the compromised area reappearing over time. This is why laser welding was necessary.

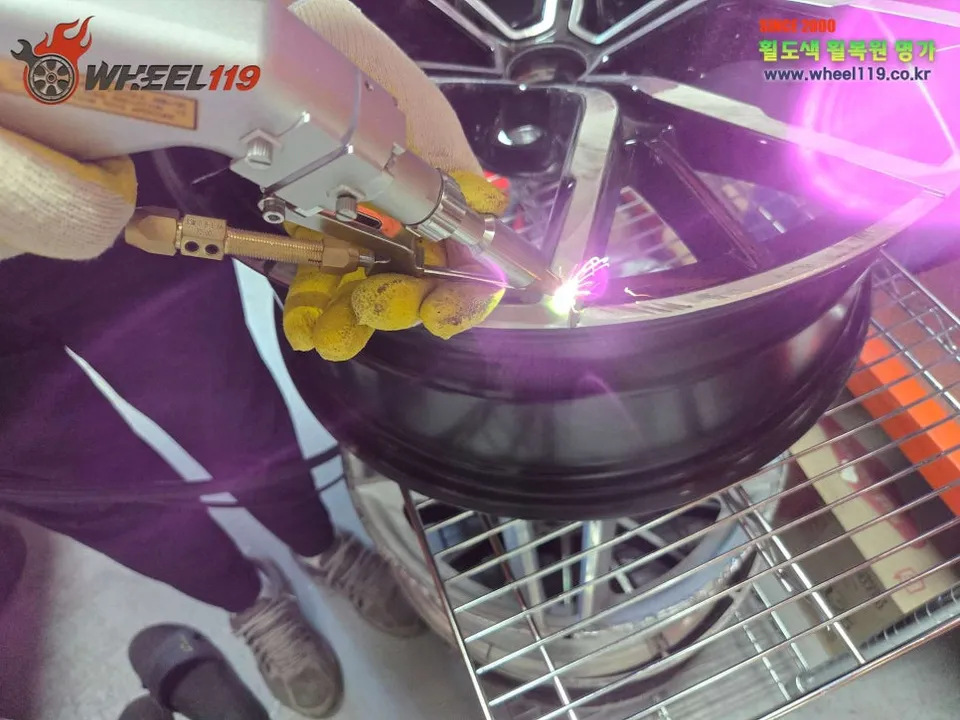

The Necessity of Laser Welding

Laser welding is a high-precision technique for joining aluminum. It involves filling the damaged area with aluminum and then welding it, minimizing stress on the wheel itself. Standard auto repair shops cannot perform this service; it requires specialized laser equipment and expertise in aluminum welding. BMW wheels, like those on other imported cars, have strict OEM specifications that must be matched during repair. After welding, a cooling process is essential to prevent thermal deformation before the wheel moves to the diamond cutting stage.

Diamond Cutting: Reviving the Wheel's Surface

Diamond cutting is the finishing step, involving a very thin shaving of the wheel's surface. This process demands precision down to the 0.1mm level. The goal is to create a uniform surface, including the welded area, while preserving the wheel's original design as much as possible. Modern BMW wheel designs present a challenge due to their extremely thin cut edges and painted sections, leaving little room for error during diamond cutting. This makes it a high-difficulty task where even a single mistake is unacceptable. The final quality of wheel restoration largely depends on the skill applied at this stage.

Powder Coating: Stronger Than Original

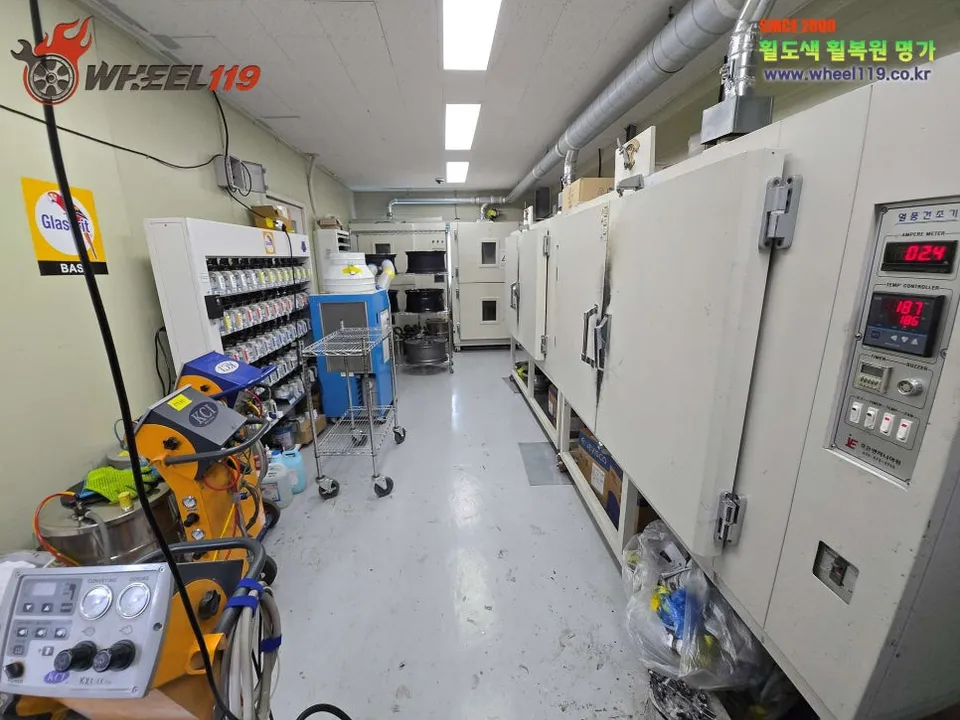

After diamond cutting, the wheels proceed to the painting stage. Instead of liquid paint, powder coating is used—a process where powdered paint is applied electrostatically. This results in a surface hardness of 3H or higher, significantly more durable than standard paint. Powder coating offers two main advantages: superior durability against damage and a uniform, clean finish with excellent gloss. The curing process takes approximately 48 hours, after which the wheels are ready for use. This particular BMW 5 Series was finished in a gloss silver, perfectly matching the car's sophisticated aesthetic.
