BMW 8 Series Seat Ventilation Noise: The Culprit Revealed

Owners of the BMW 8 Series 840i may experience a concerning issue: loud noises emanating from the driver's seat ventilation system, often described as a helicopter-like sound. This was precisely the problem brought to us by an 840i owner. Unlike some other models, the 8 Series features an intake-type blower system for its ventilated seats. While we anticipated a common issue, the intensity of the noise was significant, capable of causing considerable driving fatigue and stress.

Diagnosing the Seat Ventilation Noise

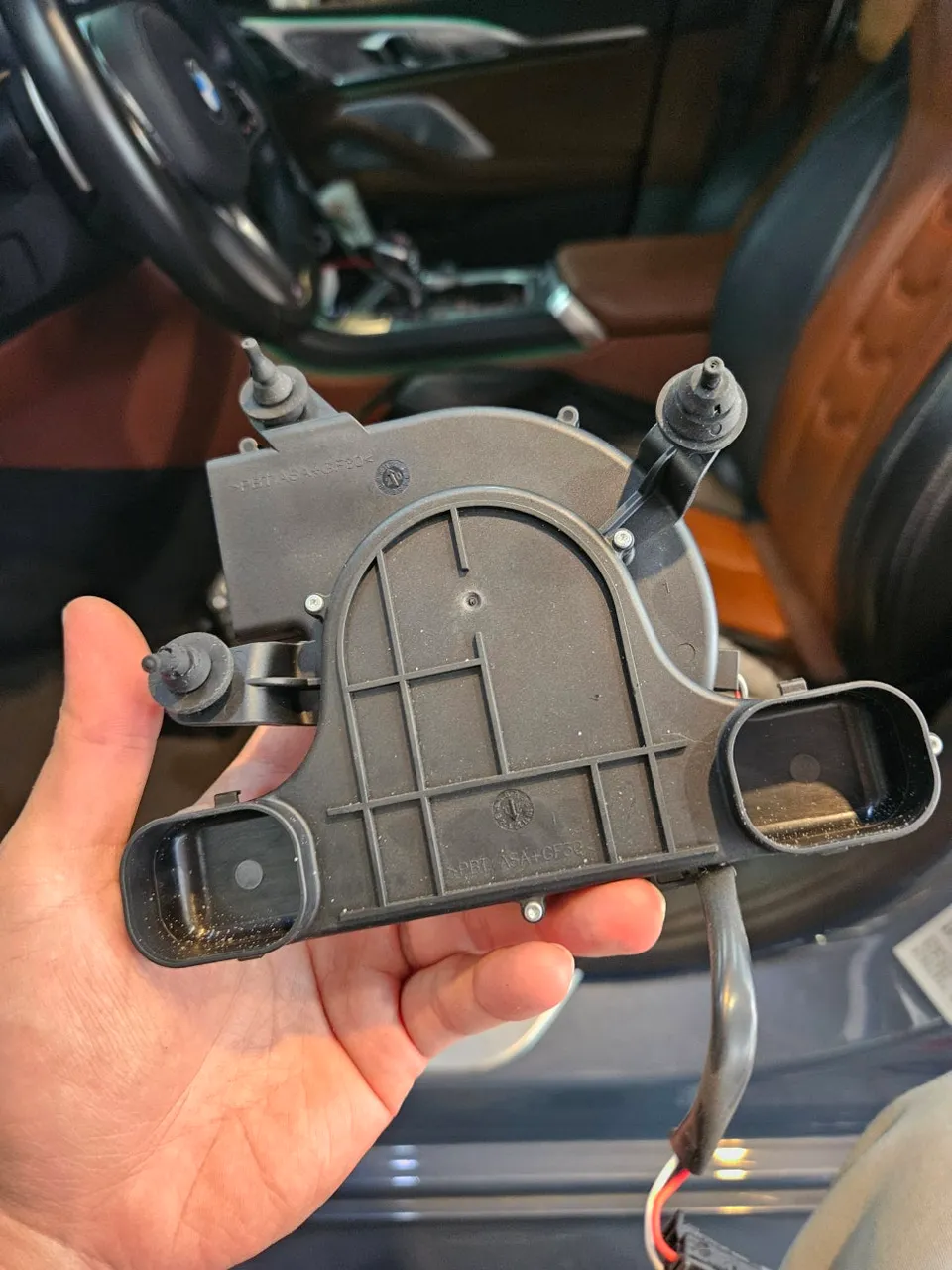

Upon detailed inspection, the root cause of the noise was identified within the blower fan located in the seat cushion. Small pieces of memory foam had become lodged within the fan blades, causing the disruptive sound. Initially, one might suspect damage to the fan itself, but a thorough disassembly revealed the issue was simply foreign debris. Fortunately, this meant the fan did not require replacement. The solution involved meticulously removing the debris, thoroughly cleaning the fan, and then reassembling the unit.

Seat Ventilation Repair Process:

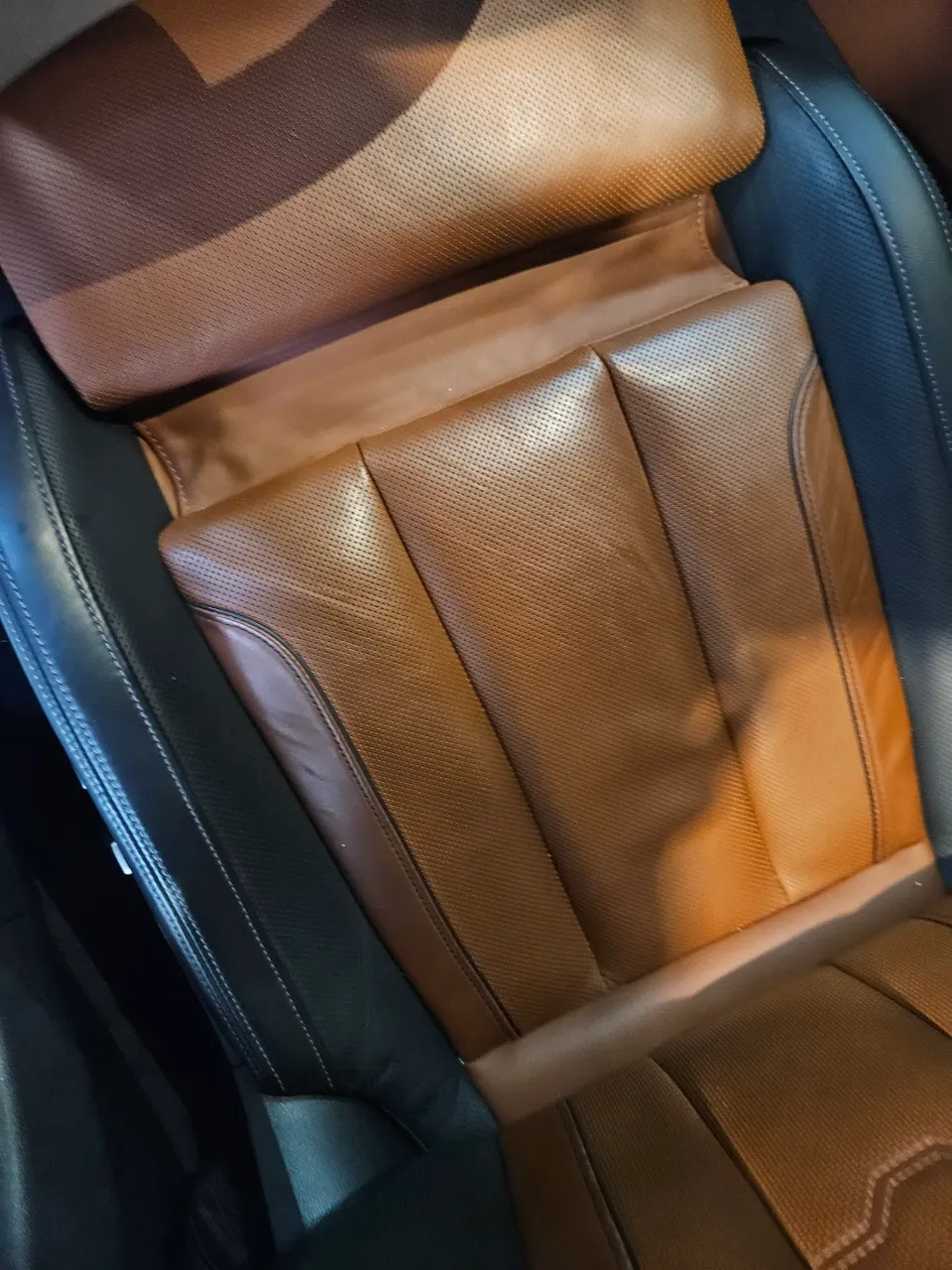

1. Seat Disassembly: The seat cover is carefully removed to gain access to the ventilation fan. For the BMW 8 Series, this requires skilled technicians to navigate the seat's intricate structure without damaging the leather or internal foam.
2. Debris Removal and Cleaning: Using specialized tools, the memory foam fragments are extracted from the blower fan. Compressed air and specialized cleaning agents are then used to remove any remaining dust or particles from the fan blades and housing.
3. Reassembly and Testing: The cleaned blower fan is reinstalled, and the seat is meticulously reassembled to its original condition. Finally, the ventilation system is tested extensively to ensure the noise is completely eliminated and the system operates smoothly.

Cost and Time Savings for Seat Ventilation Repair

Because this repair did not necessitate replacing the blower fan, significant cost savings were achieved. A typical blower fan replacement for such systems can range from ₩300,000 to ₩600,000 (approximately $250-$500 USD) and take 1-2 hours. However, by simply removing the debris and cleaning the existing fan, the cost was reduced to approximately ₩100,000 to ₩200,000 (approximately $80-$160 USD), with the entire process completed in under an hour. These figures can vary based on the specific vehicle model and the complexity of the debris removal.
