BMW M5 Interior Carbon Hydrographics Review — Enhanced Luxury

Is Interior Customization Necessary for a BMW M5?

The BMW M5 is a high-performance sedan, yet its interior often receives feedback for being somewhat plain. Specifically, the metallic trim pieces and the rubberized finish on the gear selector can become sticky and degraded over time. The carbon fiber hydrographic treatment featured in this review addresses these common issues, transforming the interior from drab to sophisticated. This project, completed at the Hwaseong branch, not only changed the color scheme but significantly elevated the overall luxury of the M5's cabin.

Understanding Hydrographic Printing (Water Transfer Printing)

Hydrographic printing, also known as water transfer printing, is a method of applying printed designs to three-dimensional surfaces. A special film with the desired pattern is floated on water, and then the object is dipped through the film, transferring the design. It offers a finish that is more seamless than vinyl wrapping and cleaner than traditional painting. Think of it as a hybrid between wrapping and painting, providing excellent adhesion and a uniform surface without the visible edges sometimes seen with wraps. However, it's crucial to note that once applied, hydrographic printing cannot be easily removed or reversed, making the initial selection process critical.

Tackling the M5's Metallic Trim Challenges

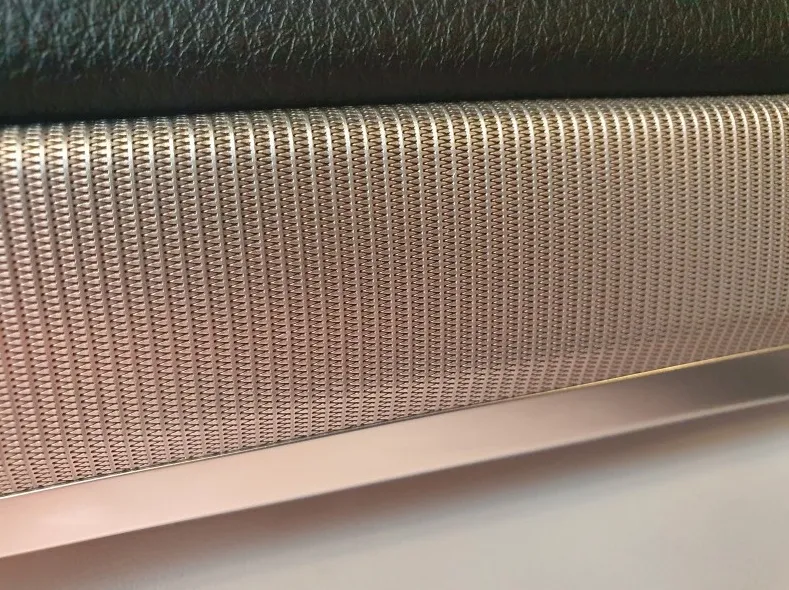

A closer look at the BMW M5's metallic interior trim reveals intricate, three-dimensional patterns. Applying hydrographic film directly onto these textured surfaces is a significant challenge. To ensure proper adhesion, the surface must first be meticulously smoothed and prepped. Without this crucial step, the film would not lay flat and would eventually peel. The technician at the Hwaseong branch spent considerable time sanding down the intricate patterns on the metallic parts, a process that requires significantly more effort than a standard hydrographic application.

Addressing the Sticky Gear Selector Issue

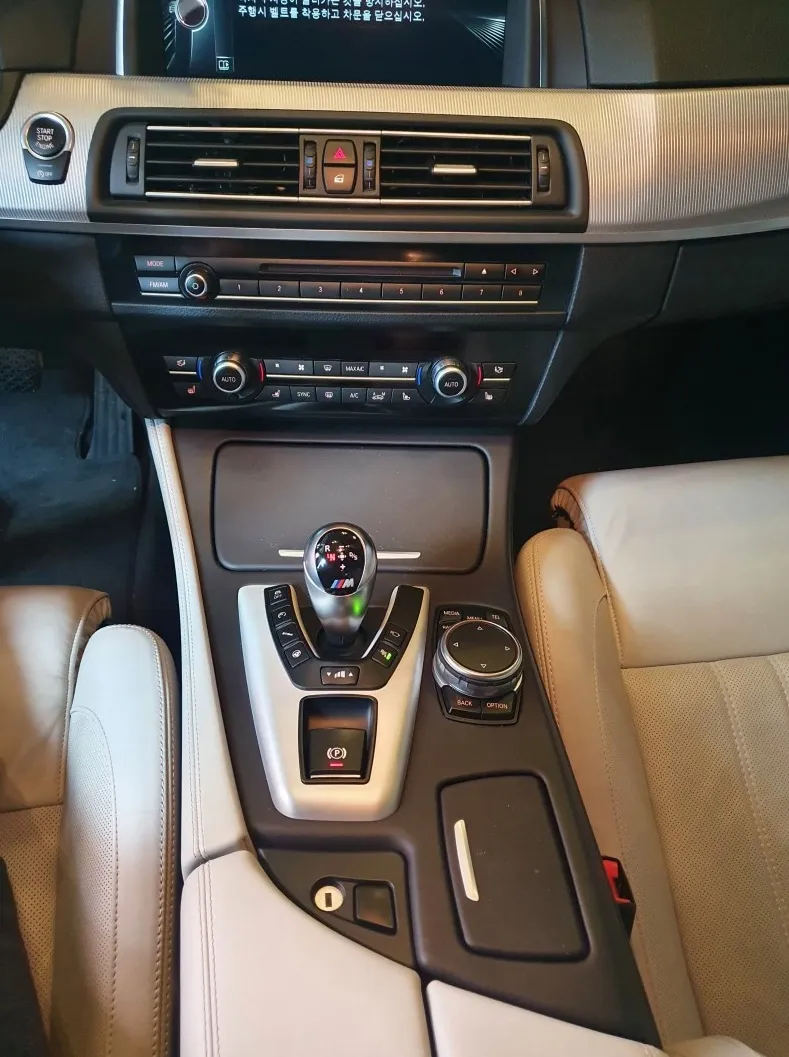

The gear selector on the BMW M5 is often finished with a black, rubber-like material that is prone to degrading over time, becoming sticky and unpleasant to touch. This is a common problem seen in various car models. If left unaddressed, this degradation can make the driving experience uncomfortable. It was precisely this issue that prompted the M5 owner to opt for the interior carbon hydrographic customization.

The Detailed Process of Interior Customization

The preparation of the metallic panels for hydrographic application was an intensive process, akin to creating new parts. Applying film directly over the original textured surface would result in poor adhesion. Therefore, each section required careful sanding, priming, and further refinement to achieve a perfectly smooth base. This multi-stage preparation significantly extended the process time, often tripling that of a standard hydrographic job, demanding both skill and dedication.

Installation Process:

1. Surface Preparation: Meticulously sand down textured surfaces (like metallic trim) to create a perfectly smooth base for film adhesion.
2. Primer Application: Apply a specialized primer to ensure optimal bonding between the surface and the hydrographic film.
3. Hydrographic Film Application: Carefully immerse the prepared parts into water containing the carbon fiber pattern film, ensuring even transfer without bubbles or wrinkles.
4. Clear Coating and Curing: Apply multiple layers of protective clear coat for durability and a high-gloss finish, followed by a thorough curing process.

Carbon Fiber Hydrographic Application

Once the surface preparation is complete, the actual carbon fiber hydrographic application begins. The film is carefully laid on the water's surface and then the component is dipped. This stage demands precision, as any mistake can compromise the final look. For larger areas like the center console, a squeegee is used to gently push out any trapped air or water, ensuring a smooth, bubble-free finish. This requires significant experience and a steady hand.

Detailing the Gear Selector Application

The gear selector presents unique challenges due to its complex curves and the need for a durable finish, as it's frequently handled. If the carbon fiber film isn't applied perfectly, it can start to peel within months. The team at the Hwaseong branch paid close attention to these details, ensuring a seamless and long-lasting application on this high-touch area.

Before & After: A 180-Degree Interior Transformation

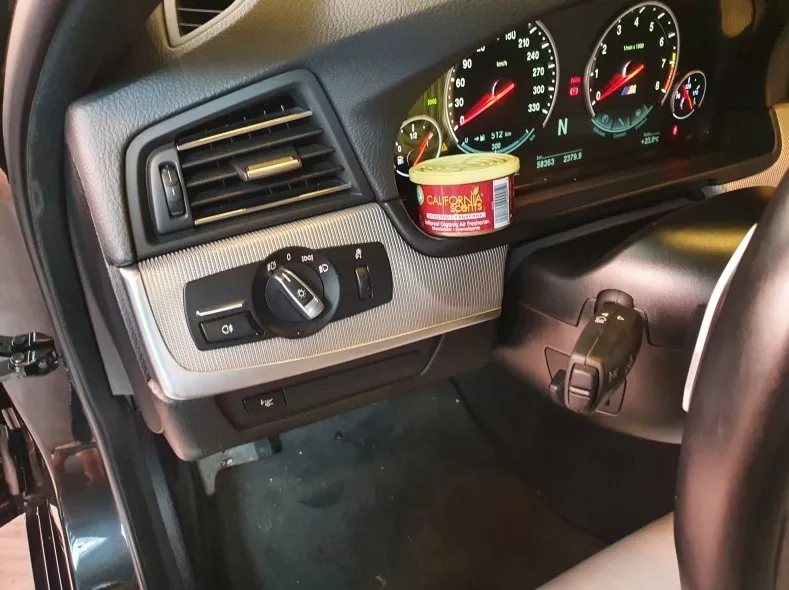

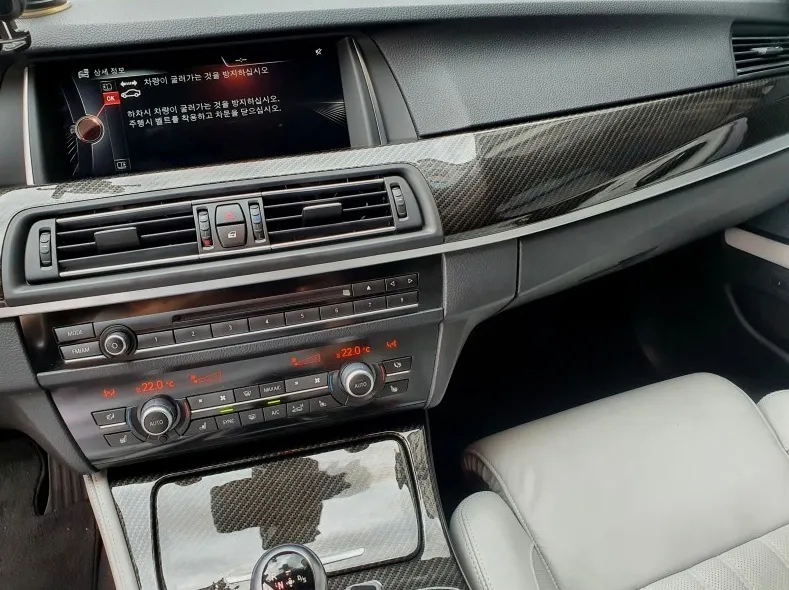

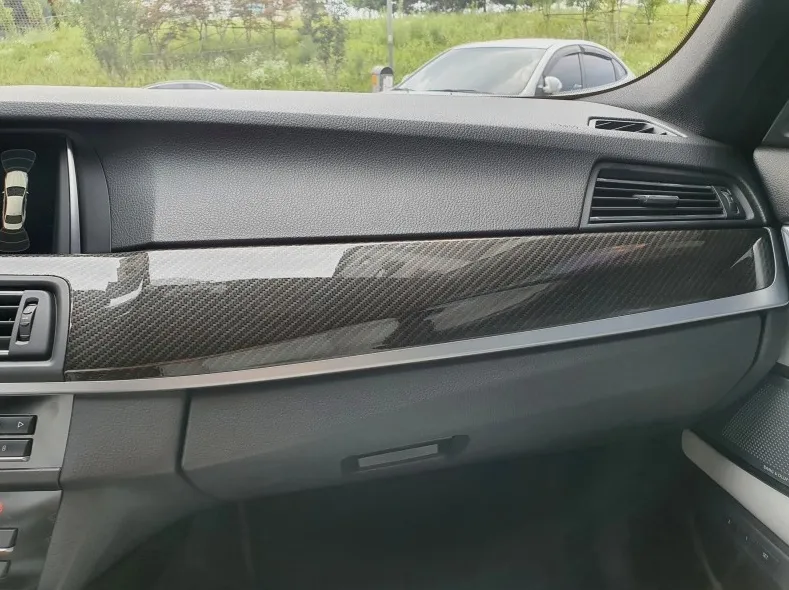

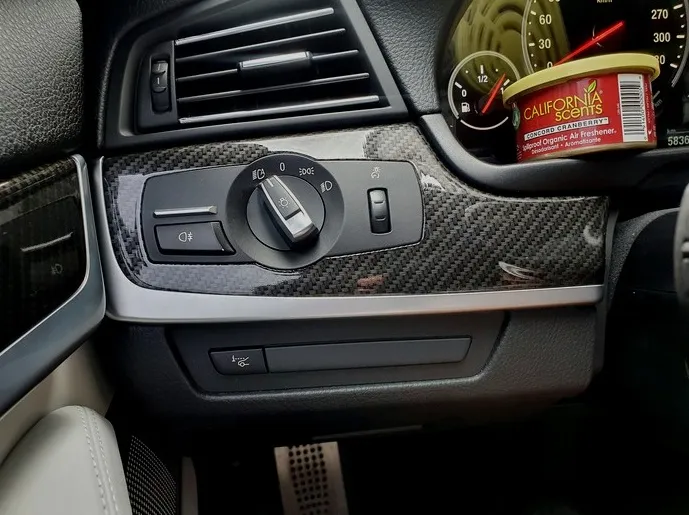

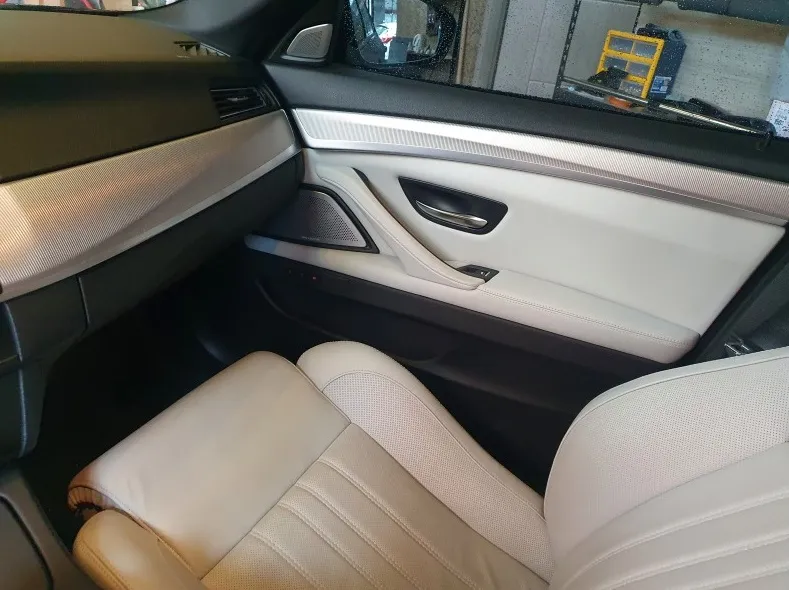

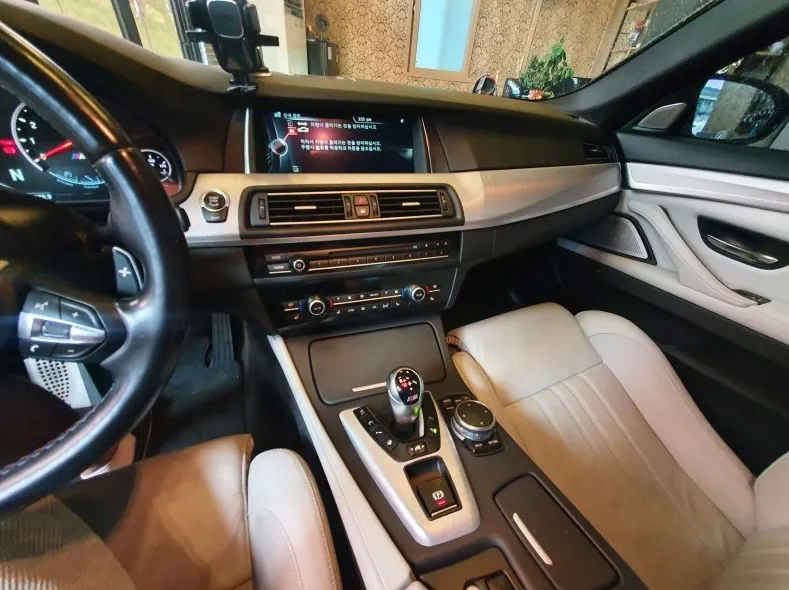

Before the customization, the BMW M5's interior featured a combination of gray metallic and black rubber materials, resulting in a rather plain and uninspired aesthetic. After the carbon fiber hydrographic treatment, the interior was dramatically revitalized, exuding a sense of sportiness and premium quality.
