BMW Mini Cooper R56 LED Upgrade Review — Enhanced Visibility

R56 Mini Cooper DRL LED Fog Light Upgrade: Why It's Necessary

For the R56 generation Mini Cooper, sourcing genuine DRL LED fog lights can be challenging, especially for those who purchased the car used and need to replace damaged units. Fortunately, compatible OEM parts are available on the international market, and the replacement process is straightforward. With a systematic approach, including front bumper removal and wiring, the upgrade can typically be completed within a single day.

This guide covers:

• Understanding the R56 Mini Cooper's stock component setup.
• The procedure for front bumper removal.
• The step-by-step process for replacing the DRL LED fog lights.
• Wiring connections and final checks.
• A guide to cost and installation time.

Pre-Installation: Vehicle and Parts Inspection

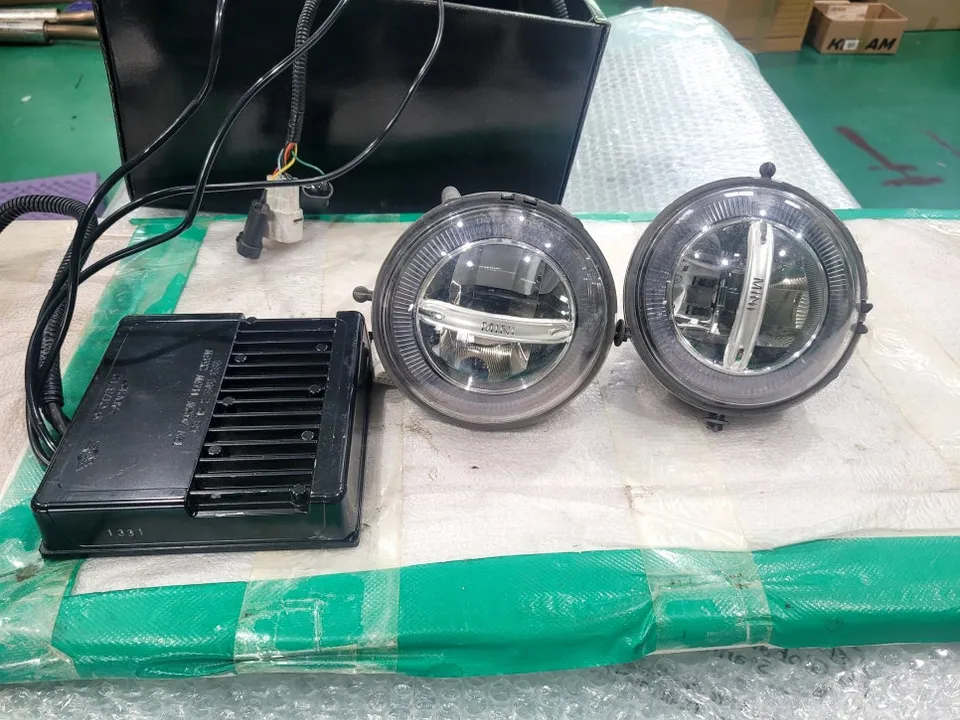

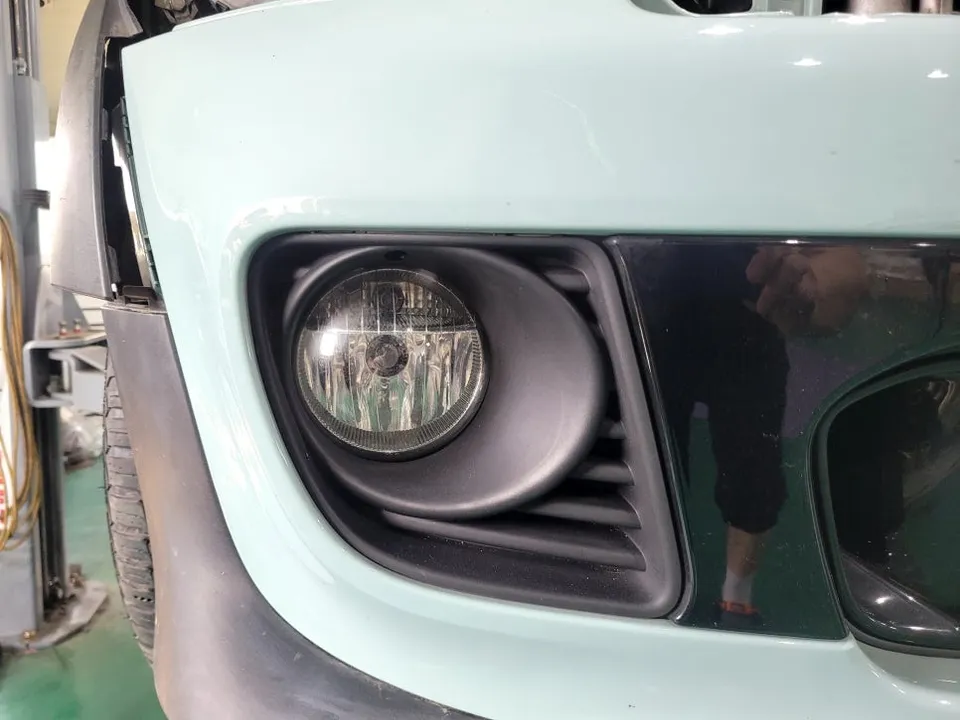

This specific R56 Mini Cooper S, a 2013 model, had damaged fog lights that were replaced with genuine DRL LED fog lights sourced secondhand. A notable characteristic of Mini vehicles is the use of Torx screws (star-shaped) instead of standard bolts for many components. Thoroughly inspecting your tools and the new parts beforehand is crucial. Before starting, disconnect the vehicle's power and ensure the steering wheel is in neutral for safety. Protect the work area with coverings to prevent scratches on the bumper and grille. The front grille is the initial access point for the fog lights; handle it carefully to avoid damaging the plastic clips.

Front Bumper Removal: A Precise Sequence

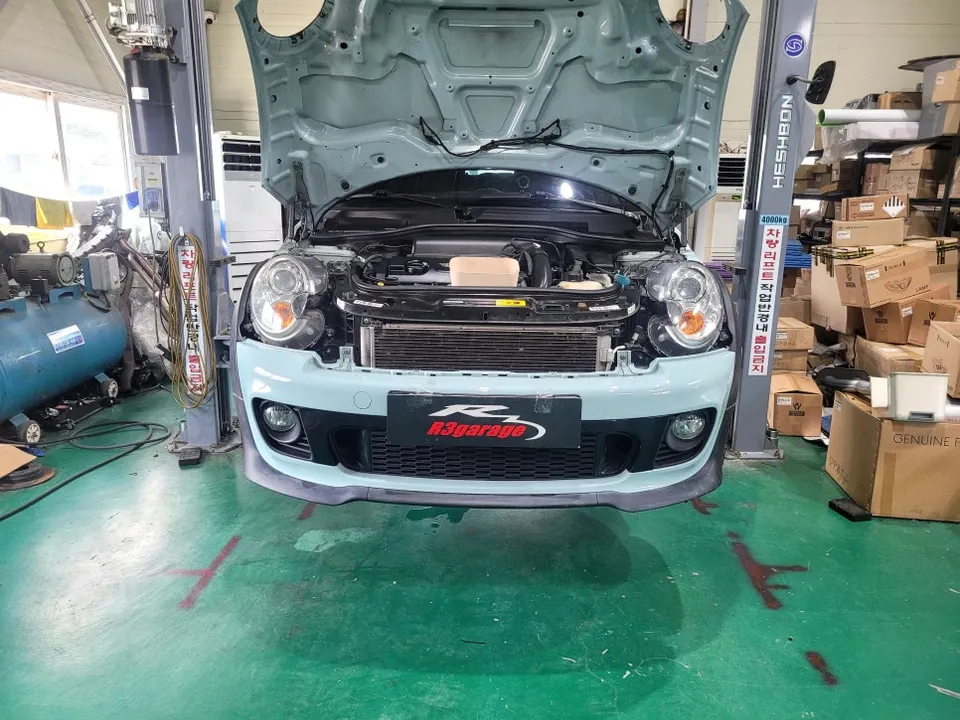

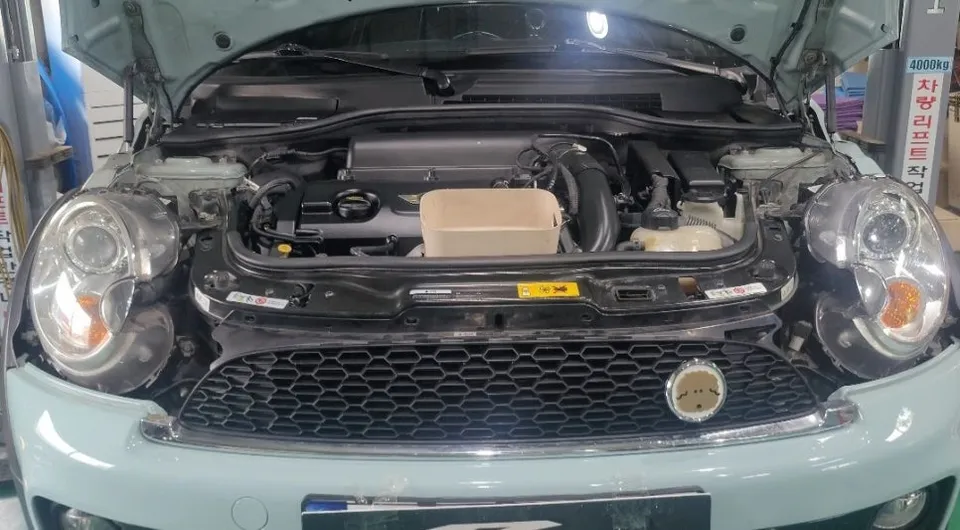

Accessing the DRL LED fog lights necessitates the removal of the front bumper. The Mini Cooper's bumper is secured at multiple points. Begin by detaching the front grille, which is held by a few plastic clips and small screws. Referring to a video guide can greatly simplify this step. Once the grille is removed, you'll expose the main bumper fasteners. The R56 front bumper typically has around seven fixing points: three at the top and two on each side. Most are secured with Torx screws (T20-T25), with some using plastic clips. While it may seem tedious, a methodical approach allows for complete bumper removal in about 30 minutes.

Fog Light Removal and Replacement: The Core Process

With the front bumper fully detached, the fog lights become accessible. The Mini Cooper fog lights are secured by two metal clips. Gently lifting these clips allows for easy removal. It's important to reuse the original metal clips, as new DRL LED fog lights often do not come with them. Carefully detach the clips from the old unit and transfer them to the new one.

When removing the old fog light, the wiring connector will also detach. The wiring for the R56 Mini Cooper is quite simple. The DRL LED fog light connector is a 3-pin type, requiring connections for Ground (GND), Power, and Control. The connector design is typically one-to-one, minimizing the risk of incorrect polarity. Simply connect the new genuine part's connector to the existing wiring harness.

To install the new DRL LED fog light, first secure the metal clips onto the new unit, then insert it into the bumper's mounting point. Ensure the clips are fully seated; you should feel slight resistance followed by a 'click' as they lock into place. Visually confirming the connection before reattaching the wiring harness helps prevent errors.
