BMW MINI Surround View Camera Review: Cost & Results

Why Your BMW MINI Needs a Surround View Camera

The BMW MINI, with its distinctive body curves and compact hood, presents significant blind spots for the driver. This is particularly challenging during parking maneuvers, where the front bumper's end and side angles can be difficult to gauge accurately, often causing stress for new drivers. Many MINI owners find that a standard rear-view camera simply isn't enough to fully grasp the surrounding environment. A 3D Plus View surround view system fundamentally addresses this issue. It integrates video feeds from four cameras—front, rear, left, and right—into a single, cohesive 3D image. This provides a bird's-eye view, as if looking down on the car from above, making it exceptionally beneficial for vehicles like the MINI with inherent blind spots.

Specialized 3D Plus View Installation for MINI

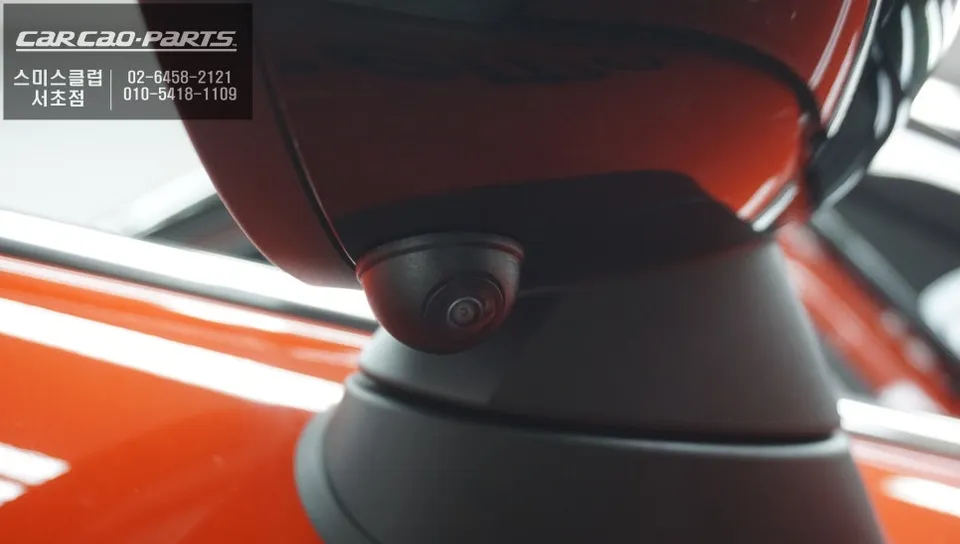

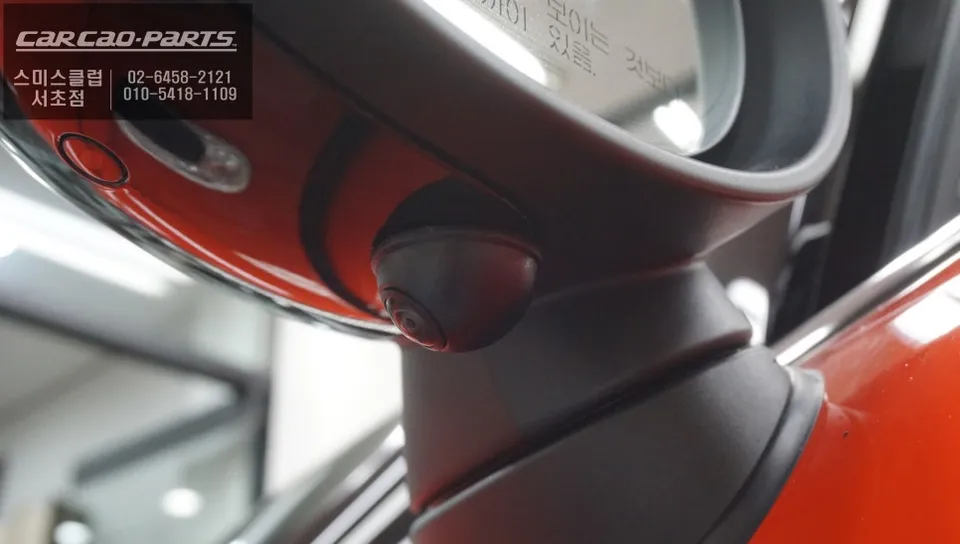

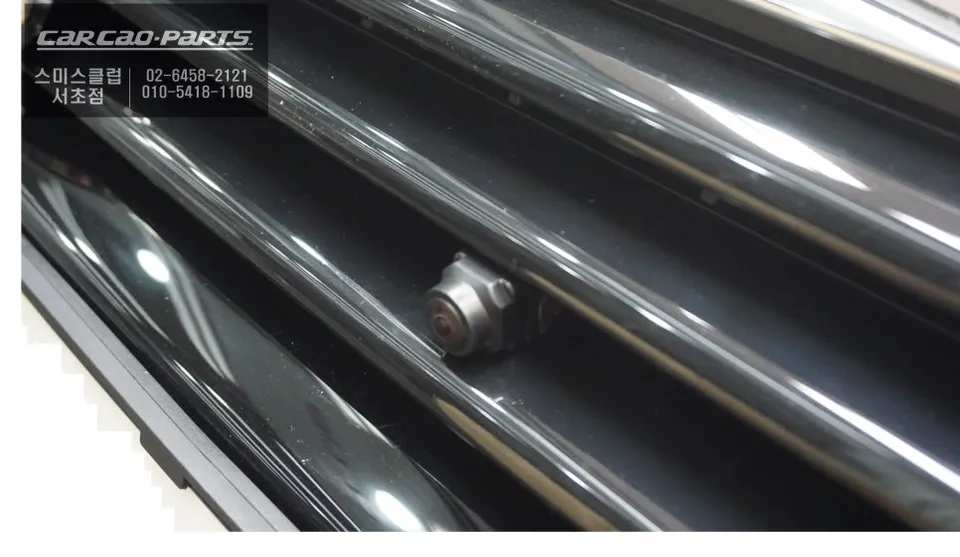

The key differentiator for a MINI-specific 3D Plus View system is its seamless integration with the car's original equipment. The system installed at the Today's Car Gangnam branch is designed to be controlled using the MINI's existing touch screen monitor and iDrive jog dial. This ensures a user experience that feels as natural as the factory navigation system, rather than just an add-on display. The precise placement of the cameras is critical, determining about 70% of the installation's success. The front camera is typically mounted below the bumper grille, the rear camera on the upper part of the trunk lid, and the side cameras discreetly beneath the door handles. For the side cameras, meticulous, precise drilling into the door frame is essential for accurate calibration later on.

The Importance of Calibration

Following the installation of the four cameras, the most crucial step is the auto-calibration process. This involves placing specific patterned markings around the vehicle, allowing the system to automatically recognize and adjust each camera's position and angle. For the MINI-specific system, this calibration is performed in conjunction with BMW diagnostic tools, ensuring a higher degree of accuracy compared to typical aftermarket solutions. Once calibration is complete, the feeds from the four cameras merge into a seamless 3D composite image, offering the driver a clear, overhead perspective of all blind spots.

Plug-and-Play Installation: Preserving Original Wiring

A significant advantage of this system is its non-invasive approach to the MINI's original wiring. The technicians at Today's Car Gangnam utilize a 'jack-by-jack' connection method, directly linking the system to the original monitor's LVDS cable (responsible for high-definition digital signal transmission). This method avoids cutting or modifying any factory wiring, making future servicing or vehicle return straightforward and clean. Because the system connects directly to the original monitor, image quality is preserved with minimal loss. Unlike some systems that use intermediate encoders which can weaken the signal, this setup receives the LVDS signal directly, maintaining high-definition clarity. The visual output on the reviewed MINI Cooper clearly demonstrates rich colors and sharp pixel detail.

Key Feature 1: Dynamic Parking Lines (PAS)

When the steering wheel is turned, the parking lines on the surround view display move accordingly. This feature, known as PAS (Power Assisted Steering) integration, is a fundamental aspect of factory-installed options. The 3D Plus View system for MINI perfectly replicates this, with the on-screen lines adjusting in real-time as the steering angle changes, allowing for precise adjustments to the entry angle when parking.

Key Feature 2: PDC Sensor Integration

The system also integrates with the vehicle's existing Parking Distance Control (PDC) sensors. When the PDC sensors detect an obstacle, their proximity alerts are displayed visually on the surround view monitor, complementing the camera feed and providing an additional layer of parking assistance.

Installation Process:

1. Precise camera placement and mounting on the vehicle's exterior (front bumper, rear trunk, side doors).
2. Wiring integration using a plug-and-play harness to connect cameras to the central control unit and vehicle monitor.
3. System calibration using specialized diagnostic tools to ensure accurate image stitching and dynamic line functionality.
4. Testing of all features, including camera views, dynamic parking lines, and PDC integration.

The estimated cost for this type of installation in Korea is around ₩700,000 (approximately $500 USD), though prices can vary. While this review details a specific installation in South Korea, similar aftermarket parking camera retrofit services are available in the US, with costs typically ranging from $150 to $1000+ depending on the system's complexity and vehicle compatibility.
