BMW X3 Surround View Camera Review: Cost & Results
Service Price
$75–115
Estimated price · Actual price may vary by shop
BMW X3 360 camera retrofit: Approx. $850. Enhances parking and visibility with a bird's-eye view.
Enhancing Your BMW X3 with a 360 Camera System
Many BMW X3 owners find themselves wishing for better visibility, especially when the factory-spec surround view camera option is missing. While the X3 is a capable compact SUV, relying solely on a rear-view camera can be limiting in tight urban environments or complex parking situations. This review details a real-world installation of a 360 camera system, often referred to as a bird's-eye view camera or around view monitor, on a 2022 BMW X3, focusing on improving driving convenience and safety. The process involved integrating cameras to provide a comprehensive view around the vehicle, significantly boosting confidence during maneuvers.
Seamless Integration and Enhanced Functionality

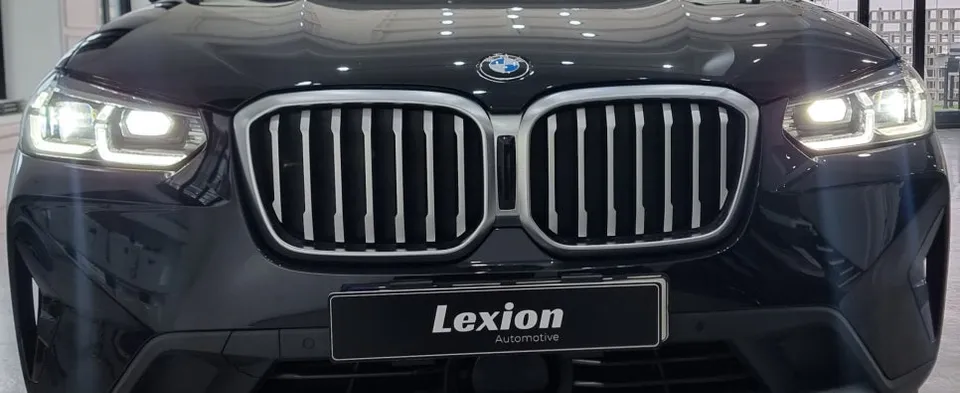

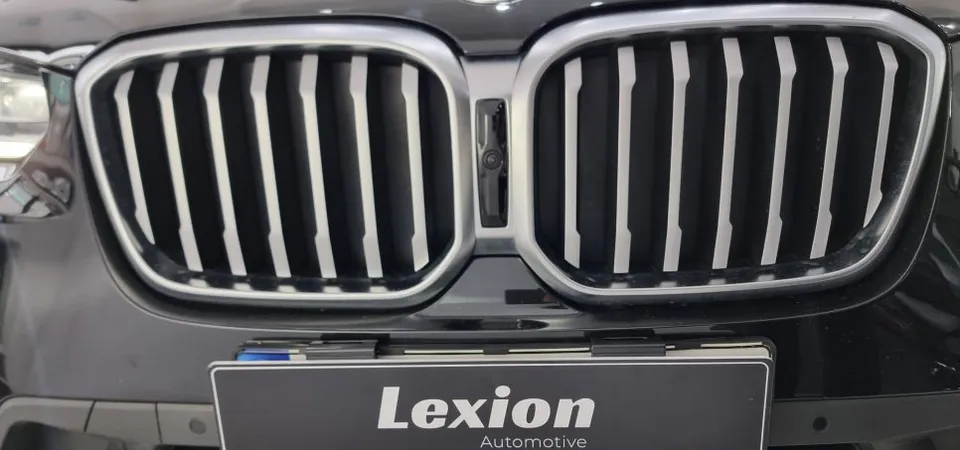

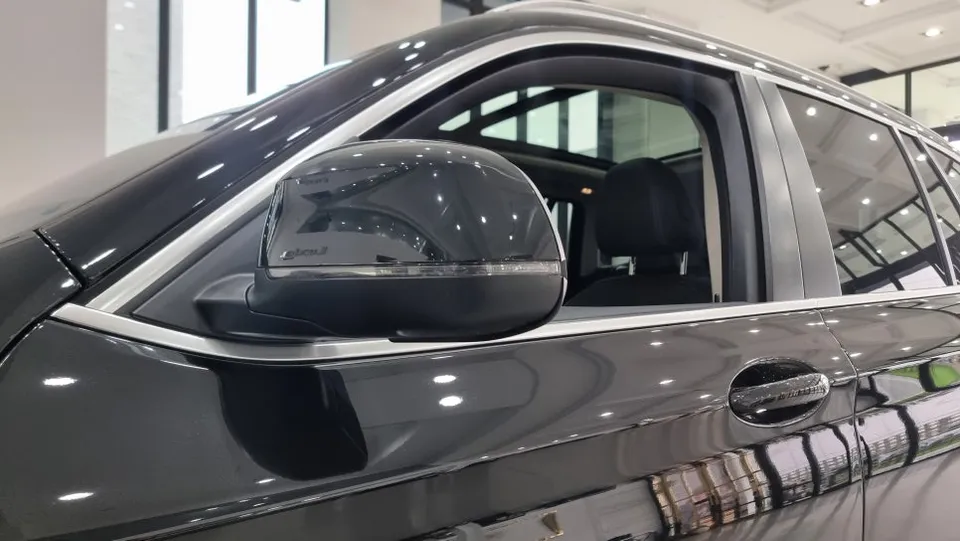

The installation process for a surround view camera system on a BMW X3 requires careful integration of multiple components. For this specific X3, the front grille's black panel was replaced with one designed to house the front camera. Similarly, the side mirrors were fitted with new lower covers specifically designed to accommodate the side cameras. These cameras are discreetly mounted and wired through the door bellows to a central control unit. A key aspect of achieving full functionality, including the ability to switch between different viewing modes like wide-angle, involved replacing the gear selector panel with one that includes the dedicated surround view button. This ensures that the system operates as if it were a factory-installed option, crucial for maintaining compatibility with future BMW software updates.
The final step involves coding the system to the vehicle. Once completed, the instrument cluster displays a clear, real-time 360-degree view, encompassing front, rear, and overhead perspectives. This around view monitor capability transforms the driving experience, making parking and navigating narrow spaces much easier and safer.
Upgrading Your Dashcam: The iNavi QXD1 Advantage
Beyond the surround view camera, this X3 also received an upgrade to its dashcam system. The original BMW dashcam often lacks essential features like audio recording and easy on-device playback. To address this, the iNavi QXD1 was installed. This dashcam boasts QHD resolution for both front and rear cameras, utilizing Sony STARVIS sensors for exceptional low-light performance. Its night vision enhancement ensures license plates are clearly identifiable even in dark conditions. Investing in a high-performance dashcam like the QXD1 is recommended, as it can often be transferred to a future vehicle, making it a cost-effective long-term solution.
Ensuring Reliable Recording with a Backup Battery
To fully leverage the parking surveillance capabilities of the iNavi QXD1, a dedicated backup battery, the Cell-Bank B200, was installed. While the dashcam has its own low-voltage cutoff to protect the car's battery, relying solely on the vehicle's power can increase the risk of battery drain, particularly in cold weather. The Cell-Bank B200 is specifically designed for dashcam use, offering extended recording times of up to 44 hours. It uses a safe Lithium Iron Phosphate (LiFePO4) battery chemistry, minimizing fire risk. The unit comes with a 2-year warranty and product liability insurance, providing peace of mind. This setup ensures continuous, reliable recording without compromising the vehicle's primary battery.
Installation Process:
- Replacing the front grille panel and side mirror covers with units designed for camera integration.
- Mounting the front, side, and rear cameras and routing their wiring discreetly.
- Replacing the gear selector panel to accommodate the surround view control button.
- Connecting all cameras to the control unit and installing the backup battery.
- Performing vehicle coding to activate the 360-degree display on the instrument cluster.
The estimated cost for this comprehensive surround view camera and dashcam upgrade in Korea, including the iNavi QXD1 and Cell-Bank B200, was approximately 1,150,000 KRW (around $850 USD at the time of review). This price reflects the complexity and quality of the components and installation.
Frequently Asked Questions
Q. How much does a 360 camera installation cost for a BMW X3?
The installation detailed in this review cost approximately 1,150,000 KRW (around $850 USD). Typical US prices for aftermarket surround view camera systems can range from $750 to $1500 depending on the vehicle and system complexity.
Q. How long does a surround view camera installation take on a BMW X3?
The durability of a surround view camera system is generally high, comparable to factory-installed units, with proper maintenance. Regular cleaning of the camera lenses is recommended to ensure optimal performance.
Q. Is an aftermarket 360 camera worth it for a BMW X3?
An aftermarket 360 camera system is highly beneficial for BMW X3 owners who frequently navigate tight spaces or have visibility concerns due to the lack of a factory option. It significantly enhances parking safety and convenience, offering a clear bird's-eye view.
Q. How is a surround view camera system installed on a BMW X3?
Installation involves replacing specific exterior panels (front grille, side mirror covers) with camera-ready versions, mounting the cameras, routing wiring discreetly, and updating the interior control panel. Finally, vehicle coding is performed to activate the 360-degree display.
Q. What is the difference between OEM and aftermarket surround view cameras for a BMW X3?
OEM systems are integrated directly by the manufacturer, often offering seamless compatibility and warranty coverage, but at a higher cost. Aftermarket systems, like the one reviewed, provide a comparable 360-degree view and functionality at a potentially lower price point, though integration complexity can vary.
