Kia Carnival 360 Camera Install Review

Enhancing Your Kia Carnival with a Surround View Camera

For owners of the Kia Carnival KA4, especially those who missed out on factory-installed options like the around view monitor or ambient lighting, there's good news. It's entirely possible to add these features post-purchase to significantly boost both safety and aesthetics. Given the Carnival's substantial size, a surround view camera system, often referred to as a 360 camera or bird's-eye view camera, is particularly beneficial for eliminating blind spots. This review focuses on the installation of a "Super View" surround view system and integrated ambient lighting on a Kia Carnival KA4, performed at a certified "Today's Car" location in Ulsan, South Korea. The process involved installing four cameras (front, rear, and sides) and meticulously calibrating them to provide a seamless, top-down view of the vehicle's surroundings. Additionally, custom ambient lighting was installed along the dashboard center line and around the jog dial, enhancing the interior's ambiance.

The Value of a 360 Camera System

The primary advantage of a surround view camera system is its ability to provide a comprehensive view around the vehicle, drastically reducing the risk of accidents during low-speed maneuvers like parking or navigating tight spaces. The "Super View" system, as installed here, utilizes four cameras strategically placed on the exterior of the Kia Carnival. These cameras feed into a central unit that stitches the images together to create a virtual bird's-eye perspective on the car's display. This is invaluable for a large vehicle like the Carnival, where visibility can be limited. The installation process includes a critical step called "empty load calibration" (or vehicle calibration), where the car is placed on a calibration board. Technicians then precisely adjust each camera's angle and correct for any distortion, ensuring the displayed image accurately reflects the vehicle's actual surroundings. This meticulous calibration is key to the system's effectiveness, providing a near-perfect sky view and side views.

Installation Process and Results

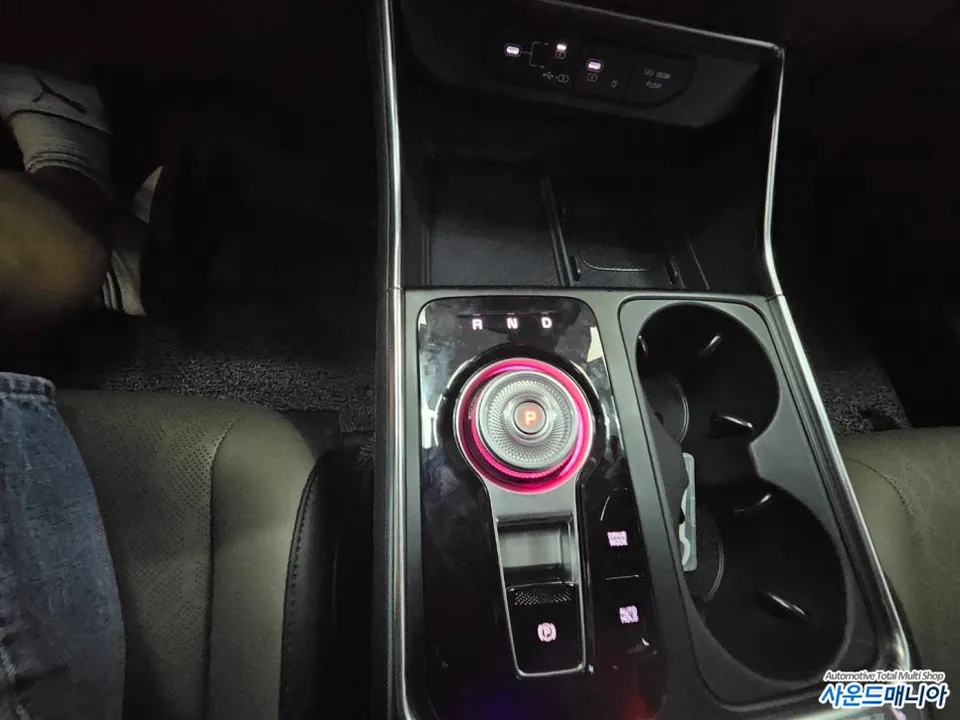

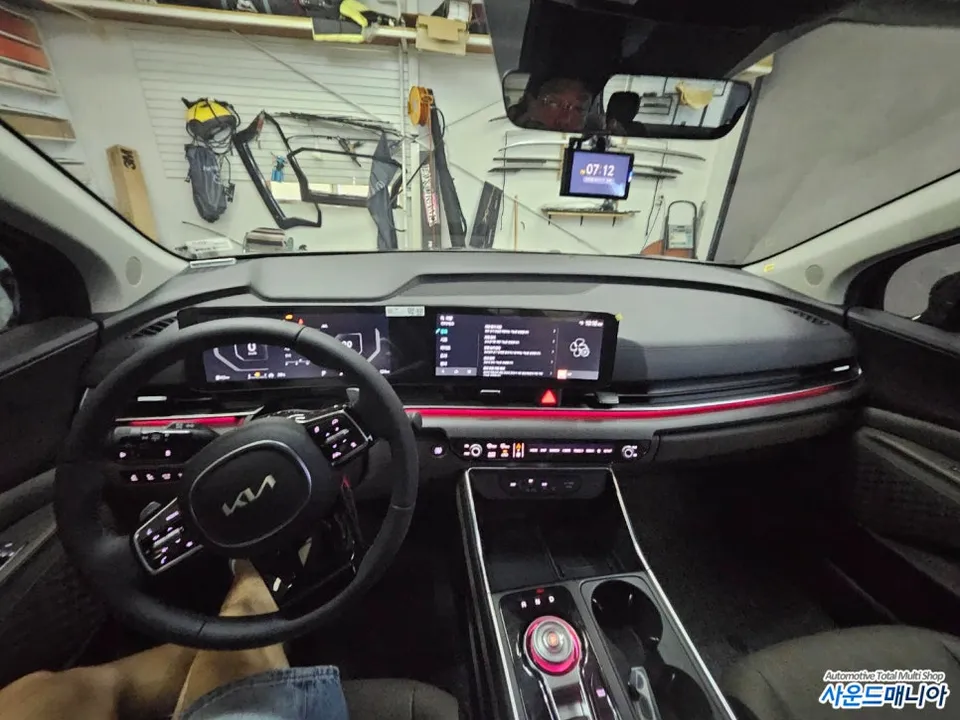

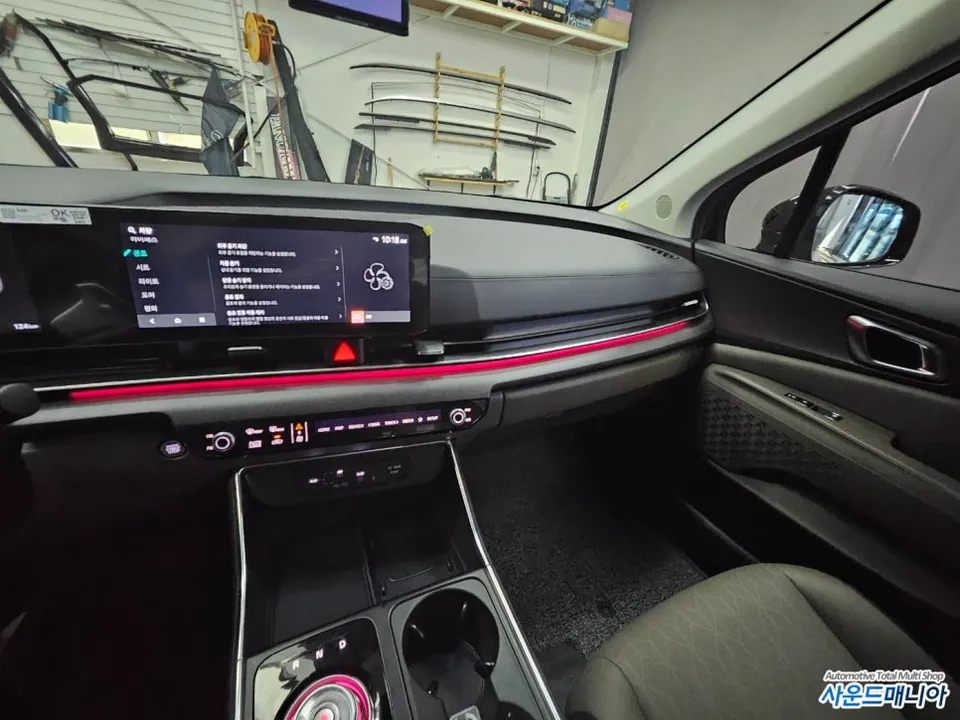

The installation of the surround view camera system and ambient lighting on the Kia Carnival KA4 is a detailed process. For the ambient lighting, the focus was on a clean, integrated look, with a light strip running along the dashboard's center line and accentuating the jog dial. This was designed to look as if it were a factory option, with the ability to control color and brightness through the original monitor. The surround view camera installation involves mounting the four cameras discreetly on the vehicle's exterior – typically in the grille, rear bumper, and side mirrors. Following the physical installation, the crucial calibration phase begins. This involves using specialized equipment to ensure the camera feeds are accurately stitched together, creating the seamless 360-degree view. The entire process, including both ambient lighting and the surround view system, can take approximately 7 to 11 hours, depending on the specific vehicle and any additional customizations. Post-installation, drivers can expect a significant improvement in parking ease and a reduction in the anxiety associated with navigating blind spots. The system provides clear, real-time visuals, making even complex parking situations manageable.

Installation process:

1. Mounting of four cameras (front, rear, sides) on the vehicle exterior.
2. Wiring the cameras to the central control unit and integrating with the vehicle's display.
3. Performing empty load calibration using a calibration board to correct camera angles and distortions.
4. Testing the system to ensure a seamless 360-degree bird's-eye view and accurate side views.
