BMW MINI Surround View Camera Review — Enhanced Parking Safety
Service Price
$approx. $1,500+
Estimated price · Actual price may vary by shop
BMW MINI Surround View Camera installation for 360° parking. See obstacles clearly with high-definition cameras and parking lines.
Why You Need a Surround View Camera for Your BMW MINI
Parking a BMW MINI, especially in tight urban environments or crowded parking lots, can be a significant challenge. The car's compact size, while advantageous in some ways, can paradoxically create more blind spots. This is where a high-quality Surround View Camera system becomes invaluable. By integrating cameras around the vehicle, it provides a comprehensive 360-degree view, displayed on your car's monitor, allowing you to see obstacles from all angles as if looking down from above. This review will delve into the workings of the SuperView Surround View system, the importance of high-definition video, the synergy with front sensors, the installation process, and considerations for pricing and maintenance.
SuperView Surround View vs. Standard Backup Cameras
Unlike a standard backup camera that only shows the rear view, a Surround View system utilizes multiple cameras – typically front, rear, and side – to create a seamless 360-degree panoramic image. The key differentiator in systems like the SuperView is the video transmission technology. While older systems might use analog CVBS, the SuperView employs an LVDS (Low-Voltage Differential Signaling) cable. This digital transmission method supports high-definition 1080p video, offering significantly clearer and sharper images compared to the grainy output of analog systems. A major advantage of the LVDS approach is its ability to integrate with the vehicle's original wiring harness without causing damage.
The Role of High-Definition Cameras and WDR Technology
The cameras in the SuperView system are more than just simple video sensors; they incorporate Wide Dynamic Range (WDR) technology. WDR is crucial for handling challenging lighting conditions, such as direct sunlight or low-light situations. Without WDR, bright areas can appear washed out (white), and dark areas can be completely obscured (black). WDR technology intelligently balances these extreme light differences, ensuring a clear and detailed image. This capability is vital for accurately detecting low-lying or dark obstacles like curbs, posts, or the edges of other vehicles during parking maneuvers.
Understanding Top View and the Importance of Calibration

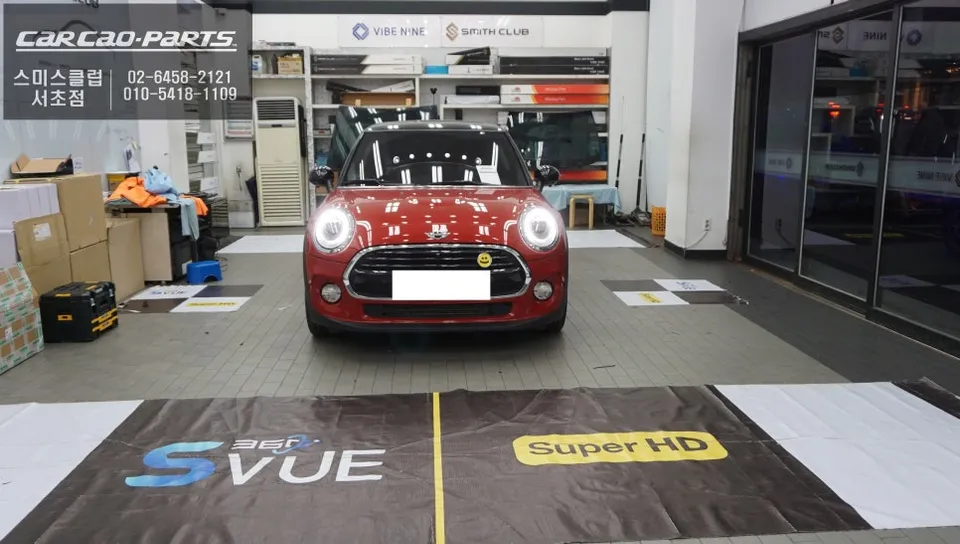

The most impressive feature of a Surround View system is the 'Top View,' which stitches together the feeds from the four cameras to create a bird's-eye perspective of your vehicle and its surroundings. However, achieving this accurate overhead view requires a critical post-installation step: calibration. Using specialized patterns, technicians meticulously adjust the angle and position of each camera to ensure the composite image is precise. Without proper calibration, lines on the screen might appear distorted, and the perceived distance to objects can be inaccurate. Professional installers dedicate significant time to this calibration process, as it directly impacts the reliability and usability of the Surround View system.
Advanced Features of the MINI Surround View System
Beyond the visual display, the SuperView system integrates intelligently with other vehicle features. When the vehicle is put into reverse, the system automatically displays the 360-degree view, often split-screen to show both the top-down perspective and a wide rear view. Similarly, engaging the turn signal can activate the corresponding side camera view. When combined with optional front parking sensors, the system provides an even more comprehensive safety net, alerting the driver to obstacles not only behind but also in front and to the sides, with visual and audible cues. This integrated approach significantly enhances parking confidence and reduces the risk of low-speed collisions.
Installation Process:

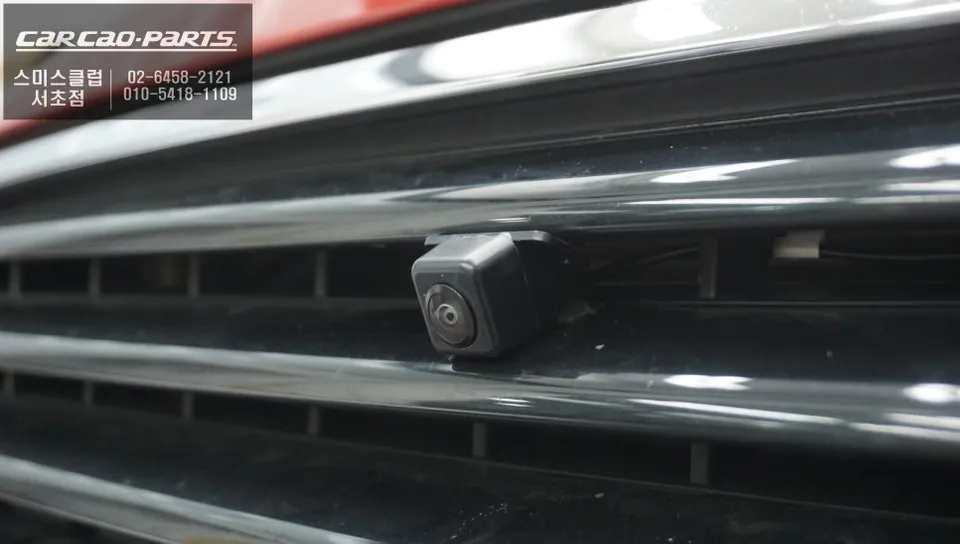

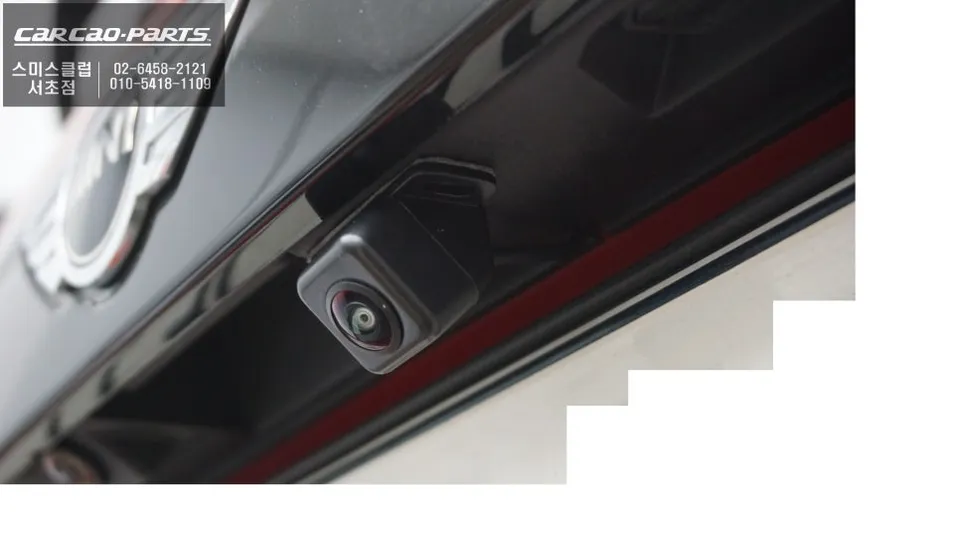

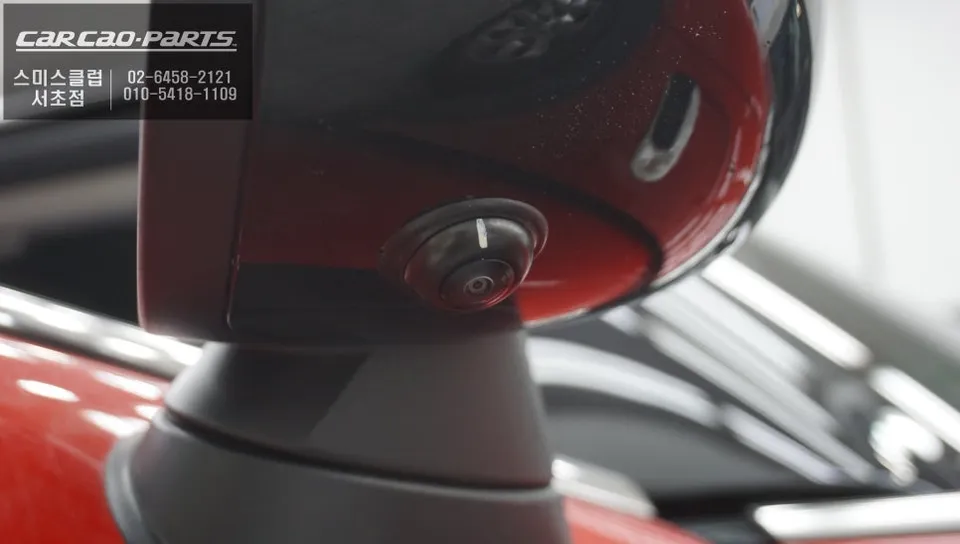

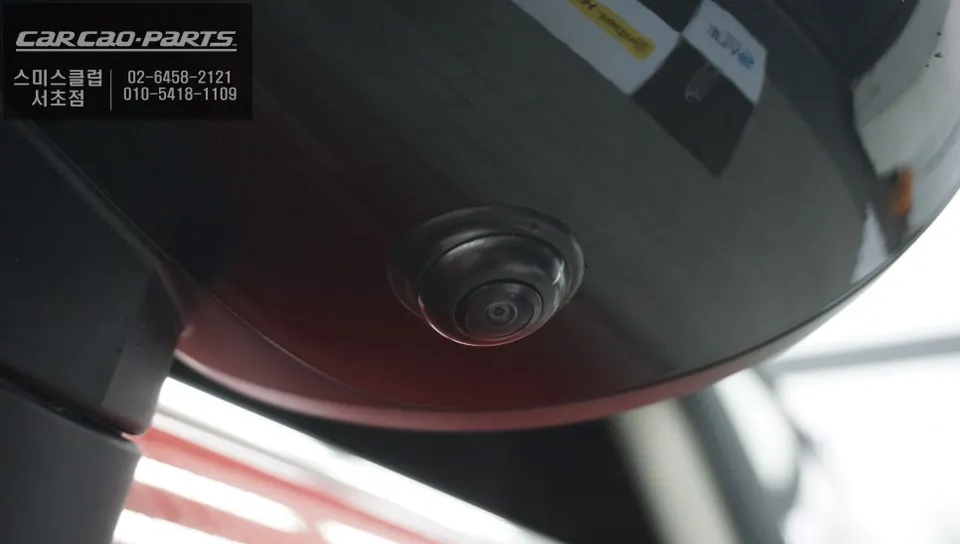

- Camera Placement: Four cameras are strategically mounted on the front grille, rear bumper, and side mirrors.
- Wiring Integration: LVDS cables are run from each camera to the central control unit, connecting to the vehicle's infotainment system.
- Control Unit Setup: The main control module is installed and configured to process the camera feeds.
- Calibration: A crucial step involving specialized patterns to ensure accurate 360-degree image stitching and distance measurement.
The result is a significantly improved parking experience for your BMW MINI, offering unparalleled situational awareness and peace of mind.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a BMW MINI?
The SuperView Surround View system for a BMW MINI, as detailed in this review, is priced around 1,200,000 Korean Won. Typical US pricing for similar high-definition surround view systems can range from $800 to $2,000, depending on the vehicle and features.
Q. How long does Surround View Camera last on a BMW MINI?
A professionally installed Surround View Camera system, using quality components like the LVDS cameras and proper calibration, is designed to last for many years, often matching the lifespan of the vehicle. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is Surround View Camera worth it for a BMW MINI?
For BMW MINI owners who frequently navigate tight spaces or are concerned about parking, a Surround View Camera system is highly beneficial. It significantly enhances parking safety and confidence by eliminating blind spots and providing a clear 360-degree view.
Q. How is Surround View Camera done on a BMW MINI?
Installation involves mounting four cameras (front, rear, sides), integrating them via LVDS cables to a control unit connected to the car's display, and performing a critical calibration process using special patterns to ensure accurate image stitching and distance representation.
Q. What is the best Surround View Camera option for a BMW MINI?
The SuperView system with LVDS high-definition video and WDR camera technology offers superior clarity and reliability compared to older analog systems. For a BMW MINI, this high-definition option provides the most accurate and useful parking assistance.
