BMW MINI Surround View Camera Installation & Review

Enhancing Visibility for Your BMW MINI

Driving a BMW MINI offers a unique, agile experience, but its compact design can sometimes lead to blind spots, especially during parking and lane changes. Many MINI owners find that adding a Surround View Camera system, often paired with blind-spot sensors, significantly enhances their driving confidence. This system addresses the inherent visibility challenges of the MINI's design, providing a comprehensive view of the vehicle's surroundings.

Understanding Surround View Camera Technology

The core of a Surround View Camera system is its '360-degree bird's-eye view.' Four high-definition cameras, strategically placed at the front, rear, and sides of the vehicle, capture real-time footage. This data is then processed and stitched together to create a seamless top-down perspective on your car's infotainment screen. Unlike standard low-resolution backup cameras (CVBS), these systems typically connect to the factory monitor via LVDS cables, delivering exceptionally clear and crisp images. This clarity allows you to spot even small obstacles around your MINI during parking maneuvers.

Surround View vs. Blind Spot Sensors

While both are safety features, they serve distinct purposes. Surround View cameras provide visual information, allowing you to 'see' your surroundings directly on a display. Blind Spot Sensors, on the other hand, 'detect' approaching objects. When driving at higher speeds or changing lanes, it's impractical to constantly monitor the screen. Blind Spot Sensors detect moving objects within a 5-7 meter range and alert the driver through visual and auditory cues, enabling safer responses.

Installation Process for BMW MINI

For this BMW MINI, we installed the S-VUE Surround View system along with S-RADAR blind-spot sensors. The installation utilizes products specifically designed for the MINI, ensuring no damage to the original wiring harness.

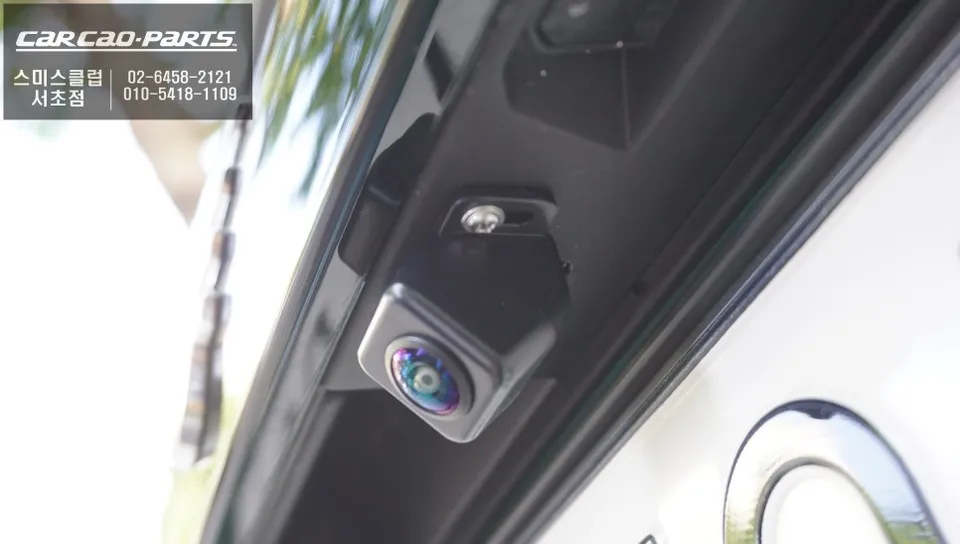

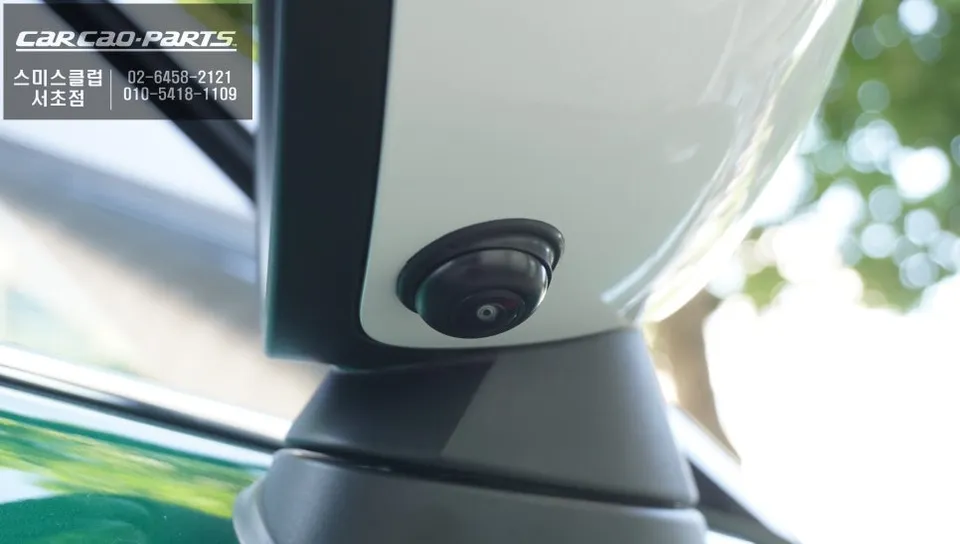

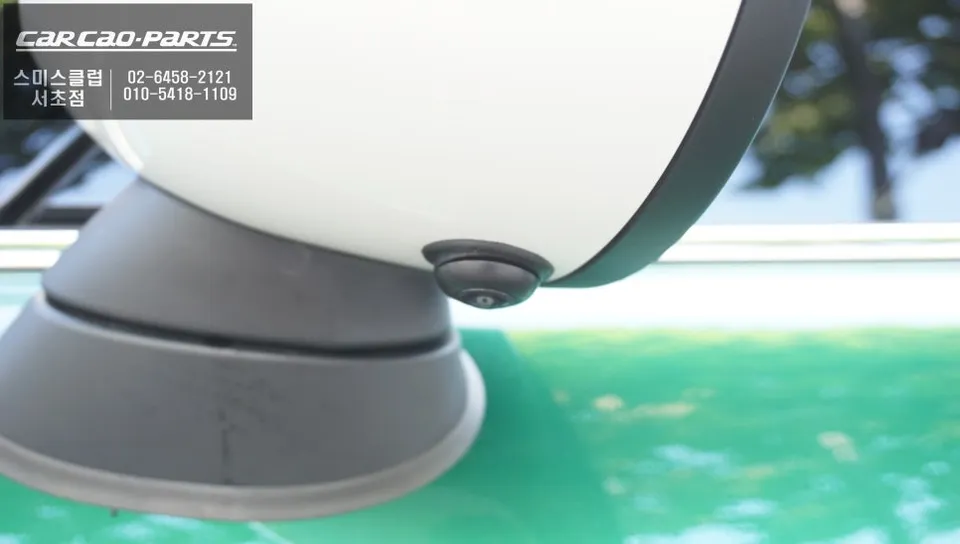

1. Camera Placement: Four cameras are discreetly integrated: two on the front bumper corners, one on the rear tailgate, and one on the underside of each side mirror. This ensures complete 360-degree coverage.
2. System Integration: The cameras and sensors are wired into the vehicle's existing electrical system and infotainment unit.
3. Calibration: A crucial step involves calibrating the cameras to accurately stitch the images together for the bird's-eye view and ensure the blind-spot sensors function correctly.
4. Functionality Testing: The system is tested to confirm automatic switching between views (e.g., rear view when reversing) and the responsiveness of features like parking assist lines.

Smart Features and Added Benefits

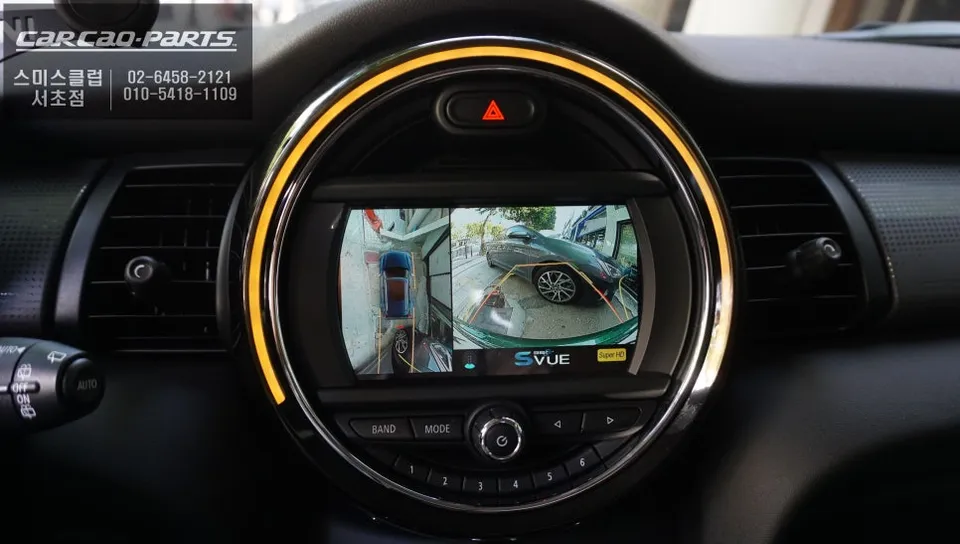

This system offers intelligent automatic switching. When you shift into reverse (R), the display automatically shows the top-down view combined with an enlarged rear camera feed. Shifting into drive (D) brings up the top-down view with an enlarged front camera view. The display reverts to the top-down view after a short period. You can also manually activate camera views by double-pressing the hazard light button or using the iDrive controller.

The Parking Assist System (PAS) feature is particularly useful, displaying dynamic guide lines that move with your steering wheel, aiding in precise parking, especially in tight spots. Furthermore, the system includes a 4-channel recording function. By inserting a USB memory card, you can record footage from all four cameras, providing valuable evidence in case of an accident.
