BMW X5 Wheel Repair Review: Restored to Like-New Condition

Asan Wheel Repair: Restoring Corroded Wheels to Factory Finish

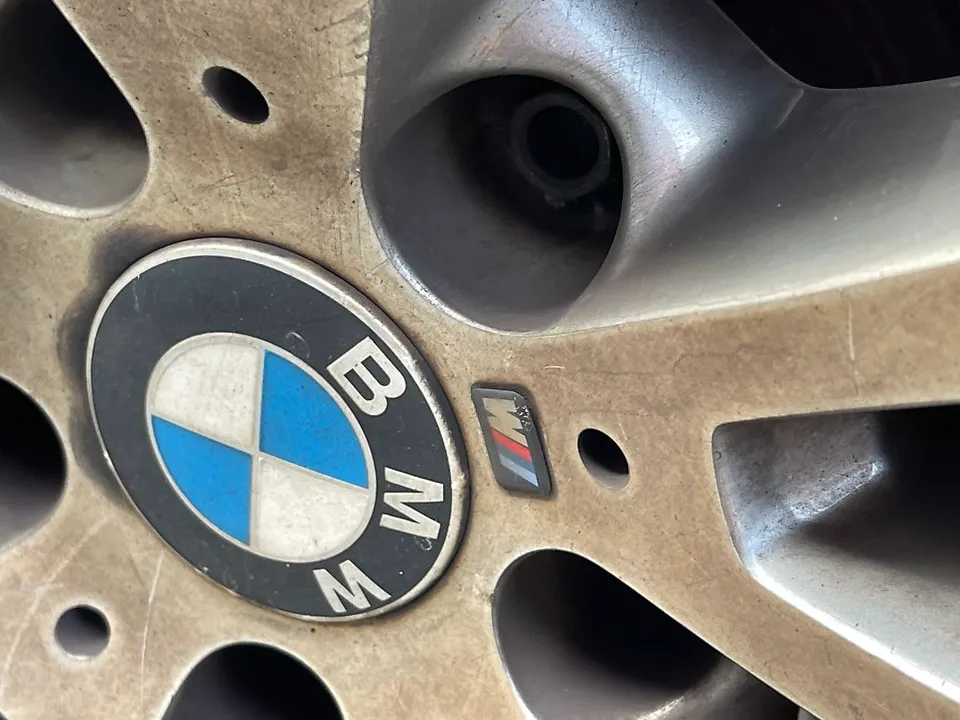

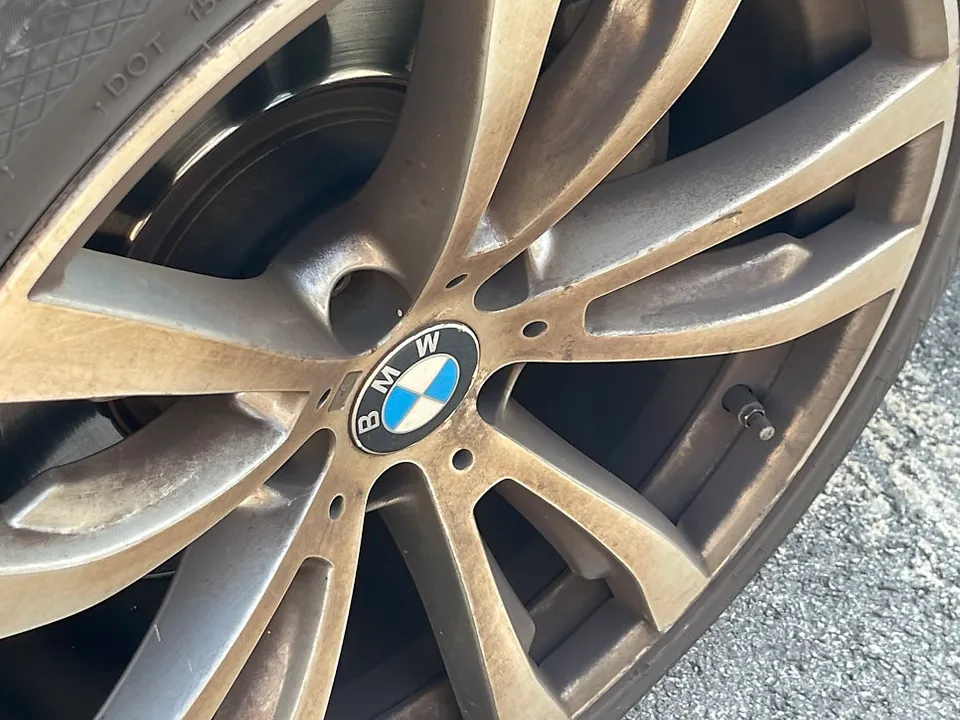

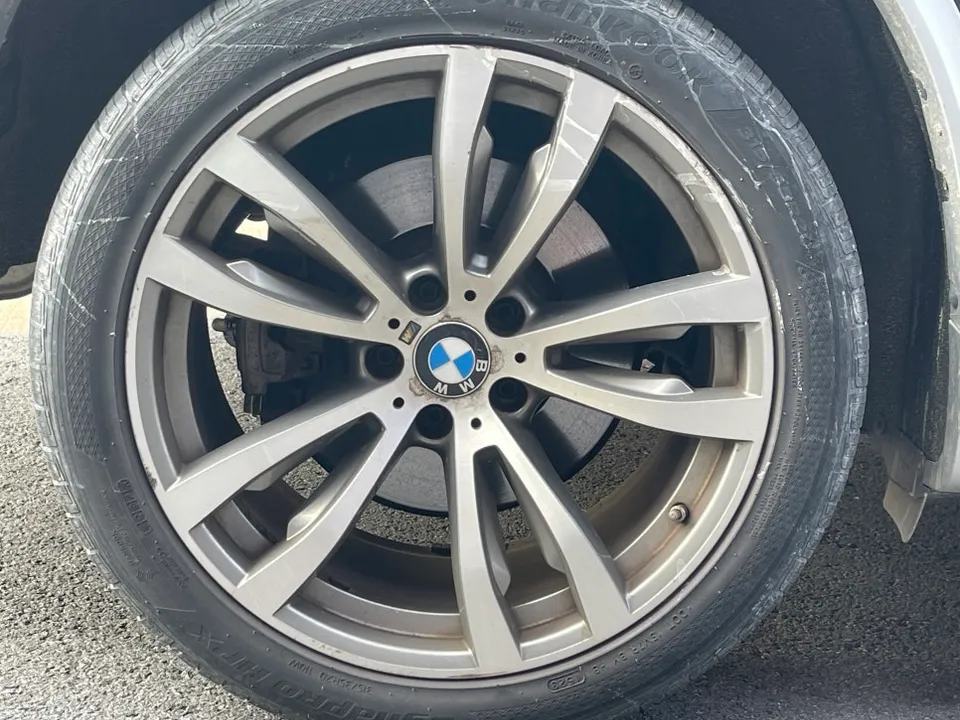

This case study details a wheel repair for a BMW X5 F15 performed in Asan, South Korea. Upon arrival, the wheels were severely corroded, with a yellowed, faded finish and peeling black paint. The polished areas had lost their luster, and the black painted sections were lifting. This was a prime example of a wheel needing a complete restoration, not just a surface touch-up.

The original BMW X5 wheels feature a two-tone black polish design, combining diamond cutting with a gloss black finish. Achieving a true restoration on such wheels requires more than just polishing; the contrast between the metallic grain and the black finish must be perfectly recreated. Our Asan branch focused on precisely this aspect throughout the process.

The Restoration Process: From Stripping to Powder Coating

The core principle of this job was adhering strictly to the correct procedure from start to finish. The wheels exhibited deep corrosion, penetrating the aluminum beneath the surface, making simple sanding insufficient for full recovery. The process began with stripping, a crucial step that completely removes all old paint, corrosion, and contaminants. After stripping, the wheels underwent high-pressure washing and heat treatment to prepare the surface.

To ensure optimal paint adhesion and a flawless finish, meticulous degreasing followed. This step is vital for achieving a factory-level finish. The process then moved to the primer coat, which is essential for the durability and appearance of the final finish.

Base Coat Powder Coating: Setting the Foundation for Color Depth

The next critical stage was the base coat powder coating. Unlike liquid painting, powder coating involves applying paint particles electrostatically, followed by curing in a 200°C oven. This method creates a thick, durable coating with superior resistance to corrosion and wear.

For BMW X5 wheels with a black polish design, a uniform black base is essential for the subsequent diamond cutting to create the desired contrast. The quality of the base coat directly impacts how the metallic grain will appear after CNC machining. Our Asan facility utilized precision spray equipment, not manual application, to ensure a consistent layer thickness.

CNC Diamond Cutting: Reviving the Metallic Grain

The most critical phase was the CNC diamond cutting. This is not merely surface grinding; it's a precision process that meticulously re-establishes the wheel's metallic grain, replicating the reflective quality of new wheels.

Wheels with the completed powder coat are mounted onto specialized CNC equipment. The machine then precisely carves the surface, removing material in 0.01mm increments. The original wheels, marred by oxidation and countless micro-scratches, had lost their natural metallic texture. Diamond cutting carefully shaves away these damaged layers, gradually revealing the underlying metal pattern.

Maintaining a consistent cutting depth is paramount. Variations can lead to uneven reflections, making the entire wheel appear blotchy. Our skilled technicians meticulously adjust the cutting depth, aligning the metallic grain flow visually to ensure a uniform and aesthetically pleasing result. Upon completion, the transformation was striking: the previously dull, corroded surfaces now reflected light like a mirror, with sharp, defined edges between the polished and black gloss areas.
