Genesis EQ900 OEM Options Review — Factory Upgrade Success

Resolving Blind Spot Detection Errors on the Genesis EQ900 with OEM Upgrades

Is your Genesis EQ900's Blind Spot Detection (BSD) system frequently displaying error messages? While many owners opt for aftermarket BSD installations to save costs, these systems can often lead to unexpected malfunctions and significant stress due to inconsistent installation quality. This review details a case where a problematic aftermarket BSD was replaced with a genuine OEM system at Today's Car Yangsan Branch, illustrating the precise process of rectifying such issues.

Common Issues with Aftermarket Blind Spot Detection

Aftermarket BSD systems are not inherently flawed, but improper installation and incorrect electronic coding can cause interference with the vehicle's complex electronic control units. Typically, the radar sensors are mounted on the upper radiator support and the rear bumper corners. If these sensors are not securely fastened, their connectors are loose, or they are not properly integrated into the vehicle's CAN-BUS network, persistent error warnings can occur during driving. In one instance, a previous installer used only double-sided tape and damping pads to secure the radar sensors. Over time, cumulative vehicle vibrations caused the sensors to shift, leading to a "Sensor not detected" error. This created a cycle of anxiety for the driver, negating the safety benefits of the system.

The OEM Upgrade Process for Genesis EQ900 BSD

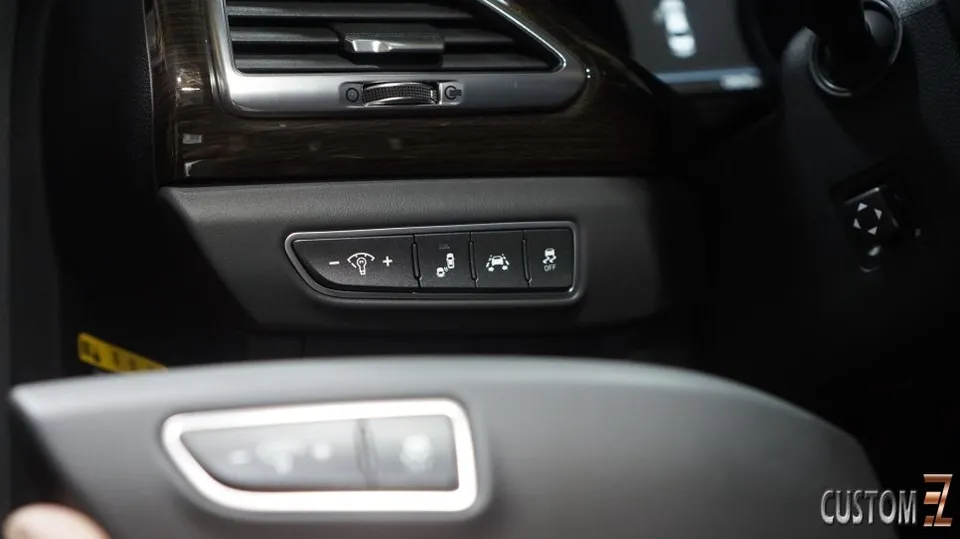

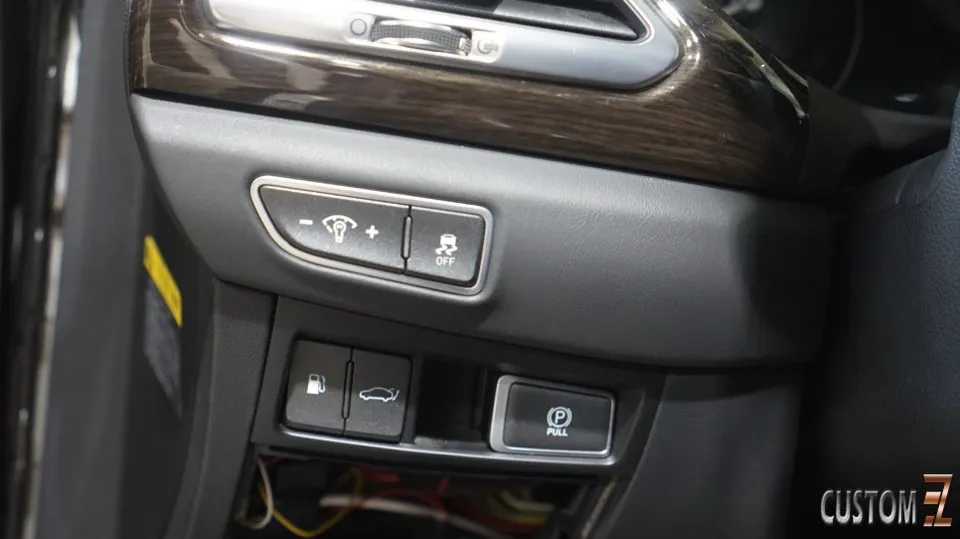

Switching to an OEM BSD system involves more than just replacing parts. For the EQ900, a dedicated switch for activating/deactivating the BSD system (located within the driver's door panel or center fascia) must be installed. The aftermarket control switch is removed, and the genuine OEM switch is fitted in its place. Following this, the rear bumper is carefully removed to completely detach the old aftermarket radar sensors. It's crucial to verify that both the front and rear sensors are removed and their electrical connectors are properly disconnected. Loose sensors, often found 'rattling' during removal, are clear indicators of poor prior installation.

Precision Installation and Calibration of OEM Radar Sensors

Installing the OEM radar sensors requires meticulous attention to mounting angles. These sensors detect vehicles in the blind spots (approximately 3-4.5 meters) using ultrasonic or infrared signals. Even a slight deviation of 0.5 degrees in installation angle can significantly impair detection accuracy. After installation, diagnostic tools are used to "teach" the vehicle's CAN-BUS network about the new radar sensors and input their specific parameters. A critical calibration (alignment correction) process follows. Without accurate calibration, the sensors may be physically installed but not recognized by the vehicle's systems. For domestic Korean vehicles, this calibration phase alone can take 30 minutes to an hour.

The cost for this comprehensive OEM upgrade, including parts and labor, typically starts around ₩1,200,000 (approximately $900 USD). This investment ensures reliable performance and restores the intended safety features of your Genesis EQ900.
