Genesis G80 Around View Monitor Installation Review

Genesis G80: Why You Need an Around View Monitor

The Genesis G80 is a luxury sedan known for its extensive features. However, lower trim levels might lack certain desirable options. Many owners consider an around view monitor (360-degree surround camera) essential for safe driving. Did you know you can add genuine factory options even after delivery? This review details a Genesis G80 RG3 around view monitor installation performed at Today's Car Jinju branch.

Genuine vs. Aftermarket Around View Systems

Around view monitor installations are typically categorized into two types: using genuine Genesis parts or aftermarket components. The primary advantage of a genuine around view system is its seamless integration. It works perfectly with the Genesis navigation screen, appearing as if it was installed at the factory. Wiring is neatly routed within the vehicle, and precise coding and calibration ensure no visual distortion.

Aftermarket systems often require separate monitor installations and may face compatibility issues with the original infotainment interface. Installation complexity and maintenance can also differ significantly. This specific installation exclusively used genuine parts, ensuring a completely integrated look and feel. Certified Mobis genuine parts were used, and all work followed Genesis's original specifications.

The Around View Monitor Installation Process

Installing an around view monitor on a Genesis G80 is more than just attaching four cameras; it involves several meticulous steps:

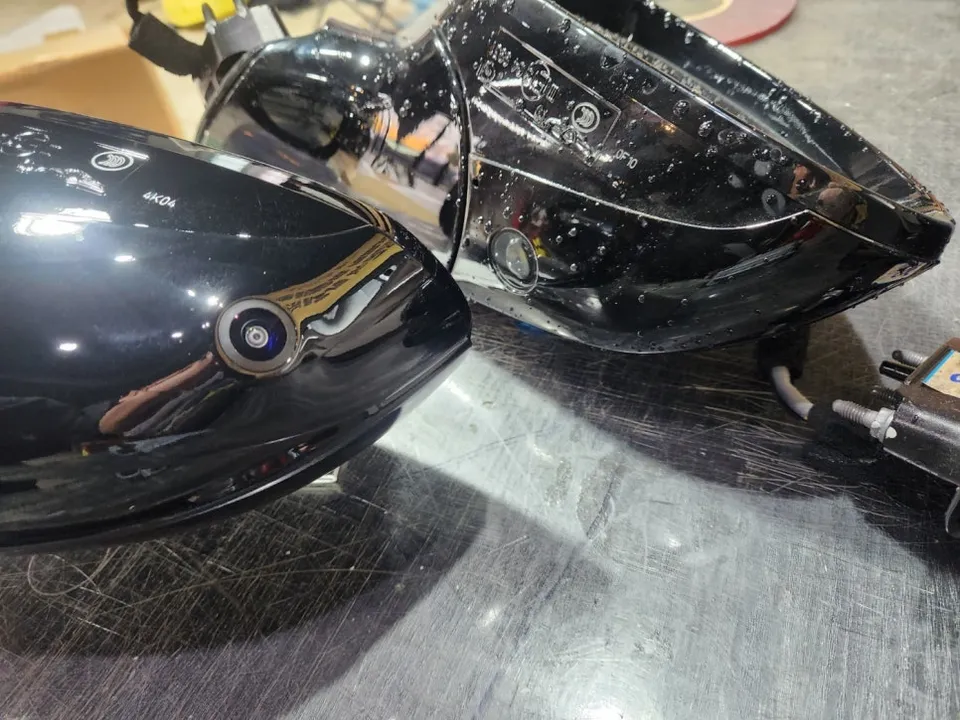

1. Part Replacement: Four cameras are needed for the around view system: front, rear, left, and right. This requires replacing the original side mirrors and front grille. The rear camera is also swapped for an around view-specific model. Each part must fit precisely in its designated location.

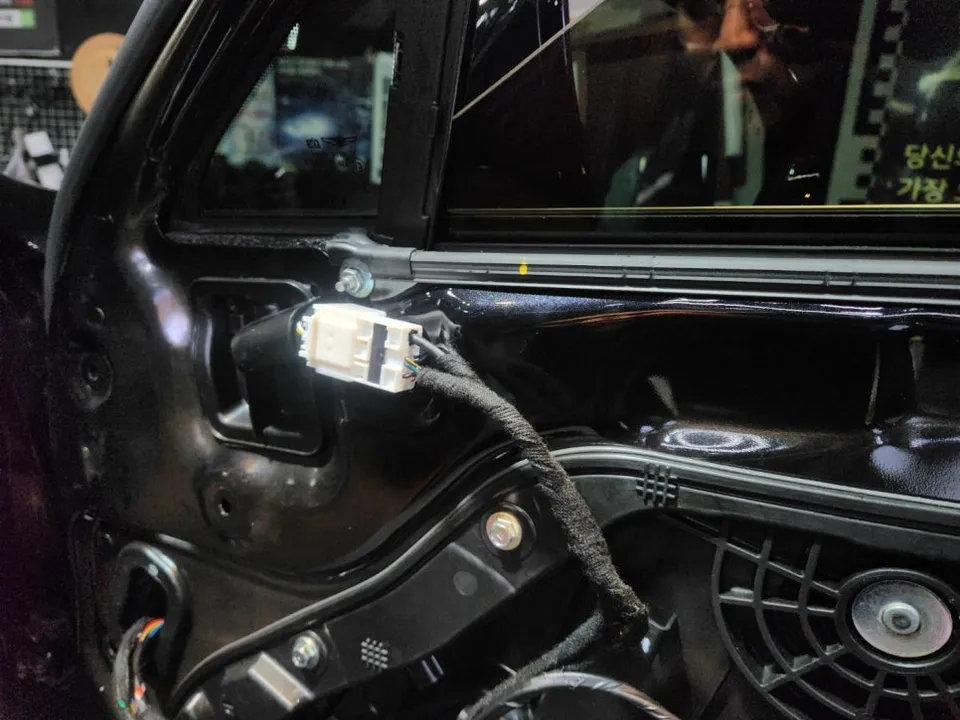

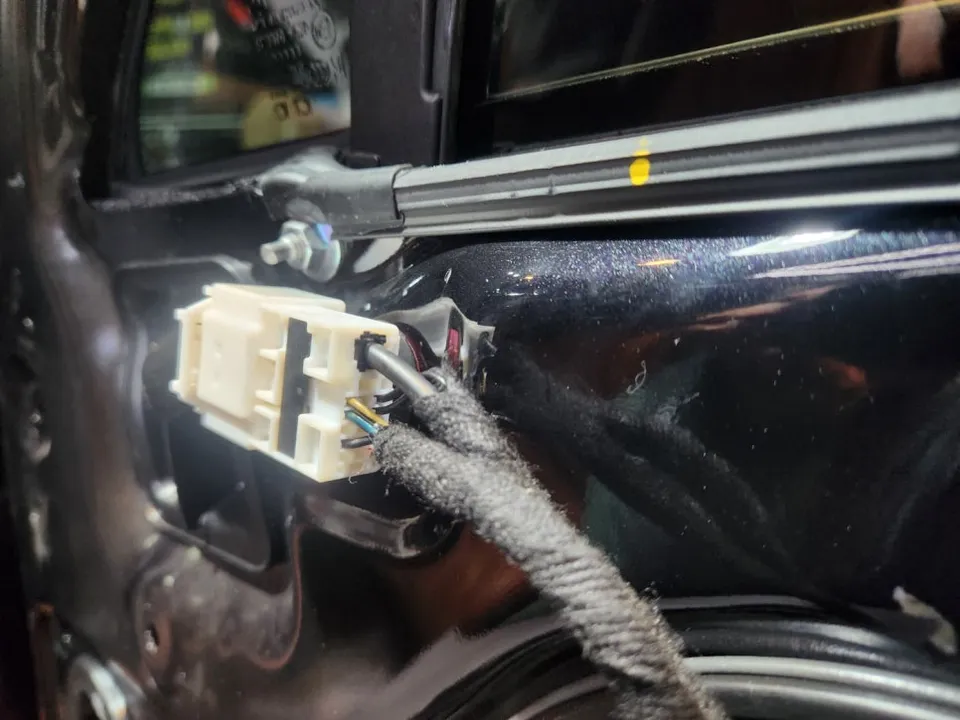

2. Wiring Installation: The wiring from the four cameras needs to be routed cleanly into the vehicle's interior. This process ensures no interference with existing wiring and includes thorough protection to prevent short circuits.
3. Coding and Calibration: This is the most critical step for the quality of the around view system. Calibration plates are placed around the vehicle, and the angles of all four cameras are precisely adjusted. Even minor misalignments can lead to significant screen distortion and reduced accuracy.

After calibration, the around view function is fully activated on the genuine navigation screen. All view modes (front, rear, left, right, sky view, split screen) are tested for normal operation, and the parking assist (PAS) lines are verified to display correctly.

Real-World Performance of the Genesis G80 Around View Monitor

Once activated on the genuine monitor, the around view system allows the driver to see a 360-degree view of the vehicle's surroundings. This includes not only the rear but also the front and sides. Various view modes are available, allowing you to see individual directions (front/rear/left/right) or a top-down perspective (sky view). The system also supports simultaneous viewing of multiple angles, greatly enhancing parking and maneuvering in tight spaces.
