Upgrade Your Honda Accord with a 3D Surround View Camera System

Parking your Honda Accord can be a source of stress, especially in tight spots or busy streets where blind spots are a major concern. Today, we're exploring an installation that significantly reduces this parking anxiety: a 3D Surround View Camera system. This review details how an AHD high-definition monitor and a 3D surround view system work together to provide unparalleled visibility for your Accord.

Seamless Integration with AHD Monitor Upgrade

The process begins with the careful removal of the existing navigation system. Our technicians meticulously disassemble the dashboard, prioritizing the preservation of electrical wiring and internal structures, particularly important for complex Honda dashboards. Once the old unit is out, a new 7-inch AHD monitor is seamlessly integrated into the space. AHD (Analog High Definition) technology offers a significant leap in video quality over older CVBS systems, providing much sharper images with reduced video noise. This new monitor serves as the central hub for the 3D surround view system.

Comprehensive 360-Degree Camera Coverage

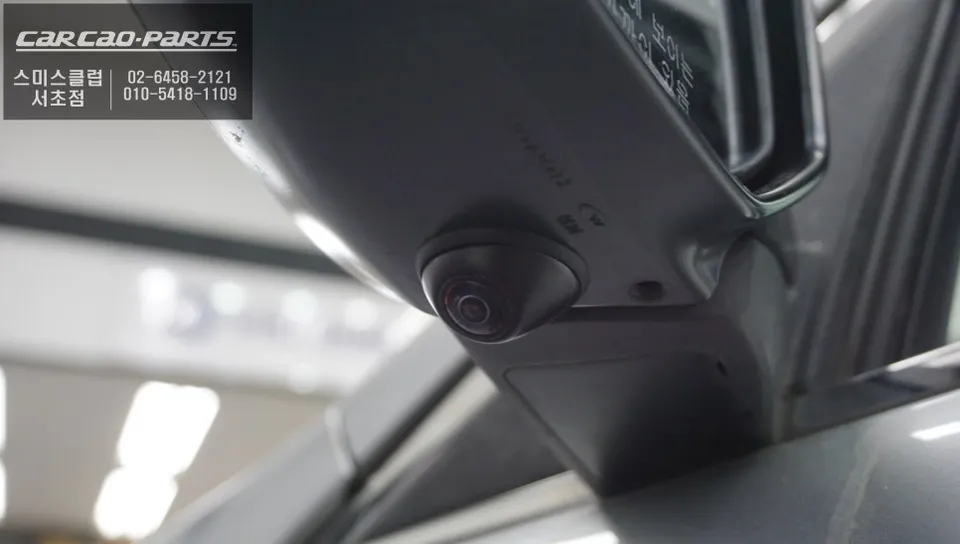

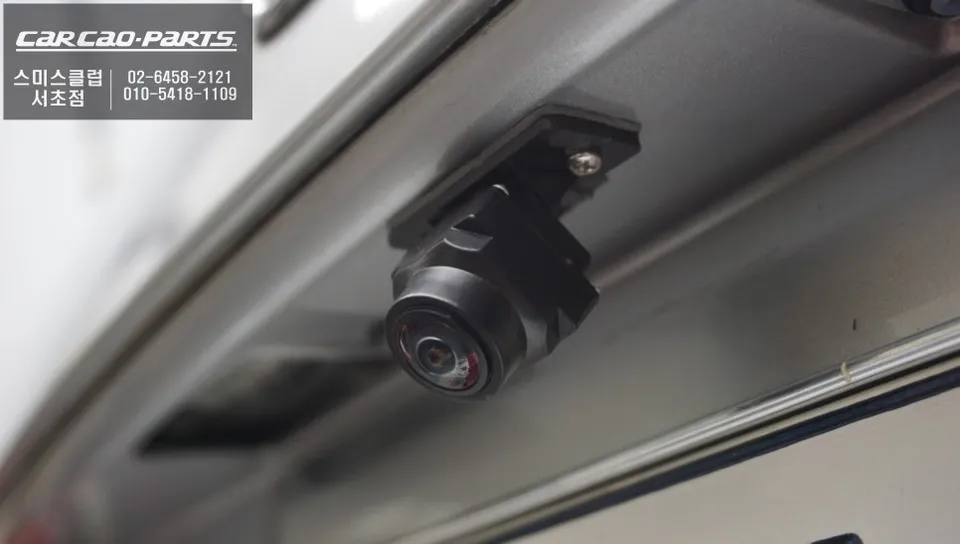

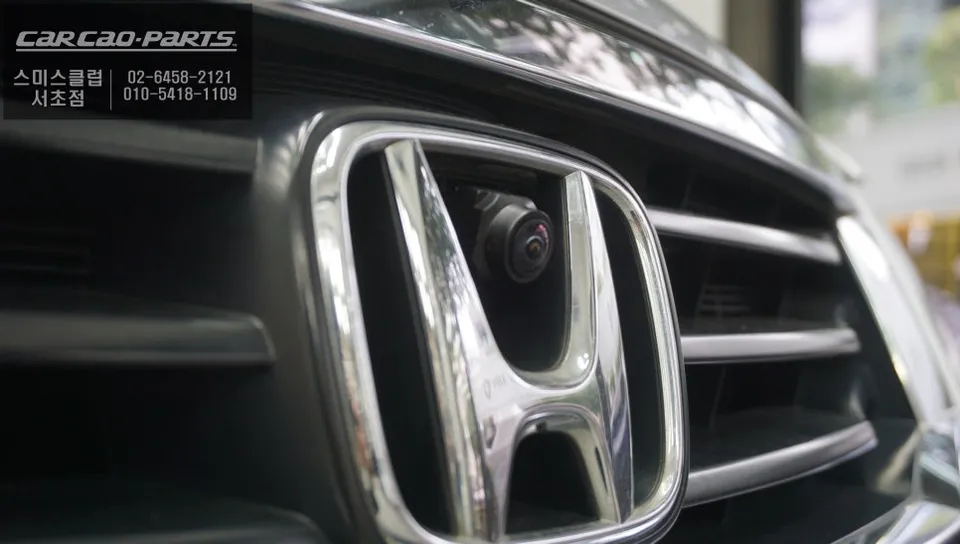

The core of the 3D surround view system lies in its four strategically placed cameras. For this Honda Accord, wide-angle cameras were installed at the front, rear, and both sides of the vehicle. These are high-quality cameras designed for excellent performance day and night, ensuring clear footage regardless of lighting conditions. The front camera is mounted on the front bumper area, the rear camera on the trunk lid, and the side cameras are positioned on the lower parts of the vehicle's body. Together, these cameras capture a complete 360-degree view, which is then processed to create a bird's-eye perspective, making it feel as if you're looking down on your car from above.

Real-Time 3D Visualization and Control

The video feeds from all four cameras are converted to high-definition AHD signals and displayed in real-time on the 7-inch monitor. The integration into the original navigation slot allows drivers to check their surroundings naturally while facing forward. The system doesn't just display individual camera feeds; it intelligently stitches them together using sophisticated software to create a unified 3D top-down view. This composite image allows for intuitive judgment of distances to obstacles around the vehicle.

Control is managed via a Bluetooth wireless remote, offering flexibility in viewing angles. Drivers can easily switch between top-down view, side views, or rear views. A particularly useful feature is the automatic trigger function: activating the left turn signal automatically displays the left-side camera view, and the right turn signal shows the right-side view. This customizable feature is invaluable for navigating narrow streets and changing lanes safely. Additionally, the system automatically records footage from all cameras while driving, effectively doubling as a multi-directional dashcam for added security and evidence in case of an incident.
