Hyundai Casper 360 Camera Install: Before & After

Hyundai Casper Surround View Camera Installation Overview

For Hyundai Casper owners who find parking and maneuvering in tight spaces challenging, an aftermarket surround view camera system can be a game-changer. This review details the installation of the Maxpro 3D All-in-One Surround View system on a Hyundai Casper. This system is designed specifically for Hyundai and Kia vehicles, offering a high-quality, integrated solution. The installation process is a 'jack-by-jack' connection, meaning it directly interfaces with the factory audio system without compromising existing functions. The entire procedure typically takes around 5 hours, ensuring all features of the original navigation system remain fully accessible. The Casper, while compact, can present visibility challenges due to its limited factory camera setup, often only including a rear camera. This lack of comprehensive visual aids can lead to difficulties in judging vehicle width and navigating narrow streets or crowded parking lots. The Maxpro 3D system aims to rectify this by providing a comprehensive 360-degree view.

Before and After: Enhanced Visibility

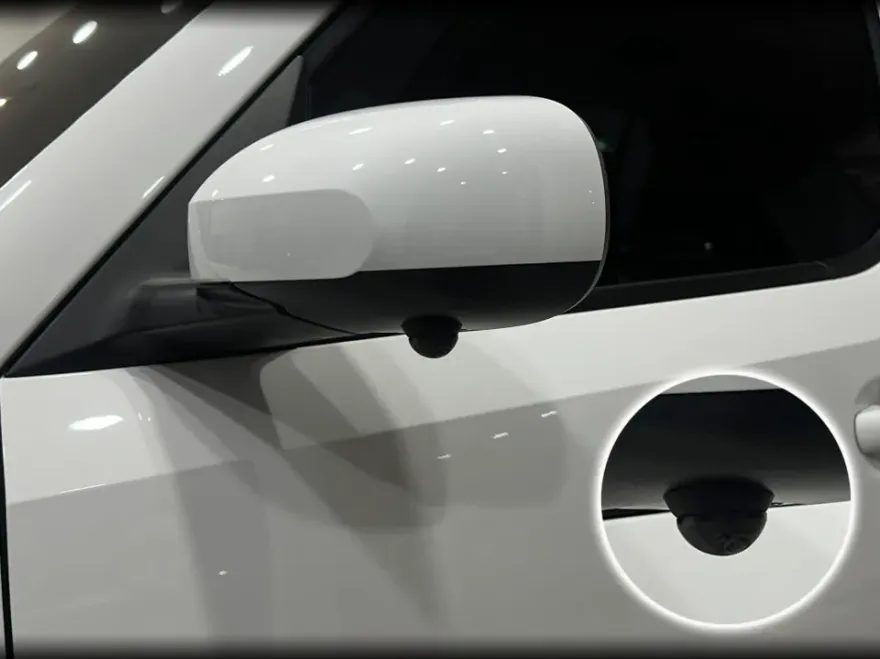

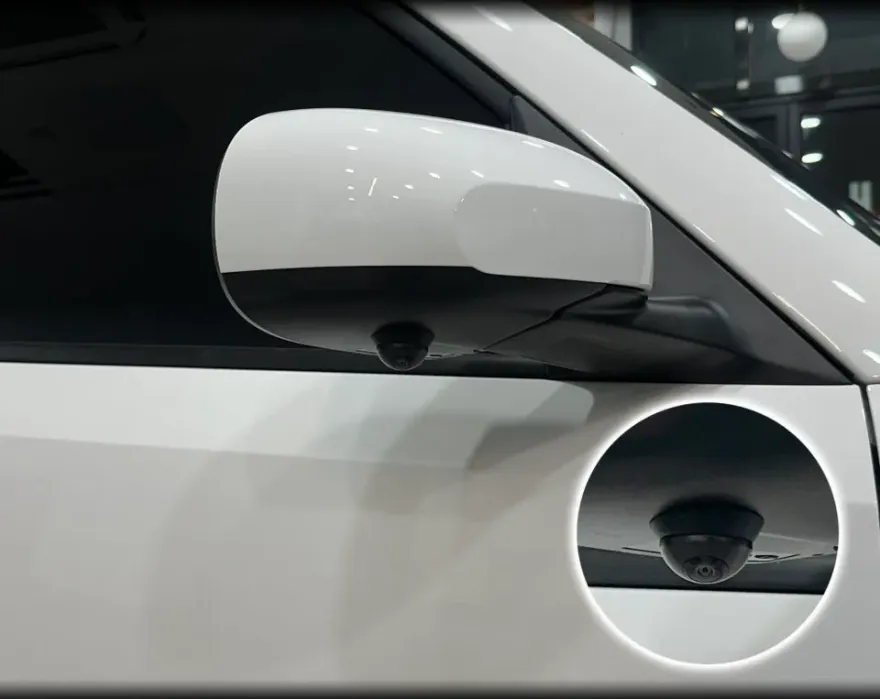

In its stock configuration, the Hyundai Casper relies solely on a rear-view camera, leaving drivers to guess the vehicle's width and front-end proximity. This can be particularly stressful in urban environments with narrow parking spots and busy alleyways, increasing the risk of minor collisions or curb damage. The Maxpro 3D installation addresses this by adding cameras to the front and sides of the vehicle. The side cameras are discreetly mounted under the side mirror covers, requiring precise drilling for a clean finish. The rear camera is also replaced with a unit optimized for the surround view system. While the front camera installation involves intricate work, the end result is a seamless integration that provides a bird's-eye view of the entire vehicle's surroundings. The wiring is meticulously routed through the interior trim, ensuring no rattles or damage to the original upholstery. Despite the Casper's relatively small size, the complexity of the interior trim removal and reinstallation demands skilled technicians to achieve a factory-like finish.

Maxpro 3D Surround View System Features and Benefits

The Maxpro 3D Surround View system offers several key features designed to enhance driving safety and convenience. The 'Side View' mode is particularly beneficial for navigating tight parking spaces, clearly displaying the vehicle's left and right sides. A standout feature is the 'Front Wheel View,' which provides a clear line of sight to the front tires, crucial for maneuvering through narrow gaps and avoiding obstacles. This view significantly reduces blind spots. Both the front and rear camera views offer crisp, clear images. Crucially, the system integrates with the steering angle, displaying the vehicle's projected path on the screen, making parking and low-speed maneuvers much more predictable and safer. This around view monitor transforms the driving experience, especially for those less confident with spatial judgment.

Installation Process:

1. Disassembly of interior trim panels to access wiring harnesses and mounting points.
2. Careful drilling into side mirror covers for side camera installation.
3. Routing and securing all camera wiring harnesses through the vehicle's interior, ensuring a clean and noise-free setup.
4. Connecting the main control unit to the factory audio system via plug-and-play connectors.
5. Testing all camera views and system functions before reassembling interior trim.

The cost for this type of installation in Korea typically ranges from ₩500,000 to ₩700,000 (approximately $360 - $500 USD), depending on the specific installer and region. While this is an investment, the enhanced safety and convenience it provides can be well worth the surround cost for many Casper owners.
