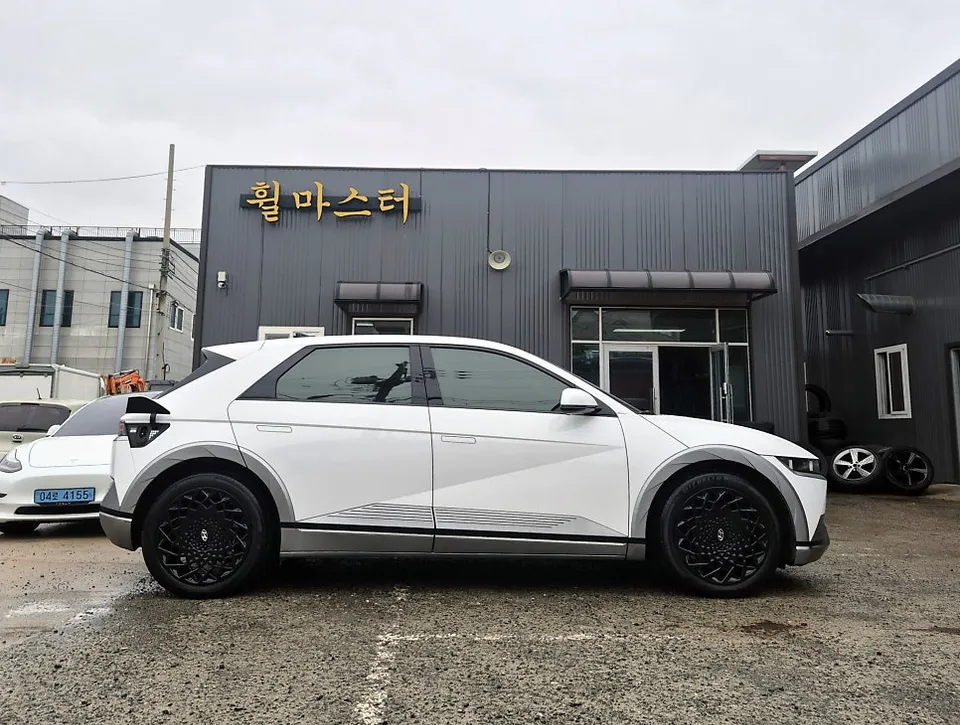

Hyundai IONIQ 5 Wheel Repair & Painting Review - Like New

Hyundai IONIQ 5 Wheel Restoration: Powder Coating in Ulsan

If your Hyundai IONIQ 5's original diamond-cut wheels have accumulated significant damage, powder coating wheel repair is the definitive solution. This case study from Ulsan details the restoration of damaged wheels to a like-new condition using a gloss black powder coating. We'll break down the entire wheel repair process, including cost and turnaround time, as performed by Today's Car Ulsan.

Ulsan's Trusted Wheel Specialists: Today's Car Ulsan

Today's Car Ulsan operates from a 150-pyeong professional facility equipped with state-of-the-art powder coating systems, argon welding, straightening machines, and diamond-cutting lathes. They are the go-to choice for Ulsan-area car owners facing wheel issues. With over a decade of expertise and thousands of completed projects, they provide reliable wheel restoration services.

Step-by-Step Gloss Black Powder Coating for IONIQ 5 Wheels

1. Vehicle Intake and Initial Inspection: Upon arrival, the IONIQ 5's wheels were assessed. The diamond-cut factory wheels showed various imperfections from minor stone chips, curb scrapes, and car wash abrasions. The overall appearance was noticeably worn.

2. Tire Removal and Blasting: The process begins with removing the tires and TPMS sensors. Subsequently, the wheel surface undergoes blasting, a crucial step involving high-pressure abrasive media to completely strip the old coating and imperfections. This creates a uniform, 0.1mm-level surface ideal for new paint adhesion, achieving a hardness of approximately 3H.

3. Cleaning and Degreasing: After blasting, the wheels are thoroughly cleaned with high-pressure water to remove all abrasive particles and dust. A degreasing process then chemically removes any surface oils, ensuring optimal paint adhesion, which is largely determined by these preparation stages.

4. Gloss Black Powder Coating Application: The wheels receive a gloss black powder coating. Unlike traditional liquid painting, powder coating uses electrostatically charged powder that adheres uniformly and is then cured at high temperatures. This method results in a more durable, even finish with less environmental impact.

5. Oven Curing and Post-Curing: The coated wheels are baked in a high-temperature oven (around 200°C) for 15-20 minutes to cure the powder coating. A critical post-curing phase of approximately 48 hours of natural curing follows. Full hardness is achieved after this period, so avoiding aggressive driving for at least two days post-service is recommended.

6. Final Assembly and Balancing: Once the coating is fully cured, the tires and TPMS sensors are reinstalled. The wheels are then balanced to ensure a smooth ride, completing the restoration process.

Powder Coating vs. Standard Painting: Standard liquid painting involves spraying paint and air-drying, which can lead to uneven application on complex wheel surfaces. Powder coating, using electrostatic attraction, ensures a consistent layer across all areas, including inner barrels and edges, offering 2-3 times the hardness and durability of conventional paint.
