Hyundai Santa Fe DM Blind Spot Detection Retrofit Review

Enhance Your Santa Fe DM's Safety with OEM Blind Spot Detection

Driving can be stressful, especially when navigating blind spots. For Hyundai Santa Fe DM owners, the risk of accidents increases significantly during high-speed maneuvers or lane changes due to these unseen areas. To address this common concern, many owners opt for a factory option retrofit, specifically the OEM Blind Spot Detection (BSD) system. This review details the installation process, benefits, and overall value of adding this crucial safety feature to your Santa Fe DM.

Understanding the Need for Blind Spot Detection (BSD)

Blind spots are the areas around your vehicle that are not visible through the mirrors or direct line of sight. These hidden zones pose a considerable risk, particularly on highways and during lane changes. The OEM BSD system is designed to mitigate this risk by using radar sensors mounted in the rear bumper. These sensors monitor the areas to the rear and sides of your vehicle, detecting approaching vehicles and alerting the driver. This system not only enhances safety during lane changes but also includes Rear Cross-Traffic Alert (RCTA), which warns of vehicles approaching from the sides while reversing, making parking in tight spots much safer.

OEM Blind Spot Detection Installation Process

The installation of the OEM BSD system on a Hyundai Santa Fe DM involves several precise steps to ensure optimal performance. This process utilizes genuine factory parts for seamless integration:

1. Radar Sensor Mounting: The core of the BSD system, the radar sensors, are securely mounted on the rear bumper corners. This is done using genuine brackets and often an ultrasonic welder, mirroring the factory production method to guarantee a robust and precise fit.

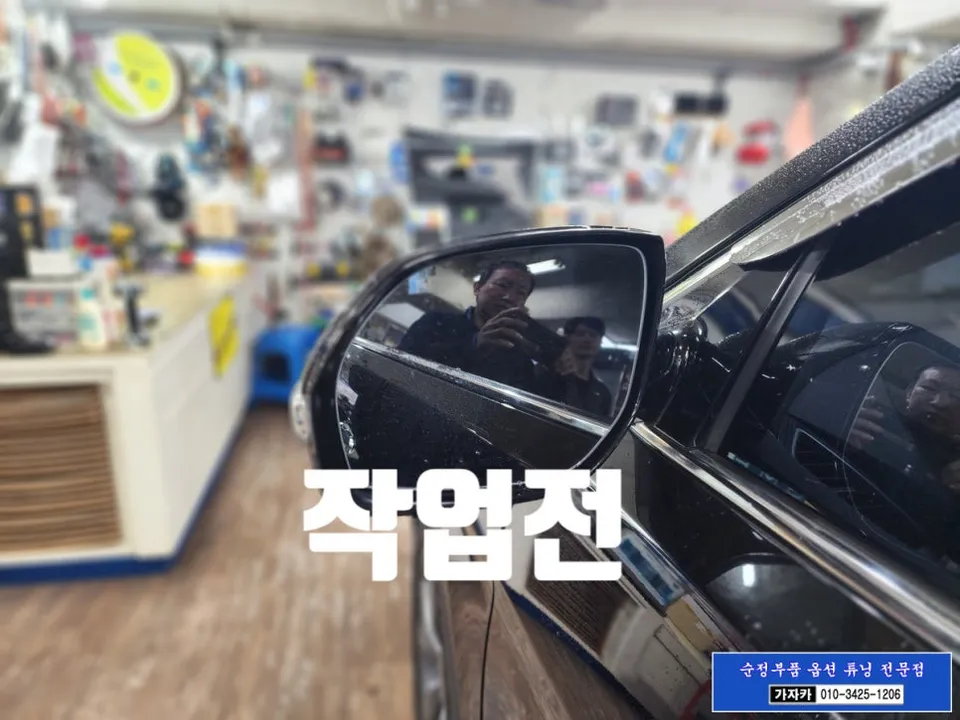

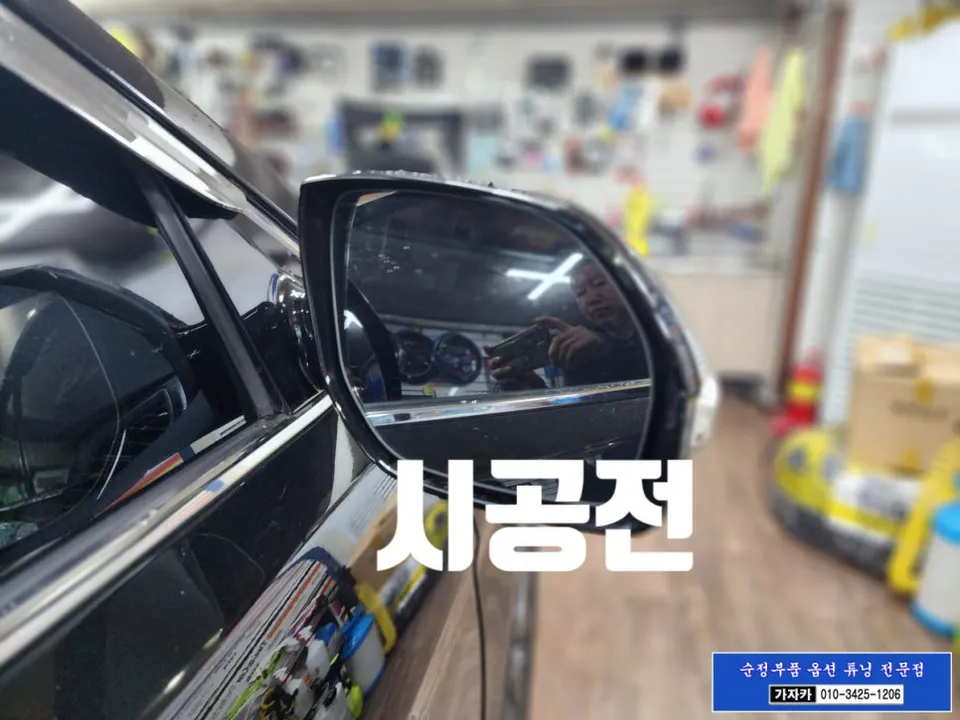

2. Side Mirror Replacement: The side mirrors are upgraded with units that feature integrated warning indicators. When the BSD system detects a vehicle in the blind spot, a visual alert illuminates on the corresponding side mirror, providing an immediate and clear warning.
3. Wiring Harness Integration: A dedicated wiring harness is installed to connect the radar sensors and the side mirror warning lights to the vehicle's central control module. This ensures all components communicate correctly with the Santa Fe DM's existing electrical system.
4. System Calibration: After installation, the system undergoes calibration to ensure the radar sensors are accurately detecting vehicles and the warning indicators function as intended.

Benefits and Features of the OEM BSD System

Once installed, the OEM BSD system offers several advanced driver-assistance features:

• Blind Spot Detection (BSD): Alerts the driver via the side mirror indicator when a vehicle is detected in the rear blind spot.
• Lane Change Assist (LCA): In conjunction with the front camera, this feature can detect vehicles approaching at high speed from the rear and warn the driver of potential danger before a lane change.
• Rear Cross-Traffic Alert (RCTA): Provides audible warnings when vehicles are detected approaching from the sides while the car is in reverse, significantly improving safety during parking and reversing maneuvers.

The cost for this comprehensive upgrade in Korea typically ranges from 500,000 to 1,000,000 KRW (approximately $370-$740 USD, subject to exchange rates), including parts and labor. The installation usually takes a full day.
