Hyundai Santa Fe TM Moving Turn Signal Upgrade Review

Why the Hyundai Santa Fe TM Needs a Lighting Upgrade

While the Hyundai Santa Fe TM boasts an elegant design, its stock turn signals, often a bulb-type located below the headlights, can be difficult for other drivers to perceive, especially at night. This lack of visibility poses a safety concern, particularly during lane changes or when navigating busy intersections. The "Today's Car Dongtan" shop addressed this common issue with a moving turn signal LED upgrade, enhancing both safety and aesthetics.

Understanding Moving Turn Signals

Moving turn signals, also known as sequential LED turn signals, offer a dynamic visual cue. Instead of a simple blink, LEDs illuminate in a flowing, sequential pattern, indicating the direction of the turn more intuitively. This technology uses a series of high-brightness LEDs arranged in the daytime running light (DRL) housing. When the turn signal is activated, a control circuit causes the LEDs to light up in sequence, creating a smooth, flowing effect that is far more noticeable than traditional incandescent bulbs. This sequential illumination is significantly more eye-catching than the standard 1Hz blink rate of conventional turn signals.

Installation Process: Hyundai Santa Fe TM Moving Turn Signal LED Upgrade

1. Headlight Disassembly and Circuit Diagnosis: The process begins with carefully removing the headlight assembly from the Santa Fe TM. This requires meticulous attention to avoid damaging surrounding body panels. The existing turn signal circuit is then tested to ensure it's functioning correctly and compatible with the new LED modules. This step typically takes 15-20 minutes.

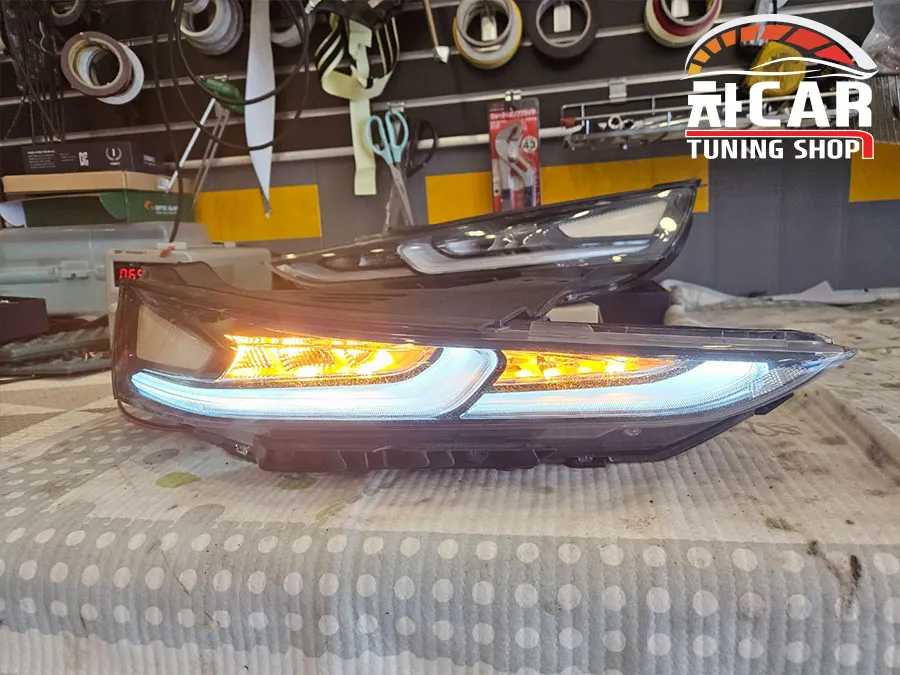

2. LED Module Retrofit: Custom-designed LED modules are installed into the original bulb socket locations using specialized adapters. These modules feature high-intensity SMD LEDs, offering a brightness output of approximately 15-20W, which is over three times brighter than standard bulbs. Each module includes an integrated PCB for sequential illumination control, automatically generating the moving effect when the turn signal is engaged. This stage usually takes 25-30 minutes.
3. Optional DRL/Position Light Integration: For an enhanced visual effect, the moving pattern can be extended to the DRLs and position lights. This involves additional wiring to synchronize the sequential LEDs with the vehicle's DRLs and bumper-mounted side marker lights. This creates a more comprehensive visual flow along the vehicle's sides, further improving conspicuity. Alternatively, a basic version can be installed focusing solely on the amber turn signal area. This optional step adds about 15-20 minutes.
4. Circuit Testing and Reassembly: After installation, the vehicle's electrical system is tested. The turn signals (left, right, and hazard lights) are activated to confirm the correct sequential pattern and brightness. The DRL function is also verified. Once all functions are confirmed to be working perfectly, the headlight assembly is reinstalled, and all fasteners and clips are secured. A final inspection ensures no leaks or connection issues. This reassembly and final check takes approximately 20 minutes.

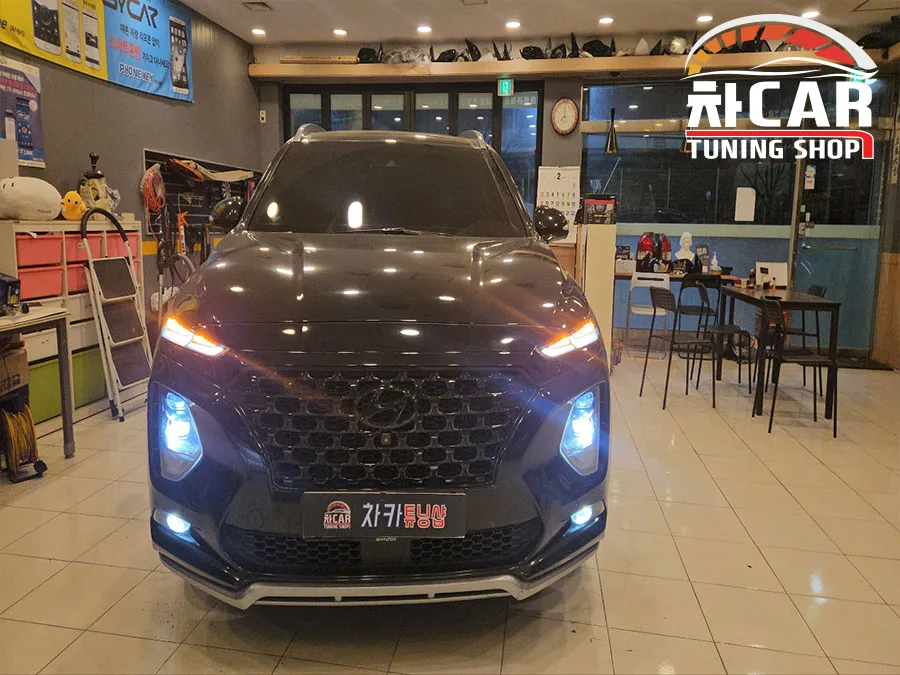

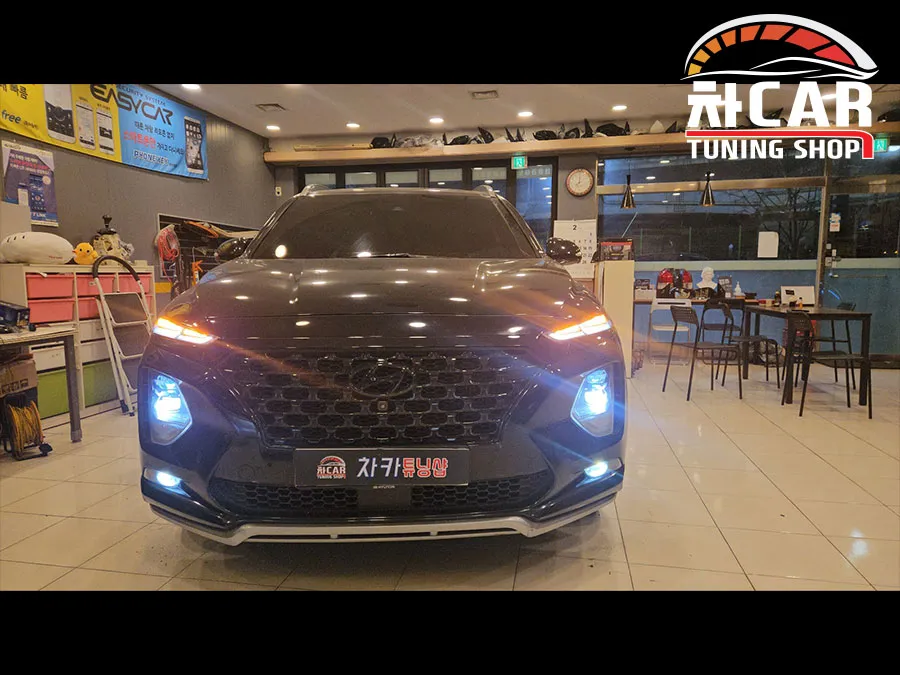

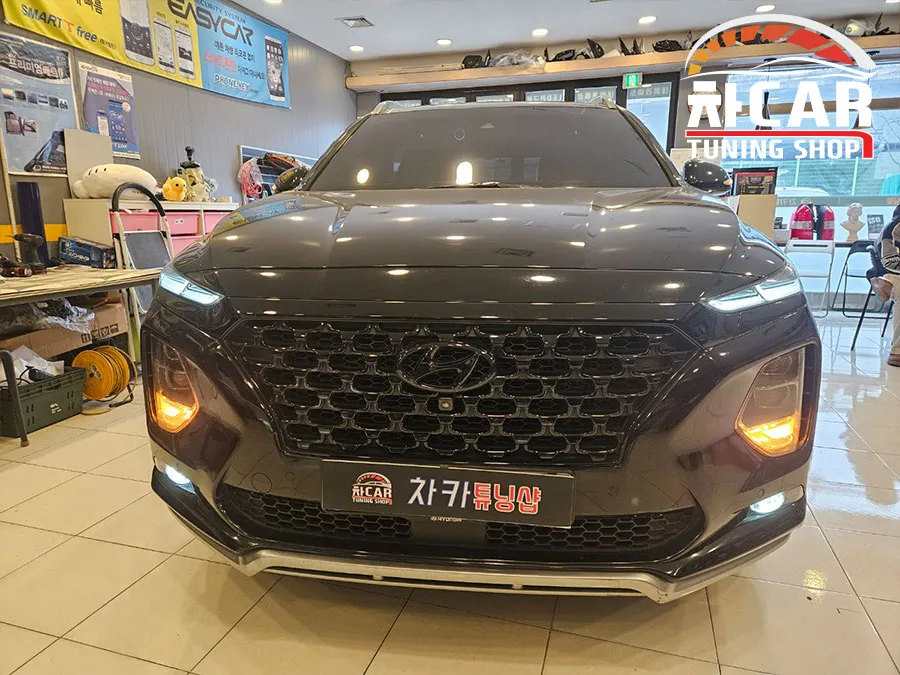

Dramatic Visibility Improvement

The difference in visibility after the upgrade is striking. The original bulb-type turn signals were often overlooked by other drivers, especially in adverse lighting conditions or at higher speeds. The new sequential LED system provides a clear, dynamic indication of intent, significantly reducing the risk of miscommunication on the road. This upgrade not only enhances safety but also gives the Santa Fe TM a more modern and premium appearance.
