Hyundai Tucson NX4 360 Camera Install: Before & After
Hyundai Tucson NX4 surround view camera retrofit with LCD cluster and ADAS upgrade. Enhanced visibility and safety.
Transforming Your Hyundai Tucson NX4 with a Surround View Camera System
The Hyundai Tucson NX4 presents a unique challenge for dashboard upgrades, especially when integrating advanced features like a surround view camera system. Unlike many vehicles, the NX4 often requires a dashboard replacement to accommodate a new LCD instrument cluster, which is a prerequisite for features like the around view monitor and even some advanced driver-assistance systems (ADAS). This comprehensive retrofit transforms the driving experience, offering unparalleled visibility and convenience. This particular NX4 Hybrid arrived at Phantom Tuning in Bucheon, South Korea, for a significant upgrade package, including an LCD cluster, surround view cameras, and smart cruise control.
Seamless Integration and Enhanced Driving Features

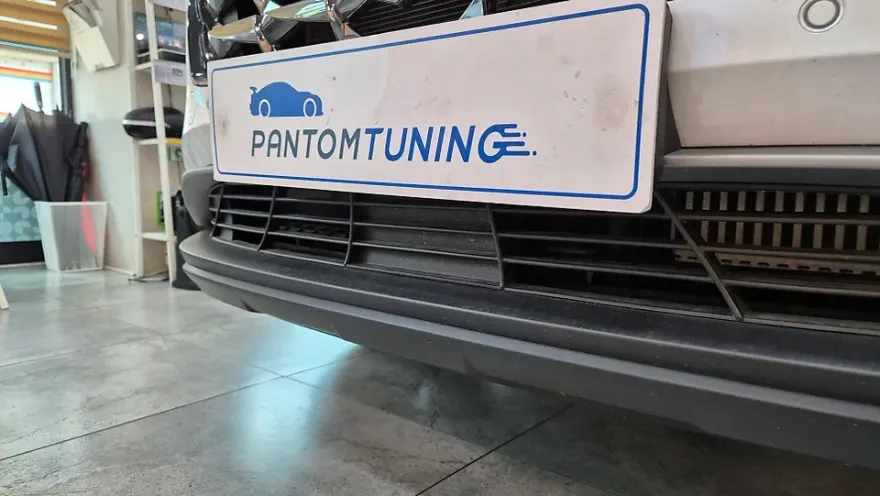

The process begins with addressing the vehicle's exterior. The original front grille lacked a camera housing, necessitating a replacement to integrate the forward-facing camera cleanly. Similarly, the lower grille area, which on some models houses radar for ADAS, also required modification. The heart of the upgrade involves replacing the standard instrument cluster with a full LCD digital cluster, offering a modern aesthetic and improved functionality. This new cluster is essential for displaying the surround view camera feed and other advanced information. The steering wheel controls are also updated to include buttons for activating and managing the smart cruise control and highway driving assist (HDA) features. The existing rear camera is replaced with a wider-angle lens specifically designed for the surround view system. Side cameras are installed discreetly beneath the side mirrors, providing crucial views for the around view monitor and the blind-spot monitoring system. All four camera feeds converge at an AVM (Around View Monitor) ECU module, where the images are processed and stitched together for a cohesive bird's-eye view displayed on the navigation screen. The installation also includes fitting a radar unit for enhanced forward collision avoidance and adaptive cruise control, integrated into a modified lower grille assembly. The final steps involve calibration of the radar and the camera system using specialized equipment and calibration plates to ensure accuracy.
Before and After: A New Perspective on Driving

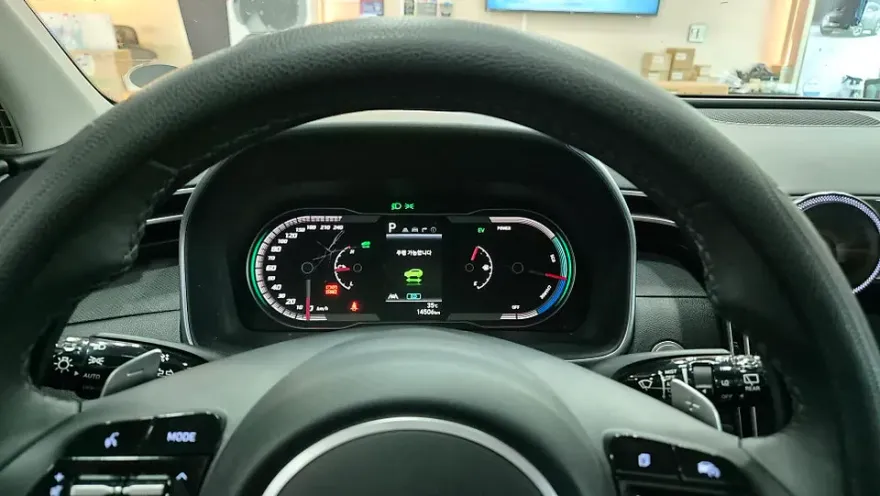

The transformation is striking. The standard instrument cluster gives way to a vibrant LCD display that dynamically changes graphics based on the selected drive mode – sporty red hues for Sport mode, a clean, transparent look for Eco, and a standard design for Normal. This customization adds a significant premium feel. The surround view system provides a clear, 360-degree bird's-eye perspective around the vehicle, making parking and maneuvering in tight spaces effortless. When reversing, the system defaults to the surround view, with dynamic parking lines that adjust to the steering angle. Shifting into Drive automatically switches the display to a front camera view, offering a magnified look at the front bumper area, which is invaluable for navigating tight parking garages or obstacles. The system also provides detailed views of the front and rear fender areas, aiding in precise maneuvering. A significant addition is the blind-spot monitoring system, which displays camera feeds from the corresponding side when the turn signal is activated, enhancing safety during lane changes. The integration of the Highway Driving Assist (HDA) and smart cruise control, enabled by the new radar unit and steering controls, significantly reduces driver fatigue on long journeys. The enhanced forward collision avoidance system, now utilizing both camera and radar data, offers improved detection capabilities in various conditions.
Installation Process:
- Replacement of the dashboard and instrument cluster with an LCD digital unit.
- Installation of front, side (x2), and rear cameras, including grille and mirror housing modifications.
- Integration of a radar unit for ADAS features and updated steering wheel controls.
- Connection to the AVM ECU module for image processing and display on the navigation screen.
- Calibration of all cameras and radar systems using specialized equipment.
Frequently Asked Questions
Q. How much does a 360 camera installation cost for a Hyundai Tucson NX4?
The cost for this specific surround view camera installation on a Hyundai Tucson NX4 in South Korea, including the LCD cluster and ADAS upgrades, was substantial, reflecting the complexity of the work. While exact US pricing varies widely, similar comprehensive retrofits can range from $1,500 to $3,000 or more depending on the components and labor rates.
Q. How long does a surround view camera installation take on a Hyundai Tucson NX4?
This type of extensive upgrade, involving dashboard and multiple component replacements, typically takes a full day or more to complete. Proper maintenance involves keeping the camera lenses clean from dirt and debris, which can be done with a soft cloth and mild cleaner.
Q. Is an aftermarket 360 camera worth it for a Hyundai Tucson NX4?
A surround view camera system is highly beneficial for drivers who frequently navigate tight spaces or want maximum parking assistance. The enhanced visibility significantly reduces the risk of minor collisions and curb damage, adding considerable value and peace of mind.
Q. How is a surround view camera system installed on a Hyundai Tucson NX4?
Installation involves replacing the front grille to mount the front camera, replacing side mirror assemblies for side cameras, and upgrading the rear camera. The system requires an AVM control unit to process feeds from all four cameras, which are then displayed on the vehicle's infotainment screen. Calibration is crucial for accurate imaging.
Q. What is the difference between OEM and aftermarket surround view cameras for a Hyundai Tucson NX4?
While this installation focused on integrating OEM-like functionality, true OEM systems are designed and tested by the manufacturer for seamless integration. Aftermarket kits can offer similar features but may vary in image quality, compatibility, and long-term durability, making a reputable installer crucial.
Q. What should I know before getting Surround View Camera on a Hyundai Tucson NX4? (common regrets and mistakes)
The most common regret is underestimating the complexity and cost, especially when integrating with an LCD cluster upgrade. To avoid this, thoroughly research the specific components needed for your NX4 model and get detailed quotes from experienced installers.
