Kia Carnival Around View Monitor: The Start of Perfect Parking
Welcome to Today's Car. This installation project involves fitting an around view monitor system to the Kia Carnival. We've combined an AHD monitor with the 3D Plus View package for high-definition video output. Ever felt anxious while parking? This upgrade completely resolves those concerns.
Vehicle Model: Kia Carnival Installation Item: Around View Monitor + AHD Monitor + 3D Plus View Monitor Specifications: 7-inch AHD High-Definition Display Installation Branch: Today's Car Seocho Branch Key Features: 360-degree Top View, 4-channel recording while driving, Blind spot auto-detection
Why is an Around View System Necessary?
What are the most dangerous moments when driving? Most would say reverse parking or navigating narrow alleyways. Even experienced drivers find it difficult to get a complete view of the vehicle's surroundings. This is especially true for large SUVs and vans like the Kia Carnival, which have larger blind spots.
Traditional backup cameras or sensors only provide rear views. However, the around view system creates a "Top View" that simulates looking down on the vehicle from above. You can see oncoming cars, pedestrians, curbs, and parking lines in real-time. This is why a Kia Carnival around view installation is considered not just a convenience, but an essential safety device.
How Does the 3D Plus View Work?
The 3D Plus View product installed on the Kia Carnival features four cameras (front, rear, left, right). After auto-calibration based on a dedicated pattern using the footage from each camera, a single, synthesized top-view image is created. Geometric distortions are corrected during this process, resulting in accurate and stable video.
Post-installation, the system automatically syncs with the gear signals. When in Reverse (R), it switches to Top View + Rear Detail mode. When in Drive (D), it automatically transitions to Top View + Front view. There's no need for manual operation; the optimal view for the parking situation appears automatically.
Additionally, a wireless jog dial remote allows for manual selection of various view modes. A "trigger function" highlights the corresponding area when the left or right turn signal is activated. This feature can be enabled or disabled, allowing for customization based on driver preference.
High-Definition with an AHD Monitor

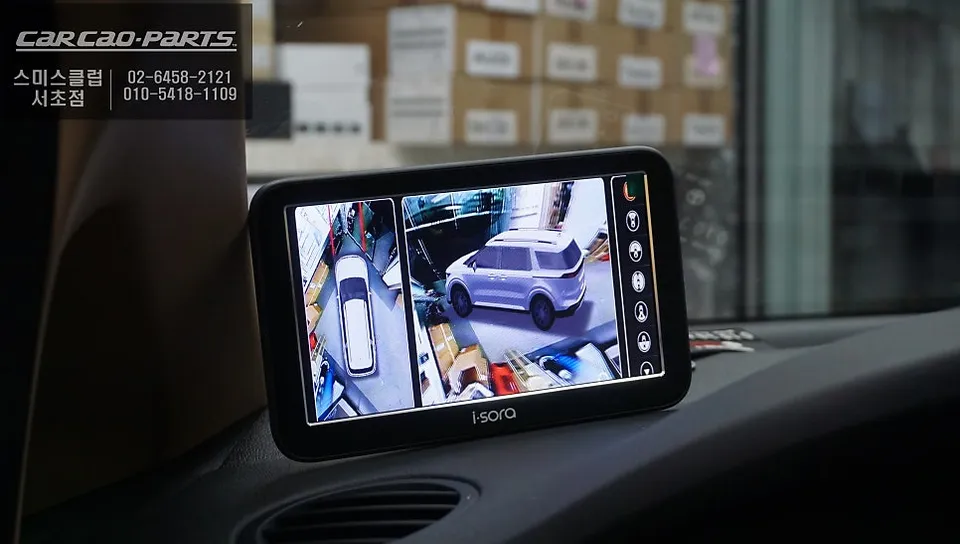

The core of this installation is the 7-inch AHD monitor. AHD stands for "Analog High Definition," a technology capable of outputting general analog camera signals in high definition (720p or higher). The 3D Plus View product supports both AHD and HDMI signals, ensuring a clear picture without signal loss.
The 7-inch monitor size is a deliberate choice, considering the Kia Carnival's dashboard space and driver visibility. Too small, and the information becomes unclear; too large, and it can obstruct the driver's view. This size strikes a golden ratio between stability and the amount of information displayed.
Expected Scenarios After Installation
When is the Kia Carnival around view monitor most useful? Firstly, in environments where reverse parking is difficult, such as narrow residential streets or underground parking garages. It helps detect children, pedestrians, or bicycles hidden in blind spots early on.
Installation Process:

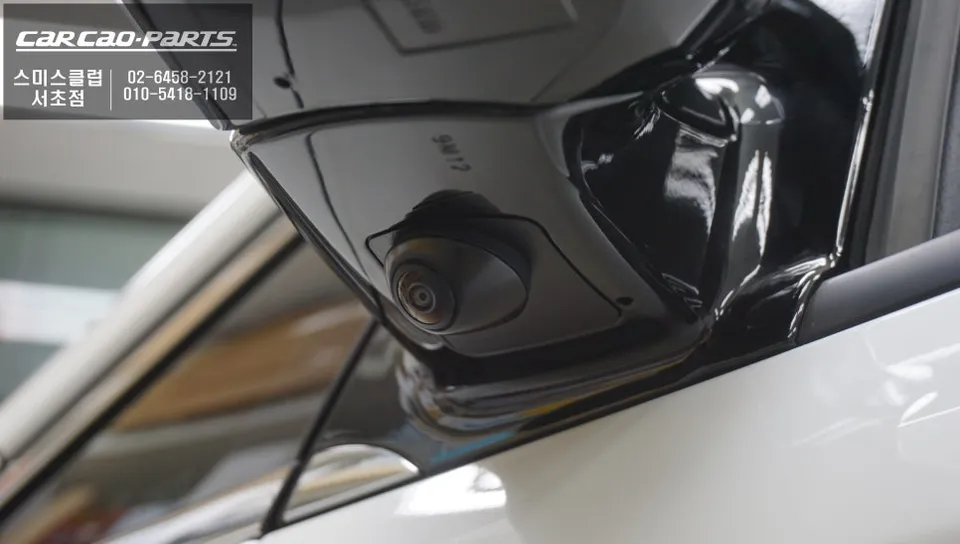

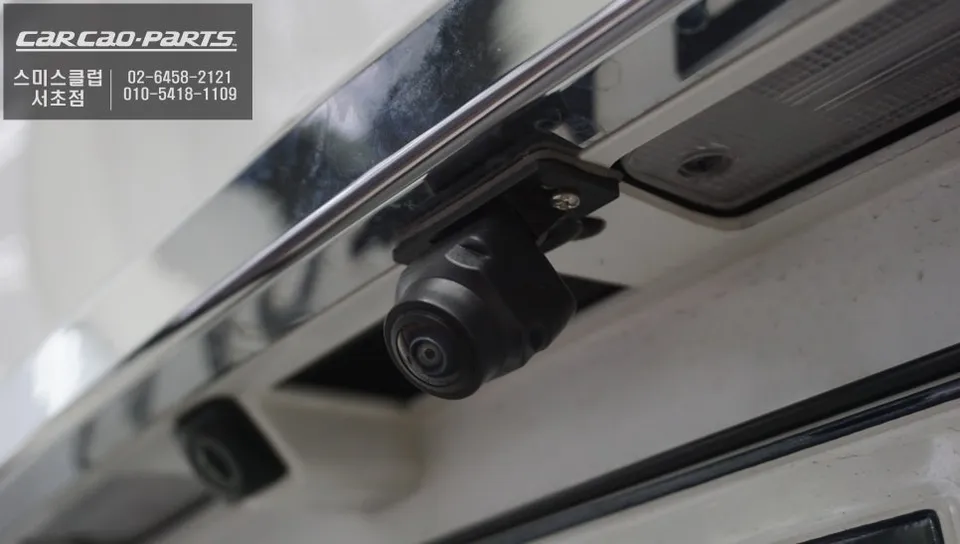

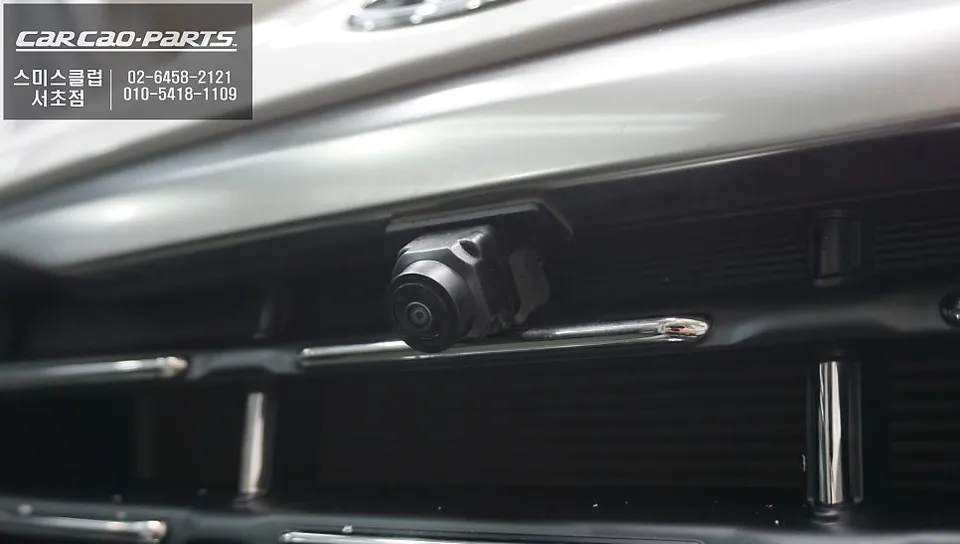

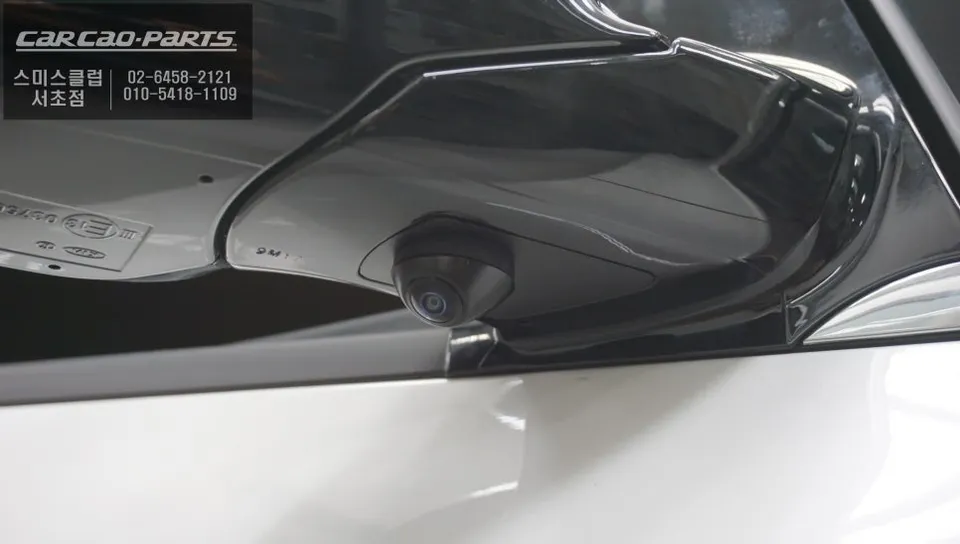

- Camera Mounting: Four cameras are precisely installed on the front, rear, and sides of the vehicle.
- Calibration: The system undergoes an auto-calibration process using specialized software to stitch the camera feeds into a seamless 360-degree view.
- Monitor Integration: The AHD monitor is installed and connected to display the synthesized around view footage.
- Function Testing: All features, including gear-linked view changes and trigger functions, are tested for proper operation.
The result is a significantly enhanced parking experience, reducing stress and improving safety for drivers of the Kia Carnival.
Frequently Asked Questions
Q. How much does an around view monitor cost for a Kia Carnival?
This specific installation for the Kia Carnival, including the AHD monitor and 3D Plus View, was performed at Today's Car Seocho branch. Typical US pricing for similar 360-degree camera systems can range from $500 to $1500, depending on the brand and features.
Q. How long does an around view monitor last on a Kia Carnival?
Around view monitor systems are generally durable and can last for many years with proper installation and care. It's advisable to keep the camera lenses clean from dirt and debris to ensure optimal performance.
Q. Is an around view monitor worth it for a Kia Carnival?
An around view monitor is highly beneficial for Kia Carnival owners, especially those who frequently navigate tight spaces or are concerned about blind spots. It significantly enhances parking ease and overall driving safety.
Q. How is an around view monitor done on a Kia Carnival?
The installation involves mounting four cameras (front, rear, left, right) onto the vehicle. These cameras' feeds are then processed by a control unit to create a unified 360-degree top-down view, which is displayed on a dedicated AHD monitor.
Q. What is the best around view monitor option for a Kia Carnival?
The AHD monitor with 3D Plus View offers a high-definition, accurate representation of the vehicle's surroundings, making it a top option. Its seamless integration with gear signals and customizable trigger functions provide a superior user experience compared to basic systems.
