Kia Carnival Surround View Camera Installation Review
Service Price
$150+
Estimated price · Actual price may vary by shop
Kia Carnival 3D Surround View Camera installation eliminates blind spots for safer parking. Approx. 48-hour installation.
Upgrade Your Kia Carnival Parking Experience
Driving a large vehicle like the Kia Carnival can make parking a stressful experience, especially in tight underground garages or narrow streets. The fear of blind spots and potential collisions is a common concern. Fortunately, a 3D Surround View Camera system offers a comprehensive solution, providing a bird's-eye view of your vehicle's surroundings. This review details the installation of a 3D Surround View system at Today's Car Seocho for a Kia Carnival, aiming to eliminate parking anxiety and enhance safety.
Why Choose a Surround View Camera?
While a standard backup camera is helpful, a surround view system offers significantly more coverage. It simultaneously monitors the front, rear, and both sides of the vehicle, areas often hidden from the driver's direct line of sight. For families, this enhanced visibility is crucial for preventing accidental collisions, especially when children are present. The added benefit of video recording provides valuable evidence in case of an incident, making it a worthwhile investment for peace of mind.
Seamless Installation for a Clean Look

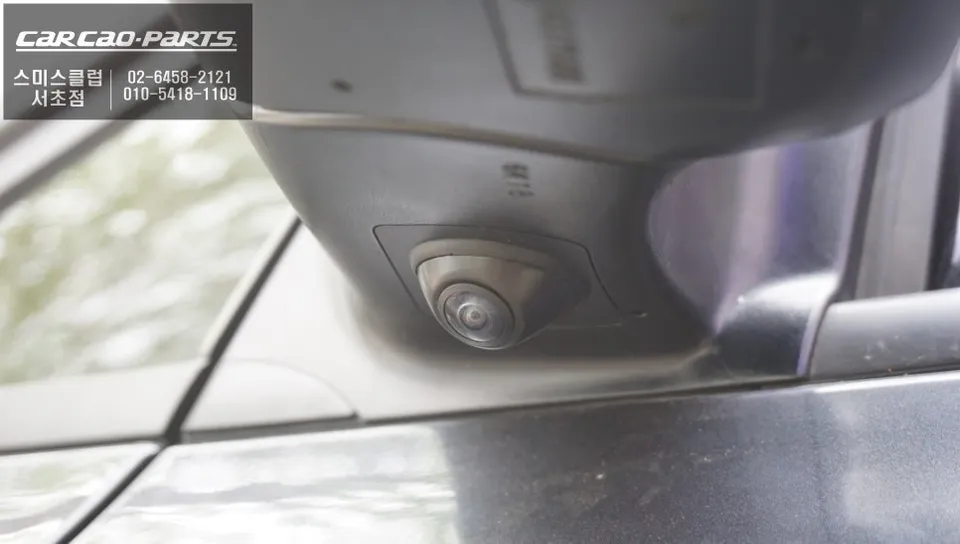

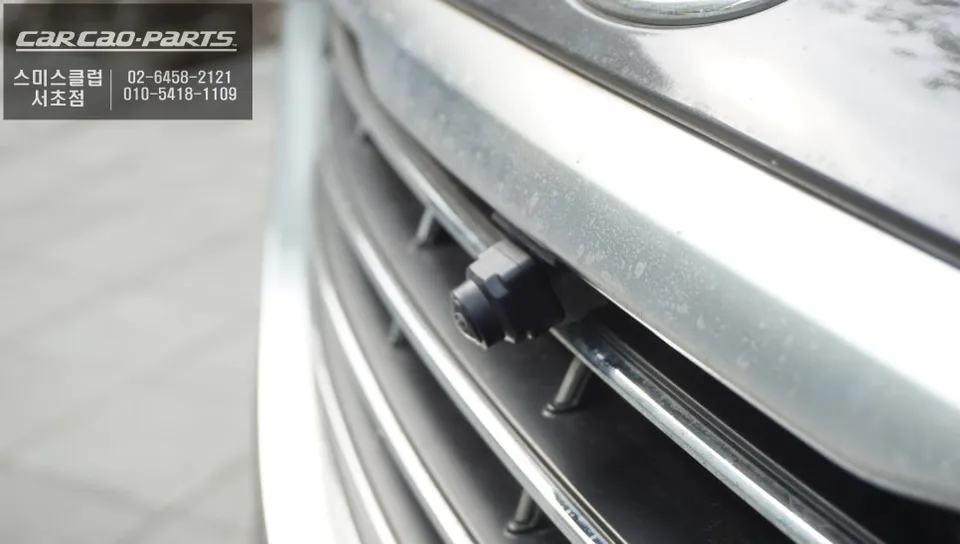

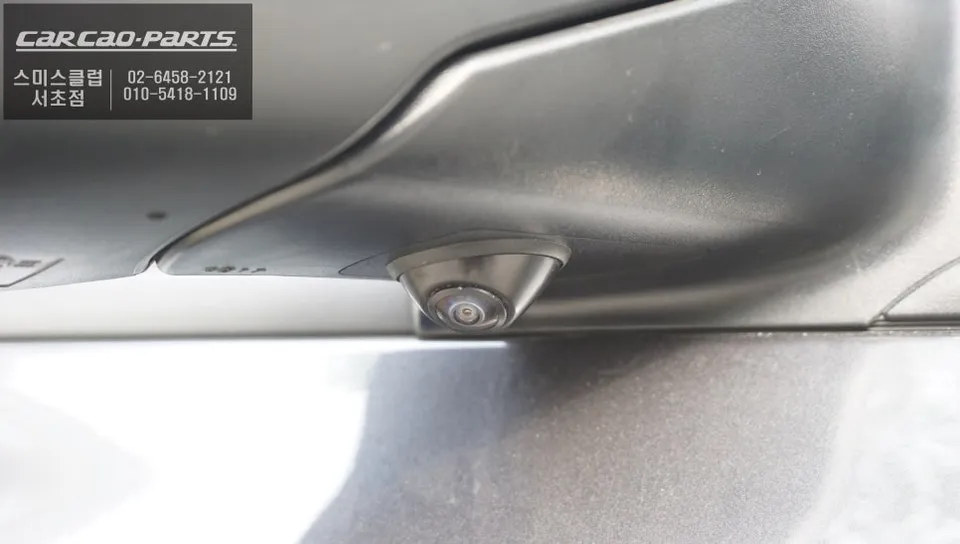

The installation process begins with strategically placing four cameras: one on the front bumper, one on the rear bumper, and one on each side door. These cameras are equipped with wide-angle lenses (over 150 degrees) to capture a broad field of view. Meticulous attention is paid to wire management; all wiring harnesses are routed internally through the vehicle's original protective tubing to maintain a clean aesthetic and prevent water damage. This ensures that no external wires are visible, preserving the vehicle's original appearance.
Integrating with Your Kia Carnival's Display

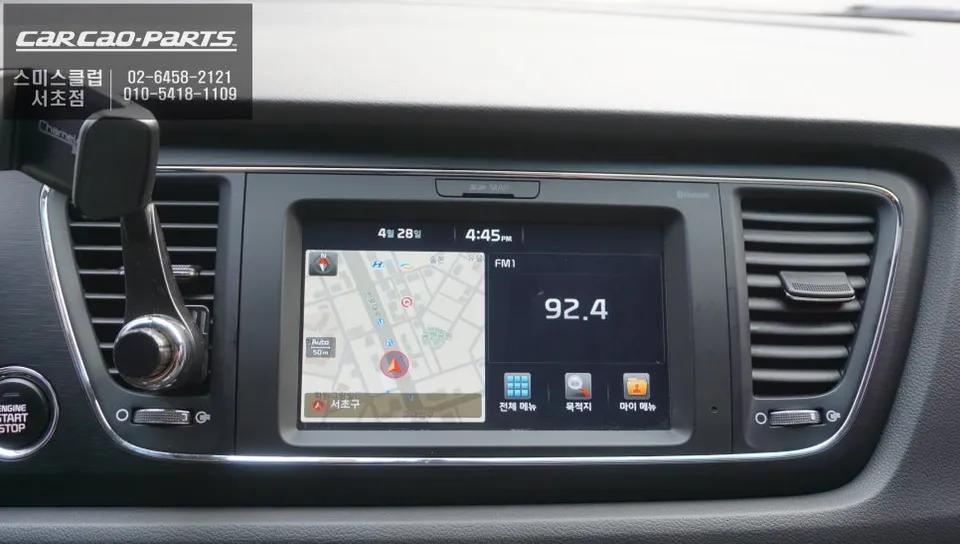

To display the surround view feed on your Kia Carnival's factory navigation screen, a specialized interface box is required. This unit processes the signals from the four cameras, converts them into a high-definition 720P video feed, and transmits it to the OEM monitor. The interface box is discreetly installed behind the existing screen, ensuring no additional equipment is visible inside the cabin.
Intuitive Operation and Enhanced Parking Assist

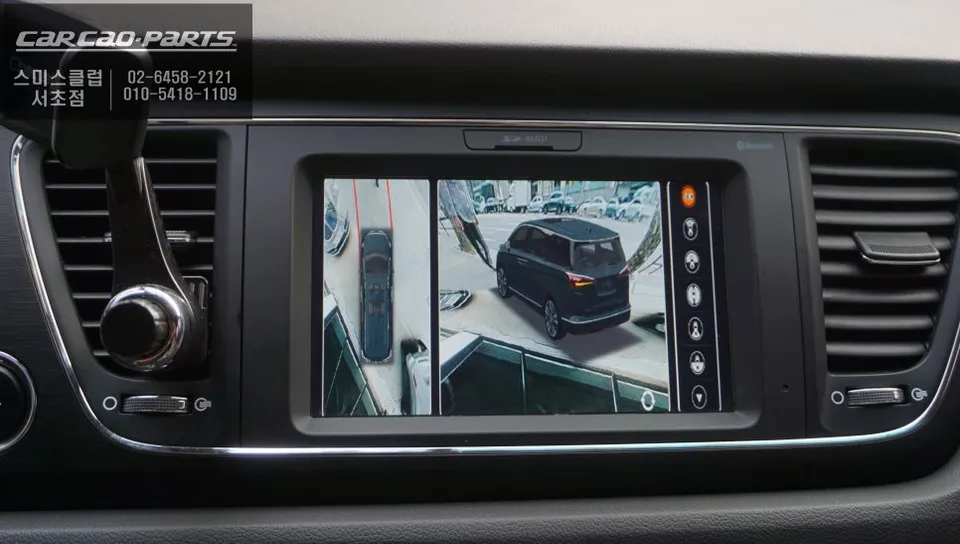

The surround view system operates intuitively. When the vehicle is shifted into Reverse (R), the display automatically switches to a top-down view combined with the rear camera feed, ideal for parking. Shifting into Drive (D) activates the top-down view alongside the front camera feed, helping to monitor obstacles ahead. The system reverts to the standard view after a set period (typically 10 seconds) to avoid distraction, but can be manually activated at any time by pressing the jog dial button. A standout feature is the integration with the Parking Assist System (PAS). As the driver turns the steering wheel, dynamic guide lines appear on the screen, showing the vehicle's projected path. This real-time visual aid significantly reduces uncertainty when navigating tight spaces, making parking in challenging environments much easier. The entire installation and testing process took approximately 48 hours, a duration that reflects the system's complexity and the thoroughness of the setup.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a Kia Carnival?
The installation described in this review cost approximately 1,500,000 KRW. In the US, similar systems typically range from $800 to $2,000 depending on the brand and features.
Q. How long does a Surround View Camera last on a Kia Carnival?
A professionally installed surround view camera system is designed to last for the lifetime of the vehicle, typically 8-10 years or more. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is a Surround View Camera worth it for a Kia Carnival?
A surround view camera is highly beneficial for Kia Carnival owners who frequently navigate tight parking spaces or have concerns about blind spots. It significantly enhances safety and reduces parking stress by providing a comprehensive view of the vehicle's surroundings.
Q. How is a Surround View Camera installed on a Kia Carnival?
1. Four wide-angle cameras are mounted on the front bumper, rear bumper, and side doors. 2. Wiring harnesses are routed internally through protective tubing for a clean installation. 3. An interface box is installed to process camera signals and display them on the factory navigation screen. 4. The system is calibrated and tested, including PAS integration for dynamic parking lines.
Q. What is the best Surround View Camera option for a Kia Carnival?
While this review details a specific 3D Surround View system, the 'best' option depends on budget and desired features. Look for systems offering high-definition resolution (720P or higher), wide-angle lenses, and seamless integration with your vehicle's existing display and parking assist features.
