Kia K5 Headlight Repair Review: Passing Inspection

Kia K5 Headlight Brightness Issue Resolved for Inspection

Operating a Kia K5 as a commercial taxi presents unique challenges, especially when it fails a mandatory vehicle inspection. For one K5 owner, the driver's side headlight's low luminosity was the culprit, preventing the vehicle from passing inspection and thus hindering its operation. Headlights are critical not only for nighttime visibility but also directly impact vehicle safety. The original issue involved dim light output and a blurry light pattern, making it impossible to meet inspection standards. The problem wasn't just a simple bulb replacement; it pointed towards a potential issue with the entire headlight assembly itself.

Given the owner's plan to eventually replace the vehicle, the immediate goal was to find the most cost-effective way to pass the inspection. While initially considering certified LED bulbs, an inspection revealed that simply installing new bulbs wouldn't be enough to meet the required brightness standards due to the underlying problem with the headlight assembly. Therefore, a more economical solution was chosen: replacing the faulty assembly with a used, but functional, headlight unit. This approach prioritized cost-efficiency while ensuring the vehicle could be legally operated.

Understanding Headlight Brightness Decline in the Kia K5

Several factors can contribute to a decrease in headlight brightness. The most common reasons include the natural lifespan of the bulbs reaching their end, or the reflective coating inside the headlight housing degrading, preventing it from properly focusing light. Damage to the headlight housing from external impacts or moisture ingress can also lead to component failure and reduced light output. For vehicles used extensively, like commercial taxis that cover long distances daily, the aging process of headlights can accelerate significantly.

Terminology Explained: 'Light source' refers to the origin of the light, which in a headlight is typically the bulb. 'Light pattern' (or 'light image') describes the shape and focus of the beam projected by the headlight. If this pattern is blurry, the light scatters, reducing overall brightness and the effective range of illumination.

Headlight Replacement Process and Results

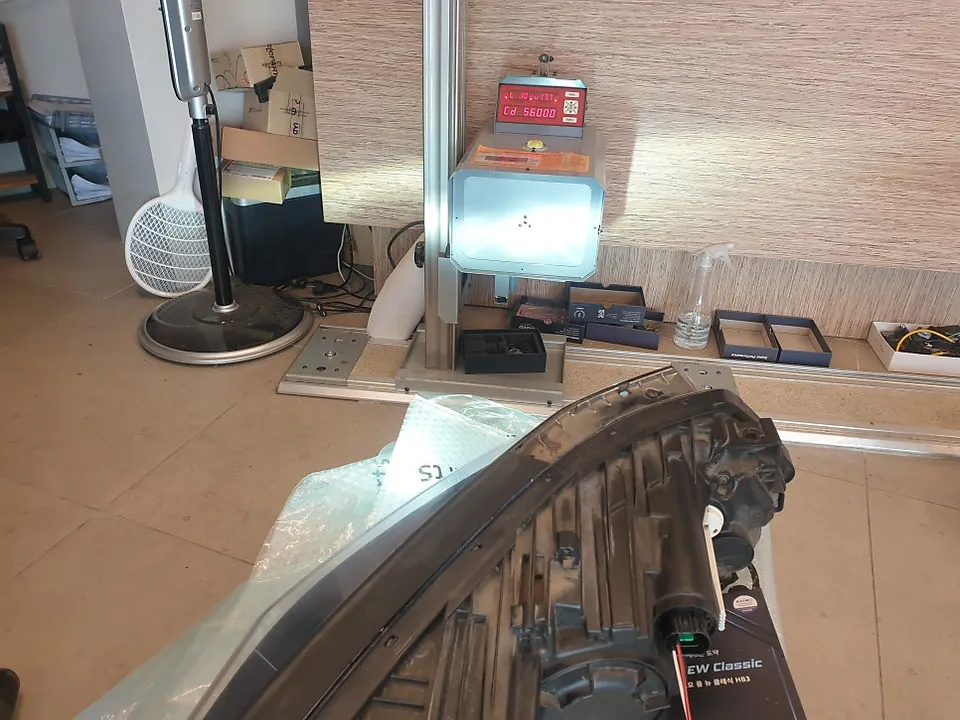

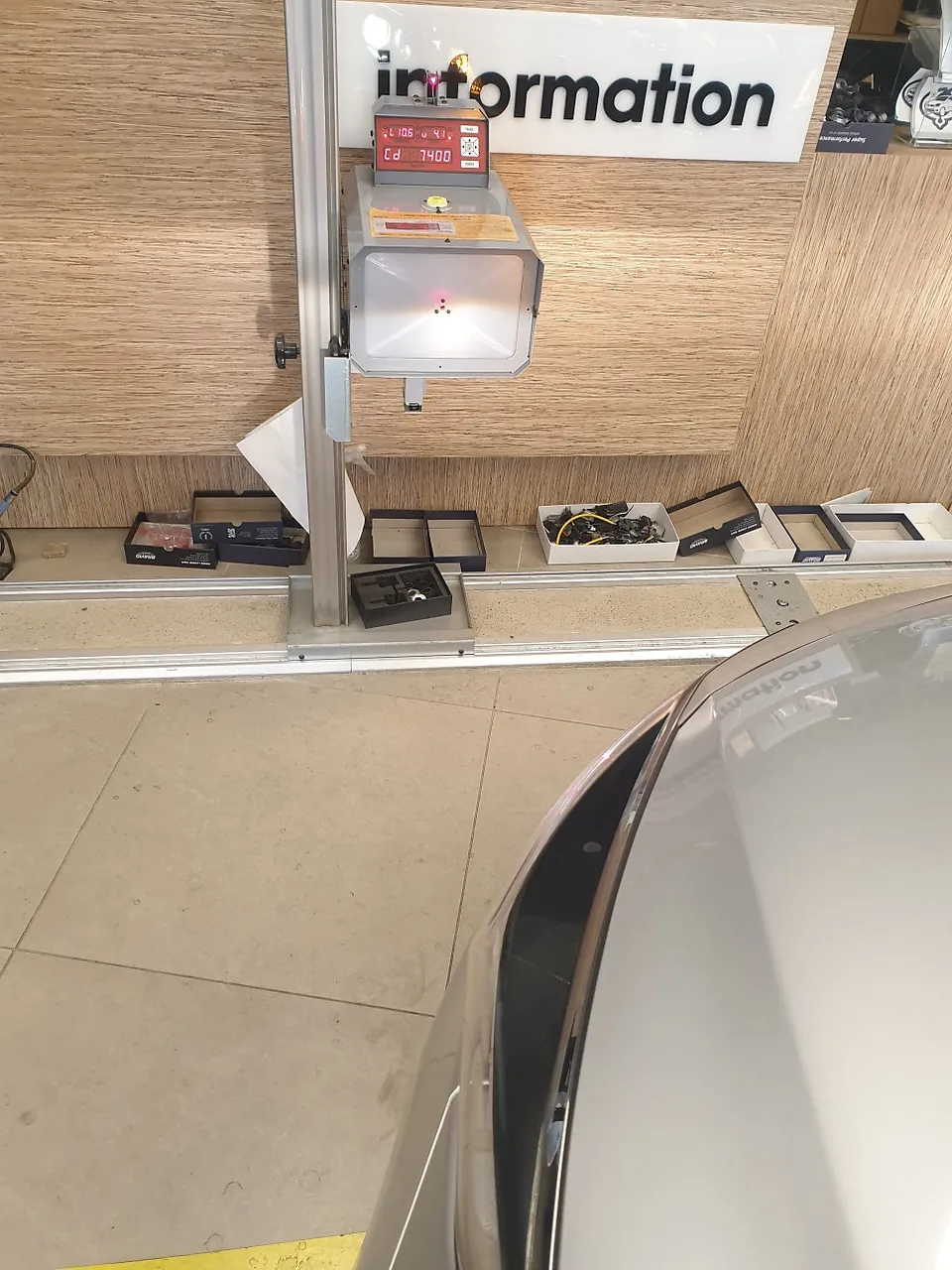

Before commencing work, the brightness of the original headlights was measured using a specialized headlight aiming tester. This confirmed that the driver's side headlight was significantly dimmer than the passenger side, and its light pattern was indeed indistinct. This confirmed the need for assembly replacement, not just a bulb change.

The owner's existing halogen bulbs were in good condition. To save costs, these functional bulbs were carefully removed from the old assembly and transferred to the replacement used headlight assembly. This strategy allowed for the resolution of the brightness and pattern issues by replacing the housing, while also avoiding the expense of new bulbs. Utilizing quality used parts is a viable strategy for budget-conscious repairs.

Installation Process:

1. Diagnosis: The vehicle was inspected to confirm the low brightness and blurry light pattern of the driver's side headlight.
2. Part Sourcing: A suitable used headlight assembly for the Kia K5 was sourced.
3. Bulb Transfer: The existing, functional halogen bulb was carefully removed from the original assembly.
4. Assembly Replacement: The old headlight assembly was removed, and the used assembly was installed in its place.
5. Bulb Installation: The transferred halogen bulb was installed into the new assembly.
6. Testing & Aiming: Headlight brightness and pattern were re-tested, and the beam was properly aimed to meet inspection standards.

Specifications of the Repair:

• Service Type: Kia K5 Driver's Side Headlight Assembly Replacement (Used Part)
• Primary Issue: Insufficient brightness and unclear light pattern on the driver's side headlight.
• Solution: Replacement of the headlight assembly using a used unit, with the original halogen bulb transferred.
• Estimated Time: Approximately 1-2 hours (excluding parts sourcing and initial inspection).
• Estimated Cost: Used headlight assembly (₩100,000 - ₩300,000, approx. $75-$225 USD) + Labor (₩50,000 - ₩100,000, approx. $35-$75 USD). Costs vary based on part condition and repair shop.
• Durability: Dependent on the lifespan of the replaced assembly; typically expected to last 5+ years.

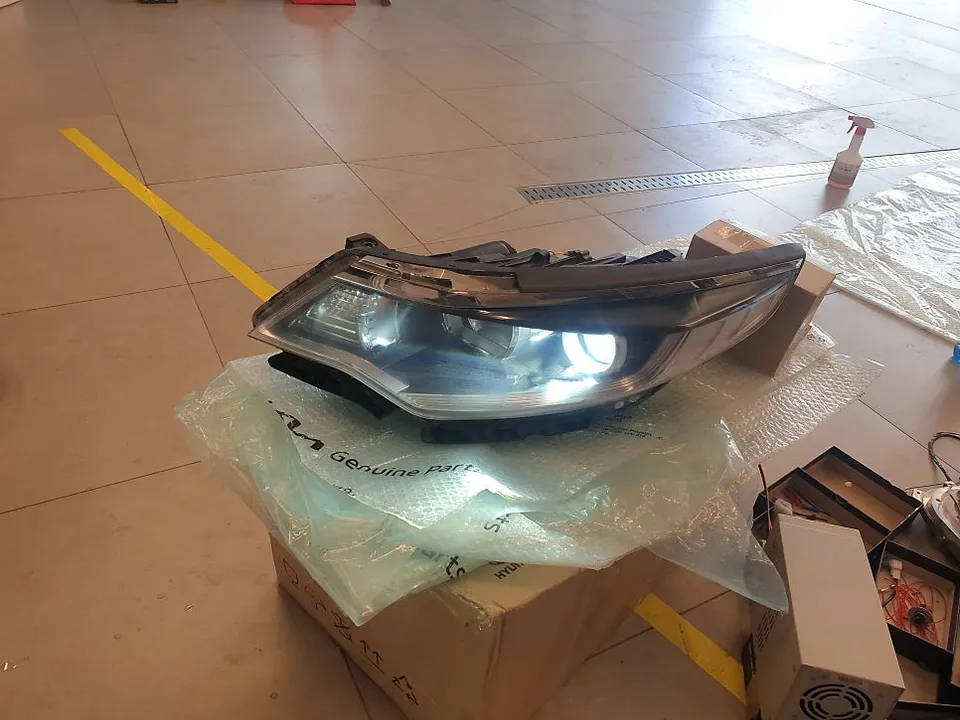

After the replacement, the driver's side headlight now meets the required brightness and clarity standards for vehicle inspection. The light pattern is sharp and well-defined, ensuring proper illumination and compliance. This cost-effective solution allowed the owner to pass the inspection without needing to purchase a brand-new headlight assembly, making it a worthwhile repair for continued operation of the taxi.
