Kia K8 GL3 HUD Installation Review — Enhanced Driving Experience

Upgrading Your Kia K8 GL3 Hybrid with a Genuine HUD

Purchasing a pre-owned 2022 Kia K8 GL3 Hybrid can be a fantastic value, but sometimes certain desirable features are missing. This was the case for one owner who found the lack of a factory Head-Up Display (HUD) significantly impacted their driving convenience, particularly missing the integrated navigation prompts they were accustomed to. A genuine HUD isn't just a luxury; it's a crucial safety feature that keeps vital driving information, like navigation directions, directly within the driver's line of sight. At Today's Car Cheonan, we undertook the complete installation and activation process for a genuine Kia HUD on this K8 GL3 Hybrid.

This guide covers:
1. Vehicle inspection and preparation.
2. Dashboard disassembly.
3. HUD unit installation and wiring.
4. Dashboard reassembly and sensor transfer.
5. ECU coding and final system activation.

Seamless Integration: Dashboard Disassembly and HUD Placement

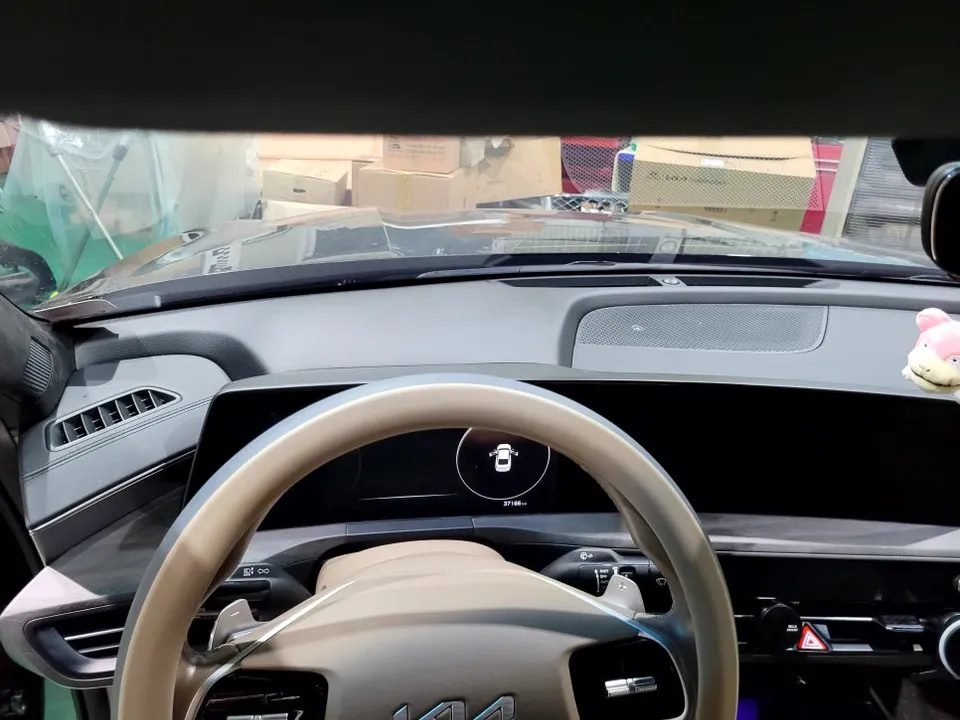

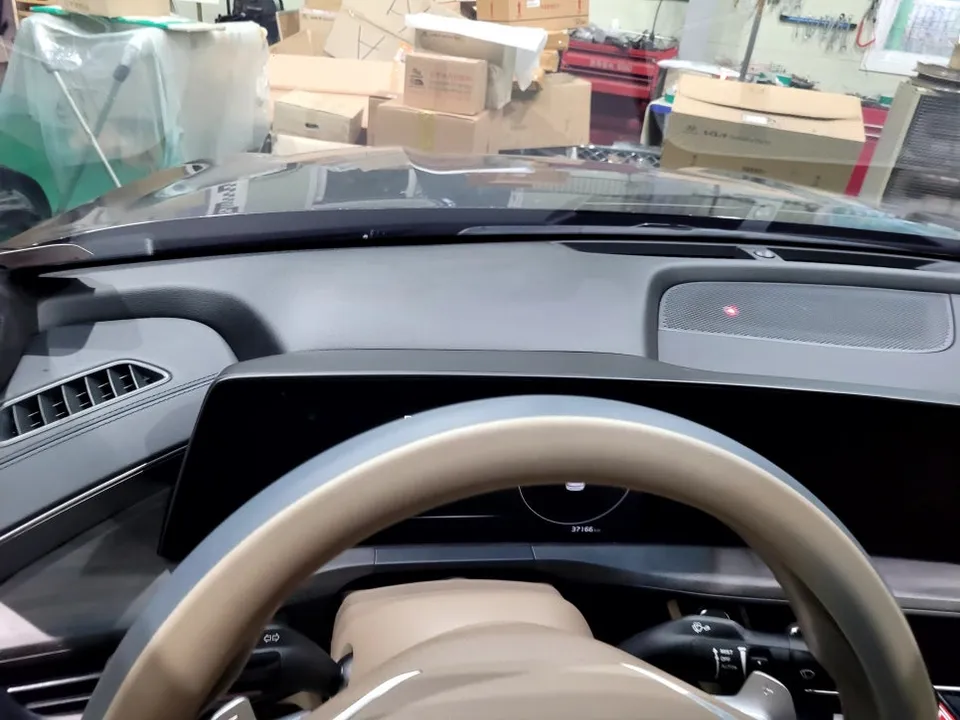

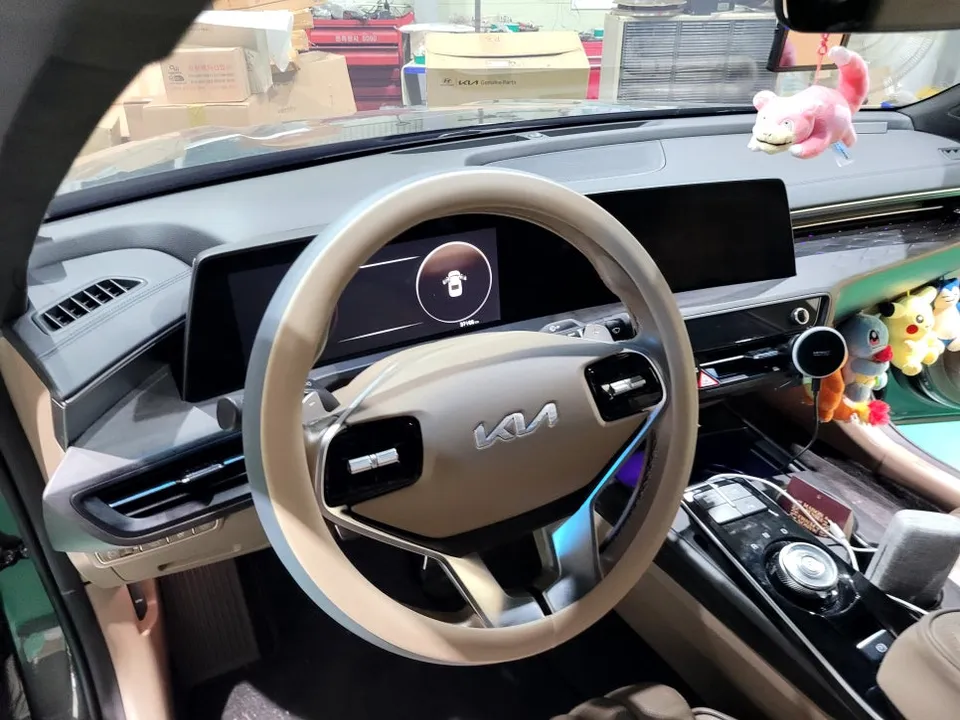

Our process began with a thorough inspection of the K8 GL3's dashboard. Since the vehicle was not originally equipped with a HUD, we meticulously checked the designated mounting space and wiring pathways. Ensuring the factory-intended mounting points and power connections were accessible is the critical first step. We then carefully began disassembling the dashboard, starting with the upper curved display section. This area is directly linked to the instrument cluster, requiring a delicate touch to avoid damaging the internal clips.

After removing the curved display, the entire upper dashboard panel was carefully detached. This involves navigating numerous clips and screws, making it advisable to document the process with photos for easier reassembly. The K8 GL3's dashboard design is intricate, and applying force unevenly can lead to damage. Once the upper panel was removed, the space intended for the HUD became visible. A plastic cover typically conceals the mounting holes within the frame. Removing this cover precisely exposes the exact location for the HUD unit.

Professional HUD Installation and Wiring

With the mounting location prepared, the genuine Kia HUD unit was installed. Designed with Kia's proprietary connectors, it ensures a secure and compatible fit. The wiring process involved routing the power harness along the dashboard's rear pathways. It's crucial to separate this new harness from the existing vehicle wiring to prevent any interference with the car's electronic systems. All connections, including the HUD power and data link to the vehicle's navigation system, were meticulously organized and secured.

Proper wiring is paramount; incomplete connections at this stage will prevent the HUD from functioning even after coding. Therefore, multiple checks were performed to guarantee accuracy. Following the wiring, the dashboard components were reassembled in reverse order. Before reinstalling the upper dashboard panel, a critical step is the transfer of any existing sensors, such as the ambient light sensor. Correctly repositioning these ensures features like automatic brightness control continue to function as intended.

Coding Activation and Final Checks

The final stage involves coding the vehicle's ECU (Engine Control Unit) to recognize and activate the newly installed HUD. Using specialized diagnostic tools, we enabled the HUD function within the car's software. This process integrates the HUD with the navigation system, allowing turn-by-turn directions and other essential driving data to be displayed. After coding, a comprehensive test was conducted to verify all HUD functions, display clarity, and seamless integration with the navigation system. The result is a fully functional, factory-integrated HUD that significantly enhances the driving experience and safety of the Kia K8 GL3 Hybrid.
