Kia K900 360 Camera Review — Safe Parking

Upgrade Your Kia K900 with a 3D Around View Monitor for Safer Parking

Are you constantly worried about bumping into other vehicles or unseen obstacles when parking your Kia K900? Many drivers experience this anxiety, especially with larger sedans. In a recent service at Today's Car Seocho, a K9 owner brought their vehicle in due to a malfunctioning genuine front camera. Instead of a simple repair, we proposed and executed a comprehensive upgrade to a 3D Around View Monitor system, offering a complete 360-degree view around the vehicle. This upgrade significantly enhances parking safety and confidence. The 3D Around View system, often a premium feature found only in top-tier trims of domestic vehicles, provides a bird's-eye or 'top-down' perspective. This allows drivers to see all surrounding obstacles in real-time, making collision-free parking much easier. It's particularly beneficial for novice drivers or those who feel less confident maneuvering larger cars.

Precision Installation and Calibration for Optimal Performance

Before any work begins, a thorough inspection of the Kia K900 is conducted. We verify the condition of the existing front camera and meticulously plan the installation of the new Around View system. Identifying the precise locations for the front, rear, left, and right cameras is crucial, as this directly impacts the accuracy of the final stitched image. For a large sedan like the K9, minimizing blind spots is paramount, making camera placement a critical step. Our technicians carefully planned to integrate the new front camera seamlessly into the spot of the original one. Compatibility checks between existing wiring and the new Around View ECU module are also a mandatory part of our pre-installation process.

Installation Process:

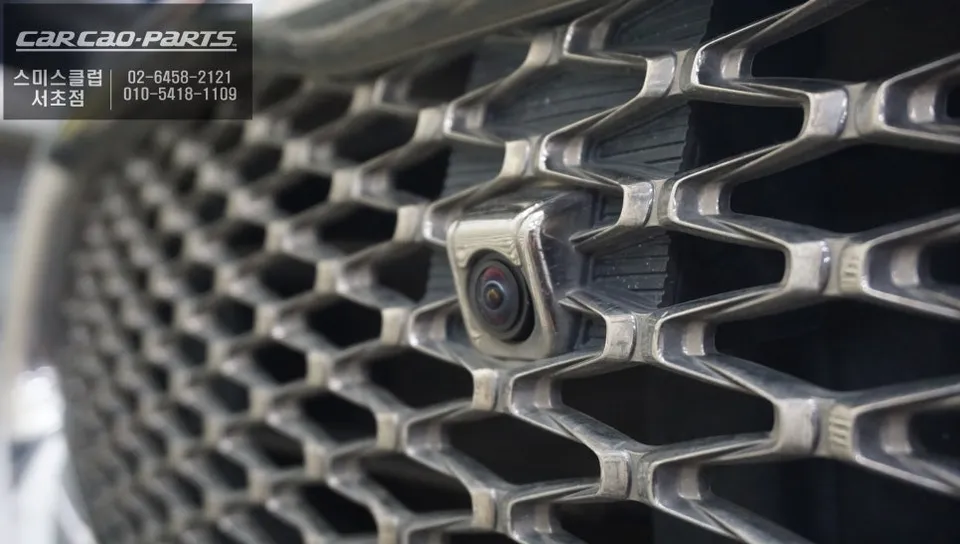

1. Carefully remove the original front camera, ensuring no damage to the lens or sensors. Install the new front camera, ensuring a flush and precise fit.

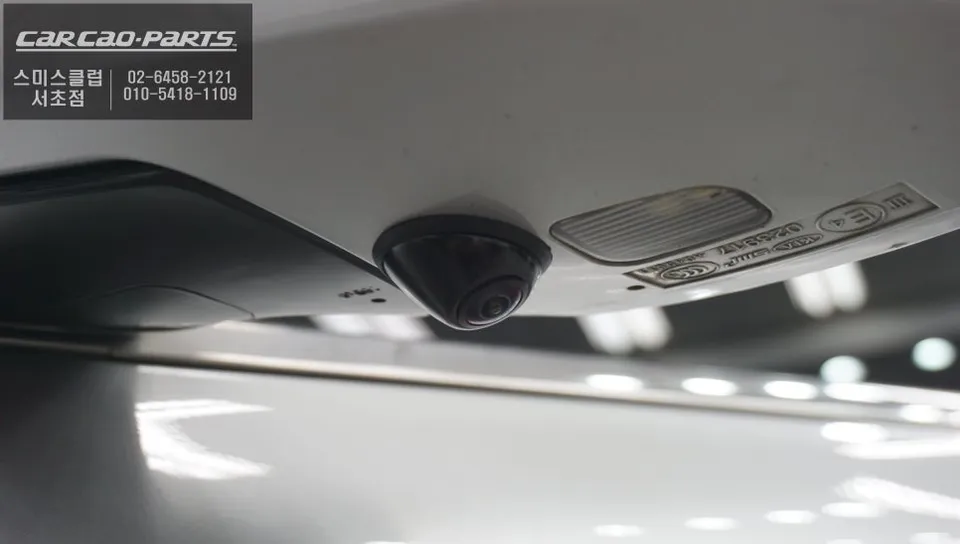

2. Mount the rear, left, and right cameras, paying close attention to the angle (approximately 170-degree wide-angle) for each.
3. Perform 'Gongcha Bojeong' (calibration to correct alignment errors between cameras) to ensure a seamless and accurate stitched image, preventing any visual discontinuities in the top-down view.
4. Connect all four cameras to the Around View ECU module using high-quality wiring to minimize signal interference and prevent image distortion or noise.

Enhanced Viewing Experience with a Qudis 10.25-inch Monitor

While it's possible to integrate the Around View system with the original factory monitor, this K9 owner opted for an additional Qudis (a Korean manufacturer) 10.25-inch monitor. This high-resolution (720P) display offers a significantly clearer picture compared to standard lower-resolution monitors (480P), allowing drivers to spot even small obstacles with ease. The wide 10.25-inch display was custom-mounted to ensure it doesn't obstruct the driver's view, blending naturally with the K9's dashboard aesthetics. The 3D Around View system and the Qudis monitor communicate via UART (serial data transmission), enabling intuitive control through touch or a wireless jog dial remote. The Bluetooth-based remote can be conveniently placed anywhere the driver prefers, such as near the steering wheel, eliminating the need for extra wiring.

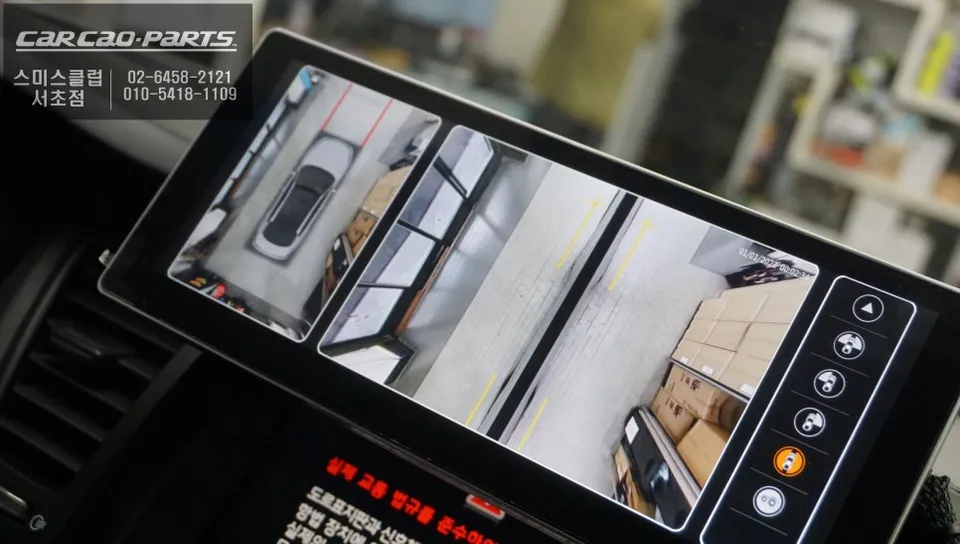

The 3D Around View system offers more than just a basic camera feed; it provides various selectable view modes. The most commonly used is the 'Top View,' offering that essential bird's-eye perspective. Additionally, drivers can often switch to front-view or split-screen modes, displaying multiple camera angles simultaneously. This versatility ensures the driver has the optimal view for any parking situation, greatly reducing stress and the risk of accidents. The combination of high-definition cameras, precise calibration, and a dedicated large-format monitor transforms the parking experience for any Kia K900 owner.
