Experience Safer Parking with an Around View Monitor for Your Lexus ES300h
Driving a Lexus ES300h and feeling uneasy about blind spots during parking maneuvers? This installation case, performed at Today's Car Seocho, features the integration of a premium parking option, the Around View Monitor, into a 6.5 generation Lexus ES300h, achieving a seamless, factory-integrated look. An Around View Monitor provides a 360-degree view of the vehicle's surroundings, displayed in real-time on the car's original monitor, making it an essential feature for safe parking. In this article, we'll cover everything you need to know about the Around View Monitor installation for the Lexus ES300h.Why Choose a Lexus-Specific Around View Monitor?

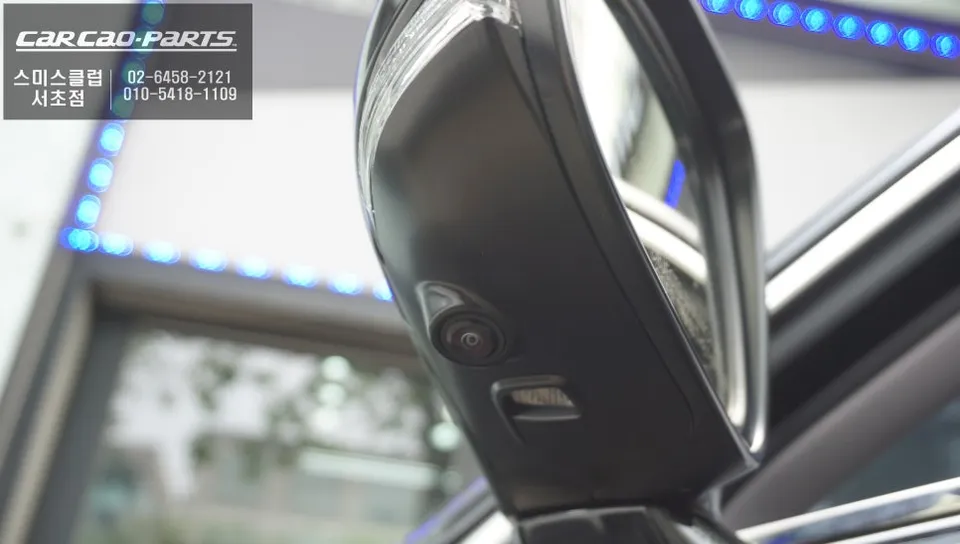

While numerous affordable Around View Monitor options are available on the market, a dedicated product with factory compatibility is crucial for the Lexus ES300h. The 2D Super View Around View Monitor installed by Today's Car Seocho connects to the factory monitor via a GVIF cable's IN/OUT ports, ensuring high-definition video output without signal noise. Importantly, the wiring is done using a "plug-and-play" method that doesn't damage the original wiring, allowing for a complete restoration to the factory state later. This is the key differentiator of a Lexus-specific Around View Monitor, offering peace of mind regarding factory warranty risks. The side camera installation follows the same principle. While many generic Around View Monitors require drilling holes into the car's body to mount the cameras, the Lexus ES300h-specific system replaces the existing mirror covers with new ones that have the cameras integrated. This method enhances functionality without altering the original design or requiring any drilling. This is a significant distinction from other Around View Monitor products.Installation Process:
- Removal of original side mirror covers.
- Installation of new mirror covers with integrated cameras.
- Connection of the main control unit using plug-and-play wiring harnesses.
- Integration with the factory head unit via GVIF cable.
- Calibration of the 360-degree camera view for accurate display.
How the Lexus ES300h Around View Monitor Works

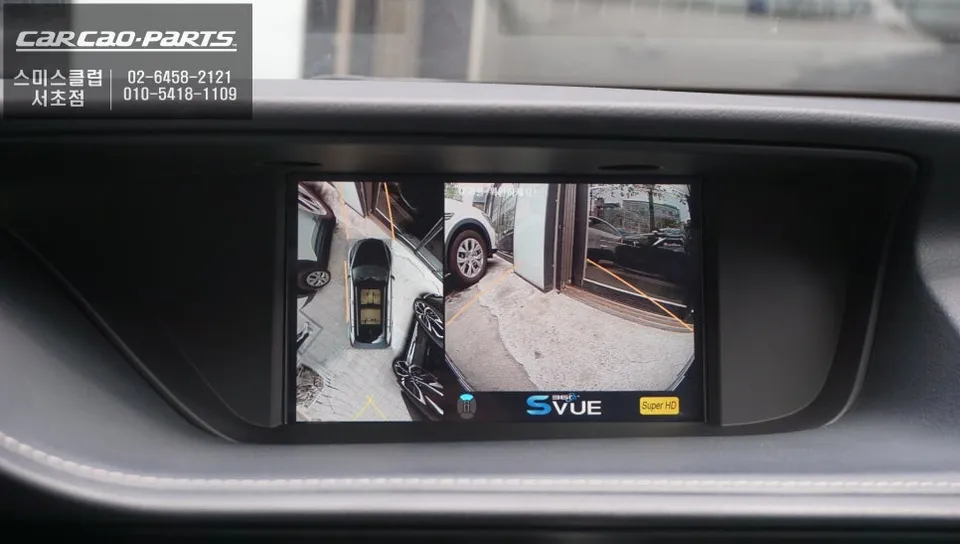

The Around View Monitor system for the Lexus ES300h intelligently switches its display mode based on the driving situation. When the vehicle is put into Reverse (R), the top-down view (Top View) combined with the rear camera feed automatically appears. When shifted to Drive (D), it switches to the Top View along with the front camera display. The system reverts to its original state automatically after a set period. A particularly useful feature is the ability to manually activate the Around View Monitor feed while driving by pressing the factory hazard light button. This is incredibly helpful for navigating tight underground parking garages or assessing road conditions with potential obstacles, significantly aiding in the prevention of collisions.
Seamless Integration: PAS, Sensors, and More
For the Around View Monitor to feel truly integrated with the factory system, it must work in harmony with other vehicle functions. The system installed by Today's Car Seocho perfectly implements the PAS (Power Assisted Steering) linkage, where the parking guide lines on the Around View Monitor display move in sync with the steering wheel's direction. Furthermore, the factory front and rear PDC (Parking Distance Control) sensors are also displayed on the Around View Monitor screen, ensuring a user experience with minimal inconvenience.
Eliminating Blind Spots with Versatile View Modes
The true value of an Around View Monitor lies in its ability to cover the blind spots that drivers cannot see, providing a complete 360-degree view. Beyond the Top View, there are left and right trigger functions. Activating the left turn signal displays the left side of the vehicle, and activating the right turn signal shows the right side. These trigger functions can be enabled or disabled according to the driver's preference. Honestly, these features alone significantly reduce parking stress in narrow alleys or tight parking spaces.
Hidden Feature: Video Recording Capabilities
Another significant advantage of the Lexus ES300h Around View Monitor is its ability to record high-definition video, day and night, from its four strategically placed cameras. This capability extends the recording coverage beyond the limitations of a traditional dashcam, allowing for evidence capture in cases of minor collisions or vandalism while parked.
Frequently Asked Questions
Q. How much does an around view monitor cost for a Lexus ES300h?
Professional OEM-compatible around view systems for the ES300h typically range from $1,200-$2,000 installed, depending on camera quality and integration complexity. The 2D super-view system with native GVIF IN/OUT connectivity commands premium pricing due to seamless factory monitor compatibility and zero-noise video output.
Q. How long does a surround view camera system last on a Lexus ES300h?
Quality OEM-spec around view cameras are designed to last 7-10 years with proper installation, as they use sealed lens assemblies and weather-resistant housings. Maintain clear camera lenses monthly and avoid harsh pressure washing directly on camera housings to extend lifespan.
Q. Is a 360 camera system worth it for a Lexus ES300h?
Around view monitors benefit ES300h owners who frequently park in tight urban spaces or have visibility concerns with the sedan's blind spots. The OEM integration approach (no drilling, factory monitor compatibility) makes it a worthwhile upgrade over aftermarket dash cams, preserving resale value and warranty compliance.
