Lexus NX Surround View Camera Review — Enhanced Safety
Service Price
$150+
Estimated price · Actual price may vary by shop
Lexus NX 350h Surround View Camera installation using 3D Maxpro. Features "jack-by-jack" wiring and no-drill mounts for safety and vehicle integrity.
Is a Surround View Camera System Necessary for the Lexus NX 350h?
Driving a Lexus NX 350h, especially in tight urban environments, often brings the challenge of blind spots. Relying solely on mirrors can be insufficient when navigating narrow alleys or crowded parking lots, leading to potential collisions. A surround view camera system significantly alleviates this anxiety. However, choosing the right system is crucial to avoid compromising your vehicle's integrity or risking wiring damage. This guide details a safe and effective method for installing a surround view system, using a Lexus NX as an example.
Understanding Surround View Camera Functionality

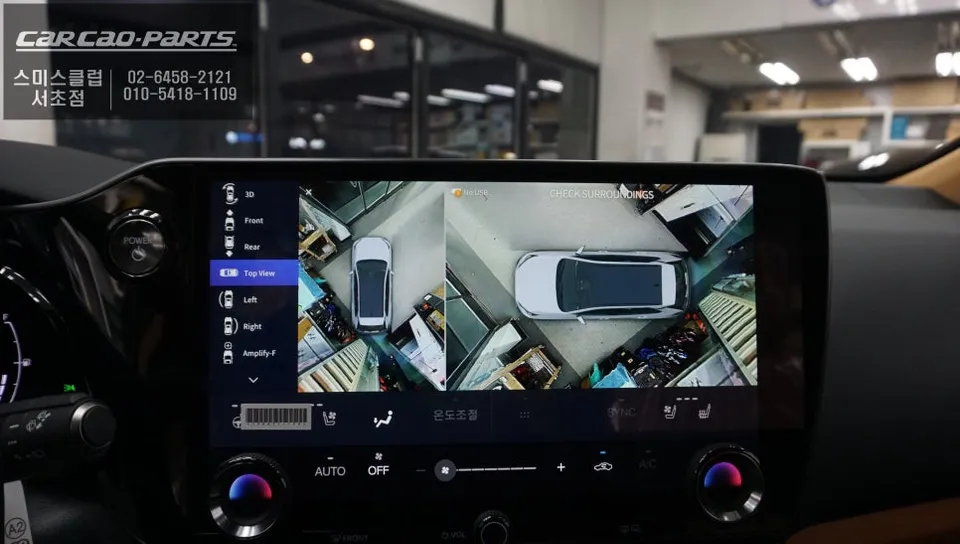

A surround view monitoring system utilizes four cameras—front, rear, and sides—to capture a comprehensive 360-degree view. It stitches these images together to create a bird's-eye perspective, often called a "top view" or "sky view." This allows drivers to clearly identify obstacles in blind spots during parking maneuvers and anticipate vehicle movement. The 3D Maxpro system installed on the Lexus NX 350h offers intuitive operation: it automatically switches to the top view and rear camera when reverse gear is engaged, and to the front view when in drive. After a set period, it reverts to the original display, minimizing driver distraction. A particularly useful feature is the ability to manually activate the surround view at any time by double-clicking the hazard light button. This is invaluable not only for parking but also for navigating narrow roads or complex intersections, enhancing overall driving safety.
Seamless Installation: "Jack-by-Jack" and No-Drill Mounts
The most critical aspect of installing a surround view system is the wiring. Improper connections can damage the vehicle's original electrical systems. The "jack-by-jack" (or "connector-to-connector") method employed in this Lexus NX installation involves meticulously connecting the new system's wiring to the existing factory harness without cutting or splicing any original wires. This preserves the vehicle's original wiring structure, ensuring no negative impact on the car's electronic control units and maintaining eligibility for future warranty service or recalls. Furthermore, the 3D Maxpro system for the Lexus NX 350h uses a "1:1 mount replacement" technique. Instead of drilling new holes, the original camera mounts are replaced with custom-fit mounts for the new cameras. This preserves the vehicle's aesthetic and structural integrity, leaving no trace if the system is ever removed.
Camera Placement and Integration

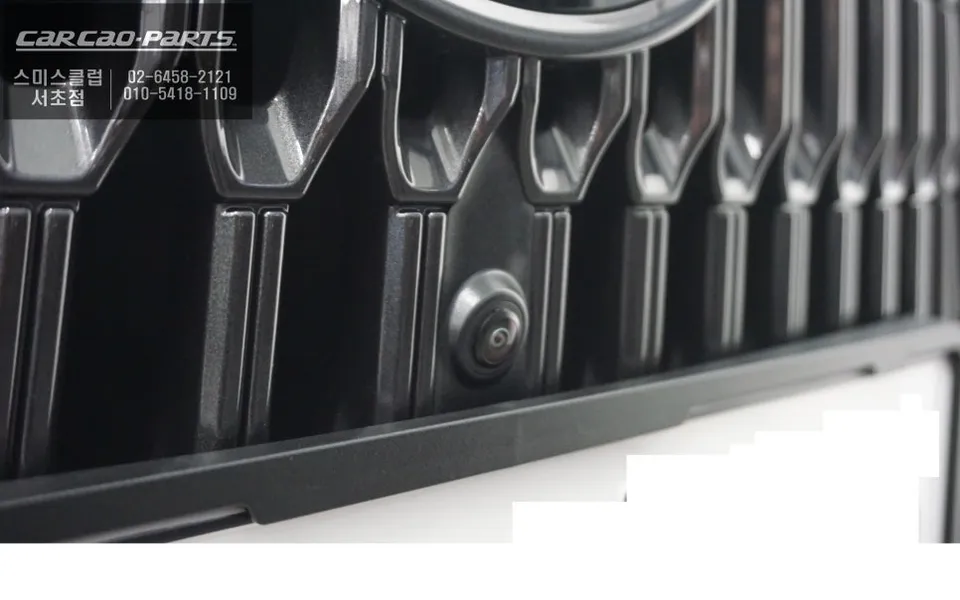

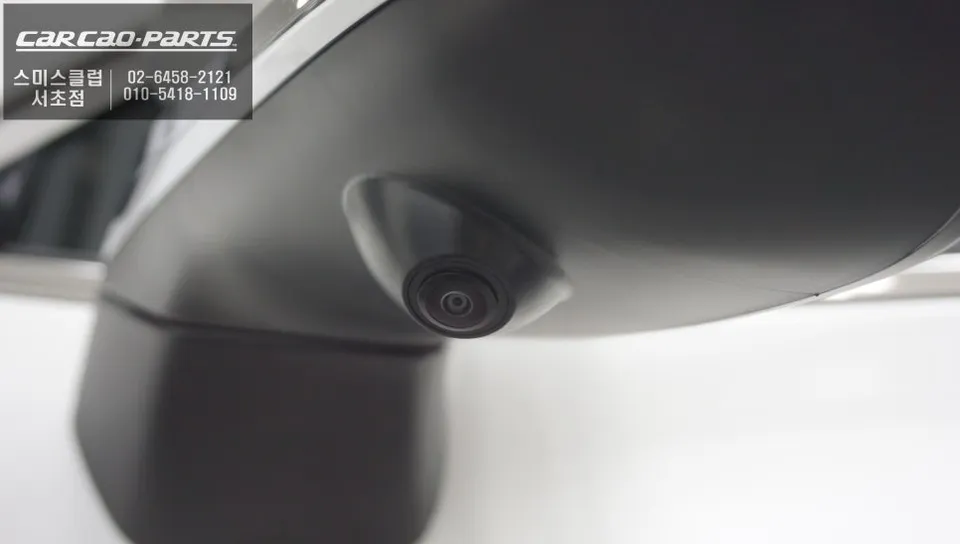

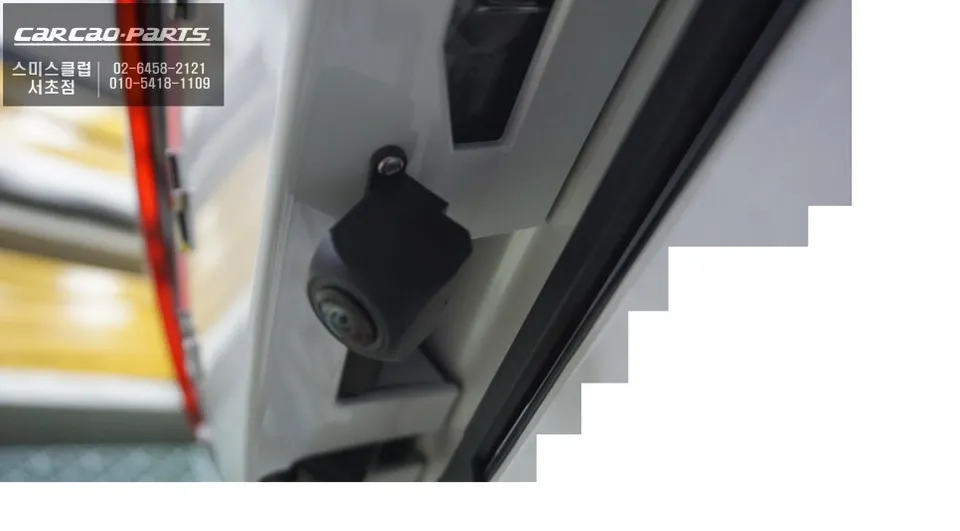

The installation process for the Lexus NX 350h surround view system involves placing cameras in three key locations: front, sides, and rear. The front and side cameras are integrated using the no-drill, mount-replacement method, leveraging existing mounting points for a clean and risk-free installation. These cameras provide high-quality video output that integrates seamlessly with the factory display, ensuring a clear, noise-free image. The rear camera is also installed without compromising the vehicle's original structure.
Installation Process:
- Careful removal of original camera mounts.
- Installation of custom 1:1 replacement mounts for new cameras.
- Secure connection of cameras to the new system's wiring harness using the "jack-by-jack" method.
- Integration of the control unit and final testing of all camera views and functions.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a Lexus NX?
The specific cost for the 3D Maxpro system on the Lexus NX 350h in Korea was not provided in the original content. Typical aftermarket surround view camera systems in the US can range from $500 to $1500, depending on the brand and features.
Q. How long does a Surround View Camera system last on a Lexus NX?
A professionally installed surround view camera system, especially one using "jack-by-jack" wiring and quality components like the 3D Maxpro, can last for many years, often matching the vehicle's lifespan. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is a Surround View Camera worth it for a Lexus NX?
A surround view camera system is highly beneficial for Lexus NX owners who frequently navigate tight spaces or want to maximize parking safety and awareness. It significantly reduces blind spots and offers peace of mind, making it a valuable addition for many drivers.
Q. How is a Surround View Camera installed on a Lexus NX?
Installation involves replacing existing camera mounts with custom ones for the new cameras, avoiding any drilling. The system's wiring is connected using a "jack-by-jack" method, which interfaces directly with the vehicle's original wiring harness without cutting or splicing. Finally, the control unit is integrated and tested.
Q. What is the best Surround View Camera option for a Lexus NX?
The 3D Maxpro system, as featured in this review, is a strong option due to its "jack-by-jack" wiring and no-drill mount replacement, preserving vehicle integrity. Look for systems that offer seamless integration with your vehicle's display and reliable performance.
