Lexus UX 250h Surround View Camera Review: Clearer Parking

Why Install a Surround View Camera on Your Lexus UX 250h?

For many drivers, especially those new to SUVs or larger sedans like the Lexus UX 250h, parking can be a source of anxiety. The primary concern is often the blind spots that make maneuvering in tight spaces difficult. This is precisely why a surround view camera system, also known as a 360 camera or bird's-eye view camera, has become a popular retrofit. It provides a top-down perspective of your vehicle's surroundings, significantly reducing the risk of low-speed collisions and parking mishaps. This review details a specific installation of a 2D Super View system on a Lexus UX 250h, focusing on how it can be integrated to look and function much like an original equipment manufacturer (OEM) system.

Minimizing Installation Impact: The 'No-Drill' Approach

A common question regarding surround view camera installation is whether drilling into the vehicle's body is always necessary. While some drilling might be unavoidable for certain components, modern retrofit solutions aim to minimize this. In the case of the 2D Super View system installed on this Lexus UX 250h, the approach focused on reducing bodywork. The front camera requires a single, small hole near the Lexus emblem, utilizing existing wiring pathways. However, the side cameras are installed using a clever mount replacement method. Instead of drilling new holes, the original side mirror covers are removed, and dedicated mounts containing the cameras are fitted in a 1:1 replacement. This means no new holes are needed on the sides. The rear camera is typically installed in the factory location, requiring no additional modification. This 'minimal drilling' or 'no-drill' (for side cameras) approach helps preserve the vehicle's body integrity and maintain its original aesthetic. Furthermore, wiring is often handled using plug-and-play connectors, minimizing the risk of damage to the vehicle's electrical system.

High-Definition Imaging for Enhanced Visibility

The core of any surround view camera system lies in its ability to stitch together feeds from multiple cameras into a single, cohesive top-down view. This Lexus UX 250h was equipped with a system featuring four 1080P high-resolution cameras – one front, one rear, and one on each side. These cameras provide clear imagery, crucial for both daytime and nighttime driving. The process of merging these four video feeds into a seamless bird's-eye view requires precise calibration. Technicians use calibration patterns and manual adjustments to correct for any spatial distortions, ensuring the top-down view is accurate and undistorted. The system connects to the car's original monitor via an LVDS cable, ensuring high-quality video output without significant degradation, allowing for a full-screen, wide-angle view.

Smart Features for Effortless Parking

Beyond just providing a bird's-eye view, modern surround view systems offer intelligent features that simplify parking. The system on the UX 250h automatically switches display modes. When the gear is shifted to Reverse (R), the display transitions to a 'Top View + Rear View' mode. Shifting to Drive (D) activates a 'Top View + Front View' mode. The display reverts to the original screen after a set period, ensuring it doesn't interfere with normal driving. Another valuable feature is the dynamic parking assist lines, which move in real-time according to the steering wheel's angle, showing the vehicle's projected path. This significantly reduces the chance of parking errors. Additionally, the system integrates with the factory parking sensors (PDC), displaying their proximity alerts directly on the surround view monitor, providing an extra layer of awareness.

Integrated Turn Signal Activation

An often-overlooked convenience feature is the integration with the vehicle's turn signals. When the left turn signal is activated, the left-side camera view automatically appears on the screen. Similarly, activating the right turn signal displays the right-side camera view. This is particularly useful when navigating narrow streets or making lane changes. This trigger function can typically be enabled or disabled via the system's settings, allowing drivers to customize its behavior.

Installation Process:

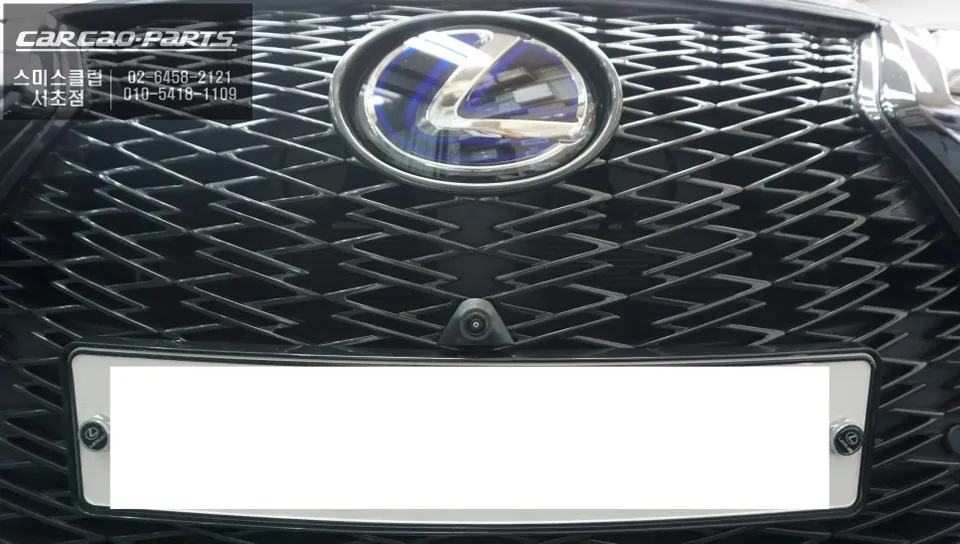

1. Front Camera Mounting: A small hole is drilled near the front emblem to mount the forward-facing camera, utilizing existing wiring paths.

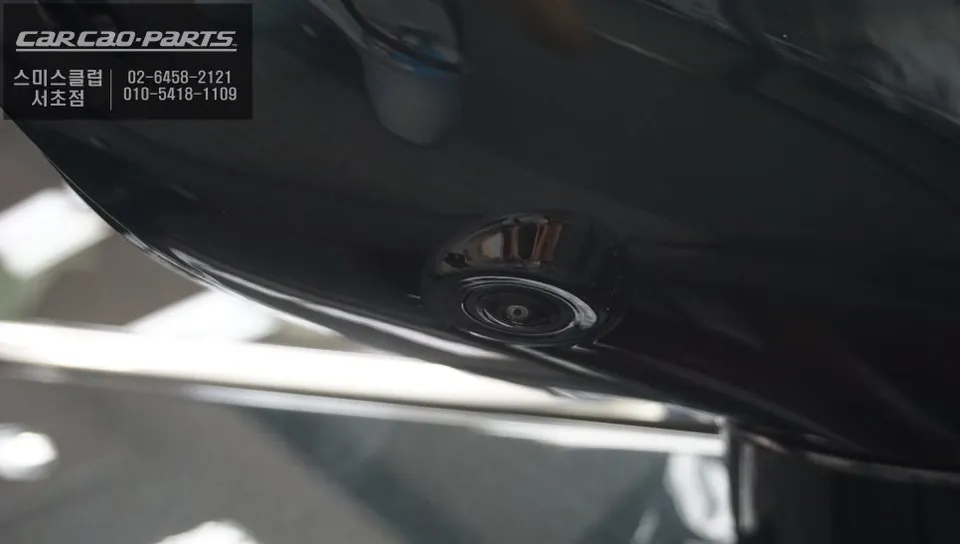

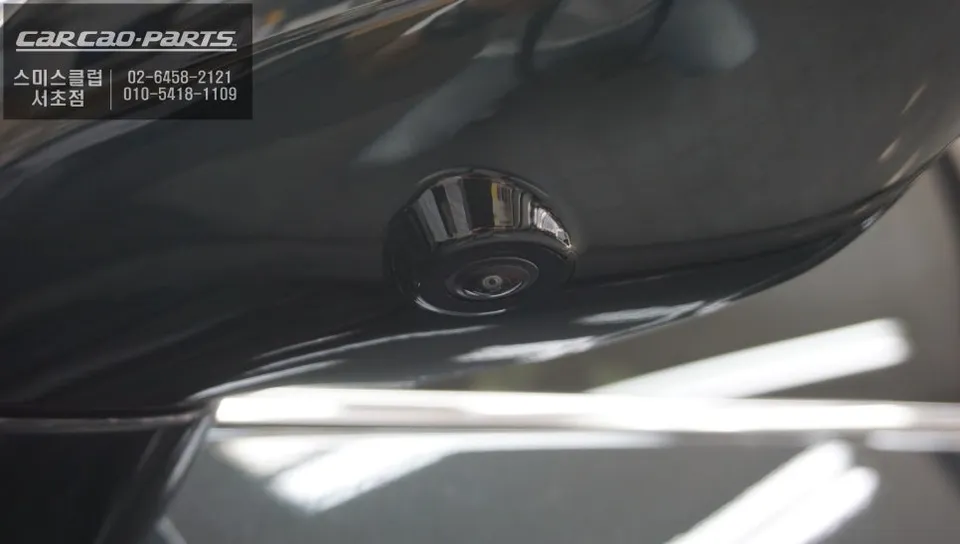

2. Side Camera Integration: Original side mirror covers are removed, and specialized mounts containing the side cameras are installed as direct replacements.

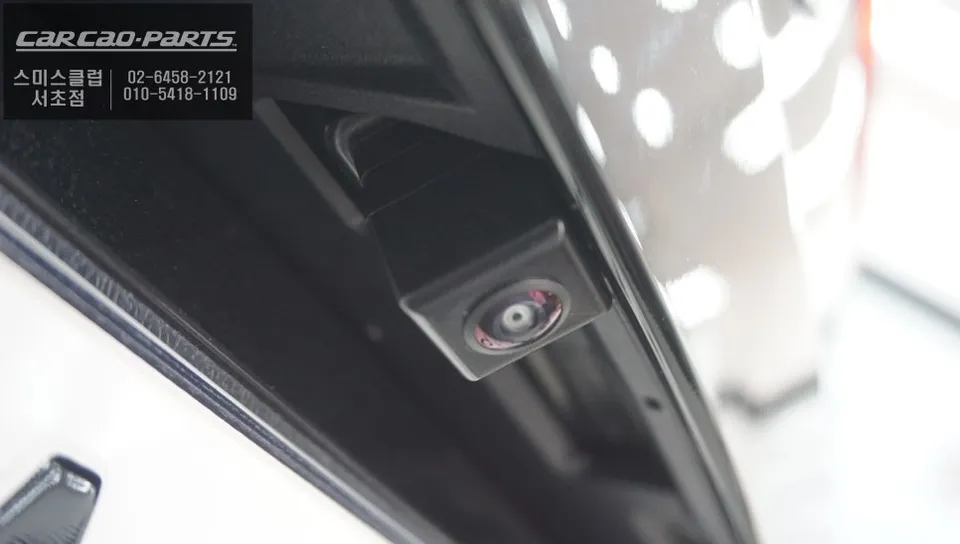

3. Rear Camera Installation: The rear camera is fitted into the factory-designated location.
4. Wiring and Calibration: All cameras are connected using plug-and-play methods. The system is then meticulously calibrated using patterns to ensure an accurate, undistorted top-down view, and connected to the OEM monitor via LVDS.

The estimated cost for such a system in Korea, as of recent installations, can range from approximately ₩300,000 to ₩500,000 (roughly $220 - $370 USD, depending on exchange rates and specific system). While this review focuses on a specific installation in Korea, the principles and benefits apply to Lexus UX 250h owners globally seeking to enhance their parking and low-speed maneuvering capabilities.
