Maserati Ghibli Surround View Camera Review: See Everything

Maserati Ghibli: Enhancing Visibility with a 360 Camera System

Maserati Ghibli owners often seek solutions for blind spots, a common challenge with its low-slung, elegantly curved body. The limited driver's view makes navigating tight alleys and parking lots a source of anxiety for many. This is precisely where a 360-degree surround view camera system becomes an invaluable addition. A recent 2014 Maserati Ghibli received this upgrade to eliminate parking stress. The system synthesizes real-time video from four cameras into a seamless 3D bird's-eye view, offering unparalleled situational awareness.

Why a Bird's-Eye View Camera is Crucial for the Ghibli

The Ghibli's design, characterized by its sporty aesthetics, features smaller side windows and a thicker C-pillar, which inherently restricts the driver's field of vision. This limitation makes it difficult to accurately gauge distances to obstacles, particularly in the rear-left and front-right blind spots. Relying solely on factory mirrors and a standard backup camera often proves insufficient. A surround view camera system overcomes this by combining footage from front, rear, and side cameras into a single top-down perspective. This around view monitor provides a clear, comprehensive view of the vehicle's surroundings, enabling precise distance judgment and confident maneuvering.

Installation and Calibration: The Key to Accurate Imaging

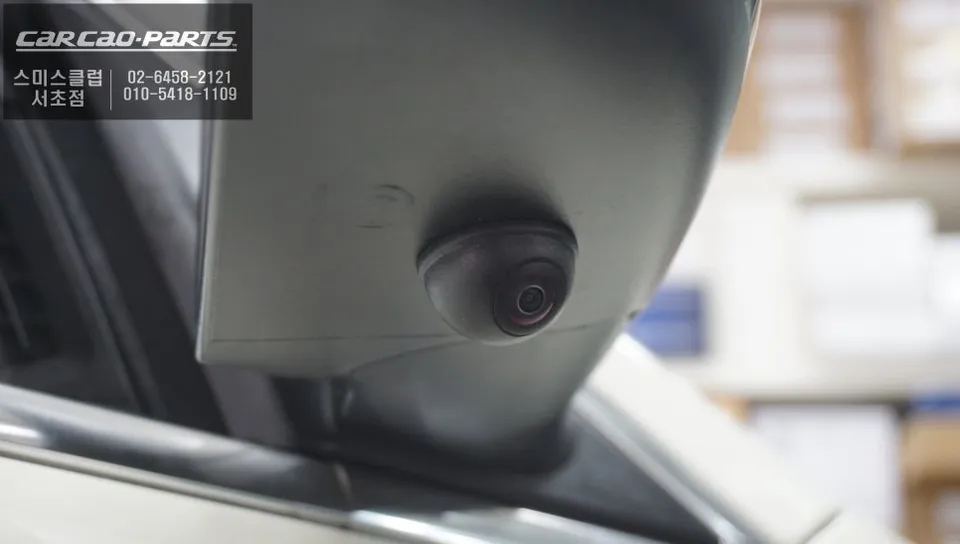

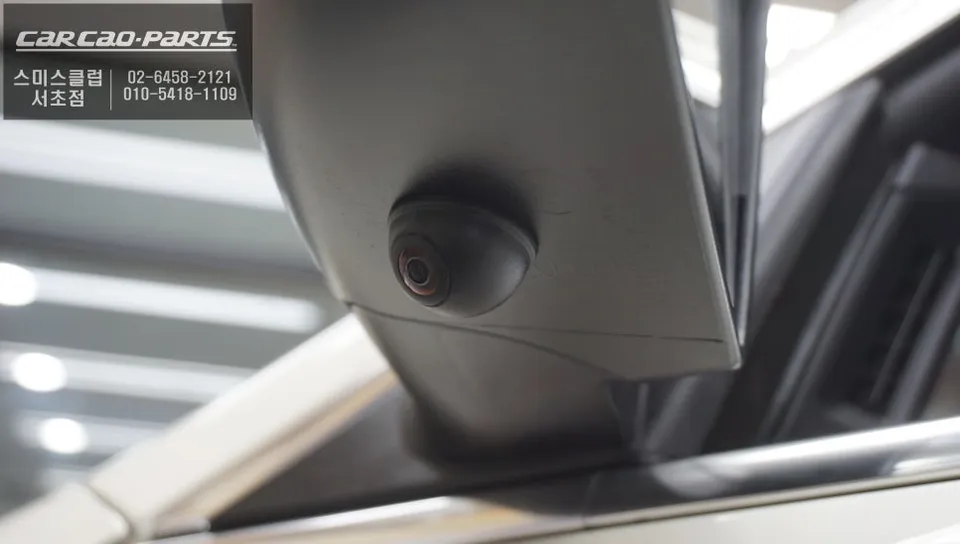

The installation process for a 360 camera retrofit involves mounting four discreet, waterproof cameras: one on the front bumper, one on the rear bumper, and one on each side mirror housing. Precise positioning is critical for optimal performance. Following the physical installation, the most crucial step is auto-calibration. This process ensures that the data from all four cameras is accurately merged into a single, cohesive top-down image. Using a specialized calibration pattern placed in front of the vehicle, the system automatically adjusts for camera angles, distortion, and distance. This calibration typically takes about 20-30 minutes and is essential for the accuracy of the final 3D surround view display.

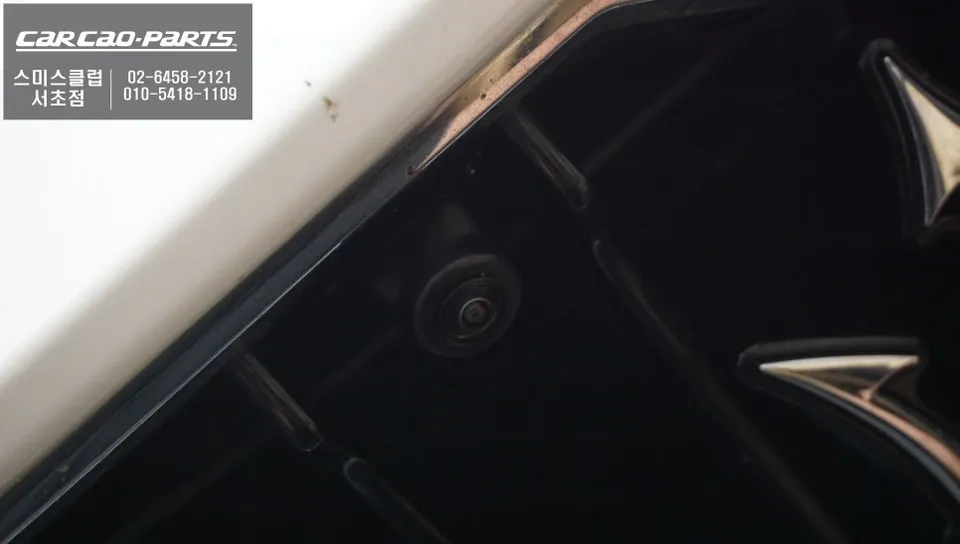

The installation on the Ghibli also focused on maintaining a factory look. Instead of replacing the original rear camera, the lens was integrated into the existing housing. This technique preserves the car's aesthetic while seamlessly incorporating the rear view into the surround view system. The wide-angle lens, often exceeding 180 degrees of field of view, provides an expansive rearward perspective, capturing not just what's directly behind but also the adjacent areas.

How the 360 Camera System Works in Practice

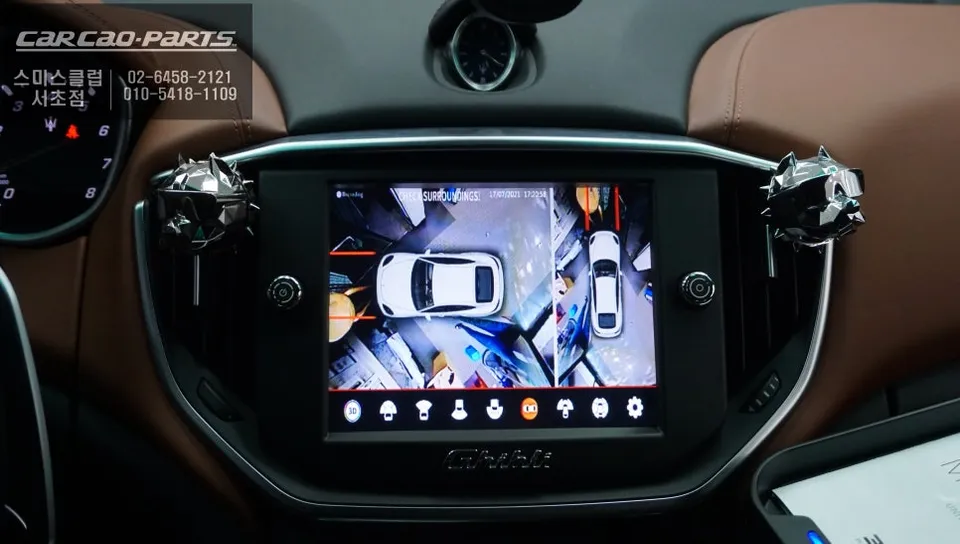

The surround view system operates intuitively based on the vehicle's gear selection. When reverse (R) is engaged, the display automatically switches to a rear-view and top-down view, ideal for parking. When in drive (D), the system can be manually activated to show a front-view and top-down perspective, which is incredibly useful for navigating narrow streets or parking garages. After a set period (usually 10 seconds), the display automatically reverts to the previous screen to avoid distraction during normal driving. Control is often managed via a discreet wireless jog dial, allowing the driver to easily activate the system or switch views as needed.

The estimated cost for such a parking camera retrofit in the US can start around $150 and go up significantly depending on the system's complexity and vehicle integration. While the specific cost for the Maserati Ghibli in Korea was not detailed, similar installations in the US typically range from $300 to $1000 or more, factoring in parts, labor, and calibration.
