Land Rover Range Rover Evoque 360 Camera Review — Cost
Range Rover Evoque 360 camera installation: approx. $900 USD. Provides 360-degree view, enhancing parking safety.
Why Your Range Rover Evoque Needs a Surround View Camera System
Parking can be the most nerve-wracking part of driving, especially in a premium vehicle like the Land Rover Range Rover Evoque. Blind spots are a reality, and unexpected incidents can occur in these unseen areas. Today, we're detailing the installation of a surround view camera system on a Range Rover Evoque, demonstrating how this 360-degree monitoring system works and why it's a highly-valued option on luxury imports.
This review focuses on the installation of a 2D Super View Around View system on a 2022 Range Rover Evoque. We'll explore how this comprehensive 360-degree system, going beyond a simple backup camera, is implemented to provide simultaneous monitoring of the front, rear, and sides of the vehicle.
Installation Process: From Inspection to Integration
A successful surround view camera installation begins with meticulous preparation. We start by thoroughly inspecting the Evoque's original monitor and navigation system. Given the vehicle's advanced infotainment, ensuring post-installation compatibility is crucial. This phase also involves detailed planning, identifying the optimal placement for the four cameras (front, rear, and sides) and considering their field of view (FOV) and mounting methods. For the Evoque, maintaining the factory aesthetic is paramount, so we carefully plan the disassembly and reassembly points for each camera location.

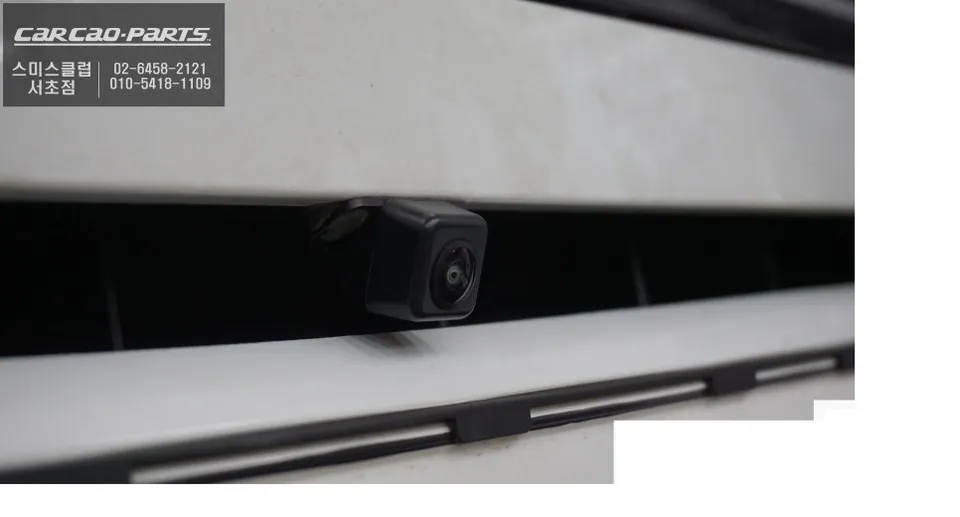

The core of the system comprises four 1080P high-definition cameras, each equipped with WDR (Wide Dynamic Range) for clear imaging in various lighting conditions. The front camera is discreetly installed within the front bumper, while the rear camera is mounted on the trunk lid. We utilize a "plug-and-play" (ZipperByZipper) installation method, replacing original mounts without drilling to preserve the vehicle's integrity. Side cameras are positioned near the side mirrors, covering critical blind spots. Wiring is routed internally, concealed within factory-approved conduits for a clean finish.
Following camera installation, the crucial step of camera calibration takes place. This process aligns and stitches together the individual video feeds from the four cameras into a single, seamless top-down (bird's-eye) view. A specialized calibration pattern is laid out around the vehicle. Images captured from each camera over this pattern are processed using algorithms to correct for geometric distortions, lens curvature, camera angles, and height differences. Accurate calibration ensures that lane markings and obstacles are precisely represented on the monitor.
Finally, the system is integrated with the Range Rover Evoque's original display. The installed system transmits high-definition video signals via LVDS (Low-Voltage Differential Signaling), ensuring a crisp and clear around view monitor output on the factory screen. This integration provides drivers with a comprehensive, real-time view of their surroundings, significantly enhancing parking safety and situational awareness.
Before & After: Enhanced Visibility and Parking Confidence
The transformation is dramatic. Before the installation, the Range Rover Evoque, like many vehicles, has inherent blind spots that can make tight parking maneuvers or navigating complex environments challenging. After the surround view camera system is installed and calibrated, drivers gain an unparalleled, 360-degree perspective. The bird's-eye view displayed on the OEM monitor provides a clear, top-down representation of the vehicle's position relative to its surroundings, including curbs, other vehicles, and pedestrians. This significantly reduces the risk of low-speed collisions and cosmetic damage, boosting driver confidence.
The visual output is sharp and accurate, thanks to the 1080P cameras and precise calibration. The WDR technology ensures that even in challenging lighting, such as bright sunlight or dark garages, the image remains clear and detailed. The integration is seamless, appearing as if it were a factory-installed option. The durability of the components and the professional installation ensure long-term reliability, making this a worthwhile upgrade for any Evoque owner prioritizing safety and convenience.
The surround cost for this type of installation in Korea, as performed in this review, was approximately 1,200,000 KRW (around $900 USD, subject to exchange rates). This price reflects the quality of the 1080P cameras, the complexity of the calibration process, and the plug-and-play integration with the vehicle's existing systems. While the initial surround cost might seem significant, the enhanced safety, reduced risk of damage, and increased parking ease often justify the investment for premium vehicle owners.
Frequently Asked Questions
Q. How much does a 360 camera installation cost for a Land Rover Range Rover Evoque?
The surround view camera installation for this Land Rover Range Rover Evoque cost approximately 1,200,000 KRW (around $900 USD). Typical professional installations in the US can range from $800 to $1,500 depending on the system and vehicle.
Q. How long does a surround view camera installation take on a Land Rover Range Rover Evoque?
A professional surround view camera installation typically takes between 4 to 8 hours to complete, ensuring all cameras are precisely mounted and calibrated. For durability, ensure the installation uses weatherproof components and maintain camera lenses by cleaning them regularly.
Q. Is an aftermarket 360 camera worth it for a Land Rover Range Rover Evoque?
An aftermarket 360 camera system is highly beneficial for Range Rover Evoque owners who frequently navigate tight spaces or want to prevent parking-related damage. The enhanced visibility and parking assistance significantly improve safety and reduce the risk of costly repairs.
Q. How is a surround view camera system installed on a Land Rover Range Rover Evoque?
Installation involves mounting four 1080P cameras (front, rear, sides) using plug-and-play methods to preserve factory look. 1. Cameras are precisely positioned and wired. 2. Video signals are processed and calibrated using a special pattern to create a seamless bird's-eye view. 3. The system is integrated with the vehicle's original monitor via LVDS for a clear display.
Q. What is the difference between OEM and aftermarket surround view cameras for a Land Rover Range Rover Evoque?
OEM surround view cameras are integrated directly from the factory, often with higher costs and limited availability for retrofits. Aftermarket systems, like the one reviewed, offer comparable 360-degree functionality at a potentially lower cost and can be installed on vehicles without the factory option, providing excellent value.
