Mercedes-Benz C200 Surround View Camera Installation

Why Your Mercedes-Benz C200 W204 Needs a 360° Surround View Camera

Are you struggling with parking your Mercedes-Benz C200 W204, especially in tight urban environments? Many older luxury vehicles, like this 2012 C200, often come equipped with only a basic rearview camera, leaving drivers vulnerable to blind spot accidents. In today's complex driving conditions, navigating narrow alleys and crowded parking lots can be stressful. Installing a Surround View Camera system, often referred to as a 360° bird's-eye view system, is the ultimate solution to these parking anxieties. This advanced system utilizes four 185-degree ultra-wide-angle cameras (front, rear, left, and right) to capture real-time video of your vehicle's surroundings. The footage is then processed to create a seamless top-down view, offering unparalleled visibility of areas normally hidden from the driver's sight, significantly enhancing both parking precision and driving safety.

Seamless Surround View Camera Integration for the C200 W204

The primary challenge in retrofitting a Surround View Camera system onto a Mercedes-Benz C200 W204 with its original NTG-5500 Geni navigation system is compatibility. Aftermarket systems typically cannot directly integrate with the factory navigation unit. To overcome this, our installation involved mounting a dedicated 5-inch monitor onto the vehicle's dashboard. This monitor is connected to the OmniView NS system, creating a completely independent and user-friendly surround view experience that mimics the look and feel of an OEM installation. Meticulous wiring and strategic placement ensure a clean and integrated appearance.

Installation Process:

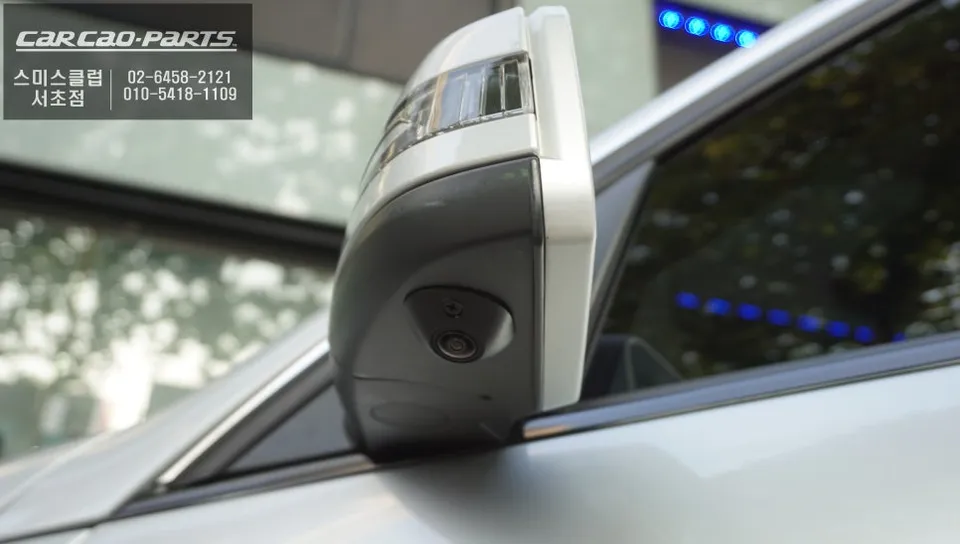

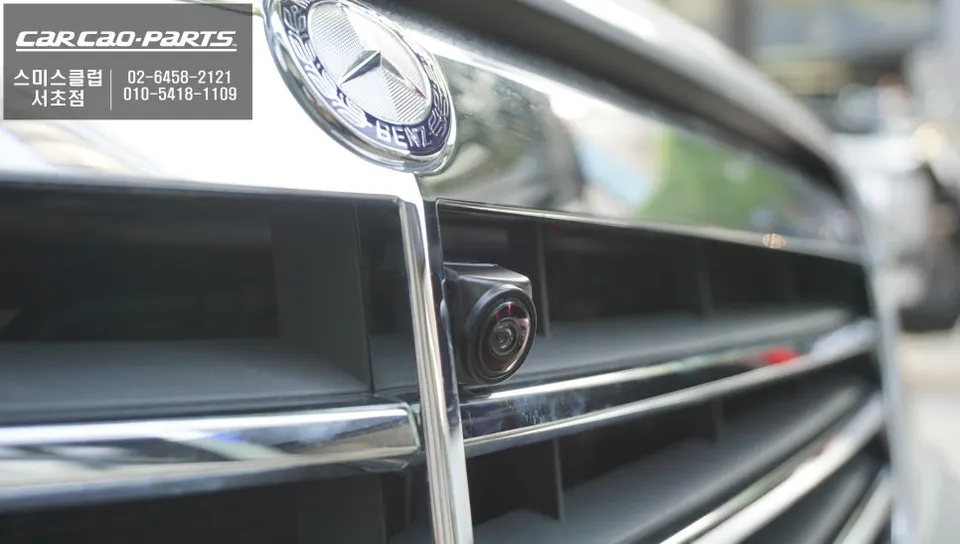

1. Camera Placement: Precise positioning of the four 185-degree cameras is crucial. The front camera is flush-mounted below the front bumper, the rear camera above the trunk lid, and the side cameras are carefully installed near the rocker panels, considering the C200's body lines to ensure an unobstructed view and a clean aesthetic.
2. Video Integration Module: The core of the system, the OmniView NS module, processes the feeds from the four cameras. It stitches the individual camera views into a cohesive 360-degree panoramic image.
3. Monitor and Control Setup: A separate 5-inch monitor is installed on the dashboard, displaying the surround view. A custom-designed switch, often shaped like a car icon, is integrated into the dashboard, allowing the driver to easily cycle through various viewing modes.
4. Calibration: After installation, the cameras undergo a precise calibration process to ensure the top-down view is accurate and seamless, allowing for precise distance judgment during parking maneuvers.

The OmniView NS system excels in its real-time image processing, minimizing any lag between camera input and display output, a key reason for its popularity. A standout feature for owners is the system's versatility, offering eight distinct viewing modes. Beyond the standard 360° top-down view, drivers can select individual camera views (front, rear, left, right) or combined views, all accessible via the intuitive dashboard switch.

Beyond Parking: Everyday Benefits of Surround View

While invaluable for parking, the utility of a Surround View Camera extends far beyond the parking lot. Many owners discover its benefits during regular driving. The side camera views are particularly useful when navigating narrow city streets, unpaved rural roads, or areas with unclear lane markings. This enhanced situational awareness significantly reduces the risk of minor collisions and curb damage, making everyday driving less stressful and more secure.
