Enhancing Your Mercedes-Benz C250 with a 3D Around View Monitor
Welcome to Today's Car. Today, we're showcasing the installation of a 3D Around View Monitor system on a Mercedes-Benz C250. This premium option is designed to eliminate blind spots during parking, offering a bird's-eye view that significantly aids in safe maneuvering. Crucially, this system integrates seamlessly with the C250's original monitor, functioning as if it were a factory-installed feature.
The 3D Around View system utilizes four cameras strategically placed around the vehicle. Unlike a standard rearview camera, it provides comprehensive coverage of the front, rear, left, and right sides. This allows drivers to clearly identify obstacles in areas normally hidden from view, particularly near the vehicle's corners.
Precision Installation: Integrating with the Factory System
The Mercedes-Benz C250 comes equipped with a factory monitor and MMI (Multi-Media Interface) system. A successful 3D Around View installation hinges on a thorough analysis of this original system. At Today's Car Seocho branch, we begin by meticulously examining the factory wiring diagrams to plan the signal connections. This detailed planning is essential because incorrect wiring can damage the original system. While some budget installers may compromise by damaging existing wiring, Today's Car strictly adheres to a 'jack-by-jack' (Zack-by-Zack) method, ensuring each connection is made with utmost care and precision.
Installation Process:
- System Analysis: Thoroughly inspect the vehicle's existing wiring and MMI system using factory diagrams.
- Camera Mounting: Install four high-definition cameras in optimal positions (front bumper, rear bumper, wheel housings) using 1:1 replacement mounts to avoid drilling and maintain vehicle integrity.
- Signal Integration: Connect the cameras to the Around View processor using the LVDS digital signal format, ensuring compatibility with the factory monitor.
- Image Calibration: Perform auto-calibration to accurately stitch the feeds from the four cameras into a seamless 360-degree top-view image.
- System Synchronization: Fine-tune the signal timing, refresh rate, and color space to perfectly synchronize the new system with the Mercedes-Benz C250's original MMI.
Advanced Technology for Superior Clarity
The core of any high-quality Around View system lies in its video signal transmission method. Many lower-cost systems on the market use analog signals (RCA), resulting in poor image quality that clashes with the high-resolution factory displays. The 3D Around View system installed on this Mercedes-Benz C250 employs the LVDS (Low-Voltage Differential Signaling) IN/OUT method. LVDS is a digital signal format used in premium vehicles, capable of transmitting ultra-high-definition video with excellent resistance to noise. This ensures a crystal-clear image on the monitor, with consistent color reproduction from each camera.
This process goes beyond simple wiring; it involves complex synchronization between the C250's MMI and the new Around View image processor. This means aligning signal timing, refresh rates, and color spaces. Today's Car Seocho utilizes specialized diagnostic equipment to monitor signal quality in real-time during this critical adjustment phase.
Seamless Integration and Flawless Results
A key aspect of the installation is the camera mounting. Instead of drilling holes into the vehicle's bumpers—a practice that can lead to corrosion and water leaks—we use a 1:1 replacement mount system. This involves replacing existing factory components with custom-designed mounts, ensuring a flush, factory-like finish without any exterior damage. This method not only preserves the vehicle's aesthetics but also enhances the reliability of the camera installation.

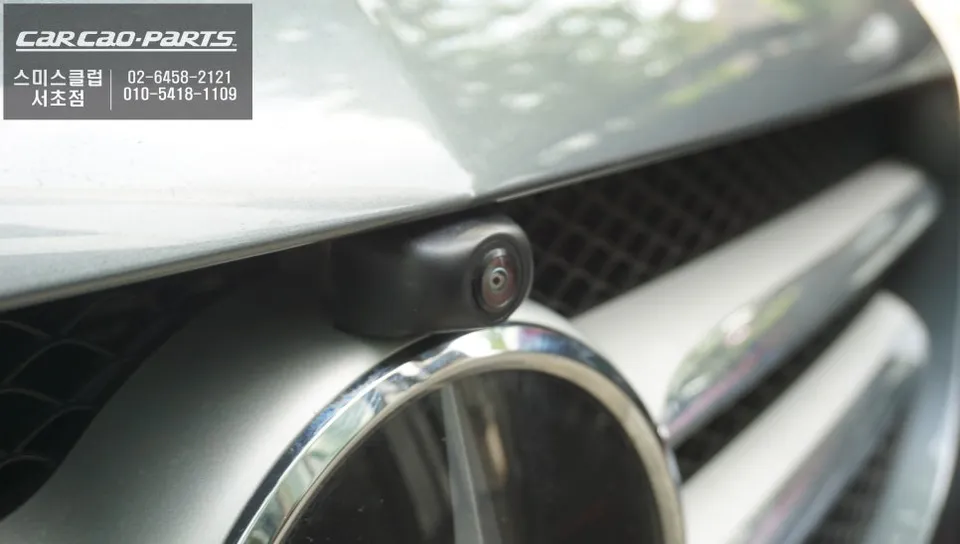

The four cameras are precisely positioned: the rear camera below the rear bumper, the front camera near the front logo, and the side cameras in the upper wheel housings. Accuracy in placement is paramount, as any deviation can lead to distortion in the final Around View image. The final step is auto-calibration, where the feeds from the four cameras are expertly stitched together to create a single, cohesive top-down view. This sophisticated process ensures that drivers can confidently navigate tight spaces, knowing they have a complete, distortion-free view of their surroundings.
Frequently Asked Questions
Q. How much does around view monitor cost for a Mercedes-Benz C250?
Professional installation for a Mercedes-Benz C250 around view system typically ranges from $800–$1,500 depending on camera quality and OEM integration complexity. This review showcases a premium 3D surround view setup with seamless MMI connectivity, positioning it in the mid-to-upper range of aftermarket options.
Q. How long does around view monitor last on a Mercedes-Benz C250?
Quality around view camera systems last 5–8 years with proper sealed housing protecting against moisture and road debris. Regularly inspect camera lenses for condensation or dirt buildup, and ensure all power connections remain corrosion-free to maintain image clarity.
Q. Is around view monitor worth it for a Mercedes-Benz C250?
Around view monitors are essential for C250 owners who frequently park in tight urban spaces or multi-level garages where blind spots create collision risk. The OEM-integrated bird's-eye view transforms parking from guesswork into precise spatial awareness, preventing costly fender damage and passenger-side curb scrapes.
