Mercedes-Benz E-Class W212 Screen Blackout: The 10.25-Inch CarPlay Solution

If you're experiencing the frustrating 'screen blackout' issue with your Mercedes-Benz E-Class W212, particularly models like the 2013 E220 equipped with the factory Genie navigation system, this review is for you. Many W212 owners face this common problem, often due to the aging original 7-inch display. This article details a real-world installation of a 10.25-inch Korean-made CarPlay monitor, offering a modern and reliable solution.

Understanding the W212 Screen Blackout Problem

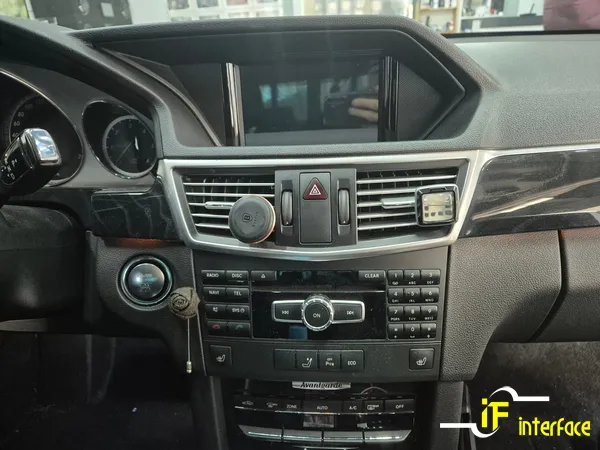

The Mercedes-Benz E-Class W212, when initially sold in Korea, often came with a 7-inch Genie navigation system. After over a decade, these units are prone to failure. The primary causes are LCD panel degradation and failing solder joints on the circuit board, leading to intermittent or complete screen failure (blackout). Compounding the issue, the Genie navigation system has been discontinued, making official repairs difficult and costly. This leaves W212 owners searching for viable alternatives.

The 10.25-Inch CarPlay Monitor Upgrade

When the factory navigation fails, owners typically have two main options: a Chinese-made Android All-in-One unit offering extensive features like streaming apps, or a Korean-made CarPlay/Android Auto dedicated monitor. This particular upgrade opted for the latter – a 10.25-inch Korean CarPlay monitor. The advantages of this choice include faster and more reliable after-sales support from a domestic manufacturer, sufficient functionality for core needs like navigation and music, and a design that integrates seamlessly with the W212's interior aesthetics. The larger screen size significantly improves usability compared to the original 7-inch display.

Installation Process:

1. Remove the Old Unit: Carefully detach the original 7-inch Genie navigation system from the dashboard's upper housing using specialized tools.
2. Wiring Management: Inspect and organize the complex existing wiring harness, ensuring proper connections for power, CANbus signals, and camera feeds. This is crucial for the new unit's functionality.
3. Mount the New Display: Secure the 10.25-inch monitor using a specific bracket adapter designed for larger screens in the W212 dash.
4. Connect the Control Unit: Integrate the CANbus adapter or integrated control box, which translates the car's original signals for steering wheel controls, audio systems, and the rearview camera.
5. Test and Verify: Connect a smartphone via USB and Bluetooth to confirm CarPlay functionality, checking navigation apps (like T-Map or Kakao Navi) and audio playback.

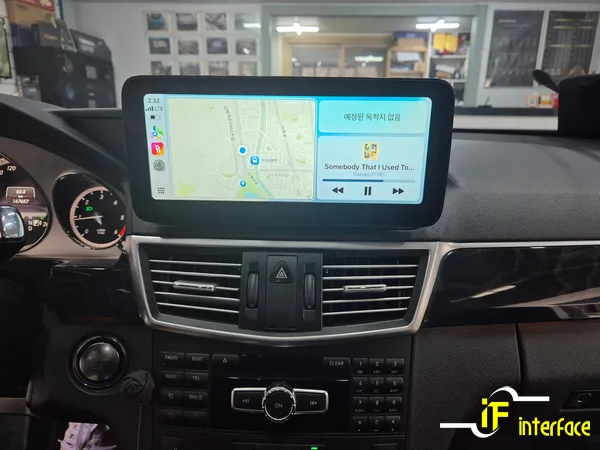

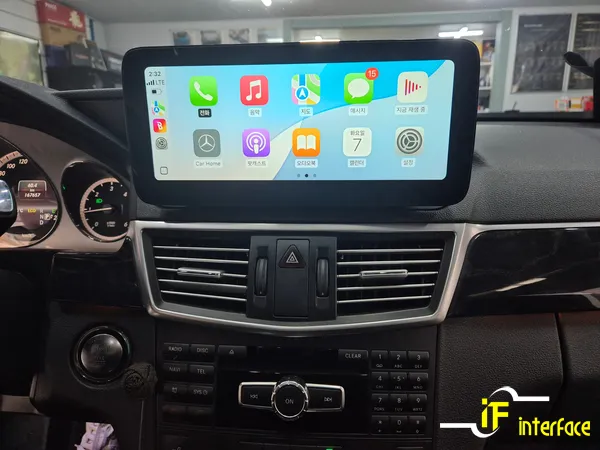

The entire wiring and installation process typically takes around 2 to 3 hours. Once installed, connecting an iPhone via USB and Bluetooth instantly activates CarPlay. Navigation apps like T-Map and Kakao Navi display crisply on the expansive 10.25-inch screen, offering a much clearer view of the route compared to the cramped original display. This upgrade eliminates the need for a separate smartphone mount, contributing to a cleaner dashboard and an enhanced driving experience.
