Mercedes-Benz E300 Around View Monitor Installation & Review
Mercedes-Benz E300 W212 360 camera installation enhances parking safety with S-VUE SuperView, offering 1080P clarity and dynamic PAS-linked parking li
Upgrade Your Mercedes-Benz E300 W212 with a High-Definition 360° Around View Monitor
The 2012 Mercedes-Benz E300, a premium sedan, presents a challenge for drivers due to its substantial size and elevated driving position, leading to significant blind spots, particularly during parking maneuvers. This increases the risk of minor collisions in crowded parking lots. To address this, our Ansan branch recently completed a high-resolution around view monitor installation for an E300. This system provides a "top-down" view, offering a comprehensive 360-degree awareness of the vehicle's surroundings, effectively eliminating blind spots.
Introducing S-VUE SuperView: Superior Clarity and Dynamic Parking Lines
The S-VUE SuperView system installed on this E300 distinguishes itself from standard around view monitors by offering 1080P high-definition output, unlike the pixelated, blurry images from older CVBS systems. This superior clarity allows for precise identification of even small obstacles, crucial for large vehicles like the E300. A standout feature is its PAS (Power Assistance Steering) integration. Unlike conventional systems with static parking lines, the S-VUE dynamically adjusts the guide lines in real-time according to the steering wheel's angle. This intuitive feature makes precise parking in tight spaces and narrow alleys significantly easier and more reliable.

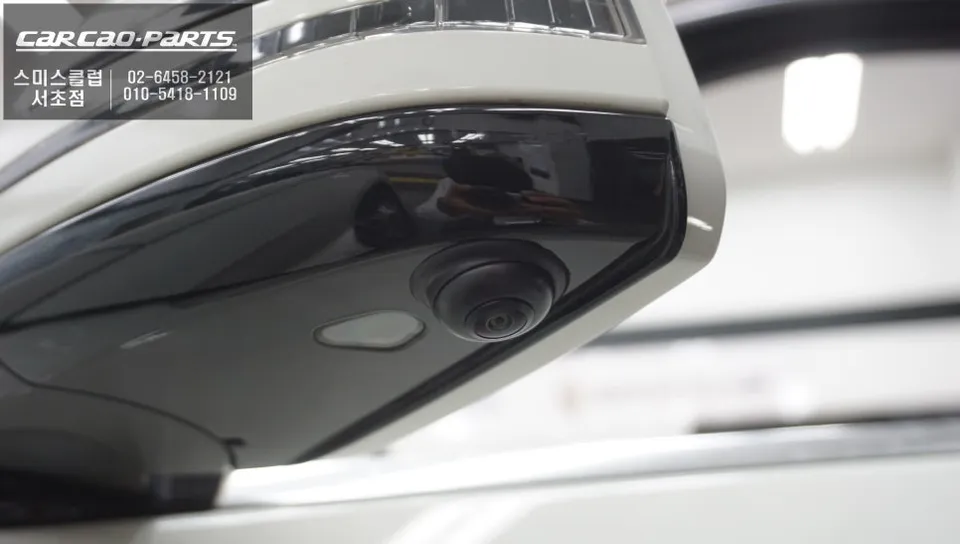

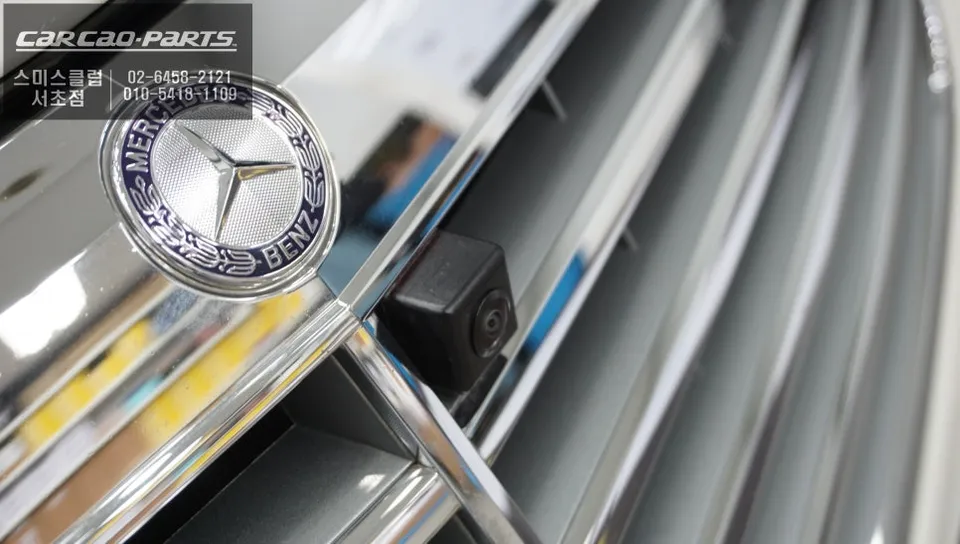

The S-VUE system utilizes four SUPER HD cameras strategically placed at the front, rear, and sides of the vehicle. These feeds are seamlessly stitched together to create a unified, bird's-eye view on a single display. While the E300's original NTG-4500 navigation system has limitations regarding continuous rear camera display while driving, we addressed this by installing a separate 7-inch portable monitor with HDMI input, as per the customer's request. This setup allows for flexible viewing options tailored to the driver's needs.
Detailed Installation Process for Seamless Integration
The precision of camera placement is paramount for an accurate surround view. Even minor misalignments can distort the composite image, misrepresenting the actual surroundings. Our technicians meticulously mount each camera and perform manual calibration using specialized pattern markers. This process, taking approximately 30-40 minutes, ensures the virtual parking lines on the screen perfectly align with the vehicle's actual dimensions.
Integrating the 7-inch HDMI monitor involves securely mounting it on the dashboard, often utilizing existing air vents or storage compartments in the E300. Wiring is discreetly managed within the dashboard, and the monitor is powered via the ACC circuit, ensuring it operates only when the ignition is on to conserve battery. High-quality HDMI cables guarantee stable transmission of the 1080P video feed. The entire installation typically takes around 2 hours.
Further enhancing the S-VUE system are its trigger functions. Activating the left or right turn signal automatically zooms in on the corresponding side camera view, providing clear visibility of adjacent traffic for safer lane changes. Additionally, the system can simultaneously record footage from all four cameras, doubling as a dashcam for added security.
Frequently Asked Questions
Q. How much does an around view monitor cost for a Mercedes-Benz E300 W212?
The S-VUE SuperView system for this Mercedes-Benz E300 W212, including a separate 7-inch monitor, was installed for approximately 1,200,000 KRW. Professional installation of similar high-definition 360 camera systems in the US typically ranges from $800 to $1500.
Q. How long does an around view monitor last on a Mercedes-Benz E300 W212?
High-quality around view monitor systems like the S-VUE SuperView are designed for long-term durability, often lasting the lifetime of the vehicle with proper care. Regular cleaning of the camera lenses is recommended to maintain optimal image clarity.
Q. Is an around view monitor worth it for a Mercedes-Benz E300 W212?
An around view monitor is highly beneficial for Mercedes-Benz E300 W212 owners, especially those frequently navigating tight parking spaces or concerned about blind spots. It significantly enhances parking safety and confidence by providing a comprehensive, clear view of the vehicle's surroundings.
Q. How is an around view monitor installed on a Mercedes-Benz E300 W212?
Installation involves: 1. Precisely mounting four high-definition cameras (front, rear, sides). 2. Calibrating camera positions using pattern markers for accurate image stitching. 3. Integrating a display unit (like the 7-inch monitor used here) and connecting it via HDMI. 4. Wiring the system to the vehicle's ACC power and optionally linking PAS for dynamic parking lines.
Q. What is the best around view monitor option for a Mercedes-Benz E300 W212?
The S-VUE SuperView system stands out due to its 1080P high-definition resolution and crucial PAS integration, which provides dynamic, steering-linked parking lines. This offers a significant advantage over standard systems with static lines for precise maneuvering.
