Mercedes-Benz E300 W213 Surround View Camera Review

Upgrading Your Mercedes-Benz E300 W213: Bigger Screen, Better Vision

For owners of a Mercedes-Benz E300 W213, the desire for enhanced driving convenience is a common upgrade path. Many find the original factory monitor, often around 7 inches, feels dated with limited functionality and a small display, especially for navigation and parking. This review explores a popular upgrade package in Korea that addresses these concerns: replacing the stock 7-inch screen with a larger 12.3-inch high-resolution display and integrating a 2D Super View surround view camera system. This combination aims to significantly boost both multimedia enjoyment and parking safety.

The 12.3-Inch Display and Android Integration

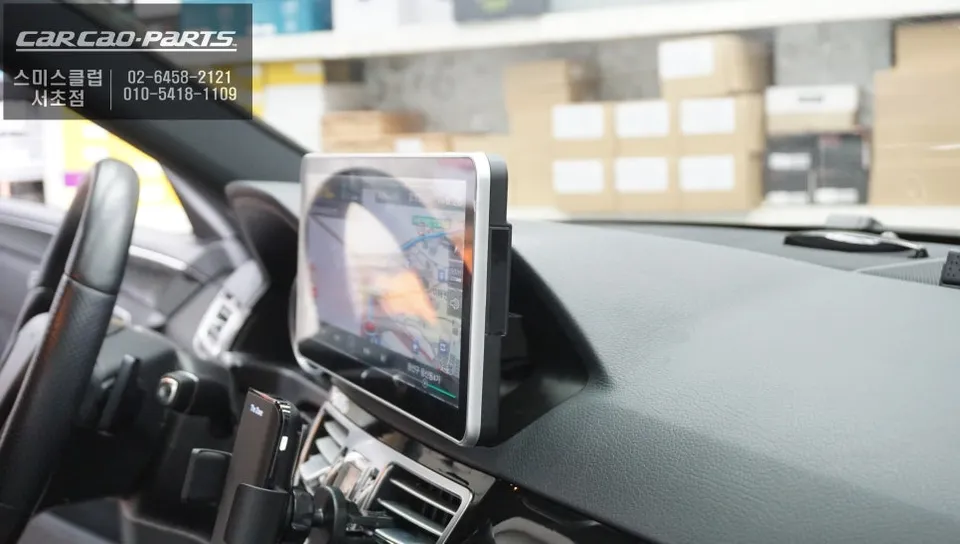

The process begins with the careful removal of the original 7-inch monitor. Given the complex wiring in Mercedes vehicles, precision is key. A new 12.3-inch high-resolution screen is then installed, utilizing a custom bracket designed specifically for the E-Class W213. This ensures a seamless, factory-like fit within the dashboard, avoiding gaps and maintaining an OEM aesthetic. The real intelligence comes from the M2C-200A PLUS set-top box, running on Android 7.0. This unit provides built-in navigation with the Atlant V5 map, offering real-time traffic data and 3D views. When connected to Wi-Fi, it unlocks access to streaming apps like YouTube and Netflix, as well as other navigation apps like T-Map and Kakao Map, transforming the car into a mobile entertainment hub during downtime. The system employs an LVDS direct connection and an HDMI module to ensure crystal-clear, noise-free video output for both navigation and the surround view cameras.

2D Super View: Eliminating Parking Blind Spots

The 2D Super View system is crucial for enhancing parking safety. It utilizes four high-definition cameras (front, rear, and sides) to create a 360-degree bird's-eye view, often called a 'top view'. This comprehensive perspective is invaluable in tight spaces, such as narrow alleys or underground parking garages, where blind spots are a significant concern. The cameras feature WDR (Wide Dynamic Range) for clear imaging in both bright daylight and low-light conditions. A key advantage of this installation is the use of original mount replacement, meaning no drilling into the car's bodywork is required. The cameras are fitted into existing factory locations, preserving the vehicle's integrity and allowing for a potential return to stock configuration without damage. This non-invasive approach is highly valued by owners of premium vehicles. The system integrates seamlessly with the car's existing sensors. The PAS (Parking Assist System) feature dynamically displays the vehicle's projected path based on steering input, overlaid on the surround view image. It also works in conjunction with the original PDC (Parking Distance Control) ultrasonic sensors, providing visual and audible warnings for obstacles. A useful trigger function automatically displays the side camera view when the corresponding turn signal is activated. Additionally, a unique feature allows the surround view to be manually activated by double-pressing the hazard light button, useful for quickly checking surroundings in tricky situations.

Installation Process:

1. Carefully remove the original 7-inch factory display.
2. Install the custom bracket and the new 12.3-inch high-resolution monitor, ensuring a flush, factory-fit integration.
3. Mount the four high-definition cameras (front, rear, sides) into their respective original locations without altering the vehicle body.
4. Connect the M2C-200A PLUS set-top box and integrate it with the vehicle's wiring using plug-and-play connectors, ensuring all original wiring remains intact.
5. Calibrate the surround view system and test all integrated functions, including PAS and PDC sensor display.

The wiring is meticulously managed, routed through original conduits to remain hidden, maintaining a clean, factory look. The use of 'jack-by-jack' connectors ensures the original wiring harness is not cut, preserving the car's original electrical system. Beyond parking assistance, the four cameras also function as a dashcam, recording footage from all angles, which can be crucial for evidence in case of parking incidents. This integrated dashcam functionality is a valuable bonus, providing comprehensive coverage without additional cost.

The transformation is significant. Owners report a newfound sense of security when parking and navigating tight spaces. The larger screen enhances the usability of navigation and multimedia features, making the driving experience more enjoyable. For drivers who struggle with spatial awareness or are new to larger vehicles, this upgrade can be a genuine 'game-changer'.

The cost for this combined monitor and surround view camera upgrade package typically ranges from approximately 2.5 to 4 million Korean Won (roughly $1,800 - $2,900 USD, depending on exchange rates). This price can vary based on the specific vehicle model, existing specifications, chosen monitor and set-top box options, and the complexity of the installation. A monitor upgrade alone might cost between 1 to 1.8 million KRW ($700 - $1,300 USD), while a surround view system could range from 1.2 to 2 million KRW ($850 - $1,450 USD). Opting for a package deal often presents a more cost-effective solution than individual installations. The installation process itself usually takes between 3 to 5 days due to the detailed nature of the work, including monitor fitting, camera placement, and intricate wiring integration. Post-installation, comprehensive testing is conducted to ensure all functions, including video clarity, sensor integration, and audio prompts, are operating perfectly. Product warranties typically extend to 3 years, with workshops often providing 1-2 years of free after-sales service for the installation work.
