Mercedes-Benz EQB Surround View Camera Installation

Addressing the Mercedes-Benz EQB's Front Grille Vulnerability

The Mercedes-Benz EQB (X243) features a distinctive front grille design that makes it susceptible to external impacts. Low-speed maneuvers can easily lead to damage to the bumper and grille. The vehicle in this case study experienced precisely this issue. Instead of a simple grille replacement, this repair presented an opportunity to upgrade the vehicle with a surround view camera system. Let's explore how this common EQB owner concern was addressed with a smart solution.

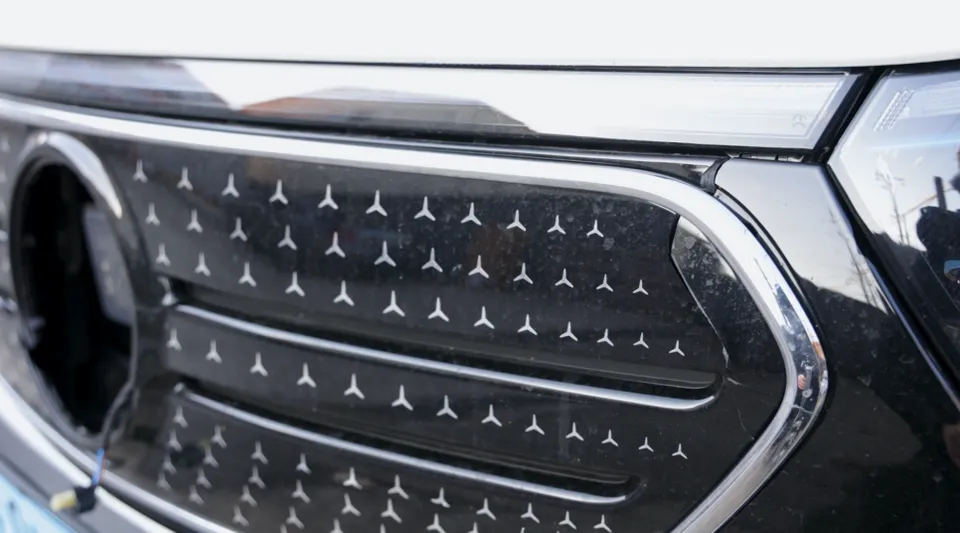

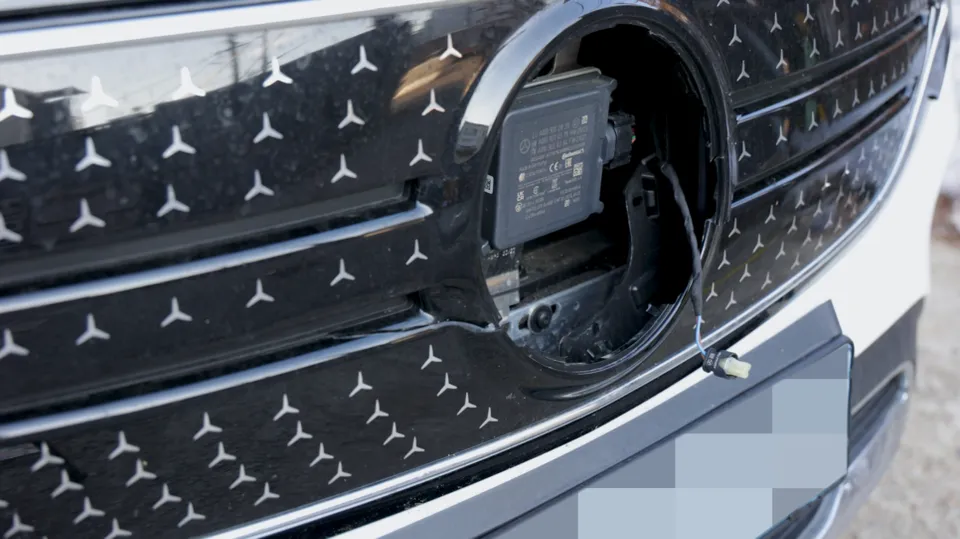

Upon inspection, a clear crack was evident on the upper section of the front grille, indicating structural damage beyond a superficial scratch. While the bumper itself sustained minimal damage, a complete grille replacement was necessary. During disassembly, it was also noted that the front radar cover was missing, and the lower chrome molding had several cracks. The license plate bracket was also damaged, leading to the decision to replace all these components with new parts.

The Importance of Grille Structure for EQB Surround View Camera Installation

A critical factor for installing a surround view camera system is the presence of integrated mounting points for the cameras within the front grille. Many EQB models, depending on their original factory options, lack these specific provisions. While aftermarket grilles are often considered for cost-effectiveness, there are currently no aftermarket options available for the EQB that include the necessary camera mounting structure. Therefore, using a genuine Mercedes-Benz grille is essential, which can increase the overall cost compared to a simple option upgrade. However, in situations like this, where a grille replacement is already required, opting for a grille with built-in camera mounts and simultaneously installing the surround view system offers the best value and a cost-effective solution.

EQB Surround View Camera Installation Process: A 4-Camera System

The surround view system comprises cameras positioned in four directions: front (newly installed), left and right sides (under the side mirrors), and rear (utilizing the existing factory camera). The installation process involves the following key steps:

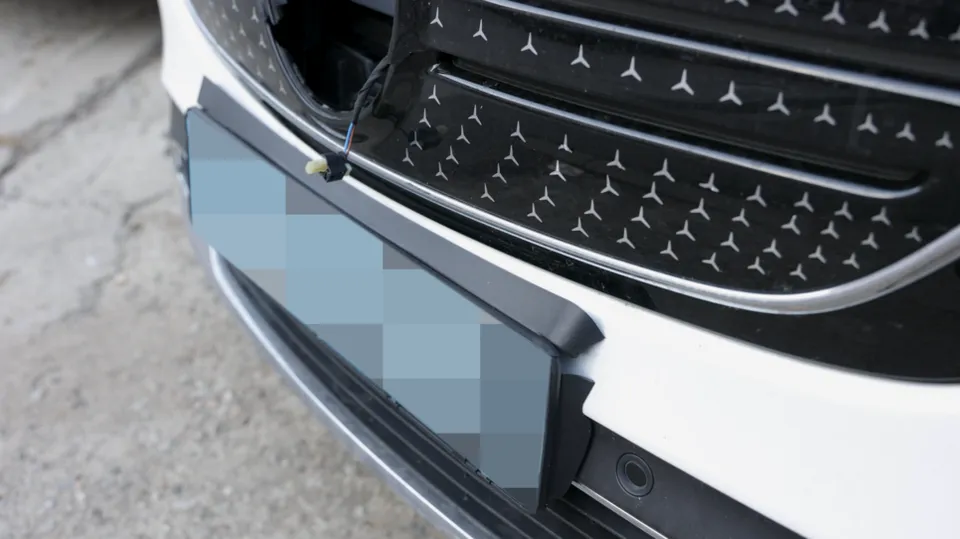

1. Front Grille with Camera Mount Installation: A new grille featuring pre-designed camera housing is installed. Precision is crucial to ensure compatibility with existing panels, proper alignment of panel gaps, and correct electrical connections.
2. Side Mirror Camera Mounting: Cameras are fitted to the underside of each side mirror. This placement is vital for covering blind spots during lane changes and navigating narrow streets.
3. Internal Wiring and Coding: Extensive and delicate wiring is required to connect the signals from all four cameras to the central display unit. Crucially, coding with the Mercedes-Benz Multimedia System (MBUX) is mandatory for seamless software integration. The entire installation typically takes between 6 to 8 hours.

Once all coding is complete, the surround view system can be activated instantly via the 'P' button (Parking Assist button) on the central dashboard. This allows for convenient activation while driving or stationary, with an intuitive interface that facilitates quick adaptation for the driver.

Price Range: The cost for a Mercedes-Benz EQB surround view camera installation typically ranges from ₩1,500,000 to ₩2,500,000, depending on the specific components and labor involved.
