Restoring a Mercedes-Benz S63 AMG's Wheels: A Deep Dive into Repair & Painting

When the paint on your Mercedes-Benz S63 AMG's wheels starts to peel, it's not just an aesthetic issue; it often points to underlying problems with the initial application. This review details a case where a previous wheel painting job failed, necessitating a full strip and repaint. The original service was performed in Korea, and the process involved addressing peeling paint that indicated improper preparation. This situation highlights why meticulous preparation is crucial for long-lasting wheel finishes, especially on high-performance vehicles like the S63 AMG.

The Importance of Proper Wheel Preparation and Stripping

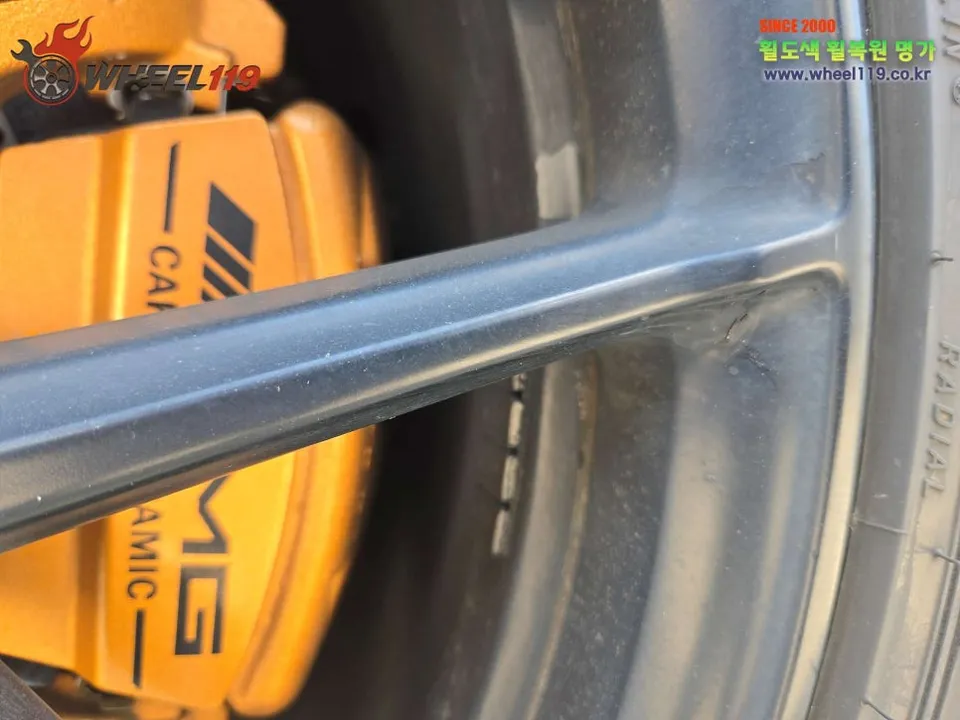

The primary reason for paint failure on wheels is inadequate surface preparation. In this Mercedes-Benz S63 AMG's case, the existing paint was flaking off in multiple areas, exposing the bare metal. This suggests that the initial wheel painting service likely skipped essential steps like thorough cleaning and proper adhesion promotion. Simply applying new paint over a poorly prepared surface is a recipe for disaster, leading to premature peeling. For premium vehicles, these imperfections are even more noticeable. Before any new coating can be applied, the old, failing paint must be completely removed. This process, known as stripping or de-painting, is vital. It involves using a combination of chemical solvents and careful abrasive methods to strip away all existing paint layers down to the bare metal (the base surface). This ensures a clean slate for the new paint to adhere to properly. If wheels have been painted multiple times, stripping is also necessary to prevent the paint layers from becoming too thick and causing delamination.

The Wheel Refinishing Process: From Stripping to Final Coat

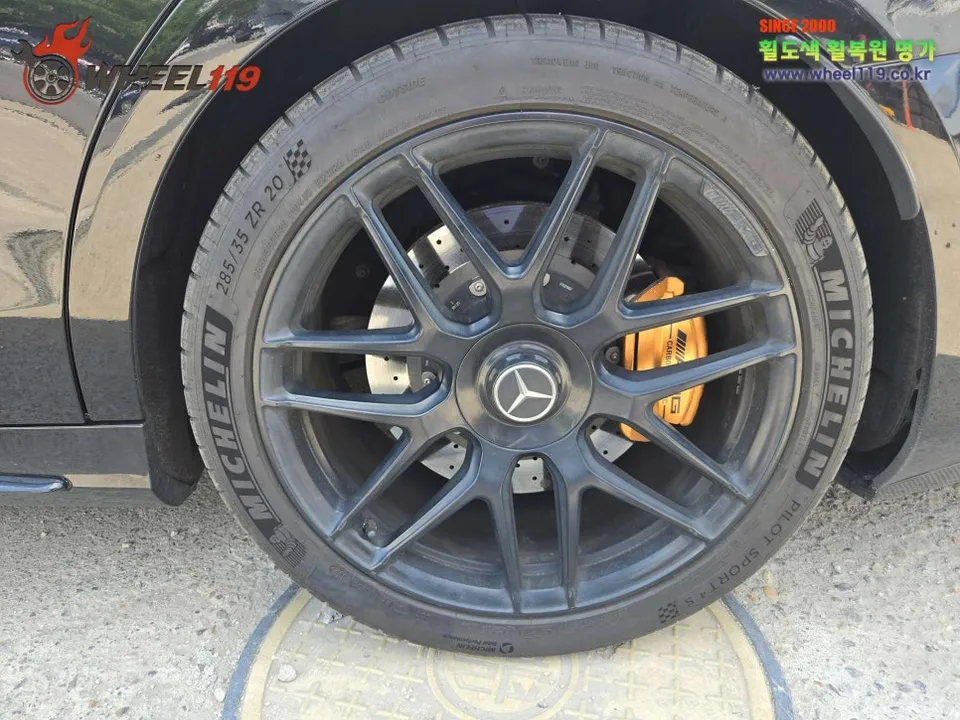

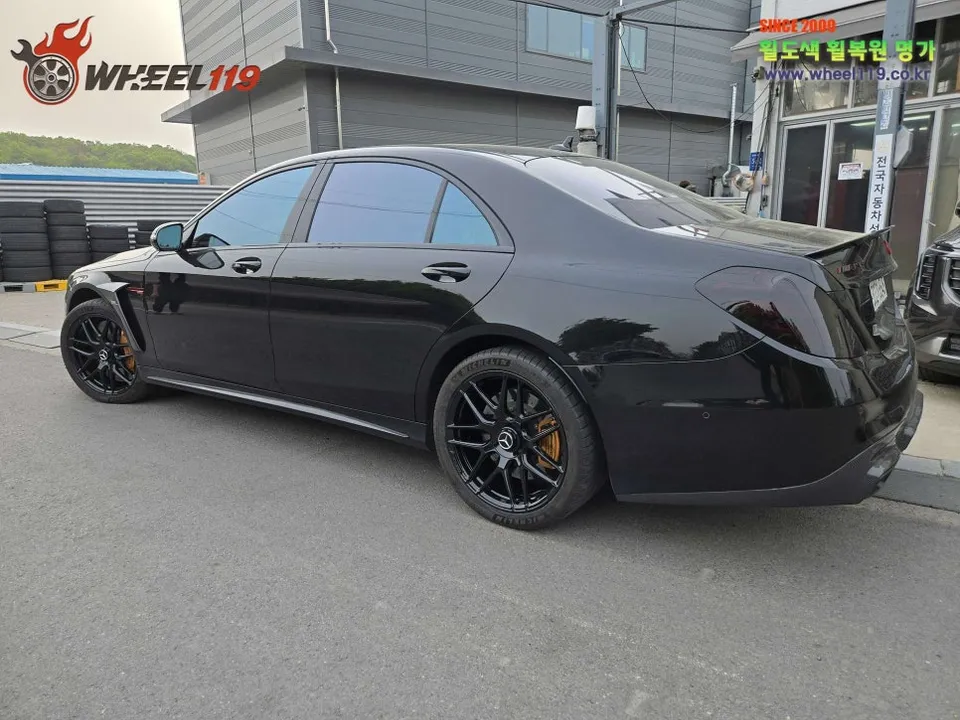

The process began with a thorough inspection of the Mercedes-Benz S63 AMG's wheels to identify any hidden damage beyond the peeling paint. Fortunately, this vehicle had no physical damage to the wheel structure itself, only issues with the paintwork. Once the assessment was complete, the stripping process commenced. After stripping, the wheels underwent a second stage of surface preparation. This involved meticulous cleaning to remove any residue from the stripping agents and oils, followed by an acid treatment to 'etch' the surface, creating an ideal profile for primer adhesion. This etching process, sometimes referred to as 'matte finishing' or 'soaking,' is critical for paint bonding. A high-quality primer was then applied to act as an intermediate layer, enhancing the bond between the wheel's base metal and the new paint. The refinishing itself utilized a powder coating technique. Powder coating involves spraying a dry powder electrostatically onto the wheel, which is then cured in an oven. This method results in a uniform, durable, and impact-resistant finish. For this S63 AMG, a gloss black finish was chosen, a classic choice that enhances the vehicle's aggressive yet luxurious aesthetic. After the base coat was applied and cured, a clear coat was added. This top layer provides crucial protection against UV rays, chemicals, and minor abrasions, and it's applied in multiple coats to achieve a thickness of approximately 80-120 microns for maximum durability. The final stage involved a rigorous inspection to ensure color consistency, gloss levels, and the absence of any defects, followed by a crucial curing period of about 7 days, during which the paint fully hardens and achieves its maximum hardness. During this time, harsh cleaning or high-pressure washing should be avoided.

Installation Process:

1. Stripping: Complete removal of all old paint layers using chemical and abrasive methods.
2. Surface Preparation: Thorough cleaning, etching, and application of a high-adhesion primer.
3. Powder Coating: Application of gloss black powder coat followed by oven curing.
4. Clear Coating: Application of multiple layers of protective clear coat.
5. Curing & Inspection: Final quality check and a mandatory curing period before reinstallation.

The estimated cost for this extensive wheel repair and painting service, including the necessary stripping, was approximately 1.2 to 1.8 million Korean Won (roughly $1,150–1,500 USD), depending on wheel size, color choice, and specific shop rates. This is higher than a standard wheel repaint without stripping, which might range from 800,000 to 1.5 million KRW ($700-$1,300 USD) for large wheels like those on the S63 AMG.
