MINI Clubman Wheel Repair & Painting Review

MINI Clubman Wheel Restoration: When Damage Goes Beyond the Surface

Wheel damage isn't just an aesthetic issue; it can compromise the wheel's integrity. In a recent case involving a MINI Clubman in Pyeongtaek, South Korea, the silver wheel surfaces suffered significant damage. Portions of the rim edge were chipped away, requiring more than just a simple repaint – it needed structural repair. Let's explore how the "Today's Car" Pyeongtaek branch brought these wheels back to life.

Diagnosing Wheel Damage: A Step-by-Step Approach

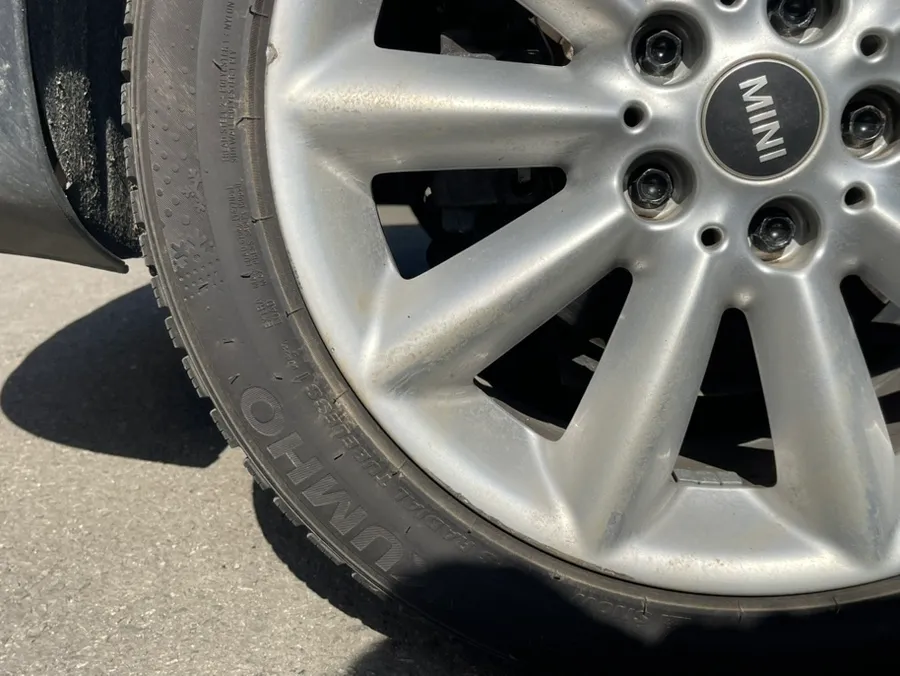

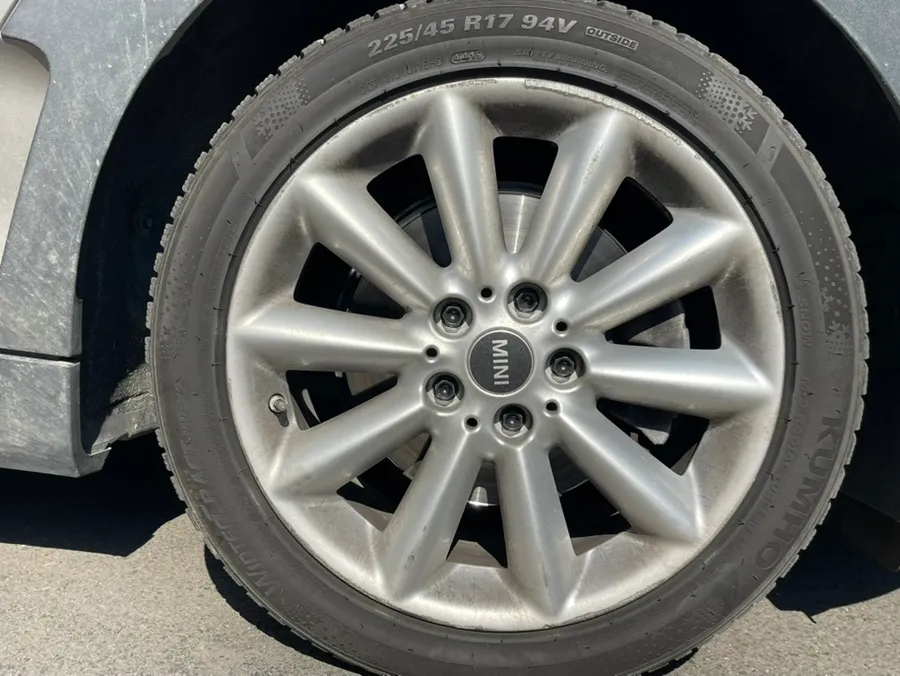

The first crucial step in any wheel repair is assessing the extent of the damage. We need to differentiate between superficial paint damage and actual metal deformation. The MINI Clubman in this instance had metal that had been pushed down and chipped off its edge, along with deep scratches across the surface. This level of damage necessitates a more involved restoration process than a standard refinishing.

It's vital to inspect the wheels before dismounting the tires. This initial check can reveal damage on the inner barrel or significant brake dust buildup that might not be visible otherwise. In this case, the inner wheel surfaces had accumulated substantial brake dust, which would prevent proper paint adhesion if not thoroughly cleaned. This cleaning is a non-negotiable part of preparing for a durable finish.

The Wheel Damage Restoration Process

Restoring damaged wheels requires a precise sequence. It's not merely about sanding and painting. When structural damage is present, welding is often the first step to realign the metal, followed by meticulous surface preparation before any painting begins.

For this MINI Clubman, the process involved:

1. Damage Area Welding: The compromised metal on the rim edge was carefully welded to restore its original shape. Precision is key here; excessive welding requires more material removal later, impacting the wheel's balance and integrity.
2. Surface Smoothing (Manual Polishing & Sanding): After welding, the repaired areas were meticulously smoothed to recreate the wheel's original contours. Maintaining the wheel's true shape during this stage demands a high level of skill.
3. Inner Barrel Cleaning: Brake dust and grime were completely removed from the inner wheel using specialized cleaning agents. Even microscopic particles can compromise the final paint quality.

Powder Coating: A Three-Stage Application Process

Once structural repairs are complete, the focus shifts to the coating process. Powder coating differs fundamentally from traditional liquid painting. Instead of spraying liquid paint, powder coating applies a dry powder electrostatically, which is then cured under heat.

We opted for powder coating due to its superior durability. It achieves a hardness of 3H or higher, significantly exceeding the 1H-2H hardness of standard paint jobs. This process also allows for uniform thickness, resulting in a cleaner aesthetic. It's a common and effective method for restoring MINI's signature silver alloy wheels.

Stage 1: Primer (Base Coat) Powder Coating – This foundational layer ensures proper adhesion between the metal and subsequent paint layers. Without a solid primer, the coating can eventually peel. A matte gray powder is applied and heat-cured, a process taking approximately one hour.

Stage 2: Silver Base Coat Application – This stage applies the actual color. The goal was to match the original MINI silver tone as closely as possible. Achieving depth involves layering multiple shades of silver rather than a single coat. After application, the wheels require about 24 hours of natural drying time.

Stage 3: Clear Coat (Top Coat) Acrylic Powder Coating – This final protective layer shields the wheel from UV rays and moisture, preventing oxidation that can cause the silver finish to turn white over time. Applied as a clear powder, it's heat-cured to a glossy, protective finish.

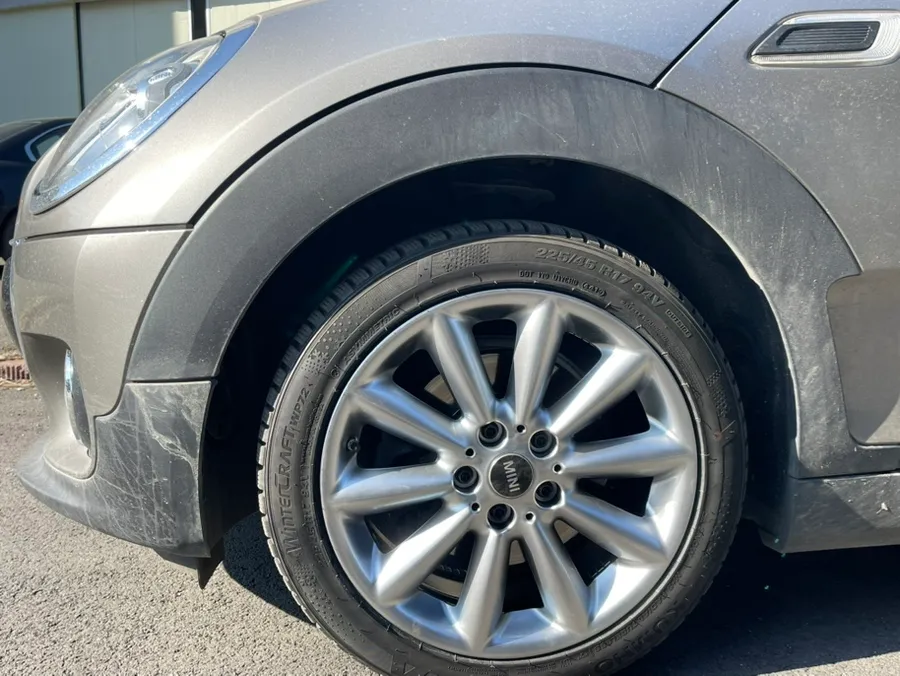

MINI Clubman Wheel Restoration Complete: The Transformation

The result is a MINI Clubman with wheels that not only look factory-new but are also structurally sound and protected against the elements. The meticulous repair and multi-stage powder coating process ensure longevity and a flawless finish, making the vehicle's appearance significantly enhanced.
