Hyundai Grandeur HG Eye Line LED Malfunction: Repair is the Solution

The Hyundai Grandeur HG is generally a reliable vehicle, but it suffers from recurring issues with its eye line DRLs (Daytime Running Lights). The problem typically manifests as one side becoming dim or failing to illuminate entirely. Ignoring this can lead to failing vehicle inspections and reduced safety during nighttime driving. At Today's Car Ansan, we diagnose and repair these Grandeur HG eye line LED malfunctions.

Key Takeaways from this Article:
• Understanding Grandeur HG eye line LED failure symptoms
• Causes and diagnosis of DRL illumination issues
• A 5-step on-site repair process
• Estimated repair costs and time
• Aftercare and preventative measures

Grandeur HG Eye Line DRLs: Which Side Fails First?

Failures in the Grandeur HG's eye line LEDs often follow a pattern. Most commonly, the passenger side (right) headlight's eyebrow LEDs start to show symptoms, though the driver's side can also fail. Whether the light is just dim or completely out, it points to the same underlying issue. Many owners report noticing a slight dimming before the light fails completely, indicating a progressive contact issue within the LED circuit. Once one side is affected, the other side is likely to experience similar problems over time.

Why Do Eye Line LEDs Fail?

The Grandeur HG's headlights utilize a complex LED array. The eye line LEDs, in particular, are known for their variable lifespan and susceptibility to internal circuit connection failures. This is often a combination of inadequate thermal management during the design phase and natural aging of components. Replacing the entire headlight assembly for this issue is impractical, as a new genuine Grandeur HG headlight can cost between ₩1.8 million and ₩2.2 million per unit, easily exceeding ₩4 million for a pair. Even used parts may suffer from the same common defect.

Grandeur Eye Line DRL Repair Process: Step 1 - Precision Diagnosis

Accurate diagnosis is crucial, as not all illumination failures stem from the same cause. Using a specialized LED circuit tester, we measure the voltage and resistance of each LED unit. This data helps us determine if the issue is with the LED itself, a circuit connection, or the power supply (driver). For the Grandeur HG, over 90% of these failures are due to poor connections – not necessarily a failed LED chip, but rather microscopic cracks in solder joints or the circuit board.

Grandeur Eye Line DRL Repair Process: Step 2 - Disassembly and Cleaning

Once the headlight assembly is removed from the vehicle, the internal structure is exposed. Over time, dust and moisture can accumulate inside, accelerating corrosion on the LED circuits. We use high-pressure air and ultrasonic cleaners to thoroughly clean the headlight's interior, paying close attention to the eye line LED areas, which tend to collect the most debris. A final wipe-down with isopropyl alcohol (IPA) ensures all moisture is removed.

Grandeur Eye Line DRL Repair Process: Step 3 - Circuit Repair

With the circuit board exposed and cleaned, we meticulously inspect the solder points and traces for any signs of corrosion or micro-fractures. Using specialized tools and high-quality solder, we carefully reinforce or re-solder any compromised connections. This process requires a steady hand and a deep understanding of automotive electronics to ensure a durable and reliable repair. We focus on restoring the integrity of the electrical pathways to the eye line LEDs.

Grandeur Eye Line DRL Repair Process: Step 4 - LED Module Refurbishment

In cases where the LED modules themselves show signs of degradation, we may need to refurbish or replace them. This involves carefully desoldering the faulty module and soldering in a new, compatible LED. We ensure that the new LEDs match the original specifications in terms of color temperature and brightness to maintain the vehicle's aesthetic consistency. This step is less common than circuit repair but is essential for a complete fix.

Grandeur Eye Line DRL Repair Process: Step 5 - Reassembly and Testing

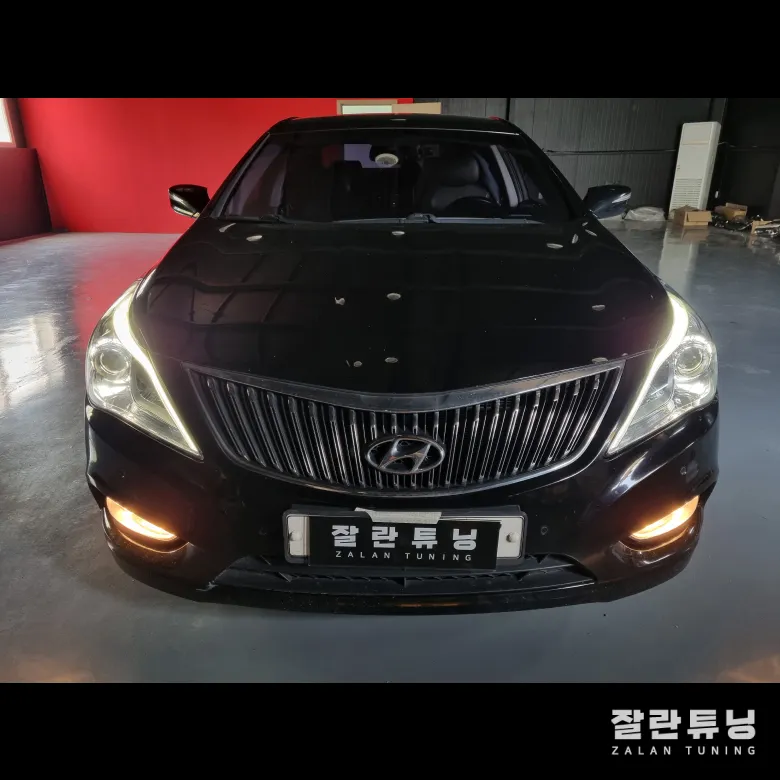

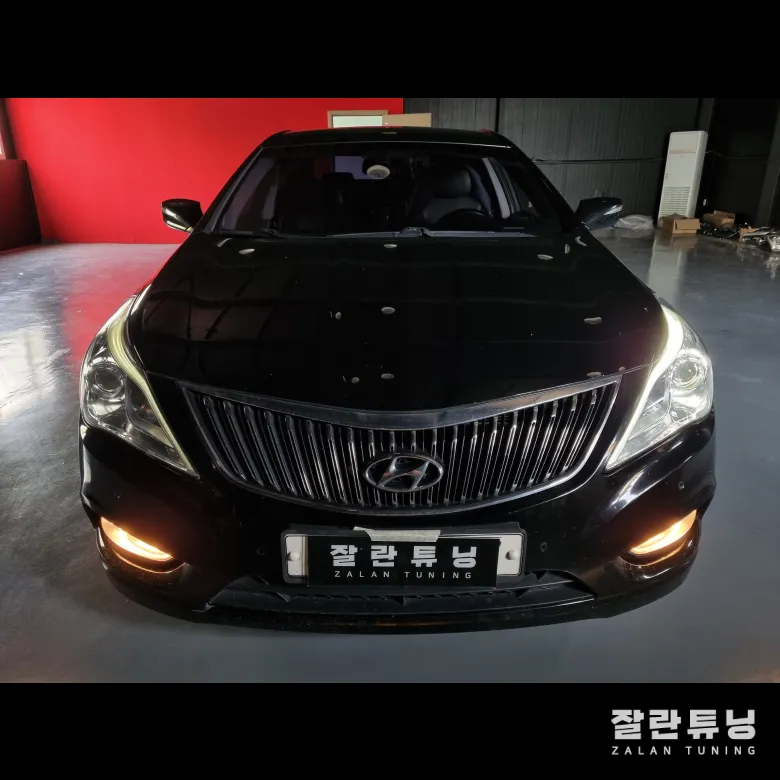

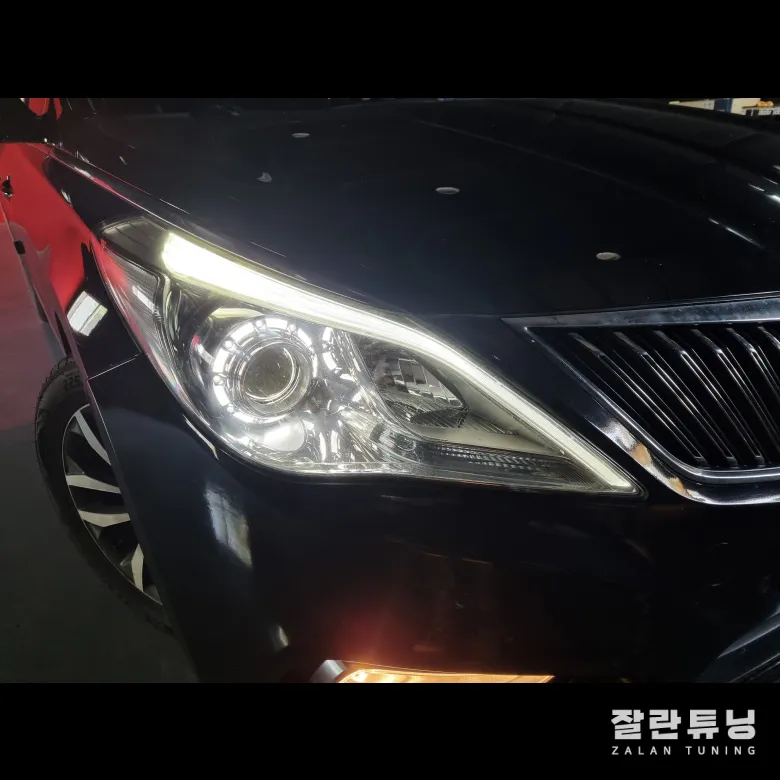

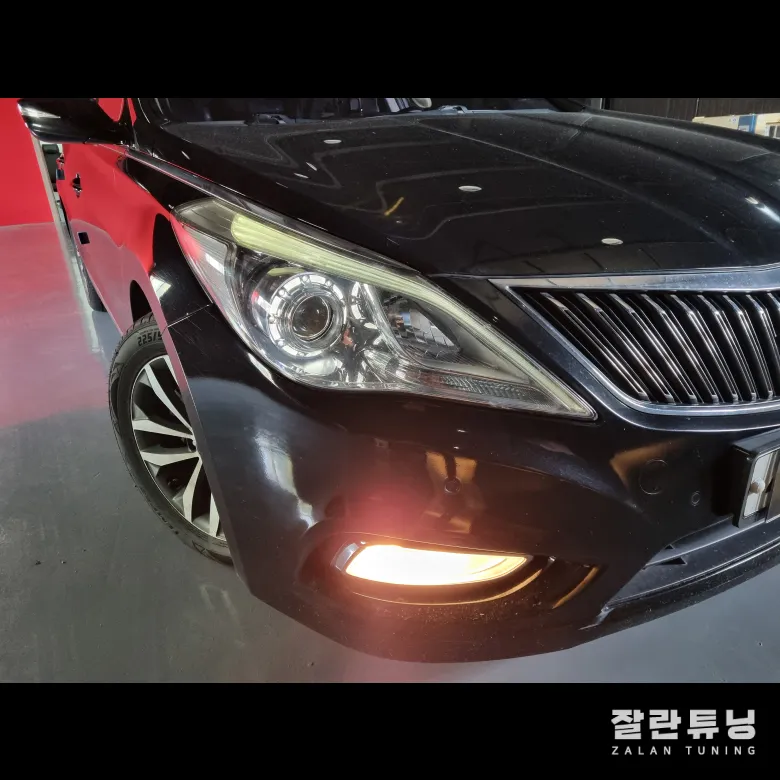

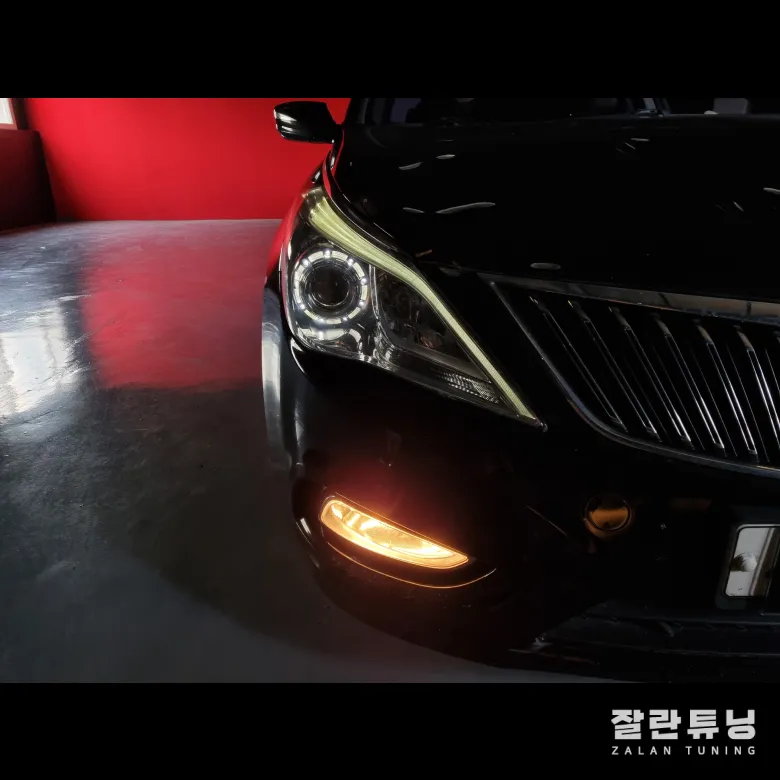

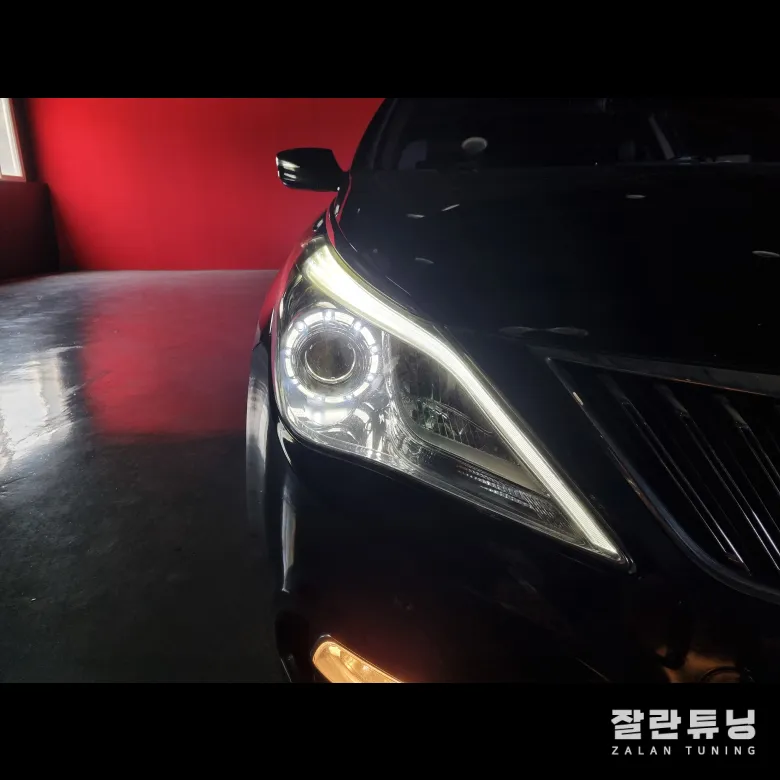

After the internal repairs are completed, the headlight assembly is carefully reassembled. We ensure all seals are properly seated to prevent future moisture ingress. The headlight is then reinstalled on the vehicle. Before returning the car, we conduct a thorough test of the eye line LEDs, along with all other headlight functions, to confirm the repair's success and ensure everything operates as expected. This final check guarantees customer satisfaction and road safety.

Cost and Time for Grandeur HG Lighting Upgrade

The cost for repairing the Grandeur HG's eye line LED issue typically ranges from ₩200,000 to ₩400,000, depending on the complexity of the repair and the specific parts needed. The entire process, from diagnosis to reassembly, usually takes between 2 to 4 hours. This is significantly more cost-effective than replacing the entire headlight unit.

Aftercare and Preventing Recurrence

We provide a warranty on our repair work, typically covering 1 year or 20,000 km. To help prevent recurrence, we recommend periodic checks of your DRLs and ensuring the headlight seals are in good condition. Avoiding high-pressure washing directly at the headlight assembly can also help preserve the seals.
