Hyundai i40 Daytime Running Light LED Repair - Module Replacement

Hyundai i40 Daytime Running Light LED Issues: The Recurring Problem

Many Hyundai i40 models, regardless of age, suffer from recurring issues with their daytime running lights (DRLs). LEDs frequently flicker, dim, or fail altogether. While initial repairs might involve replacing individual LEDs, the problem often returns. This persistent issue isn't typically due to faulty LED bulbs themselves, but rather a defect in the original PCB module that controls the DRLs. We'll walk you through the repair process experienced at our Dongtan service center, focusing on a permanent solution.

This guide covers: • The true cause of i40 DRL LED failures • Comparing solder repair vs. module replacement • The step-by-step module replacement procedure • Actual repair costs and time involved • Tips for preventing future issues

Diagnosing the i40 Light Failure: Finding the Root Cause

When owners bring their i40s in, the symptoms are consistent: irregular DRL behavior on both sides. It's tempting to assume simple LED replacement will suffice, but experience with this model shows otherwise. We've observed that repairs involving soldering individual components typically fail again within 3-6 months. The underlying issue lies within the i40's DRL control PCB module itself, which has a design flaw. Under certain environmental conditions, such as humidity and temperature fluctuations, the control circuitry malfunctions. Replacing components won't fix this fundamental weakness; a complete control module replacement is necessary for a lasting solution.

Solder Repair vs. Module Replacement: What's the Difference?

There are two main approaches to fixing i40 DRL LED failures. The first involves soldering replacement LEDs or control chips onto the existing PCB. The second, and more effective, method is to replace the entire PCB module with a new, redesigned unit. While solder repairs might offer a temporary fix, they don't address the root cause and are prone to recurrence, especially in vehicles like the i40 where the control circuitry degrades over time. Replacing the entire module eliminates the flawed design, significantly reducing the risk of future failures. Although the initial cost may be slightly higher, module replacement proves more economical in the long run.

Hyundai i40 Daytime Running Light Module Replacement: Step-by-Step

The repair process is more intricate than a simple part swap.

Step 1: Diagnosis and Removal of the Original Module

First, we confirm the DRL malfunction. Using a multimeter, we measure voltage and signal integrity to ensure the issue stems from the control module and not wiring or other components. In our cases, both DRLs showed normal signal input but failed to illuminate. Once the problem is verified, the headlight unit containing the DRLs is carefully removed from the vehicle. For the i40, this involves partially disassembling the bumper and fender area, typically taking about 30-40 minutes. With the unit detached, the original PCB module is precisely removed using specialized drivers. It's crucial to document the wiring and connector positions for correct reassembly.

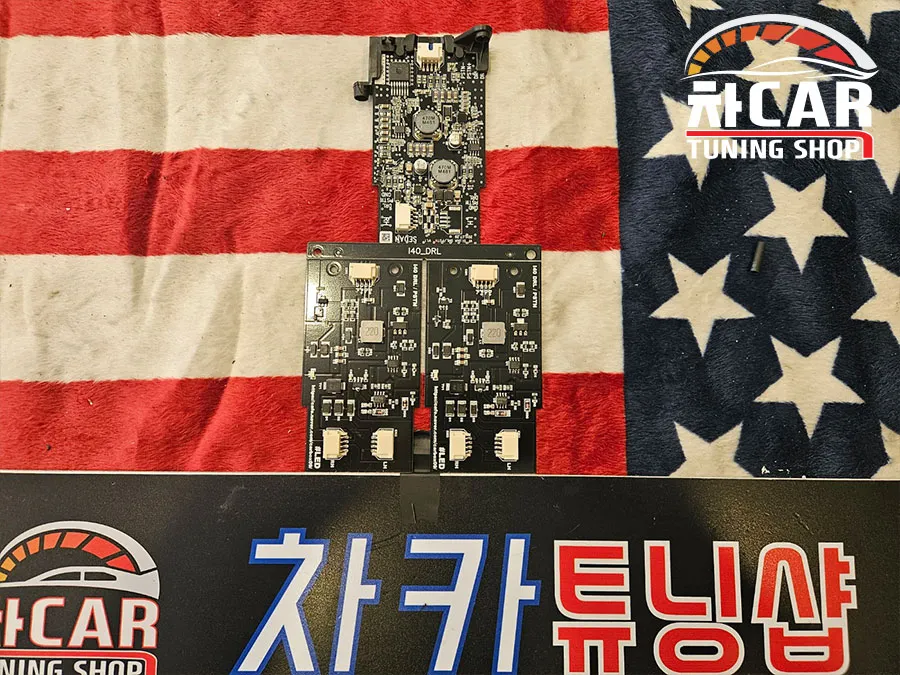

Step 2: Installation of the Dedicated Repair Module

The removed original module is discarded and replaced with a specially engineered PCB repair module designed specifically for the i40. This upgraded module incorporates design improvements to overcome the original control circuit's weaknesses, utilizing higher-quality components that offer better resistance to temperature and humidity variations.
