Volkswagen CC Instrument Cluster Failure: Diagnosis and Repair

A 2014 Volkswagen CC was brought in with a completely dead instrument cluster. Upon ignition, there was no response from the gauges, warning lights, or digital displays, rendering essential functions like the fuel gauge and speedometer unusable. This situation also prevented the use of turn signals and the trip computer, significantly impacting the car's drivability. While a full cluster replacement was a possibility, a thorough diagnostic process was initiated to explore repair options.

Vehicle: Volkswagen CC (2014) Service Performed: Instrument Cluster Repair Service Location: O-neul-ui Car Daejeon Branch (Korea) Service Time: Approximately 4 hours

Diagnosing the "Dead Cluster" Issue

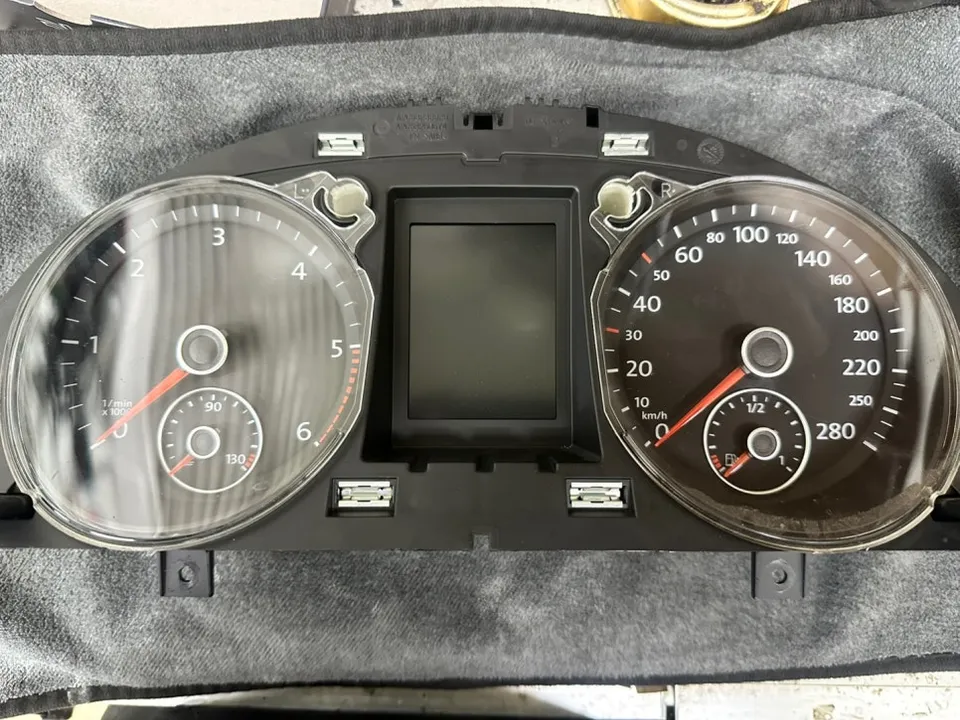

The instrument cluster in the Volkswagen CC, while relatively straightforward in design, presented a challenge. Initial checks confirmed that power was reaching the cluster, but the cluster itself was failing to process the signals correctly. No signs of external moisture ingress or physical damage were found. The repair process involved a meticulous inspection of individual electronic components, specifically integrated circuit (IC) chips, to pinpoint the exact cause of the failure. This detailed examination requires significant time and concentration.

[IMAGE_1]

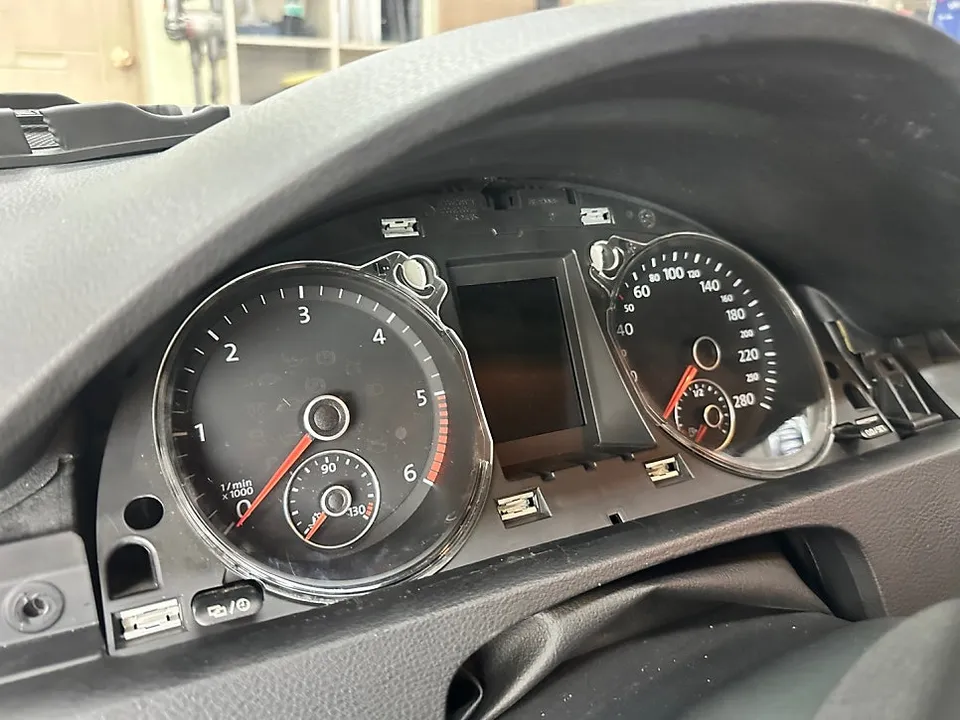

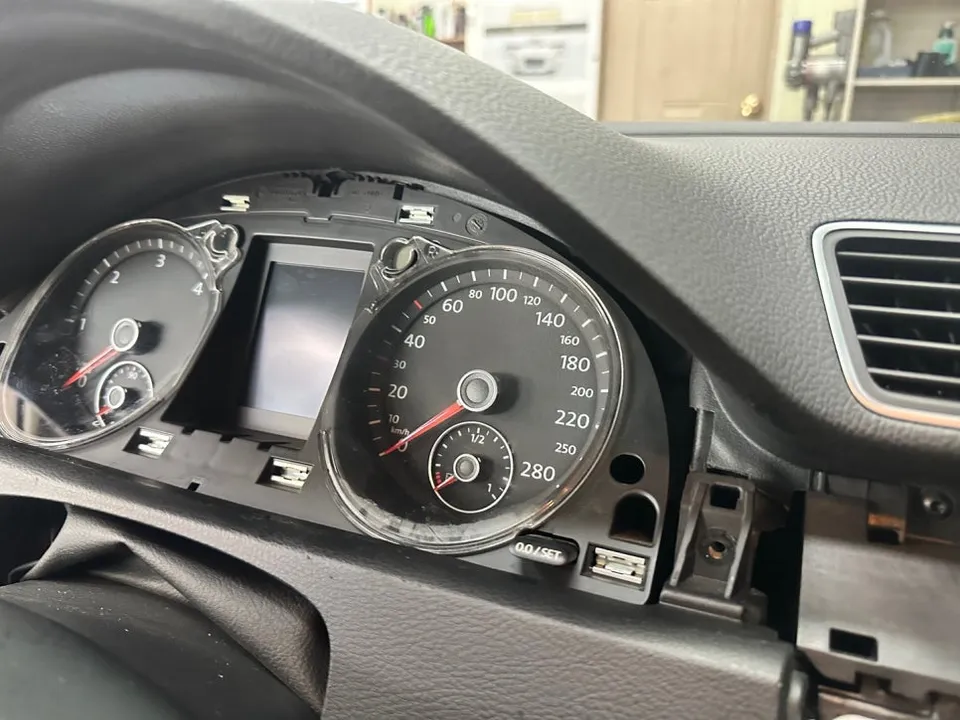

After systematically testing numerous components, the team successfully restored the cluster's boot-up sequence. During a partial reassembly, various functions were tested to ensure all indicators and gauges operated correctly and without errors. Verifying communication with the head unit was crucial to confirm seamless integration with the vehicle's broader systems. Instrument cluster repairs for Volkswagen and Audi vehicles can be more complex than for other brands, and this case proved to be a demanding task despite the cluster's seemingly simple structure.

[IMAGE_2]

Successful Repair and Functionality Restoration

Following the detailed inspection and repair process, all instrument cluster functions, including the RPM gauge, speedometer, and fuel level indicator, were confirmed to be operating normally. A "dead cluster" is considered one of the most severe types of instrument cluster failures. Fortunately, by repairing the original cluster, the owner avoided the higher costs and procedures associated with a full replacement, achieving a cost-effective solution. The Volkswagen CC was returned to the owner after confirming all systems were functioning correctly.

Why is Instrument Cluster Repair Important?

The instrument cluster is a vital component, relaying critical information to the driver. It displays essential data such as speed, RPM, engine temperature, oil pressure, and fuel level. A malfunctioning cluster can directly compromise safe driving. For instance, accurately gauging speed or fuel level in adverse weather or at night becomes difficult without clear display readings, increasing the risk of accidents. Therefore, addressing a dead instrument cluster promptly with professional diagnosis and repair is essential for road safety.
