BMW 118D Around View Monitor Review: Seamless 3D Plus View Integr
BMW 118D 360 camera system with 720P HD resolution. Seamless integration with original monitor for 3D bird's-eye view. Enhances parking safety.
Why Your BMW 118D Needs an Around View Monitor
Are you driving a 2022 BMW 118D and feeling uneasy during parking maneuvers? This is a common concern for many drivers. Even with modern vehicles, blind spots are an unavoidable reality. This is precisely where an Around View 3D Plus View system comes in. By integrating directly with your original monitor, it provides a bird's-eye view, allowing you to instantly identify blind spots. This is especially crucial for less experienced drivers or those frequently navigating tight parking spaces, acting as a powerful safety feature to prevent collisions.
This review details the installation of an Around View 360-degree camera system on a BMW 118D. It's more than just a rear camera; it's a premium option that harmoniously operates four cameras—front, rear, and both sides—integrating perfectly with the original touch monitor, PAS (Parking Assist System), and PDC (Park Distance Control).
Around View 3D Plus View vs. Standard Backup Camera
You might wonder if a simple backup camera suffices. However, a backup camera offers a single rear-view perspective, while the Around View 3D Plus View processes a 360-degree panoramic video feed. Simply put, a rear camera is not enough.
The primary limitation of a backup camera is its inability to cover blind spots on the sides. For instance, if another vehicle is in your adjacent lane, a rear camera alone makes it difficult to accurately gauge its position. In contrast, the 3D Plus View switches to a 'Top View' mode, enabling you to see the entire vehicle surroundings at a glance, much like a drone's perspective. This comprehensive visibility is the system's most significant advantage.
Another key difference lies in resolution. While typical backup cameras offer low resolution (around 480P), the 3D Plus View system installed on this BMW 118D supports 720P high definition. A larger, clearer screen means even small obstacles like guardrails, bollards, or planters are more easily detected. The crisp video quality is achieved through a direct LVDS (Low-Voltage Differential Signaling) connection to the original monitor.
The operation is also fundamentally different. Engaging reverse gear (R) automatically displays the rear and top-view modes. While driving forward (D), you can manually activate the Around View by pressing the original hazard light button twice. All controls are managed via the original touch screen, eliminating the need for separate remotes or buttons. For the BMW 118D driver, this makes the system feel like an integrated factory feature.
Around View Installation Process:
Let's examine where and how the four cameras for the Around View system are installed on the BMW 118D. While it may seem like a simple camera installation, it requires precise work.

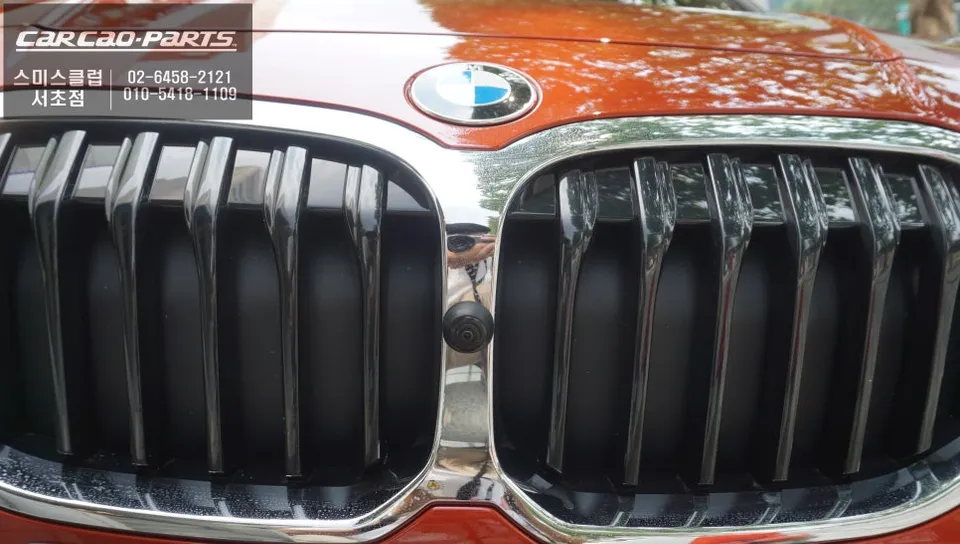

- Front Camera: Grille Installation
The front camera is mounted within the BMW's grille. This necessitates precise drilling (creating an opening) in a section of the grille. The opening must be cleanly finished to securely hold the camera at the correct angle, ensuring no damage to the surrounding area post-installation. - Rear Camera: Integrated License Plate Light Replacement

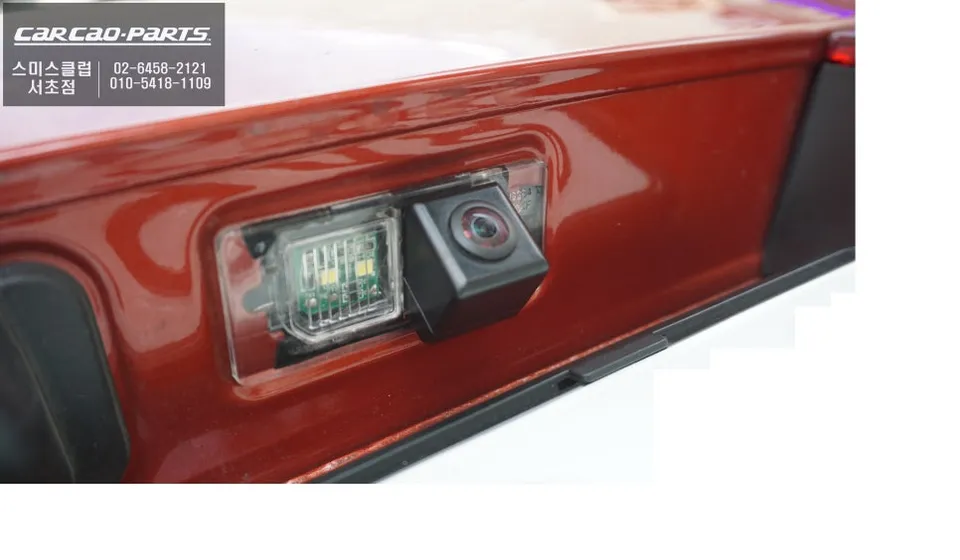

The rear installation is streamlined. The original license plate unit is replaced with one that integrates the rear camera and LED lighting. This ensures a factory-like appearance and optimal camera placement. - Side Cameras: Mirror Housing Mounting
Cameras are discreetly installed on the underside of the side mirror housings. This placement provides the necessary wide-angle view of the vehicle's flanks without being obtrusive. - System Calibration
After all cameras are physically installed, a crucial calibration process takes place. This involves aligning the camera feeds to create a seamless, accurate 360-degree view on the monitor, ensuring the 'Top View' is perfectly stitched together.
Frequently Asked Questions
Q. How much does an around view monitor cost for a BMW 118D?
The installation of the 3D Plus View system on this BMW 118D was performed by a verified Korean installer. While specific pricing varies by region and installer, similar systems in the US can range from $800 to $2,000.
Q. How long does an around view monitor last on a BMW 118D?
High-quality around view monitor systems are designed for durability and typically last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is an around view monitor worth it for a BMW 118D?
An around view monitor is highly beneficial for BMW 118D drivers who frequently navigate tight spaces or are concerned about blind spots, significantly enhancing parking safety and confidence. The investment provides peace of mind and helps prevent costly parking-related damages.
Q. How is an around view monitor installed on a BMW 118D?
Installation involves precisely mounting four cameras: one in the front grille, one replacing the rear license plate light, and one on each side mirror housing. After physical installation, a critical calibration process aligns the camera feeds for a seamless 360-degree view on the original monitor.
Q. What is the best around view monitor option for a BMW 118D?
The 3D Plus View system, which integrates seamlessly with the original touch screen and offers 720P HD resolution, is a top-tier option. It provides a superior bird's-eye view compared to standard backup cameras, enhancing overall situational awareness.
