BMW 120i Surround View Camera Review: Perfect Blind Spot Solution

Parking Confidence for Your BMW 120i F40

For many BMW 120i F40 owners, parking can be a source of anxiety, especially if the vehicle lacks a factory-installed surround view system. The blind spots inherent in smaller vehicles can make navigating tight underground parking garages or narrow city streets a challenge. This was the case for one owner who, seeking safer and more confident driving, opted for the 3D Plus View surround view camera system. The installation was performed by Today's Car Gangnam, a specialist in BMW-specific surround view solutions, ensuring perfect integration with the car's original equipment.

Understanding the 3D Plus View System

The 3D Plus View system provides a comprehensive 360-degree view around the vehicle by integrating real-time video feeds from four cameras: front, rear, and both sides. It projects a 'Top View' image onto the driver's original BMW monitor, offering a bird's-eye perspective. This system boasts 720P high-resolution output and connects via LVDS, minimizing any loss in video quality compared to the original display. A key advantage is its seamless compatibility with the BMW's original controls; both the touchscreen and the iDrive rotary dial function perfectly, eliminating the need for separate controllers. Furthermore, it fully supports BMW's original features, including the dynamic parking assist lines that move with the steering wheel (PAS) and the original PDC sensor displays, all integrated into the surround view feed.

Installation Process: Precision Camera Mounting

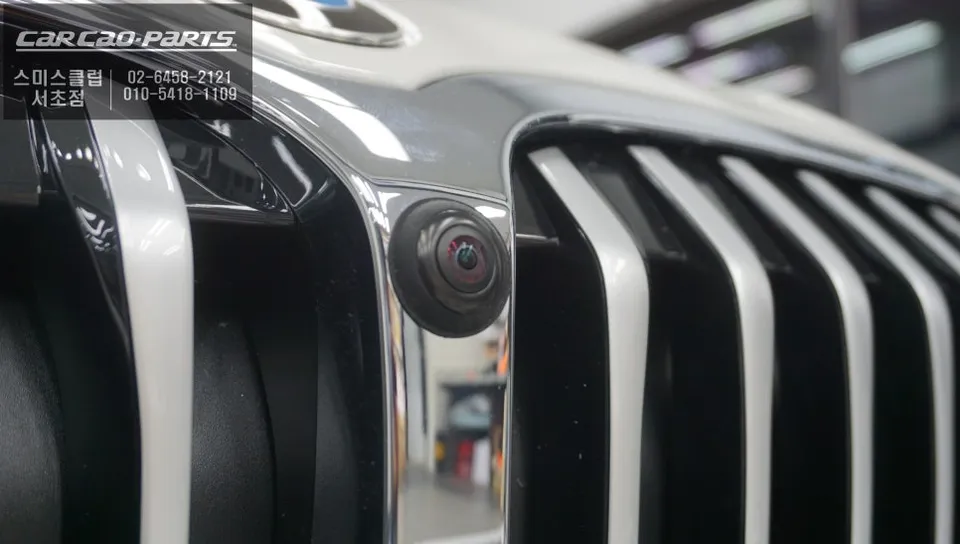

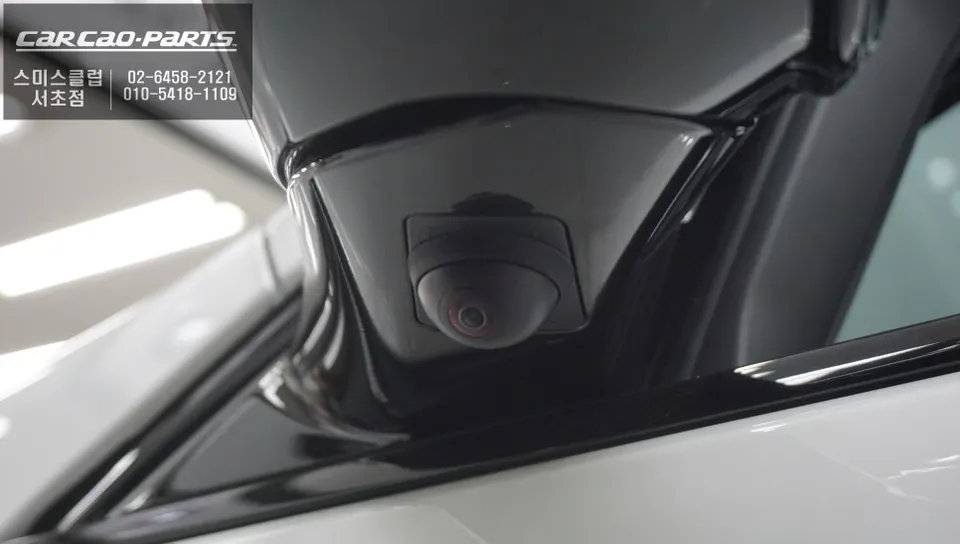

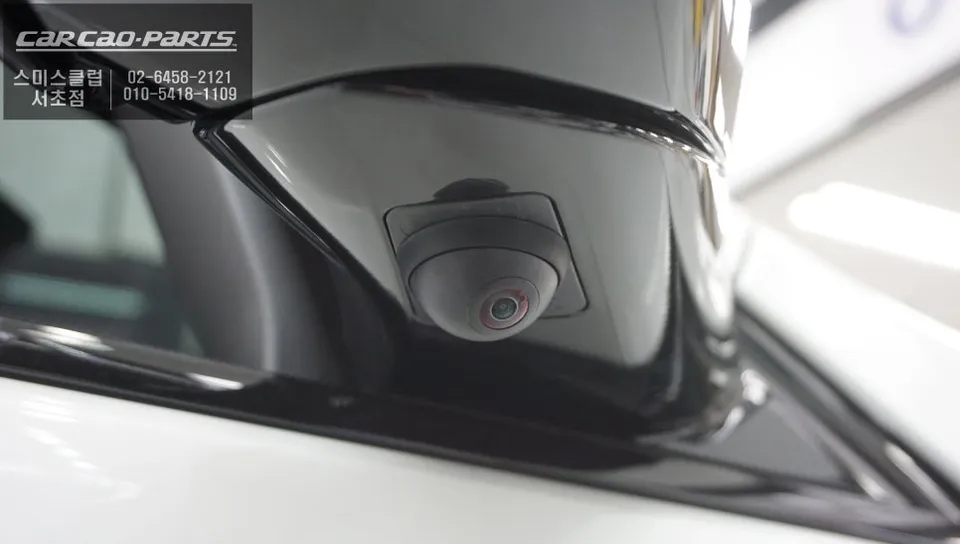

Installing a surround view camera system on a BMW 120i F40 requires meticulous attention to detail. The process involves precisely mounting four cameras in their designated locations. The front and side cameras typically require drilling into the car's bodywork for secure installation, demanding millimeter-level accuracy to ensure proper alignment and field of view.

1. Camera Placement: Precisely position and mount the front, rear, and side cameras onto the vehicle's exterior. This may involve drilling for front and side cameras.

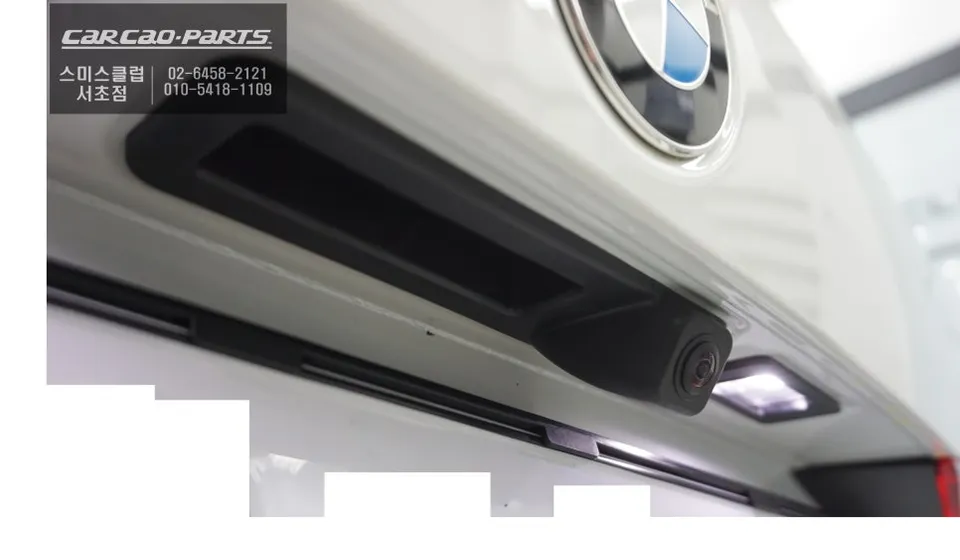

2. Rear Camera Integration: Replace the original BMW backup camera with a new integrated camera, often housed in the trunk handle, utilizing existing wiring where possible.
3. Wiring and Connection: Route all camera cables neatly and connect them to the central control unit, ensuring a clean and organized installation.

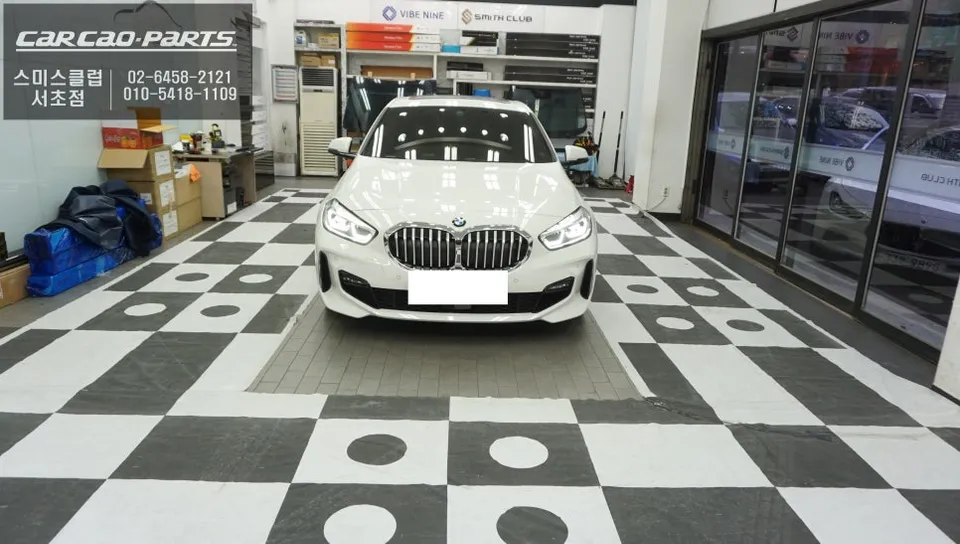

4. Auto Calibration: Perform an auto-calibration process using a specialized pattern to accurately stitch together the feeds from all four cameras into a seamless top-view image.

The rear camera installation is generally more straightforward, often involving the replacement of the factory backup camera with a new unit integrated into the trunk handle. This allows for the reuse of existing wiring, minimizing disruption to the original vehicle harness. Following the physical installation, an 'Auto Calibration' process is crucial. This involves projecting a specific pattern and allowing the system to automatically align and merge the video feeds from all four cameras into a single, accurate, and distortion-free top-view image.

Wiring: Maintaining Originality with Plug-and-Play

Unlike some aftermarket installations that might use less integrated methods, the 3D Plus View system for BMW utilizes a 'plug-and-play' (or 'jack-by-jack') connection method. This means the system connects directly to the car's original wiring harness without modification, preserving the integrity of the factory wiring. This approach not only ensures a cleaner installation but also simplifies any future diagnostics or servicing.

Dynamic Operation: Seamless Mode Switching

One of the most intelligent features of the BMW 120i surround view system is its automatic mode switching. When the vehicle is put into reverse (R), the rear camera and top-view image are displayed automatically. Shifting into drive (D) activates the front camera and top-view. The system reverts to its original state after a set period. For situations requiring immediate visual assistance, such as navigating tight spaces, the surround view can be manually activated by pressing the hazard light button twice. This feature is invaluable for preemptively identifying potential hazards.

Post-Installation Benefits: Enhanced Parking Experience

The immediate impact of the surround view camera installation is a significant reduction in parking stress. The comprehensive view provided by the system instills a sense of security and control, making parking maneuvers, even in challenging environments, feel effortless and safe. This upgrade transforms a potentially nerve-wracking task into a simple and confident operation.
