BMW 530e PPF Review: Headlight Protection & Bumper Coating

BMW 530e: A Fresh Start After an Accident

This BMW 530e G30 received a comprehensive protection package following an insurance claim for a parking collision. After the bumper was replaced, the owner opted for headlight PPF and a ceramic coating on the bonnet and bumper. This dual approach not only restored the vehicle but also provided enhanced protection for the future. Here’s a step-by-step look at the process performed by Today's Car Hwaseong.

Why Headlight PPF is Essential for Your BMW 530e

Modern luxury car headlights, like those on the BMW 530e, can be incredibly expensive, ranging from ₩1,000,000 to over ₩5,000,000. Driving inevitably exposes them to stone chips and minor abrasions, which are difficult to avoid. Applying Paint Protection Film (PPF) to the headlights is a cost-effective preventative measure. Unlike consumables, headlights are critical components; protecting them ensures they remain clear and functional for the long term.

Headlight PPF Installation Process: Precision and Care

The PPF installation begins with meticulous surface preparation. The headlight surface is thoroughly cleaned using an IPA (Isopropyl Alcohol) solution to remove all contaminants and oils. This crucial step ensures proper film adhesion and longevity; skipping it can lead to premature peeling or bubbling. After cleaning, the surrounding areas are masked for protection before the film application.

A specialized PPF application fluid is sprayed onto the film's adhesive side and the headlight surface. This allows the film to be repositioned freely for precise alignment. Starting from one point, a squeegee is used to carefully push out the fluid and any trapped air bubbles towards the edges. Maintaining consistent, moderate pressure is key to avoid damaging the film during this process.

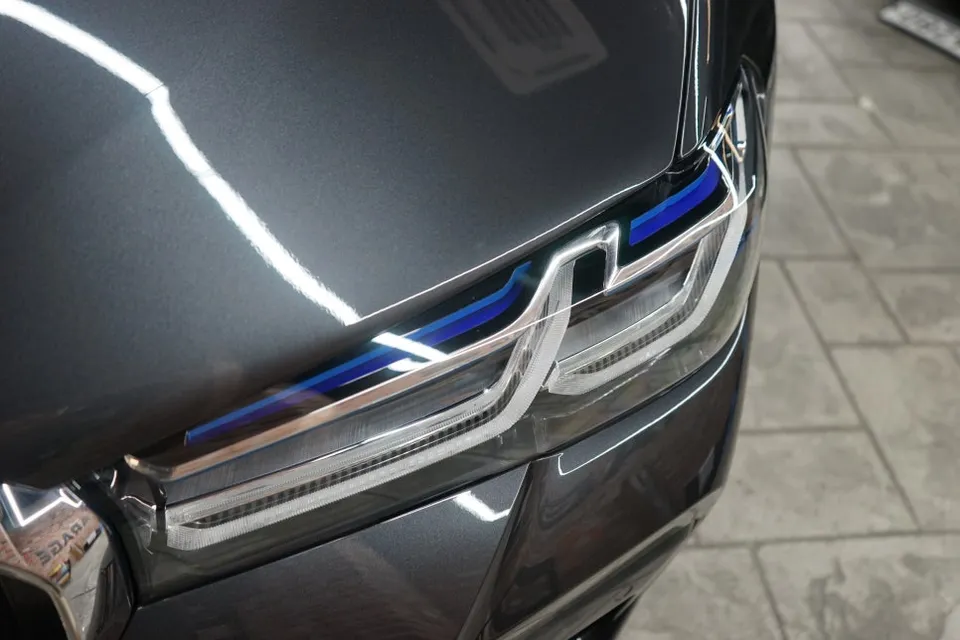

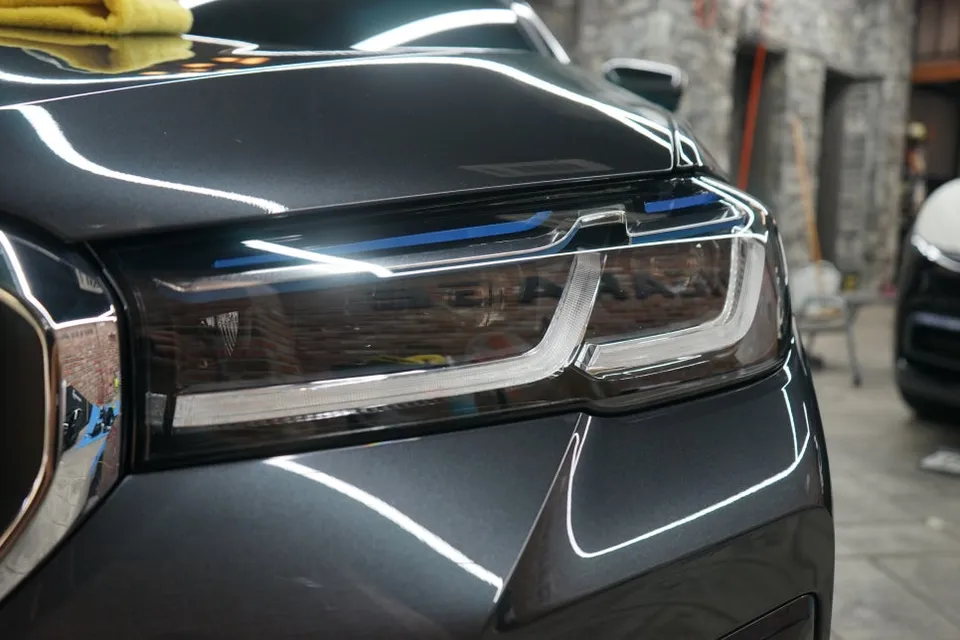

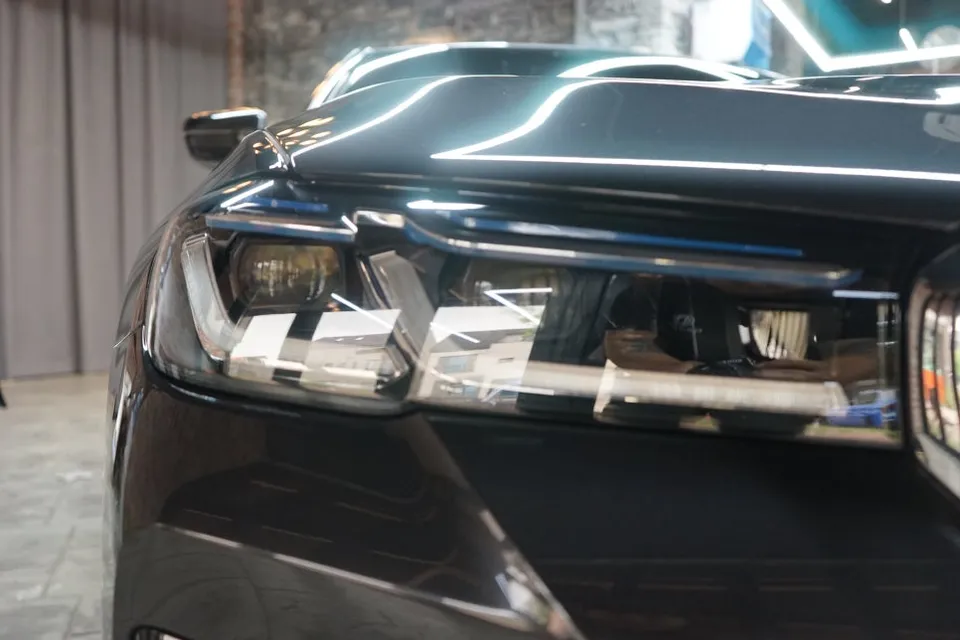

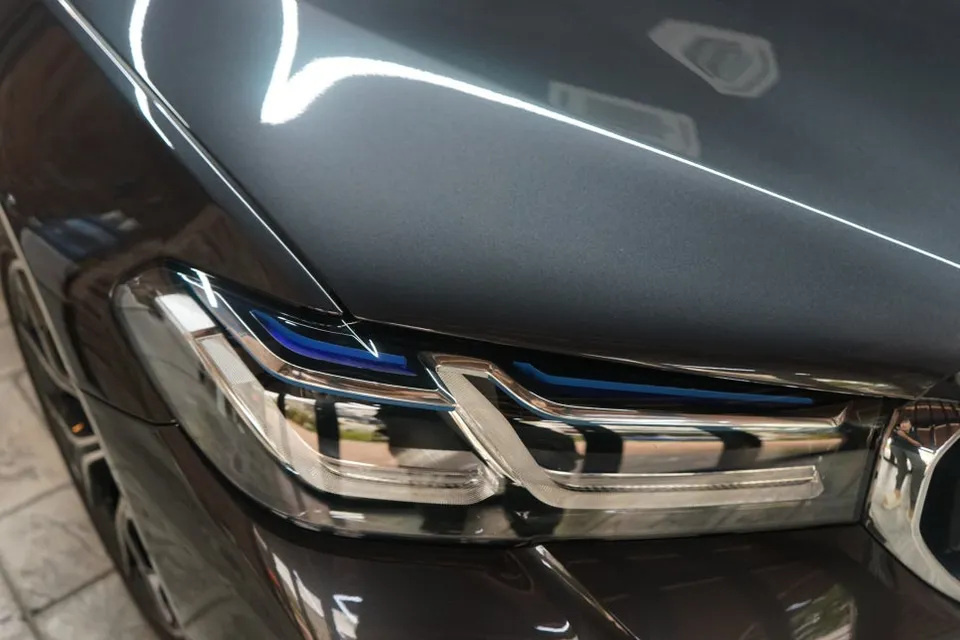

Both headlights are treated with the same attention to detail. Given the substantial size of the 530e's headlights, accuracy is paramount. Experienced installers can achieve a flawless finish on curved surfaces without any lifting or creasing. A final touch involves using a heat gun on a low setting to gently warm the film, ensuring maximum adhesion and a smooth, integrated look.

Ceramic Coating for Enhanced Bumper and Bonnet Protection

Following the PPF installation, a ceramic coating was applied to the bonnet and the newly replaced bumper. This adds an extra layer of defense to the paintwork. Before coating, the surfaces are again cleaned with IPA to remove any residual waxes or contaminants, ensuring an even application.

The Wash Factory's Graphene Pro ceramic coating was used for this vehicle. This advanced coating, infused with graphene, offers superior hydrophobic properties that last over 48 hours and provides a hardness level of 8H, significantly outperforming traditional waxes.

Achieving Maximum Gloss with a 2-Coat Ceramic Application

The process involved applying two layers of ceramic coating to the entire bumper. The first coat establishes the primary protective barrier, while the second coat enhances gloss and durability. A five-minute interval is maintained between coats to allow for proper curing.

Before the coating fully cures, a buffing process using a microfiber towel is performed. This step evenly distributes the coating, significantly boosting the paint's gloss and color depth. The result is a visibly richer, more vibrant finish compared to the original paintwork, offering protection against daily wear and tear, UV rays, and minor scratches.
