BMW MINI 360 Camera Review — Seamless OEM Integration

Why Your BMW MINI Needs an Around View Monitor

The BMW MINI is a beloved import hatchback, celebrated for its distinctive style. However, it often comes with a notable omission: while a rearview camera might be an option, a full 360-degree around view monitor system is typically absent across all models. This means no bird's-eye or top-down "sky view" perspective is available directly from the factory. This lack of comprehensive visibility is a significant drawback, especially considering the MINI's angular body and relatively limited window space, which create substantial blind spots. Navigating tight city alleys or maneuvering into challenging underground parking spaces becomes a nerve-wracking experience, as it's easy to miss approaching vehicles or hidden obstacles from the sides and rear. To address this common concern, we offer a specialized 3D Plus View Around View system designed specifically for MINI vehicles.

The standout feature of this around view system is its "factory-like" integration. It seamlessly interfaces with your MINI's original monitor, ensuring that touch controls and the iDrive jog dial operate just as intuitively as they would with a factory-installed option. There's no clunky, aftermarket feel. Thanks to the adoption of high-definition LVDS technology, the visual output is remarkably crisp and clear, making it feel as though the around view system was a standard feature from the moment the car rolled off the assembly line.

Achieving a Sky View with Four Cameras

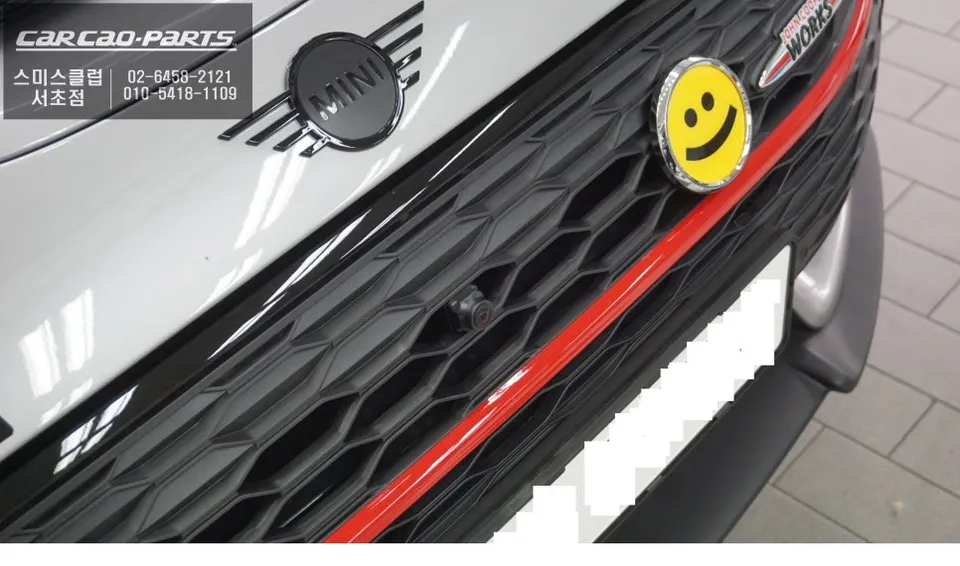

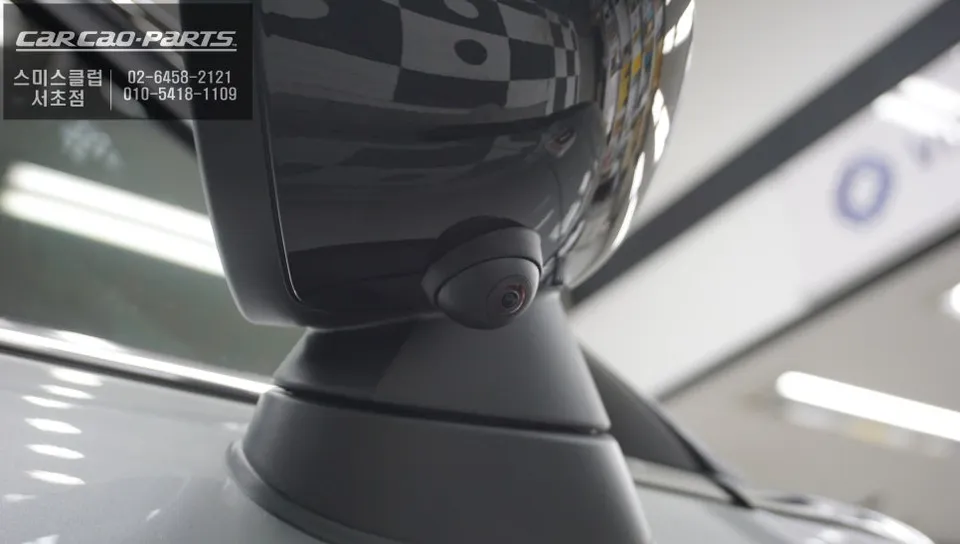

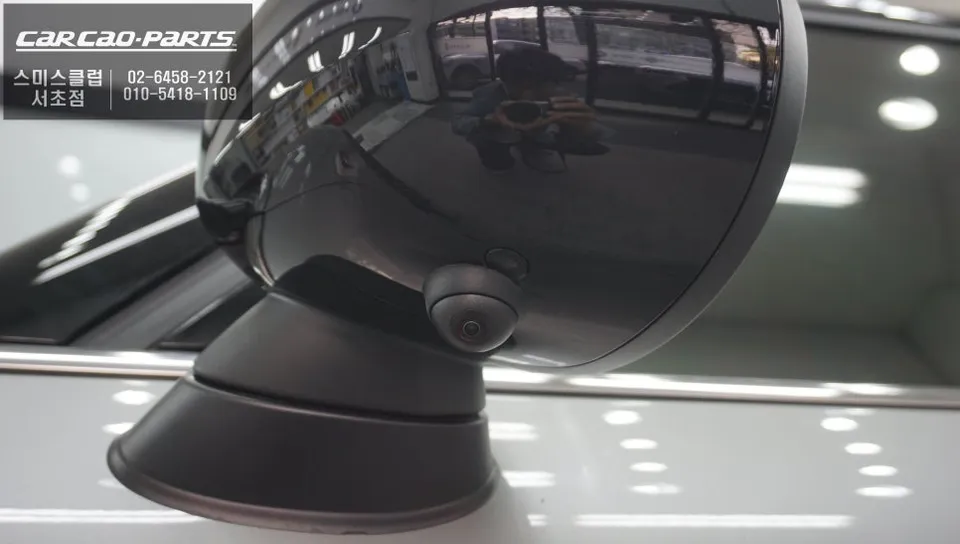

This advanced system utilizes four wide-angle cameras strategically placed at the front, rear, left, and right of the vehicle. These cameras capture a comprehensive 360-degree view of the car's surroundings. Crucially, the precise positioning of each camera is paramount. Installation isn't a simple matter of sticking them on; it requires accurate measurement and precise drilling to ensure optimal performance. Even minor deviations in side camera placement can affect the accuracy of the on-screen vehicle calibration (known as "empty load calibration"). Our experienced technicians, with hundreds of successful MINI installations under their belt, possess the expertise to guarantee exact camera positioning.

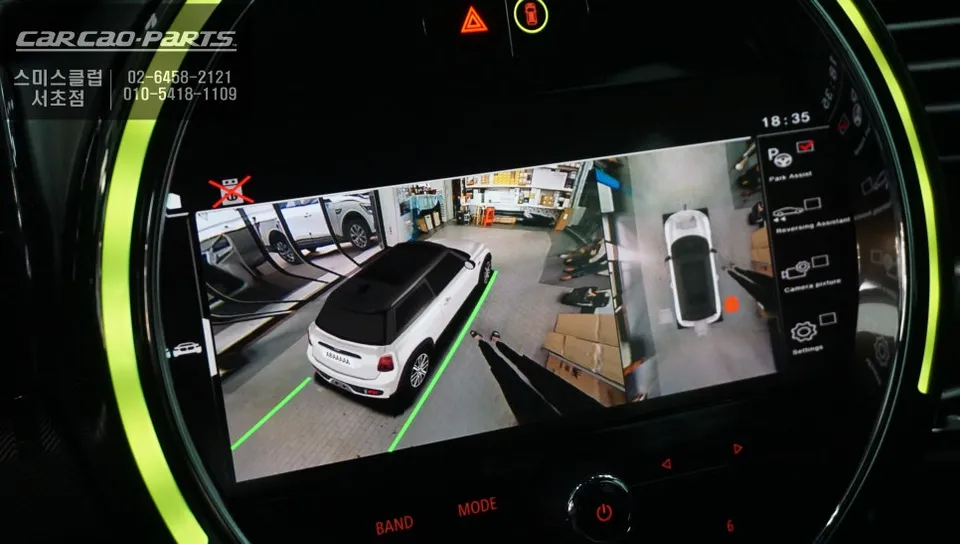

The most impressive visual output from these four cameras is undoubtedly the "top view" or "sky view." This feature presents a seamless 360-degree panorama, as if viewed from directly above the vehicle. It provides an unparalleled overview of obstacles, other cars, and pedestrians around your MINI, significantly aiding in collision prevention, especially during parking. Drivers who are less confident with parking will find immense value in this capability.

Installation Process:

1. Precise camera placement and drilling based on vehicle-specific measurements.
2. Connection of the around view interface module using "plug-by-plug" connectors, avoiding any cutting or damage to original wiring.
3. Integration with the vehicle's original monitor via LVDS high-definition connection.
4. Calibration of camera views for accurate 360-degree stitching and on-screen vehicle representation.
5. Testing of all integrated features, including PAS and PDC sensor synchronization.

Seamless Integration with "Plug-by-Plug" Installation

Integrating an around view system into a MINI without compromising its original electrical components can be challenging. However, our method employs a "plug-by-plug" technique. This involves connecting a custom-designed interface directly to the factory connection points, eliminating the need to cut or modify any original wiring. This ensures that the vehicle's original electrical system remains untouched and can be easily restored to its original state if desired.

The connection to the original monitor utilizes a high-definition LVDS input/output, minimizing video signal loss and preserving the responsiveness of touch controls and the iDrive dial. Features like the dynamic parking assist lines (PAS), which indicate the vehicle's intended path, and the integration with the original front and rear parking distance control (PDC) sensors are all seamlessly displayed on the around view screen, providing a completely integrated and user-friendly experience.

Bonus: Built-in Black Box Functionality

An often-overlooked benefit of this around view system is its integrated video recording capability. The footage captured by the four cameras can be continuously recorded, effectively serving as a multi-directional dashcam. In the unfortunate event of an accident, having video evidence from all angles—front, rear, left, and right—can be invaluable for determining fault. While this advanced recording feature is typically found in premium options on high-end domestic or luxury imported vehicles, it's now accessible for your MINI.
